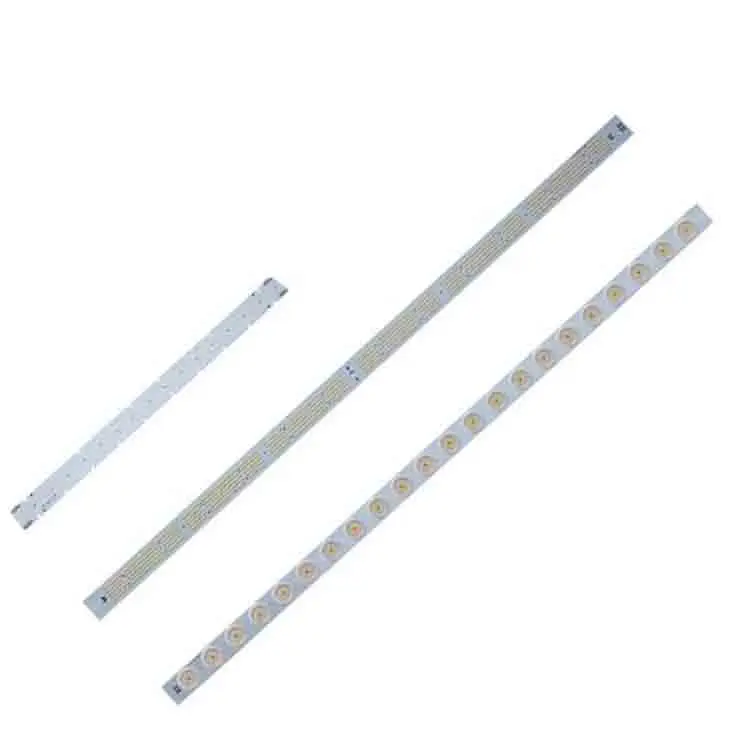

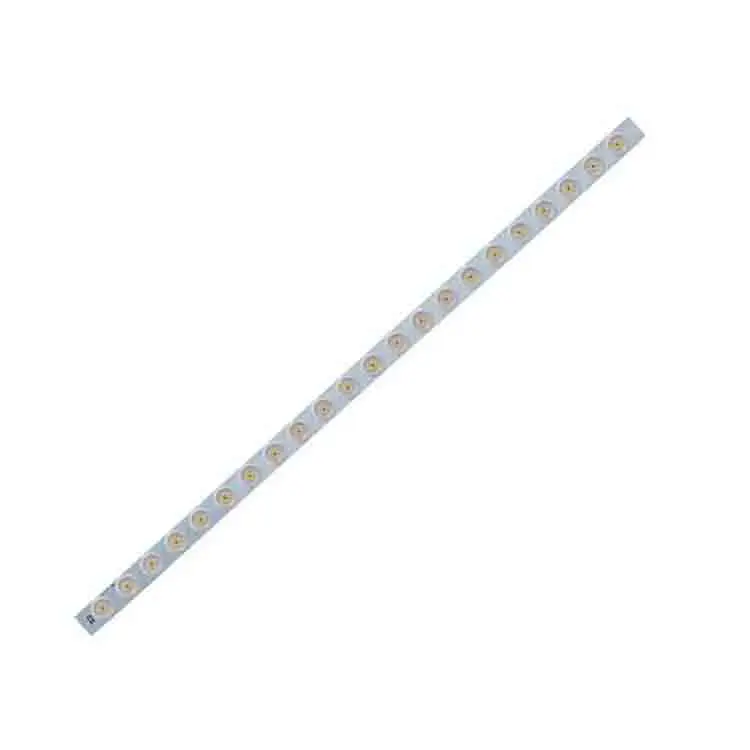

3 years warranty 2.9 umol/j Samsung LM301B 40w 50W Full Spectrum with red far red UV 660nm 730nm 395nm LED plant grow light PCB
- Category: >>>
- Supplier: Huizhou Createlit Technology Co. Ltd.
Share on (1600744648022):
Product Overview
Description
3 years warranty 2.9 umol/j Samsung LM301B 40w 50W Full Spectrum with red far red UV 660nm 730nm 395nm LED plant grow light PCB
Profile:
3 years warranty 185-265VAC Samsung LM301B LM301H Full Spectrum with 660nm 730nm 395nm LED module PCB for plant grow light
Life span: 50000 hours
Lower power consumption
No UV no IR light radiation
No mercury or other inorganics
No spots, no shadow
Highest optical efficiency
Color temperature for white:
Warm white: 2400-3500K
Pure white: 4000-5500K
Cool white: 6000-7000K
Save and stable for using
CE, Rohs certification
Energy saving
Environment friendly
Warranty time: 3 years
Specifications:
3 years warranty 185-265VAC Samsung LM301B LM301H Full Spectrum with 660nm 730nm 395nm LED module PCB for plant grow light
Golden wire copper bracket 2835 SMD LED
Lumen efficiency: >160 LM/W
Aluminum PCB
LED quantity: 144pcs or 168 pcs
PCB size:
Length: 1120mm
Width: 20mm
PCB thickness: 1.5mm
PCB material:Aluminum

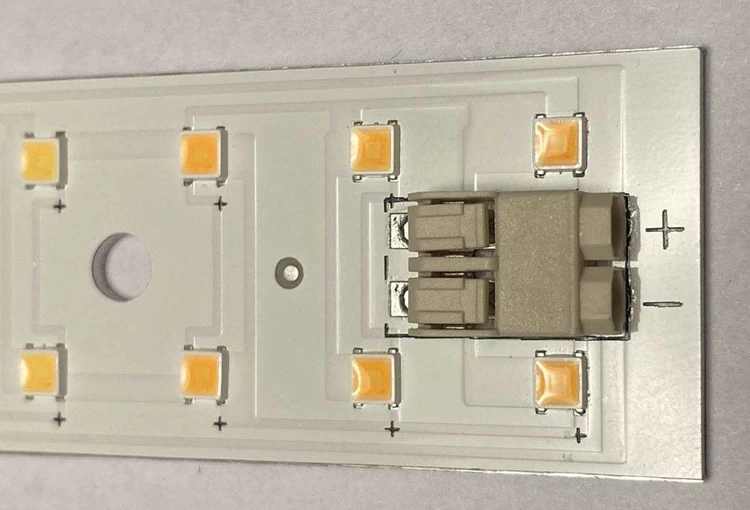

With Push-in connector for easy assembling
1.0 ounce for copper layer of PCB
Main characteristics:
| Model No. | LED Q'ty/pc | Power | Current | Voltage |
| CL-1120X20-2835-144 | 144 | 36W | 350mA | DC48V |
| CL-1120X20-2835-169 | 169 | 50W | 300mA | DC168V |

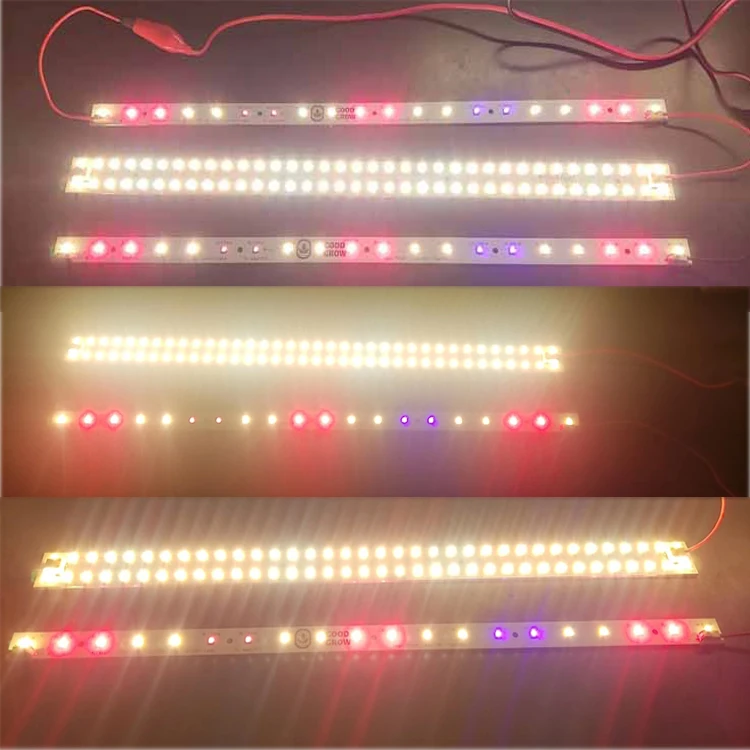

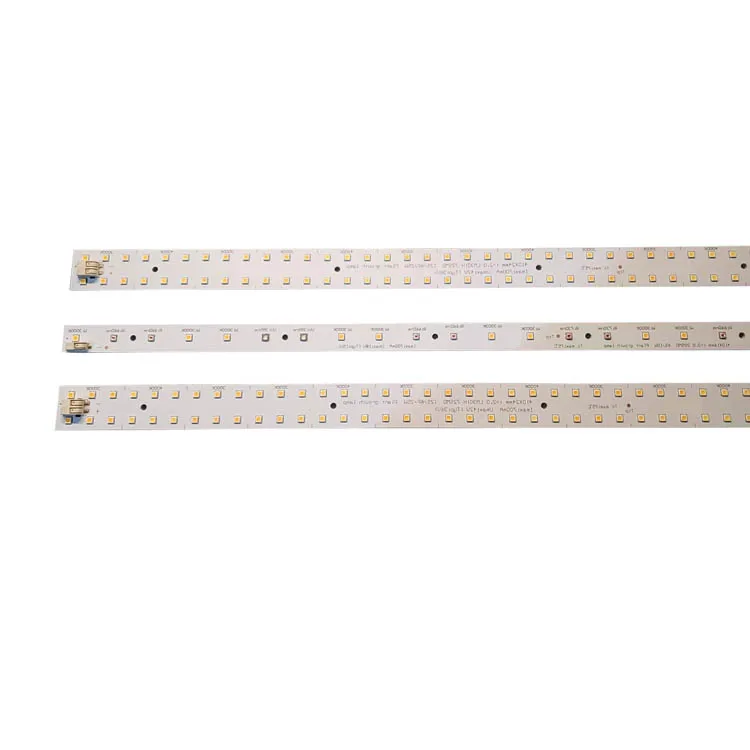

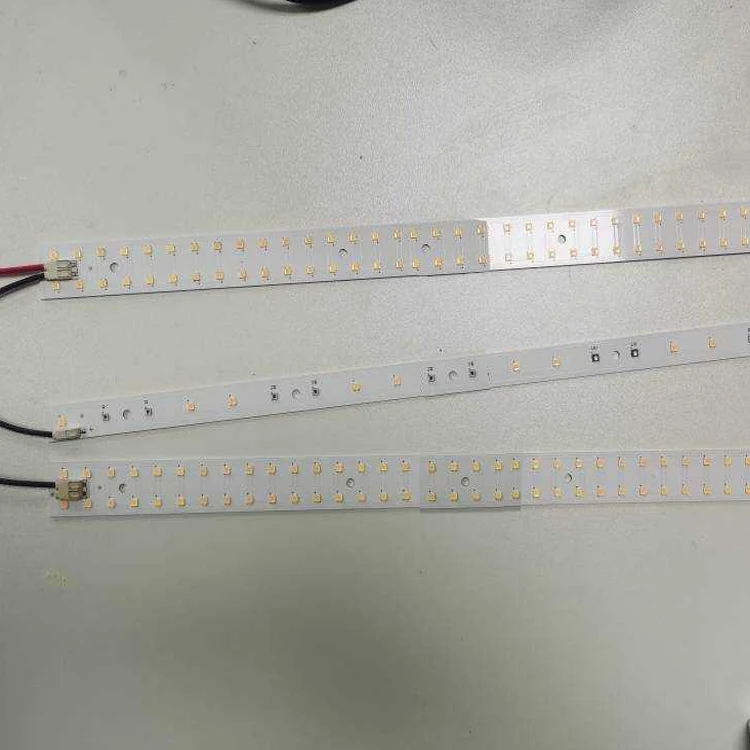

Pictures:

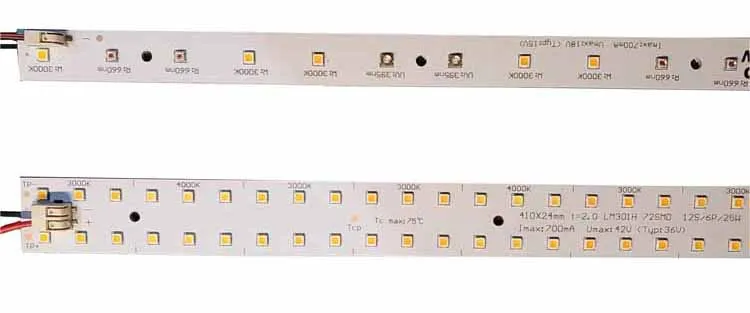

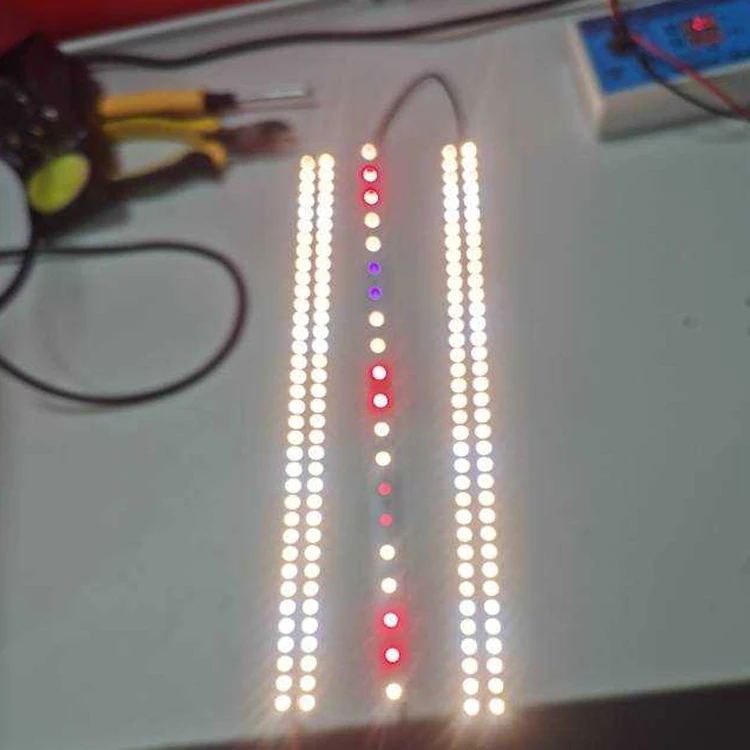

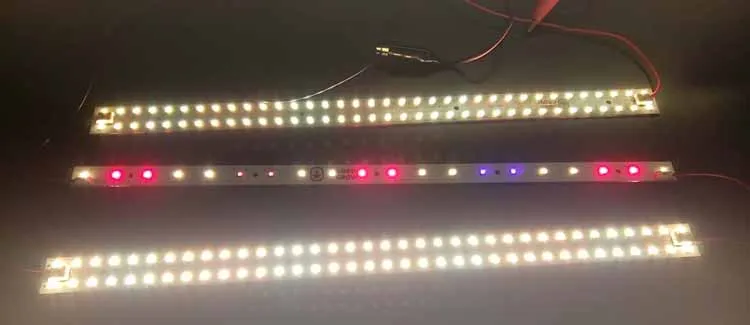

LEDs:
Dimensions (mm):

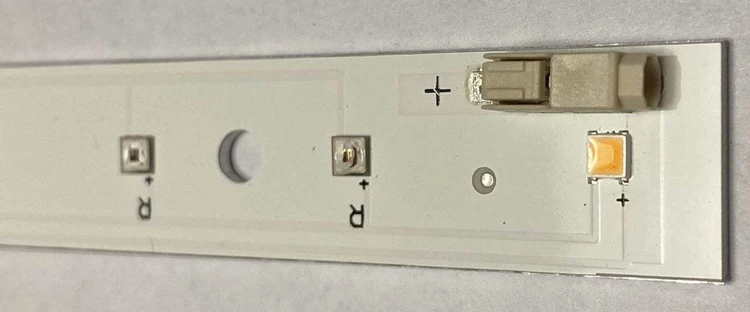

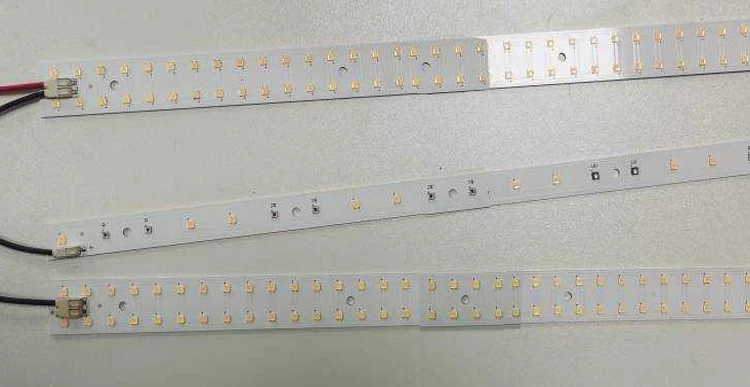

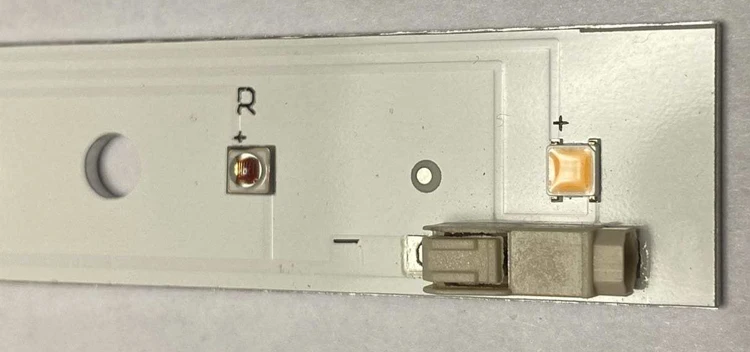

Wire connections:

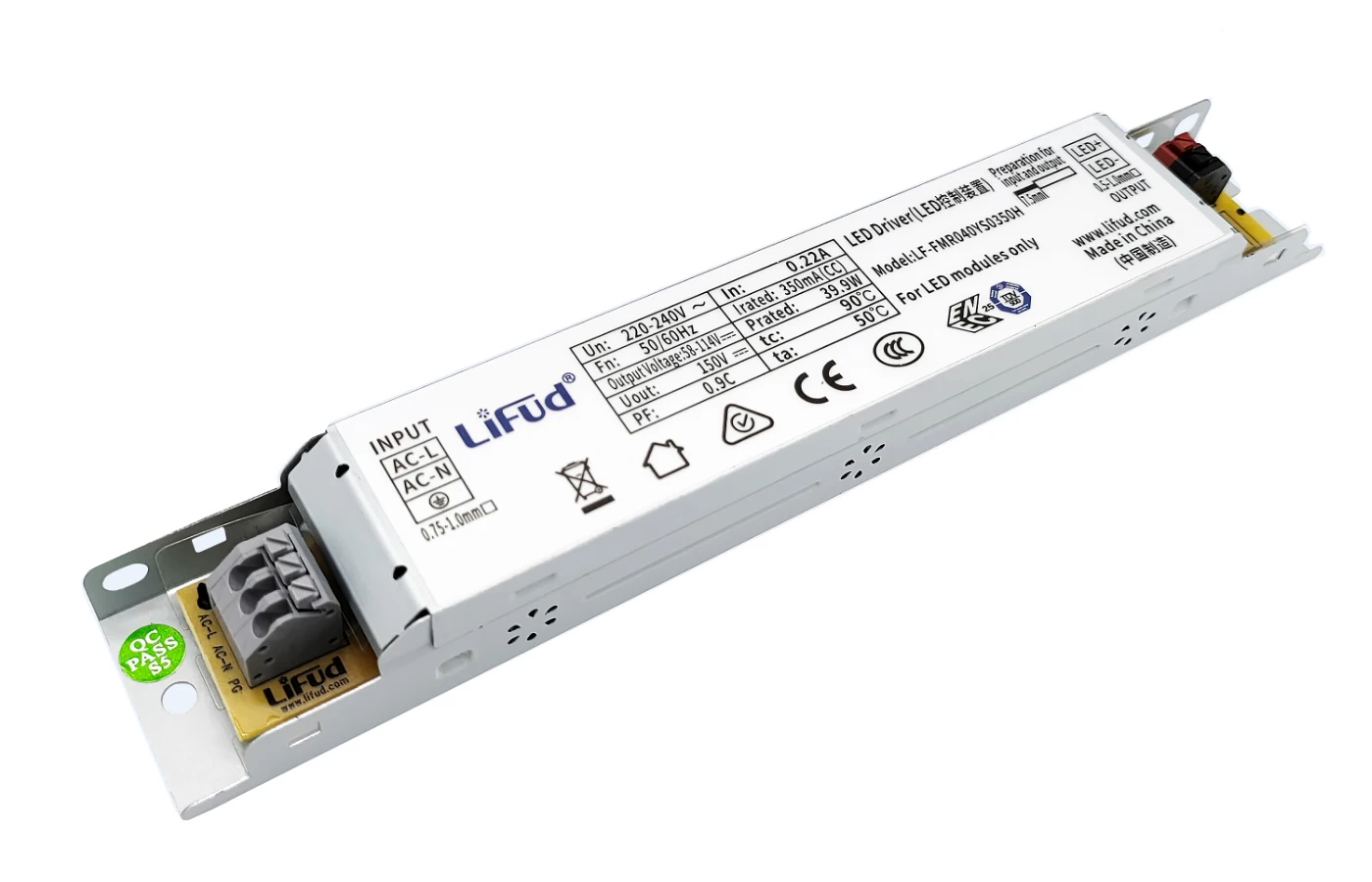

Parameters of power supplier:
| Input voltage | Output voltage | Output current | Power | Size | Warranty time |
| AC100-240V | 58-114VDC | 200-350MA | 40W | L195X W30 XH 21MM | 5 years |
| AC100-240V | 150-210V | 200-350mA | 50W | L245X W30 XH 21MM | 5 years |

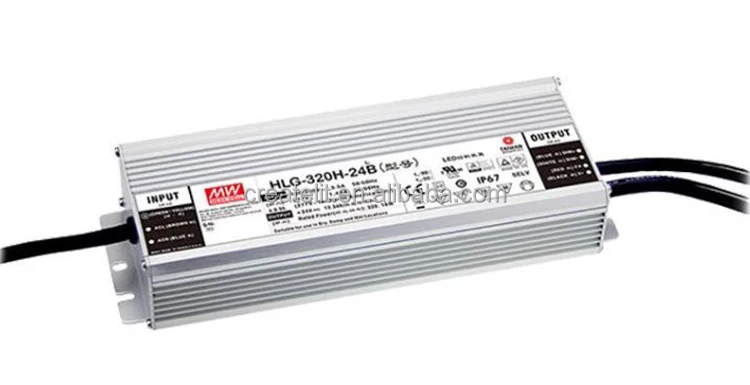

| Input voltage | Output voltage | Power | IP grade | Dimmable mode | Warranty time |
| AC90-305V | DC48V/DC24V | 320W | IP67 | 1-10V | 7 years |
Environmental requirements:
Working temperature: -20~40 ℃
Storage temperature: -20~80 ℃
Working humidity: 30%~85%
Storage humidity: 10%~90%
Buyer Feedback
Company Profile
HuiZhou CreateLit Technology Co.Ltd was established in 2019. There are 300 square meters for our factory. We specialize in offering professional service and reliable quality products to our cooperation partners. We have over 10 years production experience in LED area. Our products mainly include LED strips, LED linear module, LED tubes, LED panel lights, LED floodlights, LED high bay lights, and so on. We have cooperated with project customers, supermarkets, advertisement companies, wholesalers, trading companies, and so on. We have sold our products to all of the world, such as Europe markets, America markets, Australia markets, Japan, and so on. Offering our high quality products to the high end markets customers is our goal.
We cooperated with MeanWell TaiWan for driver, with Osram, Cree, Refond Taiwan for LED, and so on. And all of the materials (such as PCB, product house, wires) we use for our products are high quality and environment-friendly.
Each month we design new products to meet our customer demands. The new products are including new features, or new functions, or new structures, or new appearances. We always try our best to offer more energy-saving more environment-friendly and high cost-effective products to the markets.
Create the future with our customer partners together.
Certificate
Package & Shipment
FAQ
Q
Can I have a sample order?
A
Yes, welcome sample order to test and check quality. Mixed samples are acceptable.
Yes, welcome sample order to test and check quality. Mixed samples are acceptable.
Q
What about the lead time?
A
For sample order, it needs 5-7 days.For mass production order, it needs around 15 -25 days.
For sample order, it needs 5-7 days.For mass production order, it needs around 15 -25 days.
Q
Do you have MOQ requirements?
A
No, all quantities are available.
Q
Can you accept OEM or ODM orders?
A
Yes, OEM and ODM both are ok for us. We also can design new products as your requriements.
Q
How do you ship your goods and how long does it take to arrive?
A
We usuall ship by DHL, UPS ,FEDEX or TNT for small order. It usually takes 3-7 days to arrive. For large orders, we ship by air or by sea.
Q
Do your products face to high end markets or lower end markets?
A
Our products face to high end markets. Our products have high quality. And we offer long warranty time from 3-5 years.
Q
What beam color temperatures for your products?
A
From 2200K to 10000K all are available.
Q
Can you accept special size and appearance products order?
A
Yes, we can open the new board for you.
