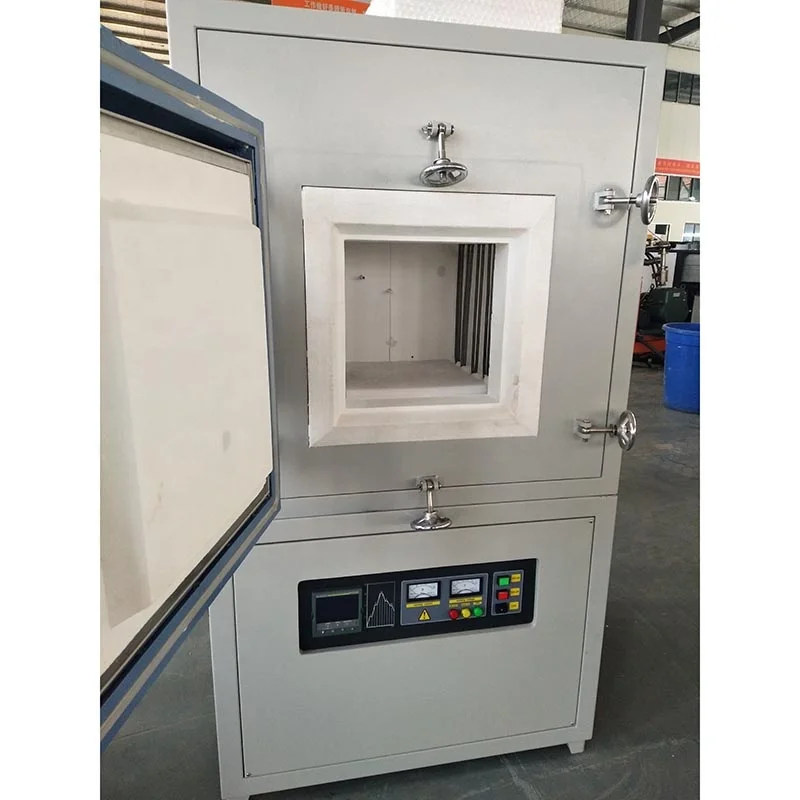

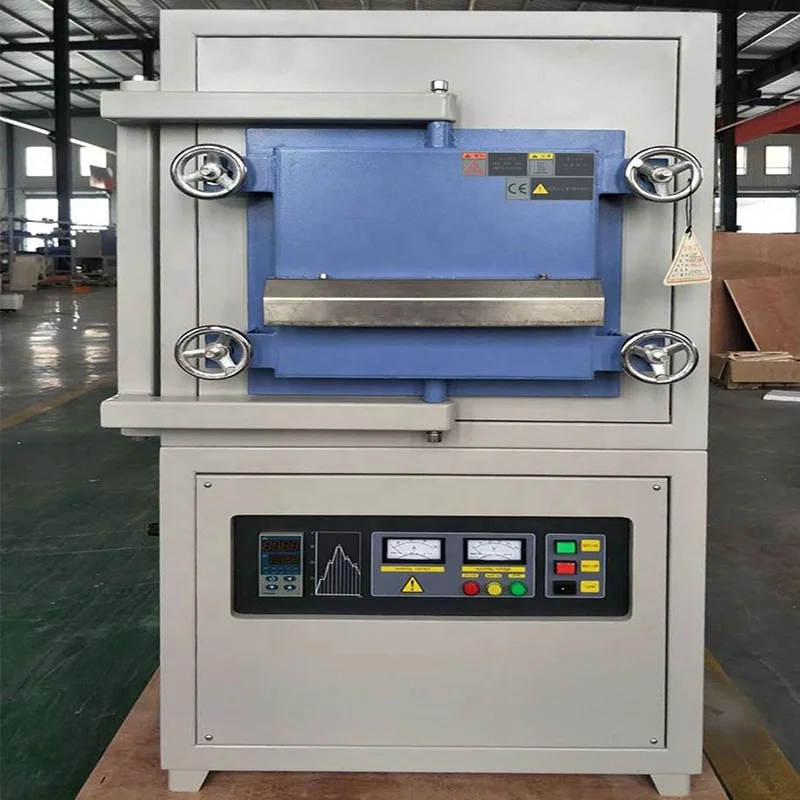

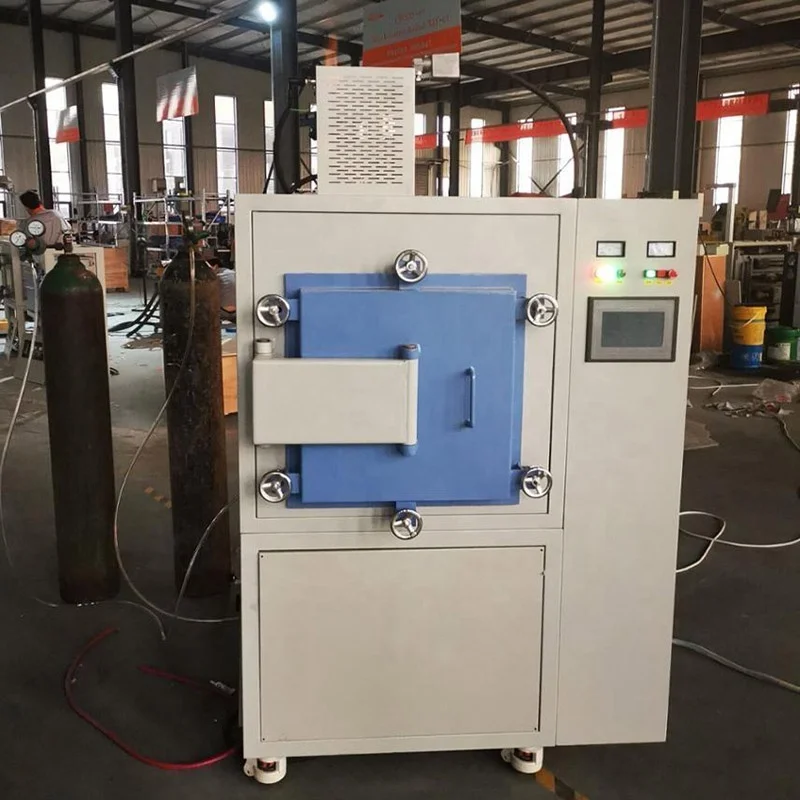

Vacuum supply box type atmosphere sintering furnace/ N2 H2 Inert Gas Furnace
- Category: >>>
- Supplier: Zhengzhou Magic Machinery Co. Ltd.
Share on (1600744701476):
Product Overview
Description
Product Description

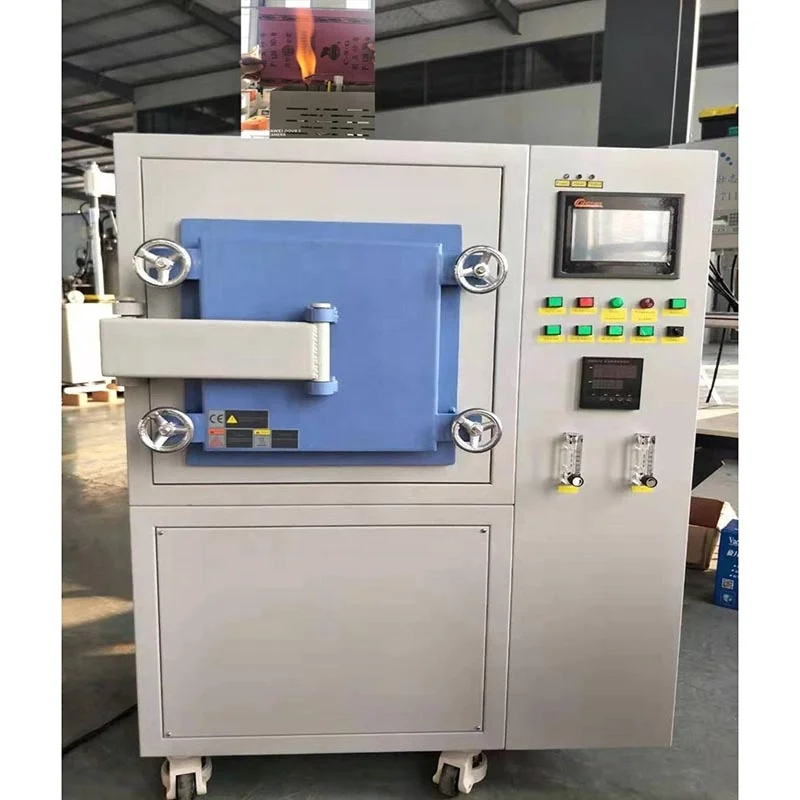

Vacuum supply box type atmosphere sintering furnace/ N2 H2 Inert Gas Furnace
Specification
Chamber size | 200x200x200mm (Width * Height * Depth) (8 Liter) | ||||||
Max. temperature | 1200 C (<2hour) | 1400 C (<2hour) | 1700 C (<2hour) | ||||
Working temperature | 1100 C | 1300 C | 1600 C | ||||
Temperature controlling | PID automatic control via SCR (Silicon Controlled Rectifier) power control with phase angle fired, current limiting resistor. | ||||||
51 programmable segments for precise control of heating rate, cooling rate and dwell time. | |||||||
Built in PID Auto-Tune function with overheating & broken thermocouple broken protection. | |||||||
Over temperature protection and alarm allows for operation without attendant. | |||||||
Temperature accuracy | ±1C | ||||||
Temperature Uniformity | ±5C over 120mm | ||||||
±3C over 80mm | |||||||
Heating rate | 0-20C /min | ||||||
Vacuum | 10 Pa | ||||||
Atmosphere | Inert gas like nitrogen and argon | ||||||
Thermocouple | K type | S type | B type | ||||
Heating element | Heating wire | SiC heating element | MoSi2 Heating element | ||||
Furnace Chamber | 2 layers of ceramic fiber insulation | 3 layers of ceramic fiber insulation | 3 layers of ceramic fiber insulation | ||||
1st: 1430°C ceramic fiber board | 1st: 1700°C ceramic fiber board | 1st : 1800°C ceramic fiber board | |||||
2nd: 1260°C ceramic fiber board | 2nd:1430°C ceramic fiber board | 2nd: 1600°C ceramic fiber board | |||||
3rd: 1260°C ceramic fiber board | 3rd: 1260°C ceramic fiber board | ||||||
Furnace structure | Double layer steel casing with dual cooling fan, surface temperature below 60C | ||||||

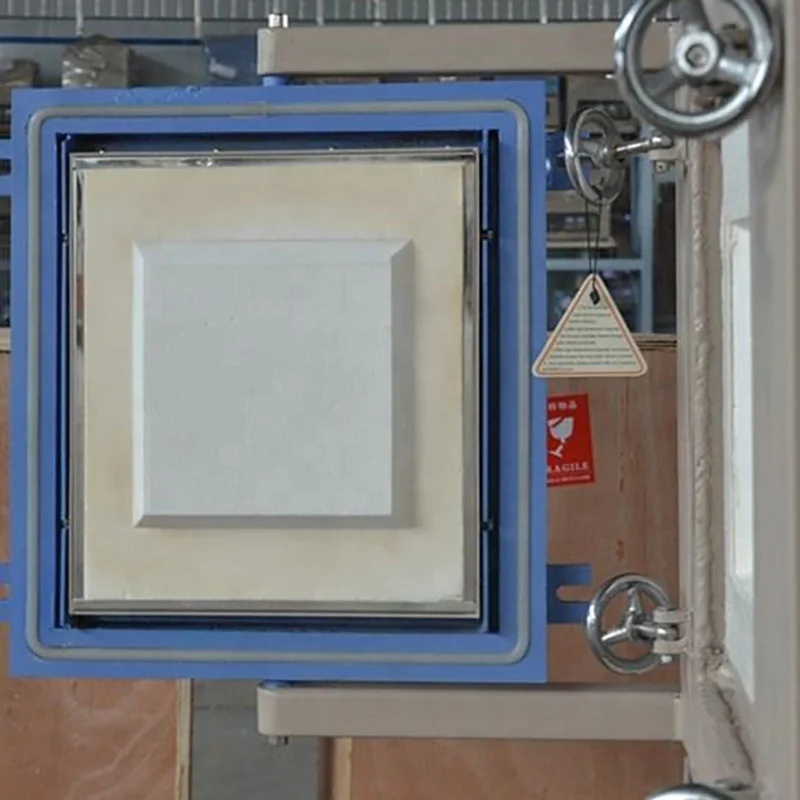

Furnace door | Front-side open | ||||||
Power cutting off when furnace door open | |||||||
Working voltage | 110V or 220V or 380V, 50HZ or 60HZ | ||||||
Rated power | 7KW | ||||||
Stander chamber size (mm) | 100x100x100 120x120x130 150x150x150 150x150x200 200x200x200 200x200x300 250x250x300 300x300x300 300x300x400 350x350x500 400x400x400 450x450x450 500x500x500 600x600x600 800x800x800 900x900x900 Note: the chamber size can be customized | ||||||
Company Profile
Zhengzhou Magic Group Company located in middle of China Zhengzhou City .We concentrates on R&D all kinds of furnaces ,engines and buses . Branch company have professional production line , 50 technicians & designers & engineer team .
Magic Group has 3 branches company ,one of which is professional with high temperature furnaces for more than 10 years . Very famous on market also . Providing high quality furnaces to all over the world .
In the past ten years we attend many exhibitions to expand our market. From 2012 we start our international business . Provide machines to overseas for more than 10 years .Since the establishment of the company with high-quality products, reasonable price, sincere service attitude to acquire new and old customers alike.
Our main business includes :High temperature Furnaces : Lab furnace 、Vacuum furnace 、Atmosphere furnace、Muffle furnace 、Car Bottom Furnace
engine (re-new engine & used engine)、Gearbox assembly transmission assembly 、Bus (Re-new bus & used bus )、used Construction Machinery vehicle.
Our company is 7 days * 24 hour hot-line & email service . Your inquiry will be replied within 24 hours . Well-trained and experienced staff will answer all questions in fluent English .
If quality & assembling problem caused troubles , we will take responsible on spare parts and all service fees .Warranty & regular complain system .
Magic Group has 3 branches company ,one of which is professional with high temperature furnaces for more than 10 years . Very famous on market also . Providing high quality furnaces to all over the world .
In the past ten years we attend many exhibitions to expand our market. From 2012 we start our international business . Provide machines to overseas for more than 10 years .Since the establishment of the company with high-quality products, reasonable price, sincere service attitude to acquire new and old customers alike.
Our main business includes :High temperature Furnaces : Lab furnace 、Vacuum furnace 、Atmosphere furnace、Muffle furnace 、Car Bottom Furnace
engine (re-new engine & used engine)、Gearbox assembly transmission assembly 、Bus (Re-new bus & used bus )、used Construction Machinery vehicle.
Our company is 7 days * 24 hour hot-line & email service . Your inquiry will be replied within 24 hours . Well-trained and experienced staff will answer all questions in fluent English .
If quality & assembling problem caused troubles , we will take responsible on spare parts and all service fees .Warranty & regular complain system .
High temperature heat treatment advance ceramic sintering electric laboratory kiln
1700C fluorescent powder coating sintering resistance muffle furnace,China manufacturers price
Best Selling PID Auto Control High temperature 1700 degree industrial ceramic small kiln
Product Packaging & Shipping
FAQ
1. What is the MOQ ?
1 set for our standard furnace.
2. Can I ask for special designs?
Sure! And it's Free!
3. Can I get a lower price if I order large quantities?
Yes, cheaper prices with more bigger size orders.
4. Can I send the sample to you to test the furnace before I buy it ?
Yes, and the testing is Free!
5. When you ship my order?
Normally 30 days after receiving your payment or based on order qty and production schedule.
6. How about the quality guarantee period?
One year!
7. How can you guarantee the production quality ?
We have more than 10years experience in this field. We have strictly quality control system in our production process. We have 4 times inspection for each finished product before package
8. How can I know your factory can produce equipment i need?
Re: Contact us and let us know your requirements of equipment. Then we will send these requirements to our technical department. So we will know whether our factory can offer you equipment or not.
9. Do your company customize equipment for customer?
Re: yes, we can customize equipment according to customers' requirement ;
10. What is your delivery time?
For some normal standard size furnaces and components, we have in stock; So we can send out in 2-3 days; Other customized sizes the delivery time is from 15 days to 30 days according to different products request.
11. What is your advantage?
We are a manufacturer in China. So we can control the cost well.
We use the top material in our furnace, imported ceramic fiber and accuracy temperature controller.
1 set for our standard furnace.
2. Can I ask for special designs?
Sure! And it's Free!
3. Can I get a lower price if I order large quantities?
Yes, cheaper prices with more bigger size orders.
4. Can I send the sample to you to test the furnace before I buy it ?
Yes, and the testing is Free!
5. When you ship my order?
Normally 30 days after receiving your payment or based on order qty and production schedule.
6. How about the quality guarantee period?
One year!
7. How can you guarantee the production quality ?
We have more than 10years experience in this field. We have strictly quality control system in our production process. We have 4 times inspection for each finished product before package
8. How can I know your factory can produce equipment i need?
Re: Contact us and let us know your requirements of equipment. Then we will send these requirements to our technical department. So we will know whether our factory can offer you equipment or not.
9. Do your company customize equipment for customer?
Re: yes, we can customize equipment according to customers' requirement ;
10. What is your delivery time?
For some normal standard size furnaces and components, we have in stock; So we can send out in 2-3 days; Other customized sizes the delivery time is from 15 days to 30 days according to different products request.
11. What is your advantage?
We are a manufacturer in China. So we can control the cost well.
We use the top material in our furnace, imported ceramic fiber and accuracy temperature controller.
