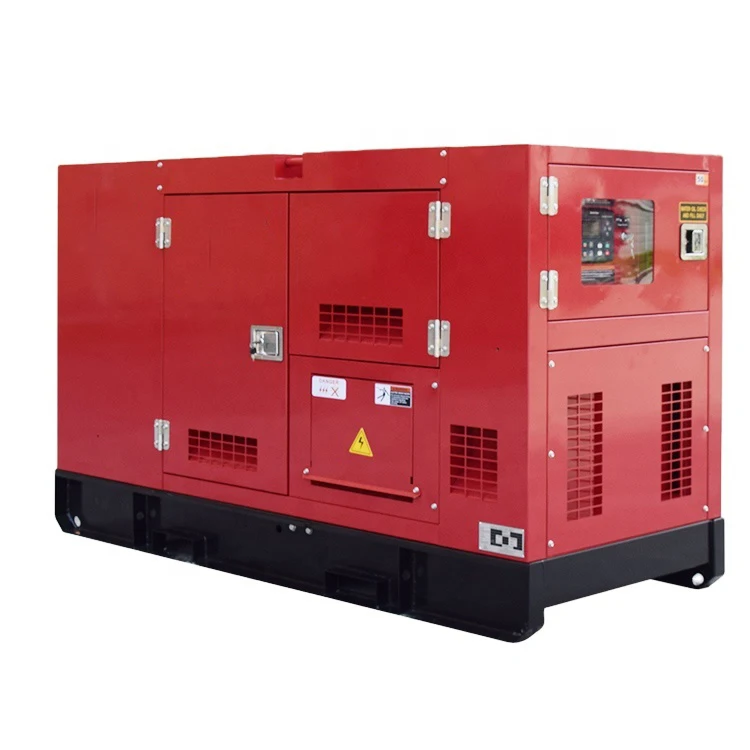

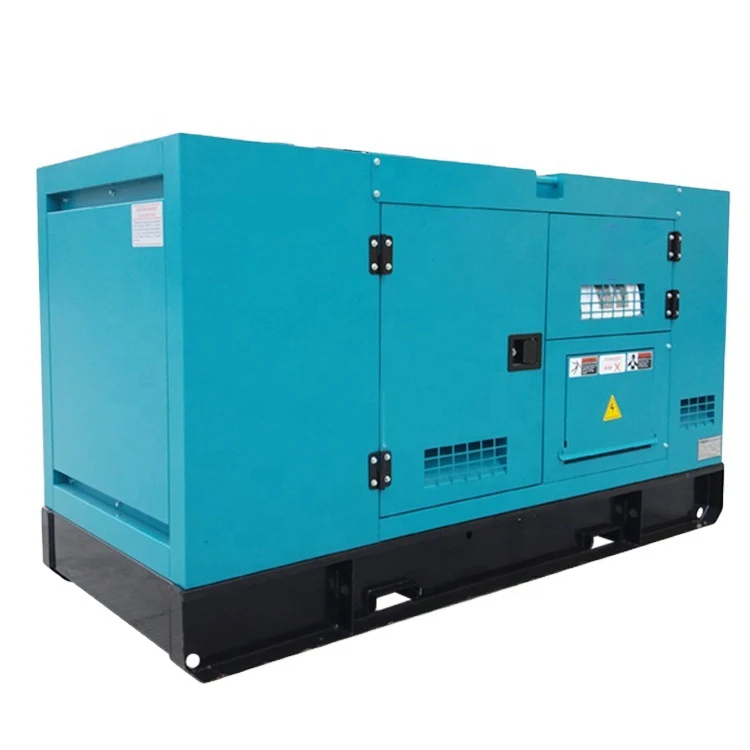

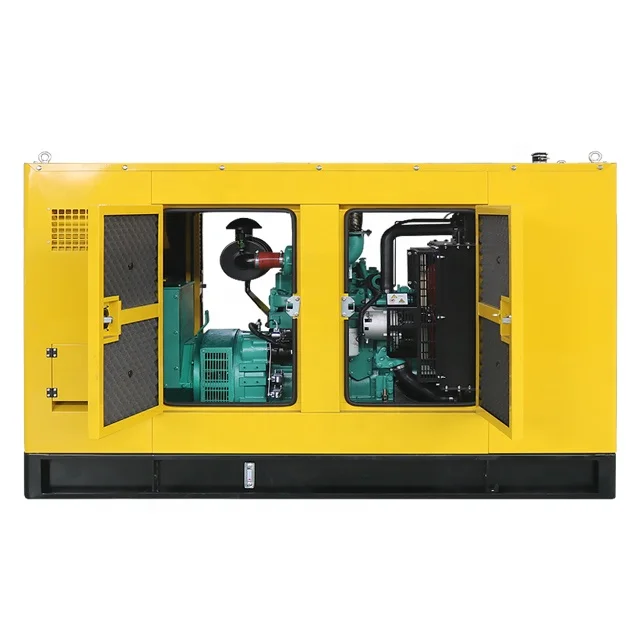

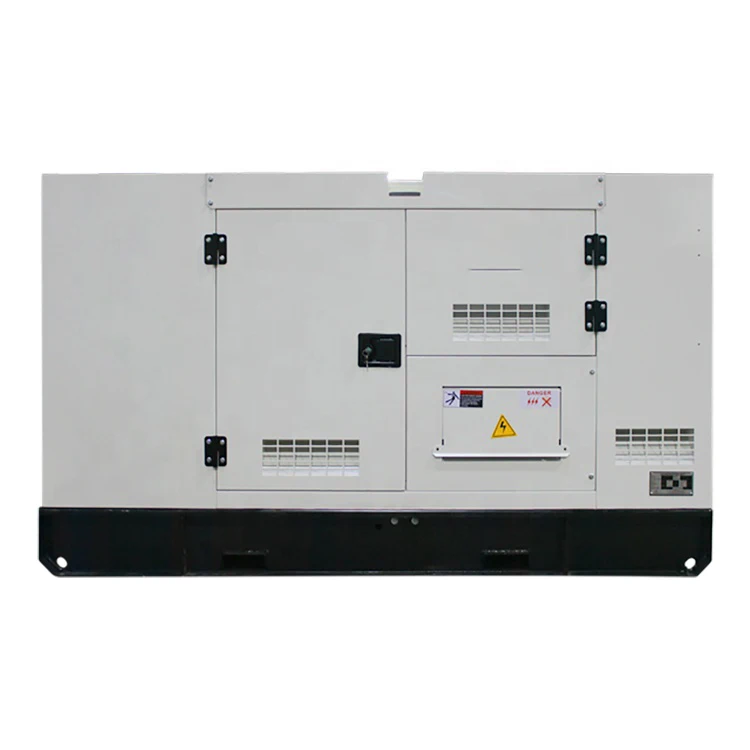

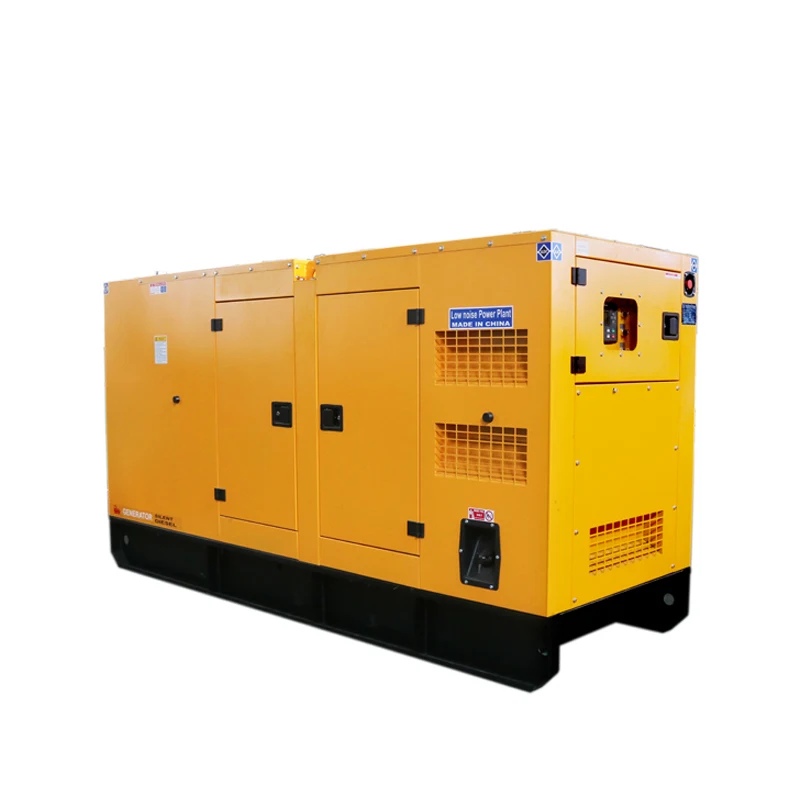

60HZ Standby Power 40 KVA Diesel Generator 32 KW Silent Genset
- Category: >>>
- Supplier: Qingdao Moore Golden International Trade Co. Ltd.
Share on (1600744945894):
Product Overview
Description
Product Description
Specification

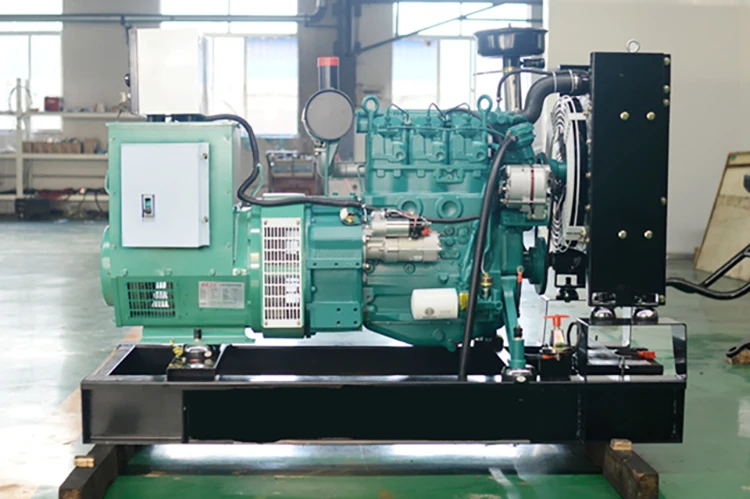

Technical parameters of diesel generator set | |||||
Generator set model:MG32GF | Steady state voltage adjustment rate (%):≤± 1 | Steady state voltage adjustment rate (%):≤± 1 | |||
Generator power:32kW/40kVA | Voltage fluctuation rate (%):≤ ± 0.5 | Voltage fluctuation rate (%):≤ ± 0.5 | |||
Power factor:COSΦ = 0.8 (lagging) | Transient voltage adjustment rate (%):+20 ~-15 | Transient voltage adjustment rate (%):+20 ~-15 | |||
Output voltage:400V/230V | Voltage stabilization time (s):≤1 | Voltage stabilization time (s):≤1 | |||
Generator set current:54A | Steady state frequency adjustment rate (%):≤ ± 1 | Steady state frequency adjustment rate (%):≤ ± 1 | |||
Rated frequency:50Hz | Frequency fluctuation rate (%):≤ ± 0.5 | Frequency fluctuation rate (%):≤ ± 0.5 | |||
Rated speed:1500rpm | Transient frequency adjustment rate (%):+ 10 ~ -7 | Transient frequency adjustment rate (%):+ 10 ~ -7 | |||
Fuel grade:(standard) 0 # light diesel (normal temperature) | Frequency stabilization time (S):≤3 | Frequency stabilization time (S):≤3 | |||
Diesel generator size:1720*600*1200 (L*W*H mm) | Diesel generator fuel consumption (100% load):205g/kW·h | Diesel generator fuel consumption (100% load):210g/kW·h | |||
Diesel generator weight:700kg | Diesel generator volume(LP7m):95dB(A) | Diesel generator volume(LP7m):95dB(A) | |||
Technical parameters of diesel engine | |||||
Diesel engines brand:Ricardo engine | Cooling method: Closed water-cooling | Cooling method: Closed water-cooling | |||
Diesel engines model: ZH4105D | Oil supply method: direct injection | Oil supply method: direct injection | |||
Engine cylinder number: 4 / L Type | Speed regulation method: Mechanical | Speed regulation method: Mechanical | |||
Bore stroke: 108*115 mm | Intake method: Natural inhalation | Intake method: Natural inhalation | |||
Compression ratio: 19:1 | Overload capacity: 110% | Overload capacity: 110% | |||
Start method:DC 12V Electric start | Diesel engines Speed: 1500rpm | Diesel engines Speed: 1500rpm | |||
Technical parameters of generator | |||||
Generator brand:LY Brushless Generator | Protection level:IP22 | Protection level:IP22 | |||
Generator Model:LY-32 | Wiring mode:Three-phase four-wire, Y-connection | Wiring mode:Three-phase four-wire, Y-connection | |||
Generator power: 32kW/40kVA | Adjustment method: AVR (Automatic Voltage Regulator) | Adjustment method: AVR (Automatic Voltage Regulator) | |||
Rated voltage: 400V / 230V | Output frequency: 50Hz | Output frequency: 50Hz | |||
Insulation class: H class | Output factor: COSΦ = 0.8 (lag) | Output factor: COSΦ = 0.8 (lag) | |||
Genset standard features | |||||
1),Direct injection internal combustion engine(Diesel); | |||||
2),AC synchronous generator(Single Bearing); | |||||
3),Water Radiator design for 40-45℃ Ambient belt-driven fans and guards; | |||||
4),Generation output air switch,Standard control panel; | |||||
5),Steel common base with shock absorber; | |||||
6),Dry-type air filter fuel filter,oil filter,starting motor,Self-charging alternator; | |||||
7),starter battery and connecting cables; | |||||
8),Industrial 9dB muffler and accessories; | |||||
9),The engine and alternator’s original technical papers,manuals and testing reports ship with GenSet; | |||||
Optional accessories(Extra charged) | |||||
1),Engine oil,diesel,water jacket,Anti-condensation heater | |||||
2),Battery floating charger | |||||
3),Self-protection unit/self-starting control panel | |||||
4),Tree-remote control panel | |||||
5),ATS AUTO-loaded transferring screen | |||||
6),Daily fuel tank,Integral fuel tank | |||||
7),Waterproof type(Cabinet) | |||||
8),Mobile trailer(Drip proof) | |||||
9),Mobile trailer(Silent type) | |||||
Packing & Delivery
plywood case packing
Company Profile

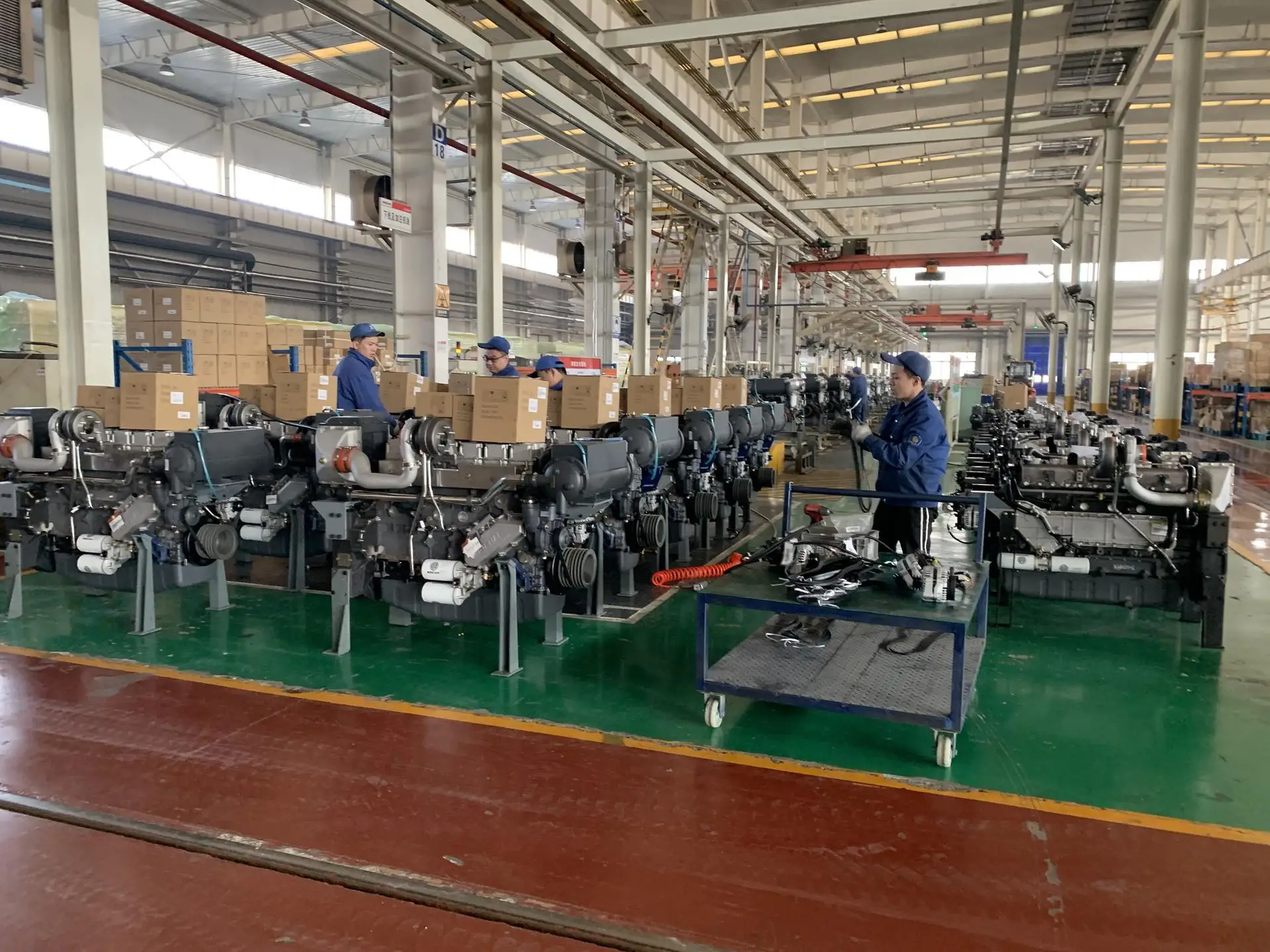

Qingdao Moore Power is located in the diesel engine manufacturing city, Weifang. For many years, we have become a professional manufacturer of diesel generators.

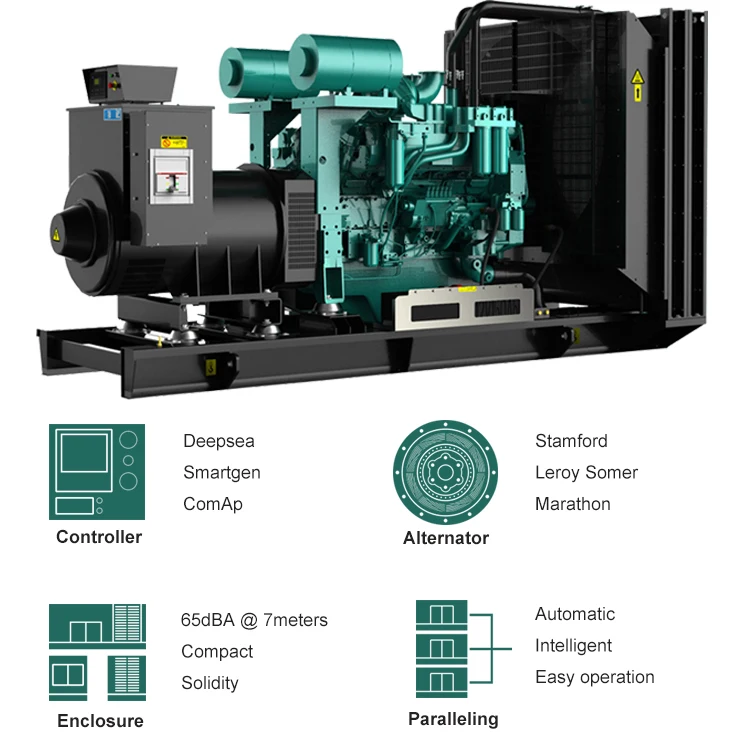

The power range of our generating set is from 5KW to 2200KW. It is coupled by world famous brand engine such as CUMMINS, PERKINS, DEUTZ, DOOSAN, YUCHAI etc., with world famous brand alternator such as STAMFORD, MARATHON, LEROY SOMER, etc. And we are the OEM manufacturer of Cummins, Doosan, Yuchai and so on. Our products are with advantage of Lower noise, lower vibration, easily starting, reliable performance, which can be widely used in factories, mines, banks, hospitals, ship building, telecommunications, oil fields, buildings, construction fields and other fields, or used as the standby power.
QD Moore has import and export rights, we has establish business relationship with 28 provinces, municipalities and autonomous regions, mainly export products to over 40 countries and regions in Europe, Africa, South America, Latin America, Southeast Asia, West Asia and other, already establish a solid partnership with more than 20 countries in Asia, Africa, the Americas, Europe etc.
We are committed to providing efficient, energy-saving, eco-friendly, high-quality and reliable diesel generator sets to ensure clients' satisfaction. We accept small orders and provide competitive price and high quality. Quick delivery time is also our advantage.
The power range of our generating set is from 5KW to 2200KW. It is coupled by world famous brand engine such as CUMMINS, PERKINS, DEUTZ, DOOSAN, YUCHAI etc., with world famous brand alternator such as STAMFORD, MARATHON, LEROY SOMER, etc. And we are the OEM manufacturer of Cummins, Doosan, Yuchai and so on. Our products are with advantage of Lower noise, lower vibration, easily starting, reliable performance, which can be widely used in factories, mines, banks, hospitals, ship building, telecommunications, oil fields, buildings, construction fields and other fields, or used as the standby power.
QD Moore has import and export rights, we has establish business relationship with 28 provinces, municipalities and autonomous regions, mainly export products to over 40 countries and regions in Europe, Africa, South America, Latin America, Southeast Asia, West Asia and other, already establish a solid partnership with more than 20 countries in Asia, Africa, the Americas, Europe etc.
We are committed to providing efficient, energy-saving, eco-friendly, high-quality and reliable diesel generator sets to ensure clients' satisfaction. We accept small orders and provide competitive price and high quality. Quick delivery time is also our advantage.
FAQ
1.What's your power range of Generators?
Answer: We can offer the range from 10kva~1000kva.
2.What's your delivery time?
Answer: Generally,we can delivery in 7 days after we get the deposit.
3.What are the payment methods for buying equipment?
a,We accept T/T ,and 30% as the deposit,the balance payment should be paid before shipping.
b,We accept Alibaba credit guarantee payment.
c,We accept bank wire payment.
4.What's your warranty?
Answer: All our products we offer on year warranty.
5.What's your MOQ?
Answer:We accept the MOQ is 1 set.
6. Are you a factory or trader ?
We are factory,it is located in Weifang city which is the biggest area of power manufacturing in
China. And we get the import and export right by QingDao Moore Golden trading in order to supply one-stop service which can savelots of cost and time for our customers.
7.How about your design ability? Do you provide OEM service?
We have our own design department and provide design services for thousands of partners. OEM accepts that we provide aconfidentiality agreement "trade secret contract" for your design security.
Optional accessories(Extra charged)
1),Engine oil,diesel,water jacket,Anti-condensation heater
2),Battery floating charger
3),Self-protection unit/self-starting control panel
4),Tree-remote control panel
5),ATS AUTO-loaded transferring screen
6),Daily fuel tank,Integral fuel tank
7),Waterproof type(Cabinet)
8),Mobile trailer(Drip proof)
9),Mobile trailer(Silent type)
Answer: We can offer the range from 10kva~1000kva.
2.What's your delivery time?
Answer: Generally,we can delivery in 7 days after we get the deposit.
3.What are the payment methods for buying equipment?
a,We accept T/T ,and 30% as the deposit,the balance payment should be paid before shipping.
b,We accept Alibaba credit guarantee payment.
c,We accept bank wire payment.
4.What's your warranty?
Answer: All our products we offer on year warranty.
5.What's your MOQ?
Answer:We accept the MOQ is 1 set.
6. Are you a factory or trader ?
We are factory,it is located in Weifang city which is the biggest area of power manufacturing in
China. And we get the import and export right by QingDao Moore Golden trading in order to supply one-stop service which can savelots of cost and time for our customers.
7.How about your design ability? Do you provide OEM service?
We have our own design department and provide design services for thousands of partners. OEM accepts that we provide aconfidentiality agreement "trade secret contract" for your design security.
Optional accessories(Extra charged)
1),Engine oil,diesel,water jacket,Anti-condensation heater
2),Battery floating charger
3),Self-protection unit/self-starting control panel
4),Tree-remote control panel
5),ATS AUTO-loaded transferring screen
6),Daily fuel tank,Integral fuel tank
7),Waterproof type(Cabinet)
8),Mobile trailer(Drip proof)
9),Mobile trailer(Silent type)
