SJSZ Series 51/105 65/132 80/156 Plastic Conical Twin Double Screw Extruder

Product Overview

Description

                Twin Screw Plastic Extruder Conical Double Screw Extruder





Product Description

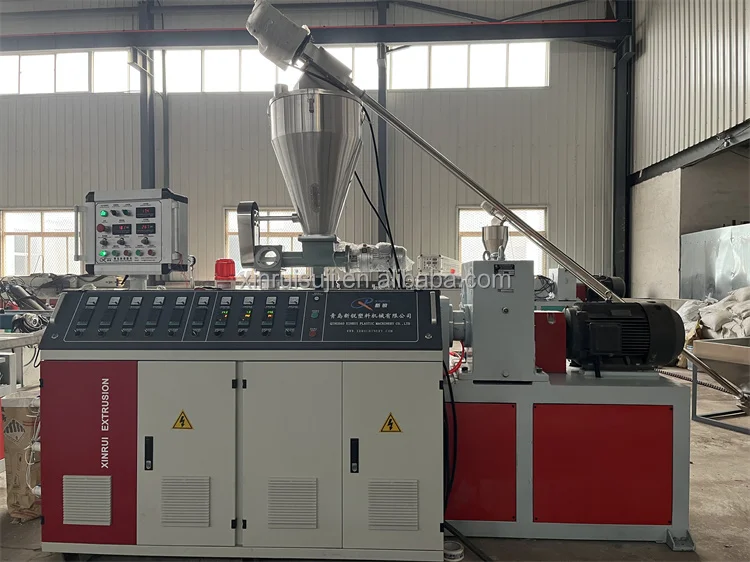

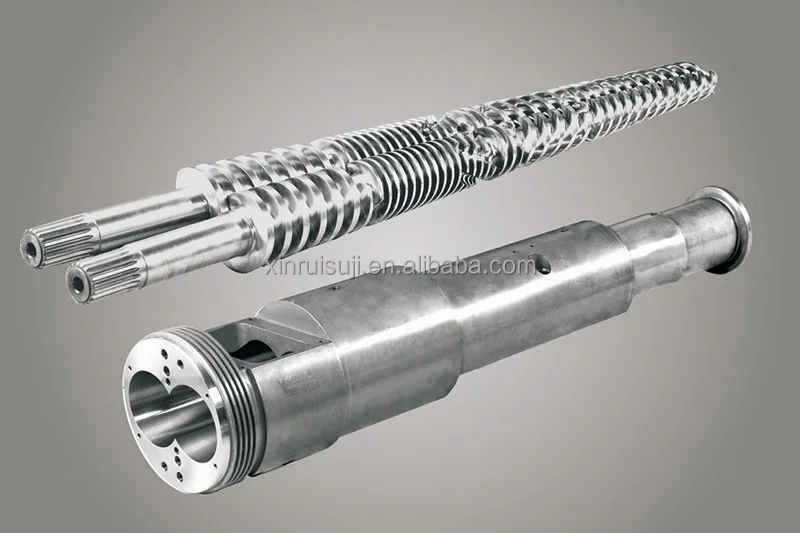

Conical twin-screw extruder(SJSZ series )  is composed of barrel screw ,gear transimssion system,measurable feeding,vacuum deaerating,heating,cooling and electronic control components.

It is mainly used in plasticizing,extruding and forming PVC pipe ,plate,sheet,film,profile,and granule,etc.



Advantages

1.  Low shearing rate, uneasy degradation,plasticization uniform and agglomeration

2.  Reliable quality ,wide application range and long servicing life.

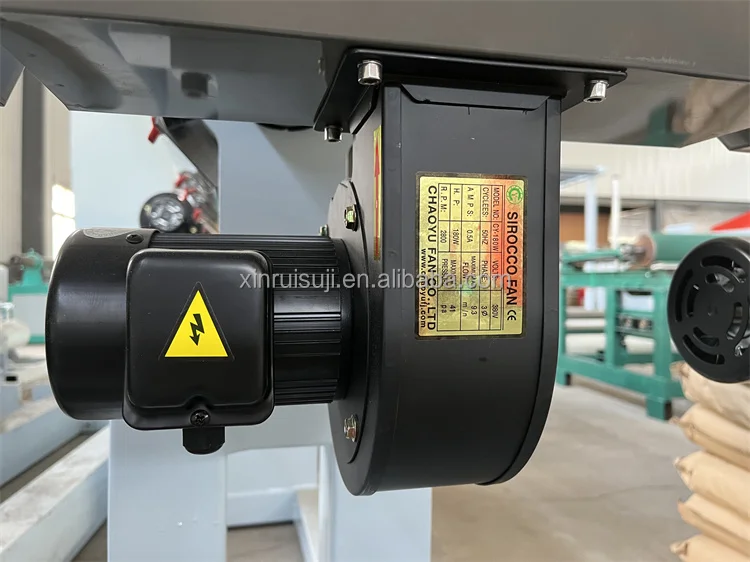

3.  Automatic temperature control, vacuum gas exhaustion, oil cooled screws

4.  Stepless speed regulation,as well as a forced feeding and self-cleaning mechanism



Technical parameters:

Item	SJSZ45/95	SJSZ51/05	SJSZ65/132	SJSZ80/156	SJSZ92/188

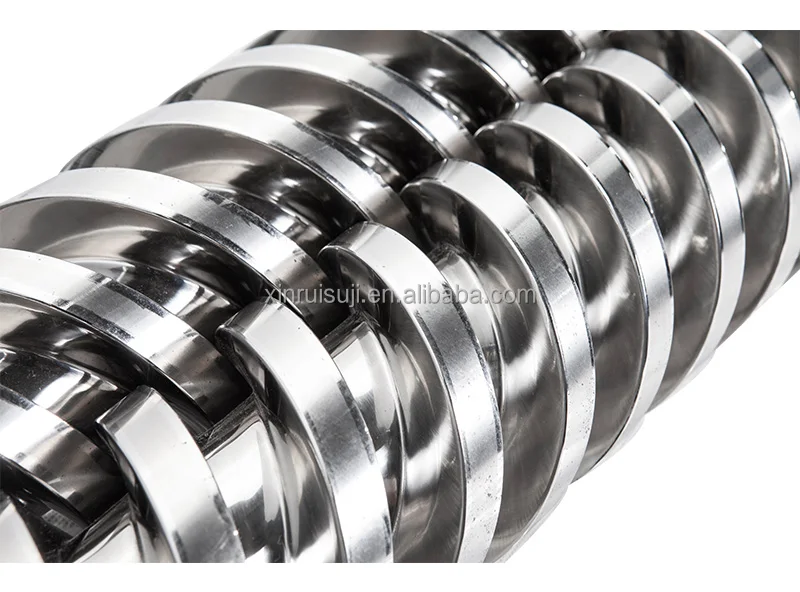

Diameter of screws(mm)	45/95	50/105	65/120 65/132	80/156	92/188
REVspeed of screws(r/min)	1-38	1-40	1-34.7	1-36.9	1-38
Effective length of screw(mm)	989	1050	1440	1800	2500

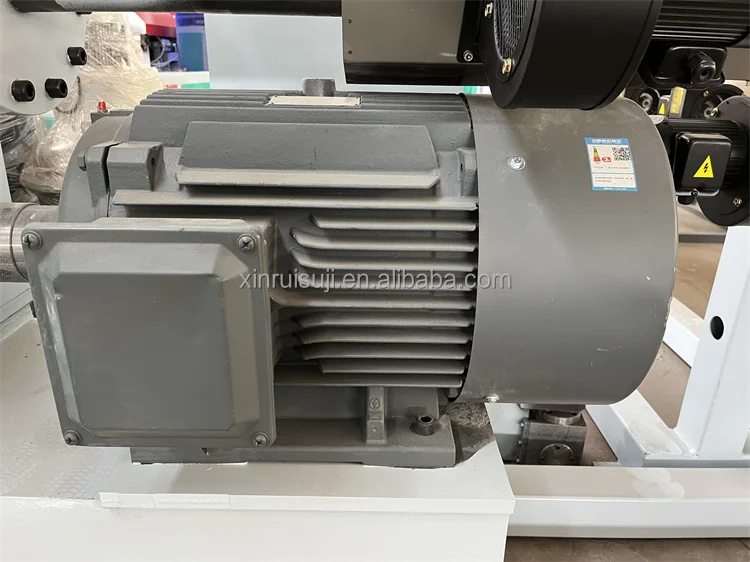

Main motor(kw)	15	27	37	55	110
Barrel heating power(kw)	11.5	18	24	36	68
Productivity(kg/h)	90	150	250	450	600
Net weight(kg)	2500	3500	4000	5000	8000
