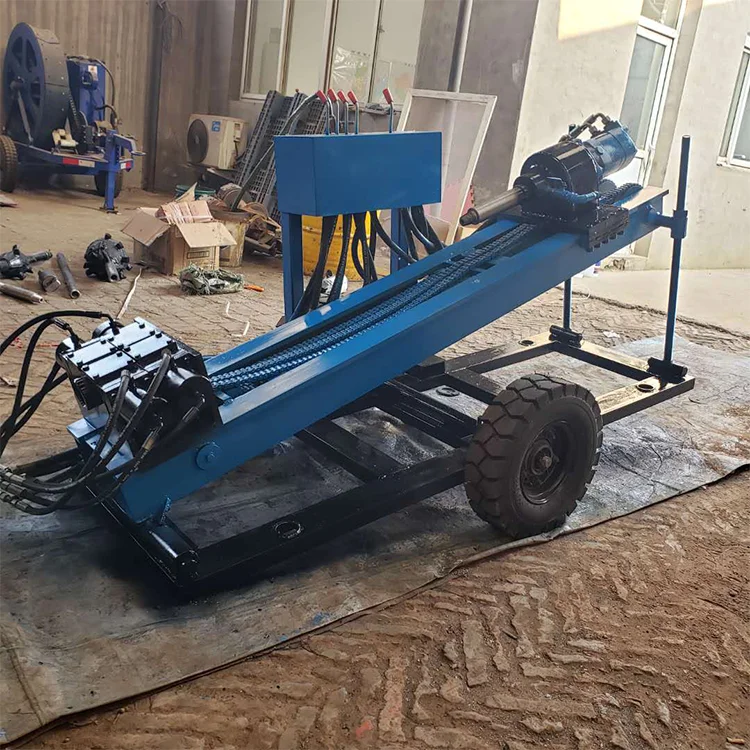

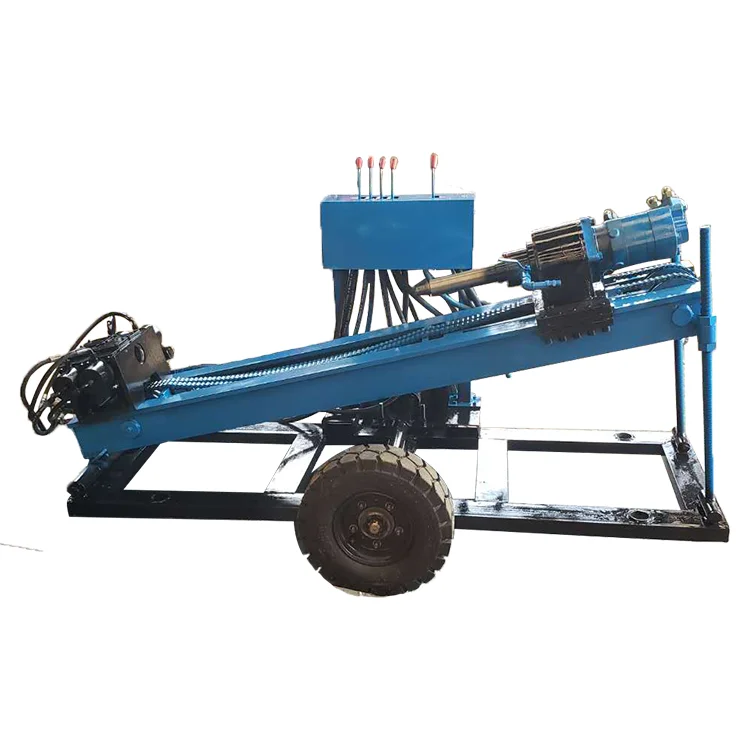

small drilling rig Horizontal Directional Drill (HDD) 1.6T mini drilling machine

Product Overview

Description

small drilling rig Horizontal Directional Drill (HDD) 1.6T mini drilling machine



Introduction:

Drilling rig system, power system, steering system, mud system, drilling tools, and auxiliary tools are the components that make up horizontal directional drilling rigs of varied specifications.

Stracture:

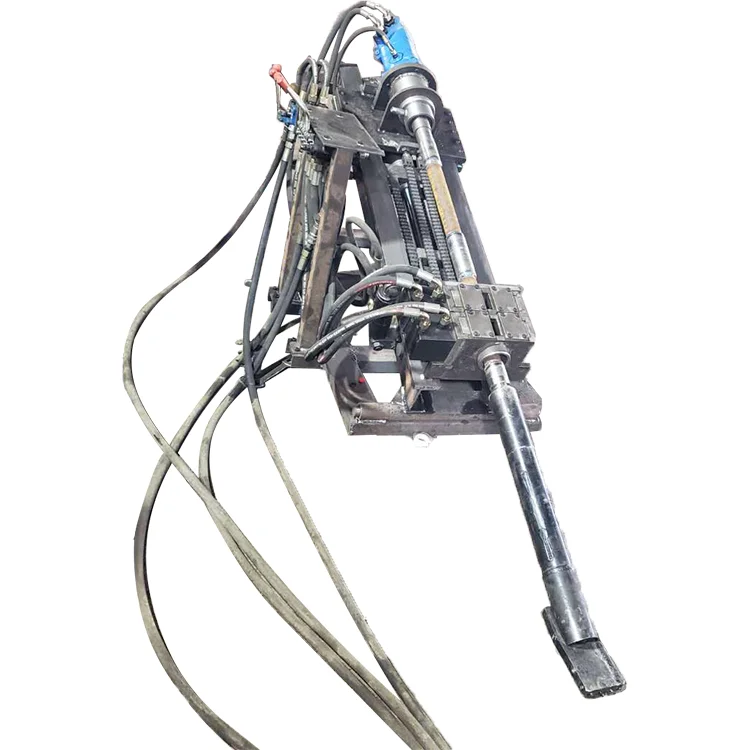

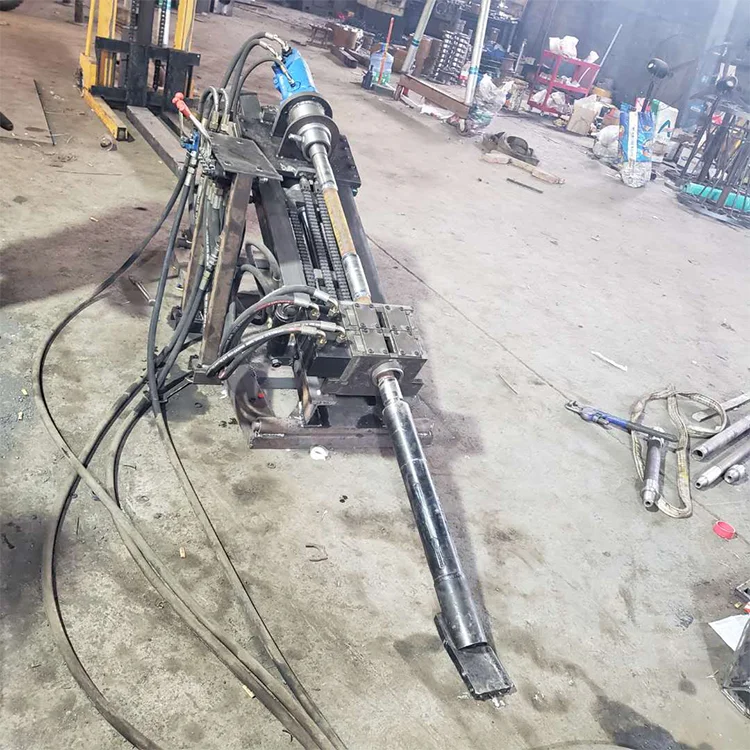

3.1 Drilling rig system: It serves as the principal component of the back-hauling and drilling operations for the crossing equipment. It is made up of the drilling rig's primary component and a turntable. The drilling rig's turntable is attached to the drill pipe and positioned at the front end of the main unit. By adjusting the turntable's direction, output speed, and torque, it is possible to adapt to various operating conditions.

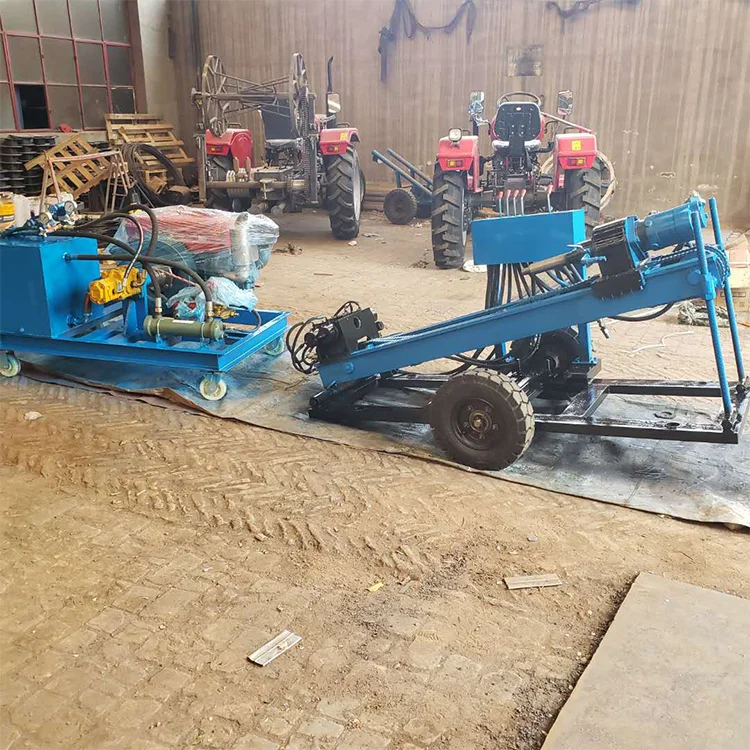

3.2 Power system: consists of a generator and a hydraulic power source. The drilling rig system is powered by high-pressure hydraulic oil from the power source, while the construction site's illumination and supporting electrical equipment are both powered by the generator.
3.3 Steering control system: In order to direct the drill bit to drill properly, the steering system is a directional instrument that tracks and regulates the drill bit's precise position and other subsurface characteristics. This system's control allows the drill bit to drill in accordance with the design curve. The two most popular forms of steering systems are portable wireless and wired.
3.4 Mud system: The drilling rig system receives mud appropriate for drilling conditions from the mud system, which is made up of a mud mixing tank, a mud pump, and mud pipes.
3.5 Drilling Tools and Auxiliary Tools: These are the various tools that drilling rigs utilize to drill and ream holes. Drill pipes, drill bits, mud motors, reamers, cutters, and other instruments appropriate for varied geological conditions are the basic components of drilling equipment. Additional tools include pull heads with different pipe diameters, swivel unions, and snap rings.

Rig configuration:

·Changzhou engine with strong power and reliable performance is adopted, with strong economy.

·The swing push-pull motor has stable performance.

·Push-pull oil cylinder pushes the chain, with high efficiency and long service life.

·The mast luffing mechanism ensures that the angle of drilling into the soil can be adjusted in a wide range of 13 ° - 24 ° to adapt to the length and different formation construction conditions.

·The drill is compact and can be constructed in a narrow space.

Drilling rig parameters:

Rated power of engine	30 hp (single cylinder diesel engine)	Slewing torque	2200 Nm
drilling tool	Φ 30 45mm * 1m drill pipes; Transfer case 8T; One guide bit; Reamer Φ 160mm Φ 260mm	Slewing speed	120 R/min
Push and pull speed	10m/min	Operating weight	1.6T
Overall dimension of drilling rig(L * W * H)	2 * 6.30 * 0.4 (m)	Push and pull force	80 KN
