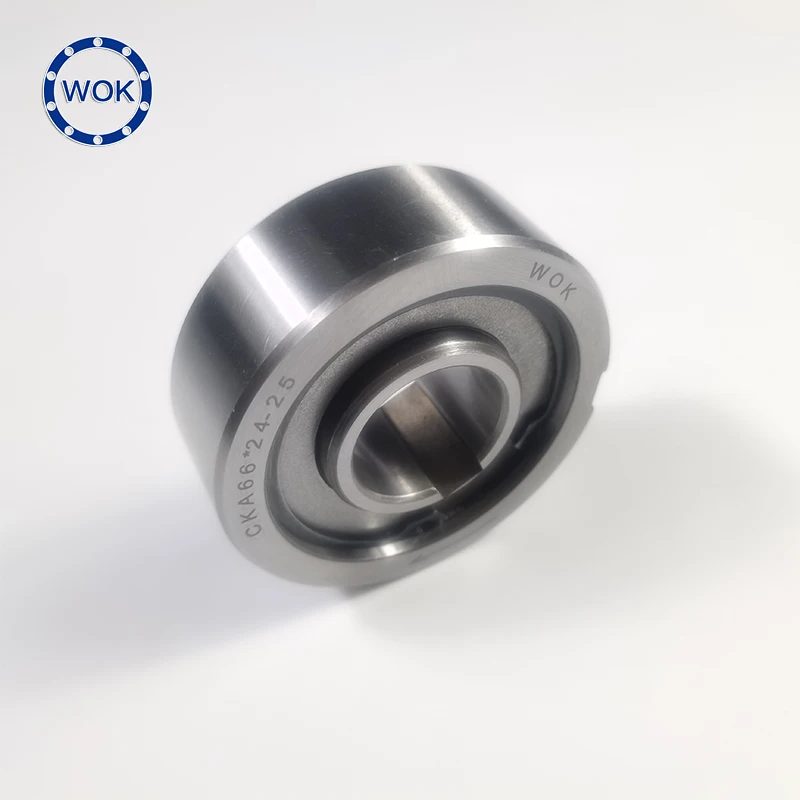

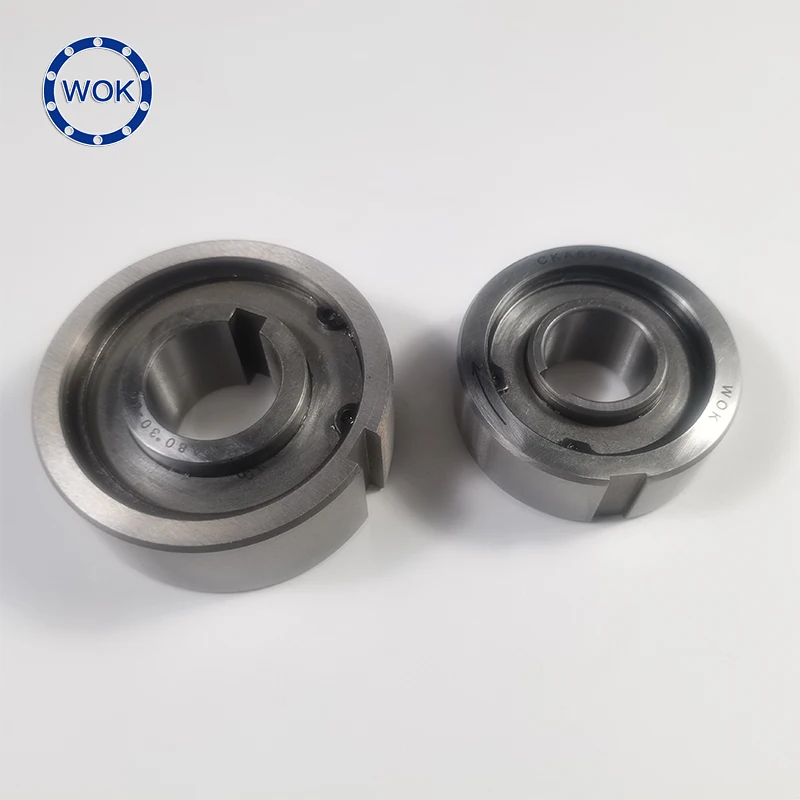

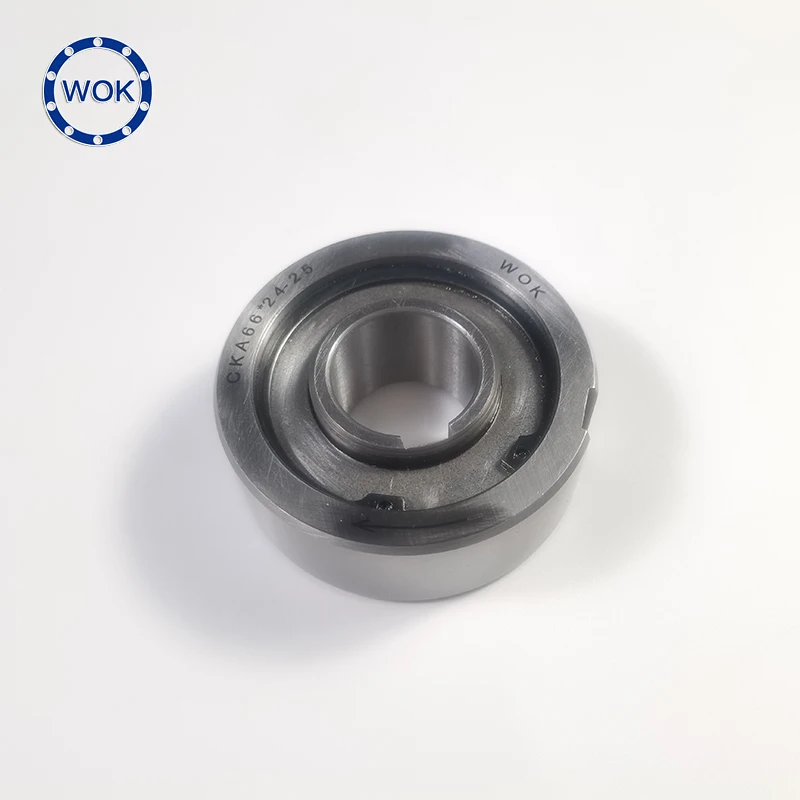

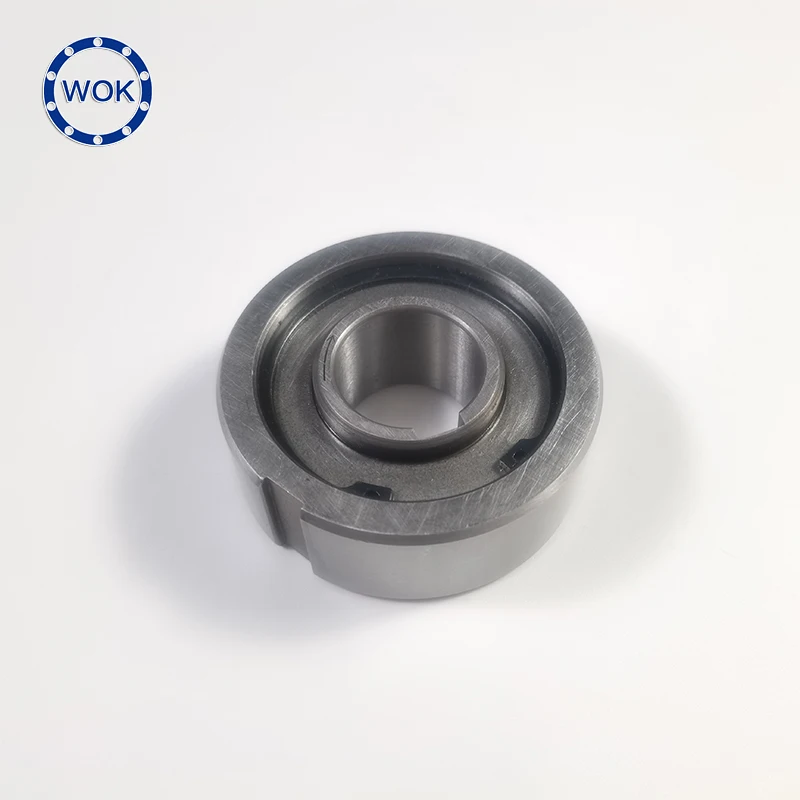

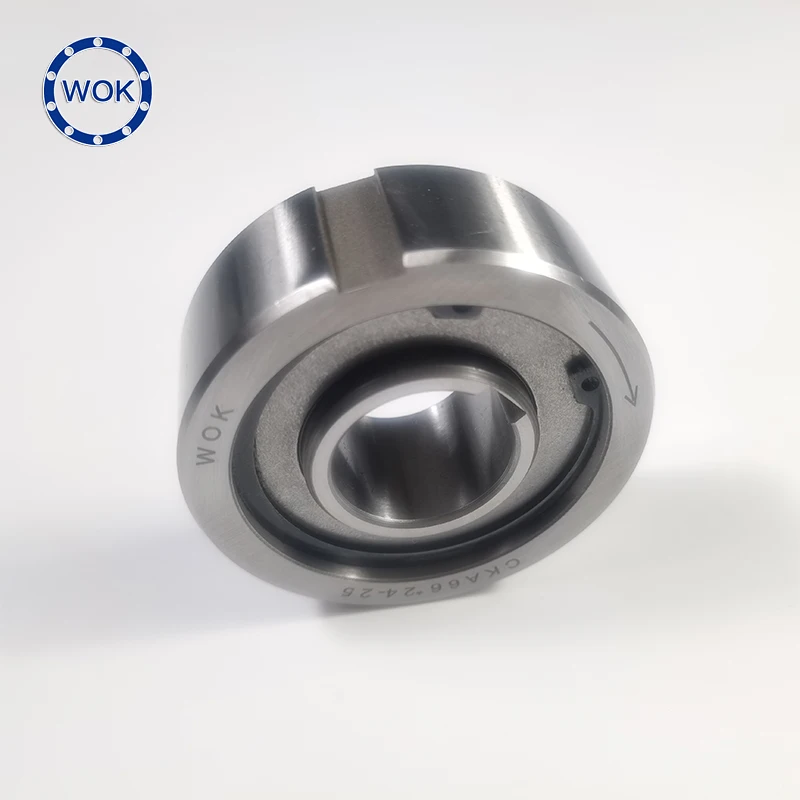

CKA clutch is a contact type one way clutch with inner ring CKA5 CKA65 26 24 one way clutch bearing

Product characteristics

Type  WKA  is  abasic  type freewheel. CKA clutch is a contact type one-way clutch with inner ring. Bearings  are  required  to  supported  axial  and  radial loads, locked dependable and running mobility, overrunning speeds    between 800-2500r/min,31.5-4500N.m torque, and often used for package machine, printing  machine, food machine, medical machine, bucket, spinning and conveyor, weaving machine etc..

Mounting

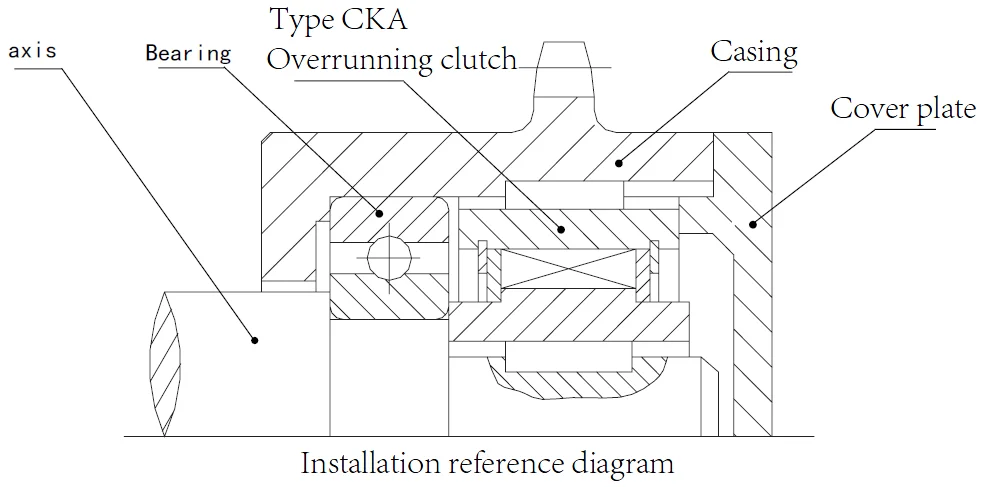

Standard installation of WKA is put the clutch with the bearing side by side,with same position,with the same tolerances.Use splined to couple the inner ring and shaft coupling.The outer sides of the end face of the key for securing the outer wall With the machine to transmit torque.

Using notice

Use 2 # lithium grease 30% + Engine oil 70% , Stirring evenly. The grease required temperature range -40 ℃ ~ + 150 ℃. Plus grease once for every month.

Application industry

It is commonly used in packaging machinery, printing machinery, food machinery, medical machinery and various bucket elevators, conveyors, textile machinery and other mechanical transmission.

CKA clutch is a contact type one-way clutch with inner ring CKA5 CKA65-26-24 one way clutch bearing
