Explosive Models Wholesale office stationery Metal steel clip lever arch mechanism for file folder
- Category: >>>
- Supplier: Shanghai Chilink Hardware Products Co. Ltd.
Share on (1600745015952):
Product Overview
Description
Product Description

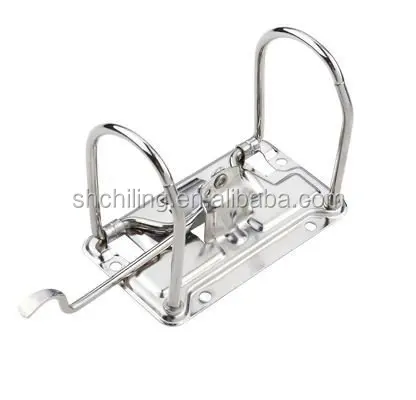

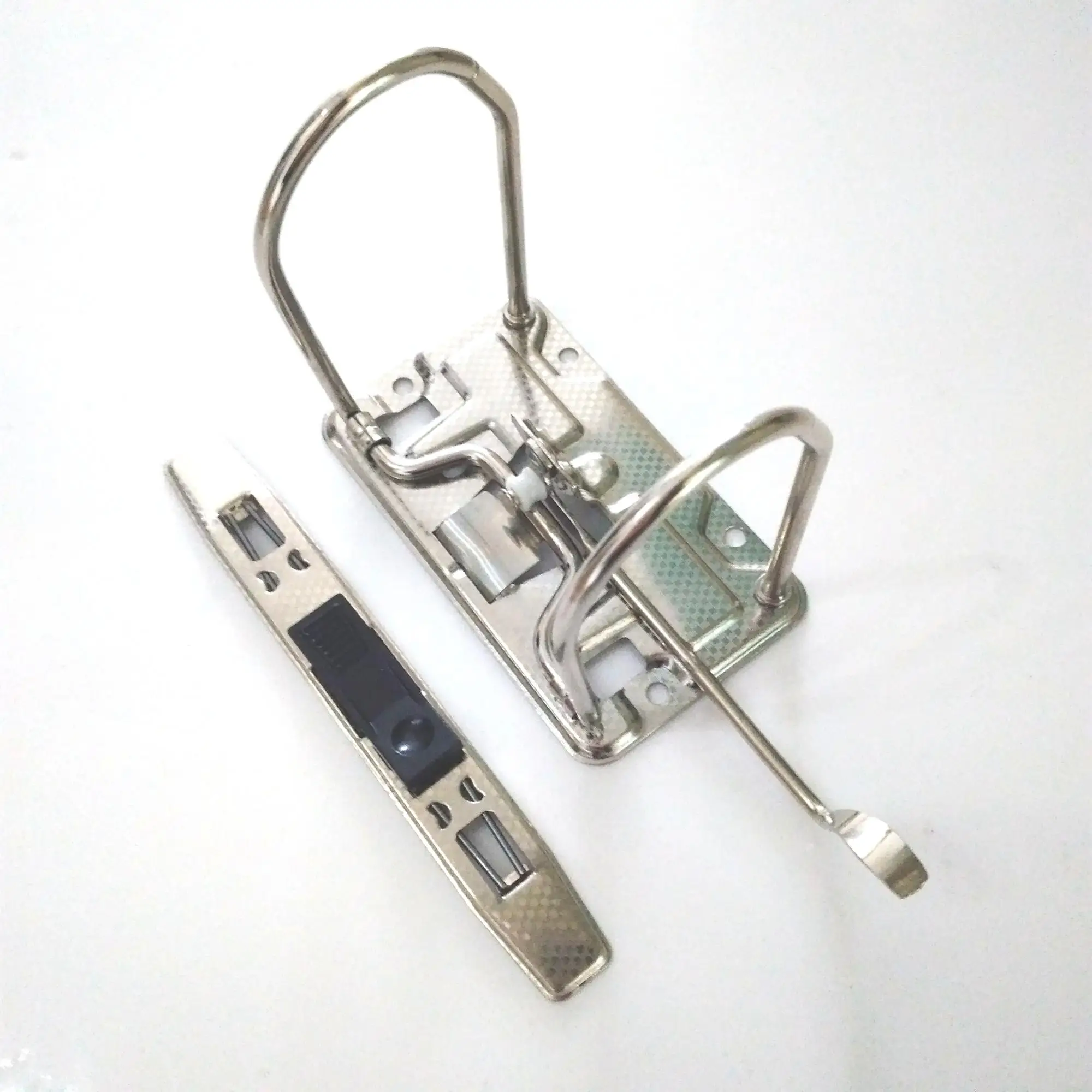

Lever arch file clips
Lever arch mechanisms are used in ring binders. They are opened via a lever arch and are easy to assemble using double rivets.Lever arch mechanisms design allows quick access and removal of individual pages at any time. Our lever arch mechanism has several rivet holes in the base plate, which makes it easy to rivet into files or other organisational equipment. This guarantees a secure hold, even with heavy weights due to large amounts of paper. And, the lever arch mechanism has a small lever on the side. This enables the mechanism to be opened cleanly by simply pushing it up. By pushing the lever down, the lever arch mechanism closes flush again. The lever also prevents unintentional opening; the pages can't fall out.
1 lever arch clip 2"or 3"+1 compressor+2 corner protector+1 finger ring+2 rado slot+4 eyelet +1 bottom plate(optional)
1 lever arch clip 2"or 3"+1 compressor+2 corner protector+1 finger ring+2 rado slot+4 eyelet +1 bottom plate(optional)
Type | A Height | B Capacity | C Base Length | D Base Width | E Mounting Hole C-C | F Mounting Hole C-C | G Mounting Hole C-C | H Center of Hole to Base edge | I Mounting hole Diameter |
LA055 | 52 | 28 | 92 | 55 | 53 | 83.5 | 31.5 | 4 | 3.8/4.2/4.5 |
LA075 | 72 | 53 | 92 | 55 | 53 | 83.5 | 31.5 | 4 | 3.8/4.2/4.5 |
Specification | Standard.non-standard according to drawing or samples |
Material | Iron |
Standard | DIN, IFI, ASTM, ISO, JIS, BS and non-standard products |
Size | 2" or 3" |
Hole size | 3.8mm,4.2mm,4.5mm |
Surface Treatment | Bright, checker and satin finishing |

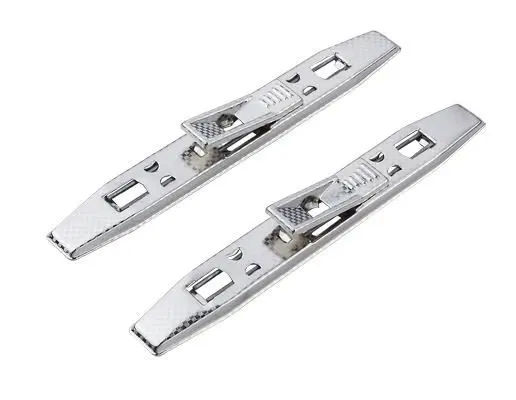

Compressor bar | 120mm/130mm , Metal button and plastic button |
Thickness of base plate | 60C, 65C, 70C |
Lever Arch position | Right hand, Left hand |
Applications | For stationery file to hold papers |
Sample | For free |
Lead time | 10-15 working days as usual,It will based on the detailed order quantity. |
Packaging | Inner plastic bag, outer carton box, protective woven bag is optional and we can also pack products according to your requirements. |
Payment | Full payment for small order,30% deposit,70% balance before shipment , small order welcome paypal,western union and credit card. |
Service | OEM / ODM service are available |
we offer whole set of lever arch clip2", 3"and various lever arch clip.
Size: 3" 2"
Packing: 200pcs/carton
G.W: 18kg
N.W: 17kg
Measurement: 54*25*32cm
Different specifications are available according to customers' requirements
lever arch mechanism/3" lever arch file mechanism/metal lever arch
Folder, file folder, binders, lever arch file
Size: 3" 2"
Packing: 200pcs/carton
G.W: 18kg
N.W: 17kg
Measurement: 54*25*32cm
Different specifications are available according to customers' requirements
lever arch mechanism/3" lever arch file mechanism/metal lever arch
Folder, file folder, binders, lever arch file
Specifications:
1) size: according to clients'specific requirements
2) cover: PP, cardboard,transparent pocket in cover and line
3) mechanism: various
4) Color: various
5)Competitive price with high quality
6)Delicate design,fine craftsmanship,OEM orders are welcome
7)packing: poly bag and carton
1) size: according to clients'specific requirements
2) cover: PP, cardboard,transparent pocket in cover and line
3) mechanism: various
4) Color: various
5)Competitive price with high quality
6)Delicate design,fine craftsmanship,OEM orders are welcome
7)packing: poly bag and carton
Our advantages:
1.We have advance quality inspection system and expert quality inspector.
2.We supply quality-guaranteed products to customers.
3.We are professional in making all kinds stationery clips and hardware accessories.
4. OEM service available.
2.We supply quality-guaranteed products to customers.
3.We are professional in making all kinds stationery clips and hardware accessories.
4. OEM service available.
Applications
Production process
We are 100% manufacturer.With advanced,efficient and scientific management system,experienced and skilled technical personnel,rigorous quality control,we are confident to satisfy customers’ requirement.
Company Introduction
Packing&Shipping
There is moisture proof agent in the middle. And then packaged in plastic bags and into the standard carton. Protective woven bag is optional as your requirement.
Exhibition
FAQ
Frequently Asked Questions
Q: Are you trading company or manufacturer ?
A: We are 100% factory, our factory is in Foshan(near Guangzhou), welcome to visit our factory any time.
A: We are 100% factory, our factory is in Foshan(near Guangzhou), welcome to visit our factory any time.
Q: How long is your delivery time?
A: Generally it is 15-20 days.Details depends on the order quantity and types of products.
If the goods are in stock it can be delivered in one day.
A: Generally it is 15-20 days.Details depends on the order quantity and types of products.
If the goods are in stock it can be delivered in one day.
Q: Do you provide samples ? Is it free or extra ?
A: Yes, we could offer the sample for free. But if it is international express,the delivery cost will be collected by your side.
A: Yes, we could offer the sample for free. But if it is international express,the delivery cost will be collected by your side.
Q: What is your terms of payment ?
A: Payment term is full payment if an trial order. And big order is 30% deposit and balance 70% before delivery.
A: Payment term is full payment if an trial order. And big order is 30% deposit and balance 70% before delivery.
Q: What is your payment term?
A: TT/Western union/ PayPal/ Credit card etc.
A: TT/Western union/ PayPal/ Credit card etc.
Q:What Express can we choose?
A: FedEx,UPS, DHL ,TNT etc.
A: FedEx,UPS, DHL ,TNT etc.
Q:What is you MOQ?
A: Rivets is 10000pcs, clip is 250pcs.If we have stock,small order can be accepted.
A: Rivets is 10000pcs, clip is 250pcs.If we have stock,small order can be accepted.
Q:If you product is environmental protection and anti-rust?
A: Of course,all our products have passed ROHS and salt spray test by ourselves and SGS.
A: Of course,all our products have passed ROHS and salt spray test by ourselves and SGS.
Q:What trade terms can we choose?
A: EXW, FOB, CNF, CIF etc.
A: EXW, FOB, CNF, CIF etc.
