Flow Packing Machine 200w 700 Watt Glass For Energy System Solar Cell Panel

Flow Packing Machine 200w 700 Watt Glass For Energy System Solar Cell Panel

Category: >>>
Supplier: Anhui Jusunnow New Energy Co. Ltd.

Price:$0.19 - $0.25

Quantity:

Product Overview

Description

Products Information

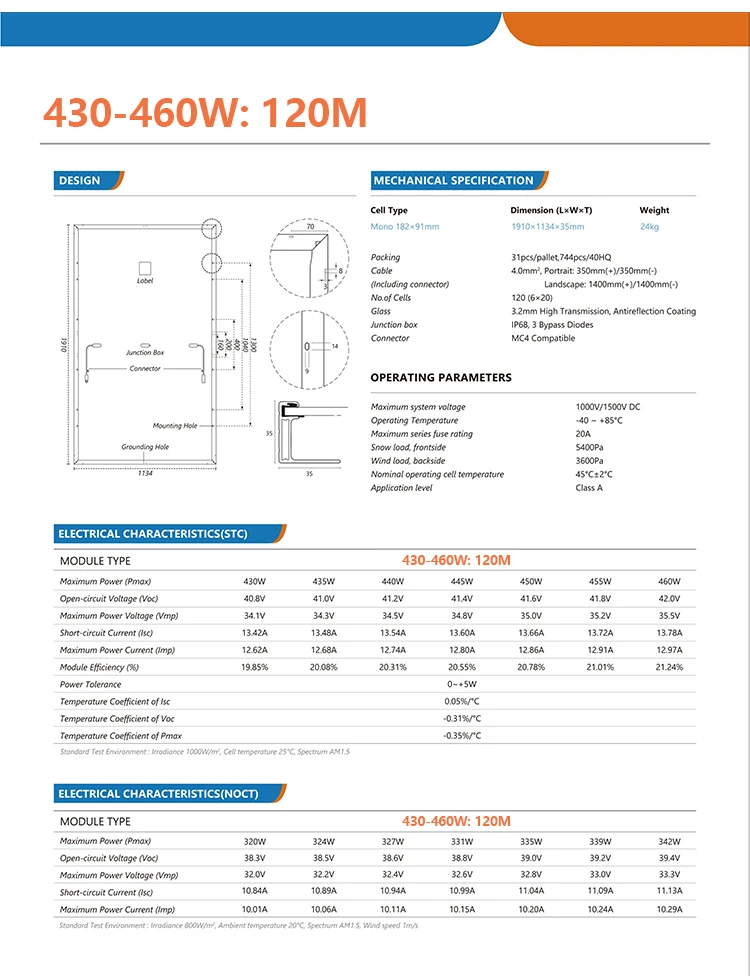

430-460W: 120M

Maximum Power (Pmax)

430W

435W

440W

445W

450W

455W

460W

Open-circuit Voltage (Voc)

40.8V

41.0V

41.2V

41.4V

41.6V

41.8V

42.0V

Maximum Power Voltage (Vmp)

34.1V

34.3V

34.5V

34.8V

35.0V

35.2V

35.5V

Short-circuit Current (Isc)

13.42A

13.48A

13.54A

13.60A

13.66A

13.72A

13.78A

Maximum Power Current (Imp)

12.62A

12.68A

12.74A

12.80A

12.86A

12.91A

12.97A

Module Efficiency (%)

19.85%

20.08%

20.31%

20.55%

20.78%

21.01%

21.24%

Power Tolerance

0~+5W

Temperature Coefficient of Isc

0.05%/°C

Temperature Coefficient of Voc

-0.31%/°C

Temperature Coefficient of Pmax

-0.35%/°C

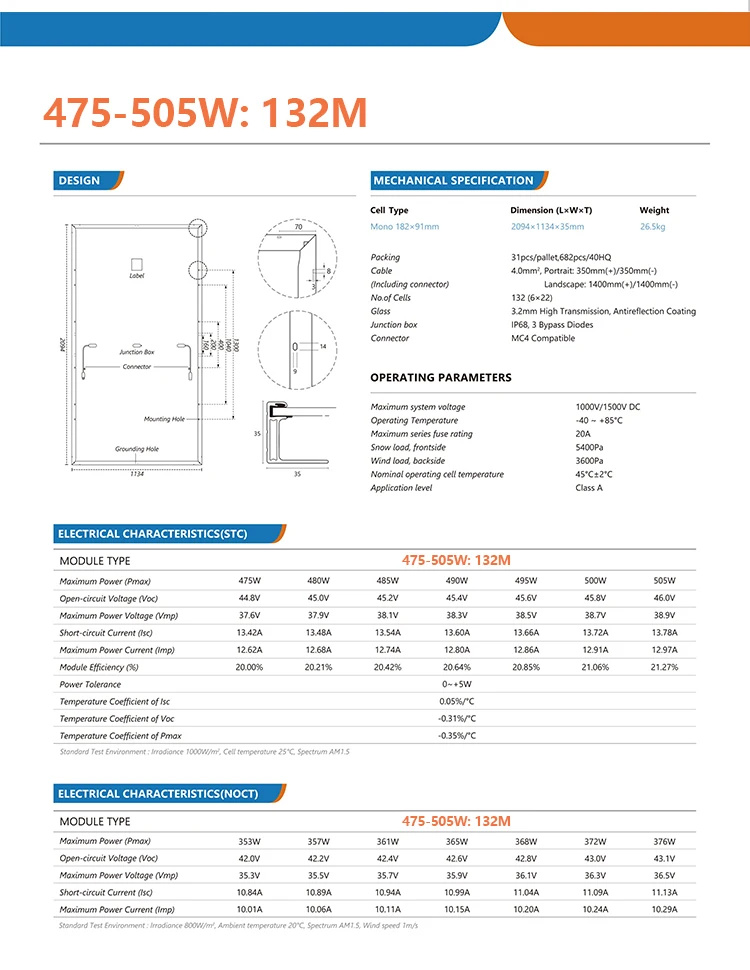

475-505W: 132M

Maximum Power (Pmax)

475W

480W

485W

490W

495W

500W

505W

Open-circuit Voltage (Voc)

44.8V

45.0V

45.2V

45.4V

45.6V

45.8V

46.0V

Maximum Power Voltage (Vmp)

37.6V

37.9V

38.1V

38.3V

38.5V

38.7V

38.9V

Short-circuit Current (Isc)

13.42A

13.48A

13.54A

13.60A

13.66A

13.72A

13.78A

Maximum Power Current (Imp)

12.62A

12.68A

12.74A

12.80A

12.86A

12.91A

12.97A

Module Efficiency (%)

20.00%

20.21%

20.42%

20.64%

20.85%

21.06%

21.27%

Power Tolerance

0~+5W

Temperature Coefficient of Isc

0.05%/°C

Temperature Coefficient of Voc

-0.31%/°C

Temperature Coefficient of Pmax

-0.35%/°C

520-550W: 132M

Maximum Power (Pmax)

520W

525W

530W

535W

540W

545W

550W

Open-circuit Voltage (Voc)

49.0V

49.2V

49.4V

49.6V

49.8V

50.0V

50.2V

Maximum Power Voltage (Vmp)

41.2V

41.4V

41.6V

41.8V

42.0V

42.2V

42.4V

Short-circuit Current (Isc)

13.42A

13.48A

13.54A

13.60A

13.66A

13.72A

13.78A

Maximum Power Current (Imp)

12.62A

12.68A

12.74A

12.80A

12.86A

12.91A

12.97A

Module Efficiency (%)

20.00%

20.21%

20.42%

20.64%

20.85%

21.06%

21.27%

Power Tolerance

0~+5W

Temperature Coefficient of Isc

0.05%/°C

Temperature Coefficient of Voc

-0.31%/°C

Temperature Coefficient of Pmax

-0.35%/°C

575-600W: 132M

Maximum Power (Pmax)

575W

580W

585W

590W

595W

600W

Open-circuit Voltage (Voc)

49.0V

49.2V

49.4V

49.6V

49.8V

50.0V

Maximum Power Voltage (Vmp)

41.2V

41.4V

41.6V

41.8V

42.0V

42.2V

Short-circuit Current (Isc)

13.42A

13.48A

13.54A

13.60A

13.66A

13.72A

Maximum Power Current (Imp)

12.62A

12.68A

12.74A

12.80A

12.86A

12.91A

Module Efficiency (%)

20.12%

20.31%

20.51%

20.70%

20.89%

21.09%

Power Tolerance

0~+5W

Temperature Coefficient of Isc

0.05%/°C

Temperature Coefficient of Voc

-0.31%/°C

Temperature Coefficient of Pmax

-0.35%/°C
