Product Overview
Description
Product Description

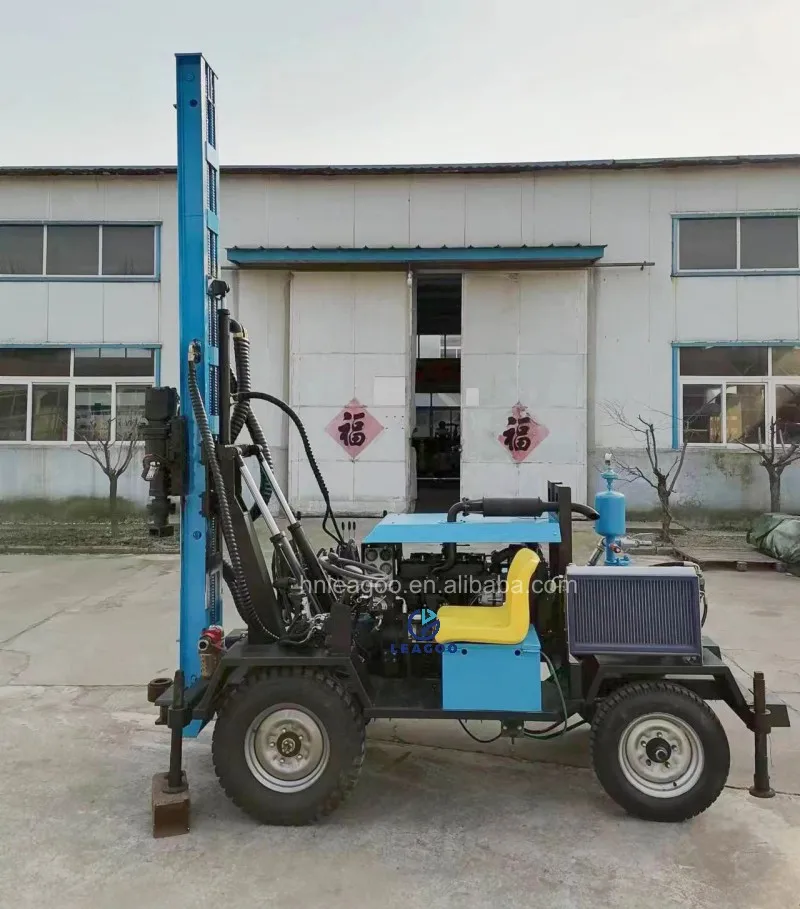

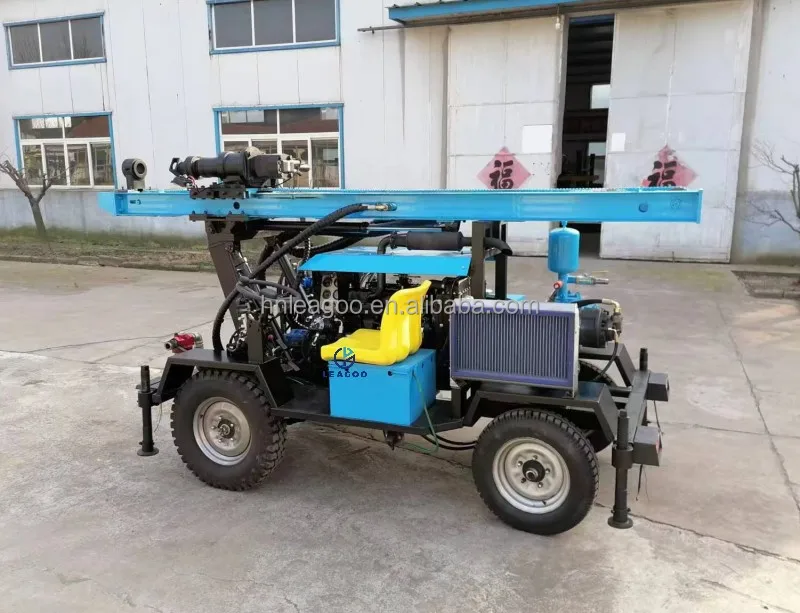

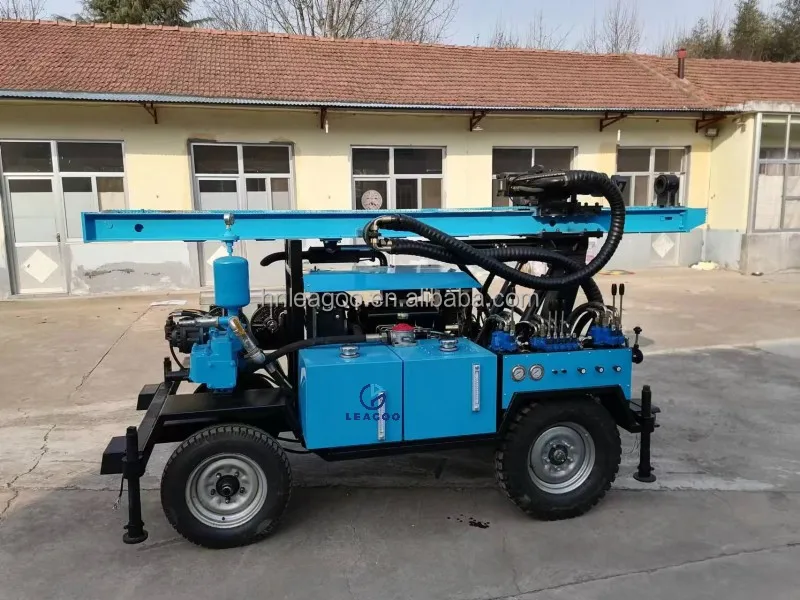

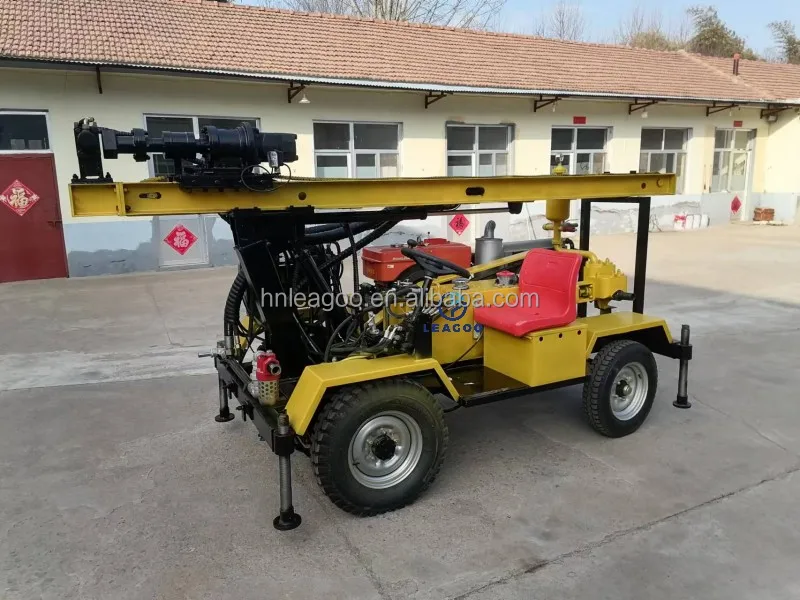

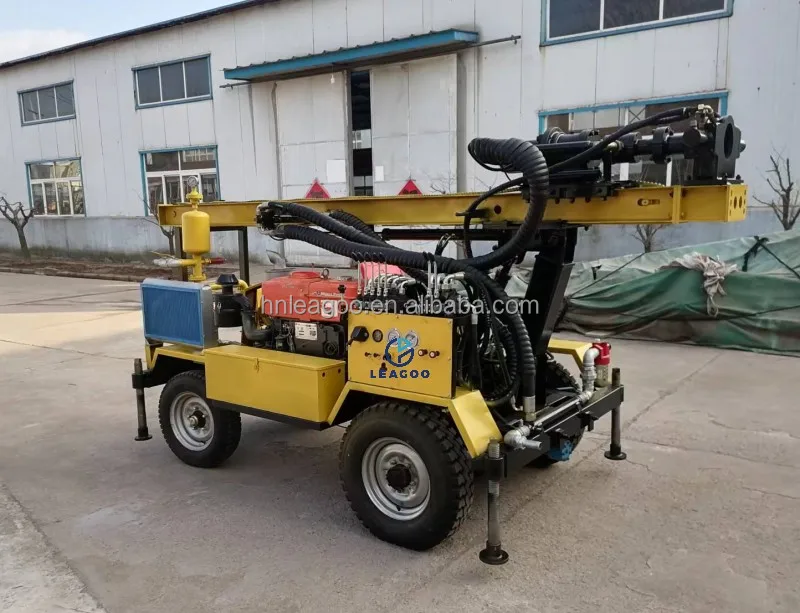

100m Portable DTH Hammer Pneumatic Borehole Water Drilling Machine
1. Air compressor drilling rig is a kind of light weight, high efficiency and multi-function drilling equipment, it is suitable for drilling water wells, agricultural irrigation well, geothermal air-conditioning hole and other uses, especially for water engineering in mountainous and rock areas.
2. LGQ series drilling rig solves the problems to drill hard rocks, gravel, pebble stratum,which can work efficiently under all kinds of geological structure.
3. Self-moving, could drive it directly, conveniently for short transportation.
4. Diesel engine is Single cylinder, 4-cylinder type could be customized.
Technical Parameter
100m Portable DTH Hammer Pneumatic Borehole Water Drilling Machine
Item | Parameter |
Drilling caliber | 100m |
Max. drilling depth | 105-150mm |
Diameter of drill pipe | Φ60 Φ76 |
Gas consumption | 15-18 m³/min |
DTH Hammer | DHD340/DHD350 |
Power | 35HP/2200rpm |
Ground clearance | 240mm |
System pressure | 20Mpa |
Walking speed | 0-20 Km/h |
Leg cylinder stroke | 600 mm |
Propulsion | 3.0 ton |
Lifting force | 5.0 ton |
Speed of spindle | 0-150rpm |
Rotary torque | 1200N.m |
Weight | 1300 Kg |
Dimension | 3000×1550×2000mm |
