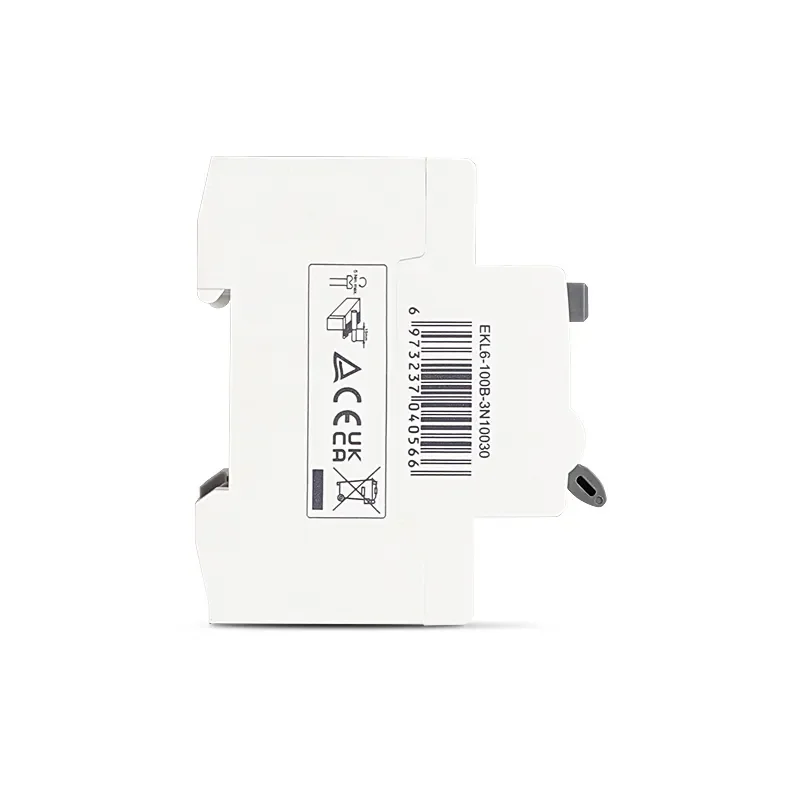

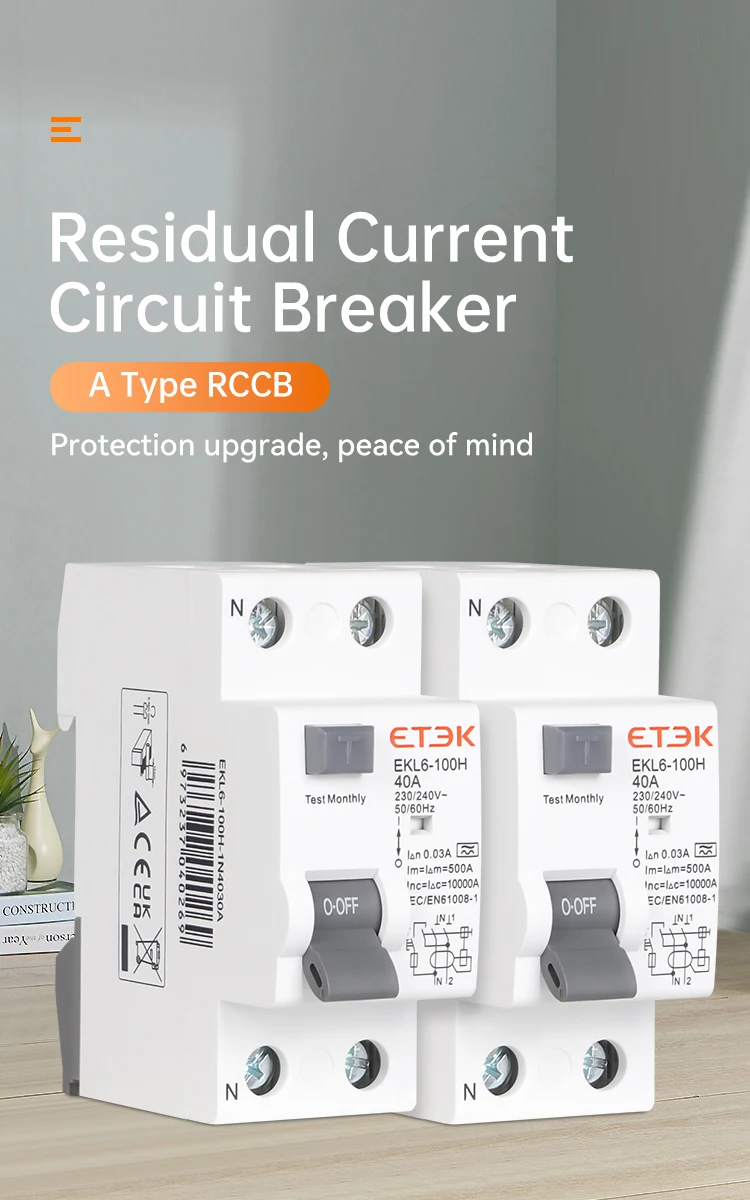

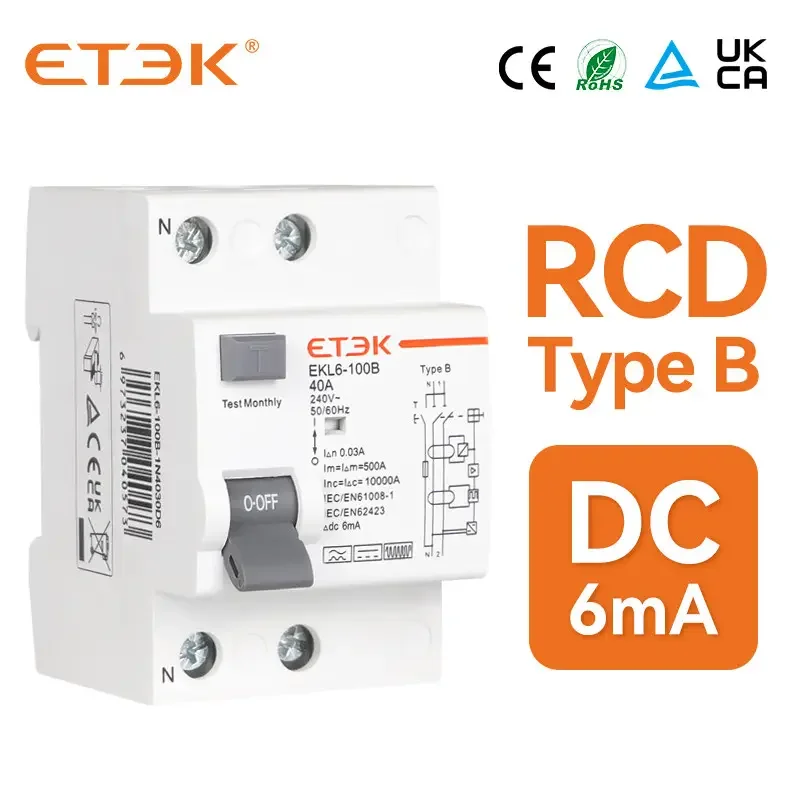

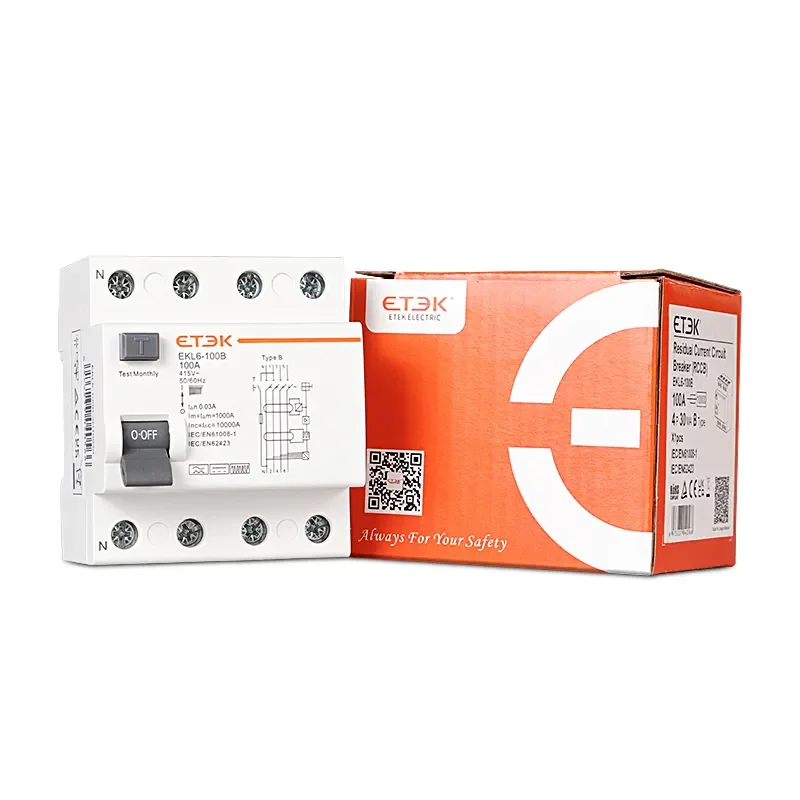

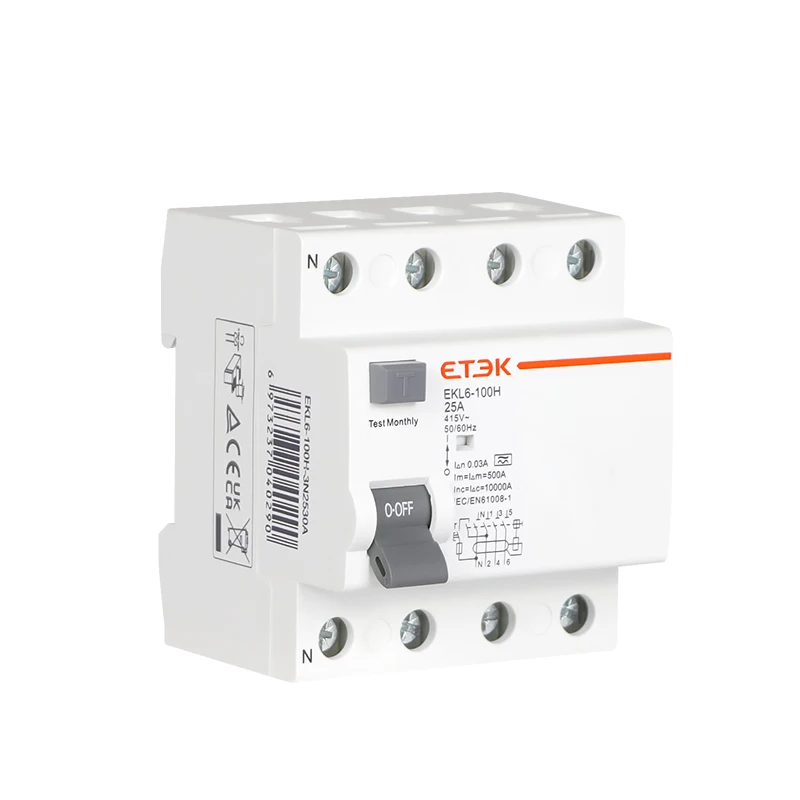

ETEK RCCB 2p 4p type A circuit breakers EKL6 10KA 35mm din rail rccb circuit breaker
- Category: Low Voltage Products >>>
- Supplier: Wenzhou Etek Import And Export Co. Ltd.
Share on (1600745192085):
Product Overview
Description
Product Description

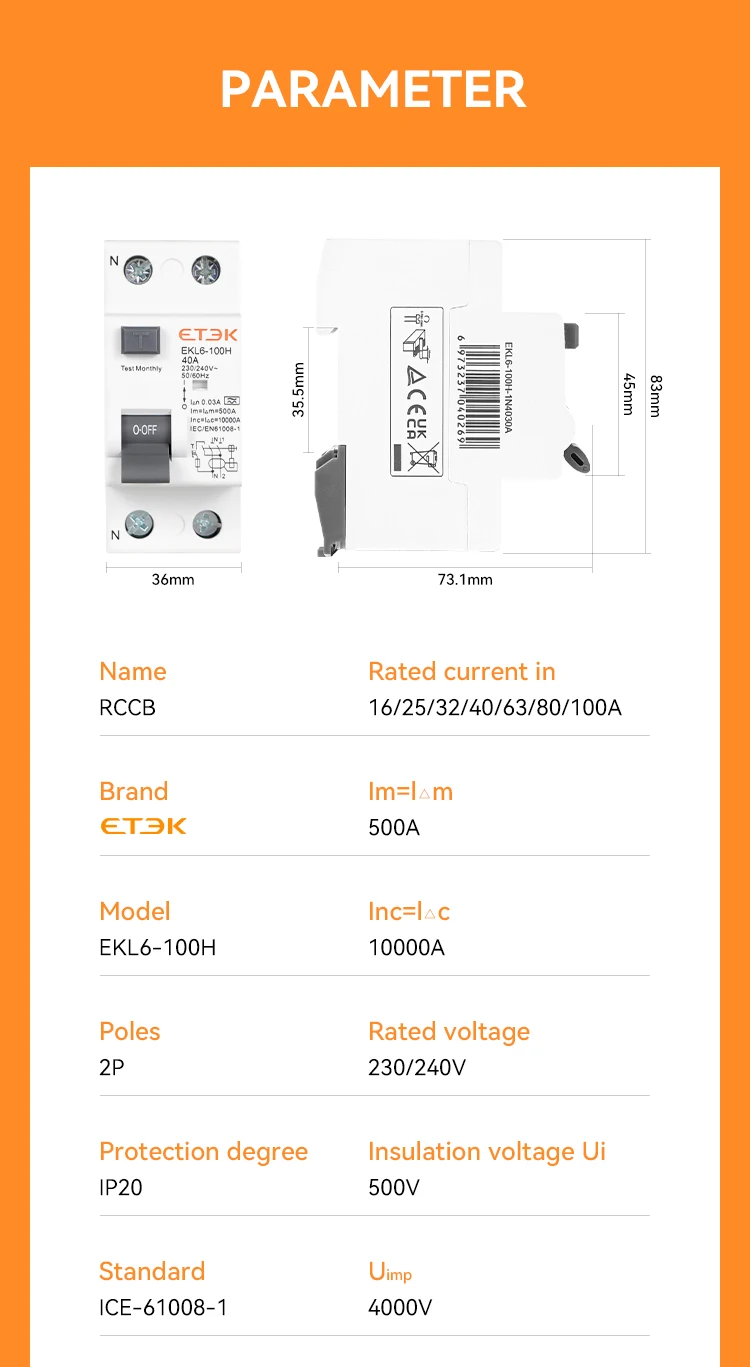

Technical Data
Electrical Features | Rated current In | 25,40,63,80,100A |
Poles | 2P,4P | |
Rated voltage Ue | 2P 240V~, 4P 415V~ | |
Insulation voltage Ui | 500V | |
Rated frequency | 50/60Hz | |
Rated residual making and breaking capacity | 500A(In≤40A), 10In(In＞40A) | |
Rated residual operation current | 30, 100, 300mA | |
Rated impulse withstand voltage(1.5/50) Uimp | 4000V | |
Dielectric test voltage at ind. Freq. for 1 min | 2.5kV | |
Mechanical Features | Electrical life | 2,000 Cycles |
Mechanical life | 4,000 Cycles | |
Contact position indicator | Yes | |
Protection degree | IP20 | |
Ambient temperature (with daily average≤35℃) | -5℃~+40℃ | |
Storage temperature | -25℃~+70℃ | |
Installation | Terminal connection type | Cable/Pin-type busbar/U-type busbar |
Terminal size top/bottom for cable | 35mm² 18-3AWG | |
Terminal size top/bottom for busbar | 35mm² 18-3AWG | |
Tightening torque | 2.5Nm 22In-lbs | |

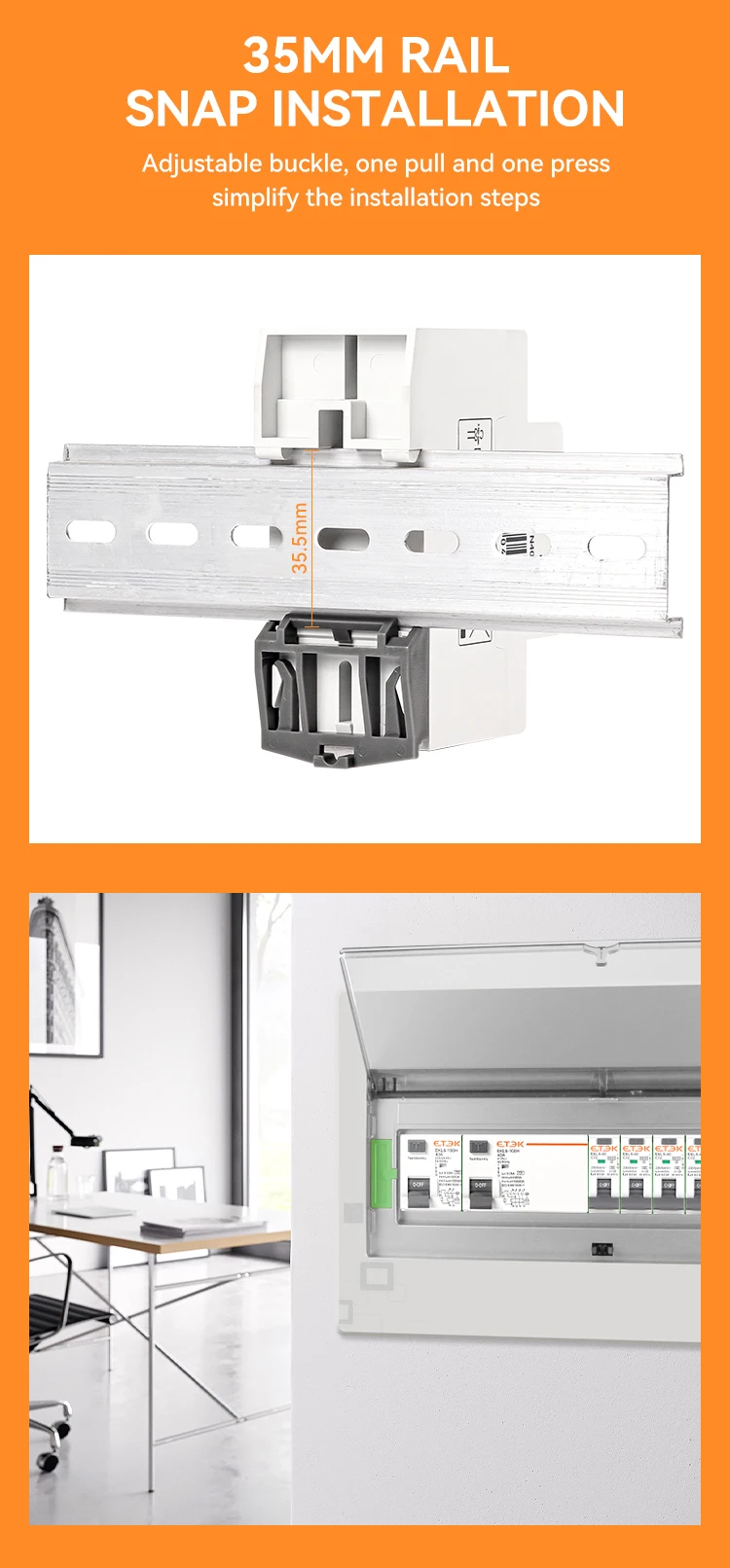

Mounting | On DIN rail EN60715(35mm) by means of fast clip device | |
Connection | Power supply in both directions |
Recommend Products

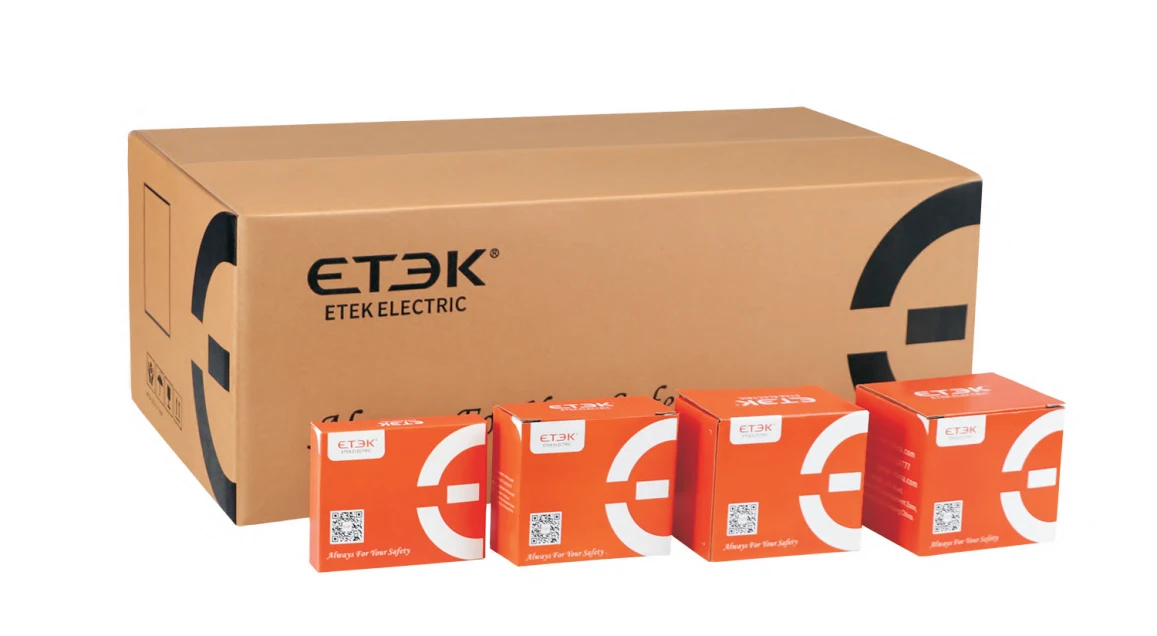

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile

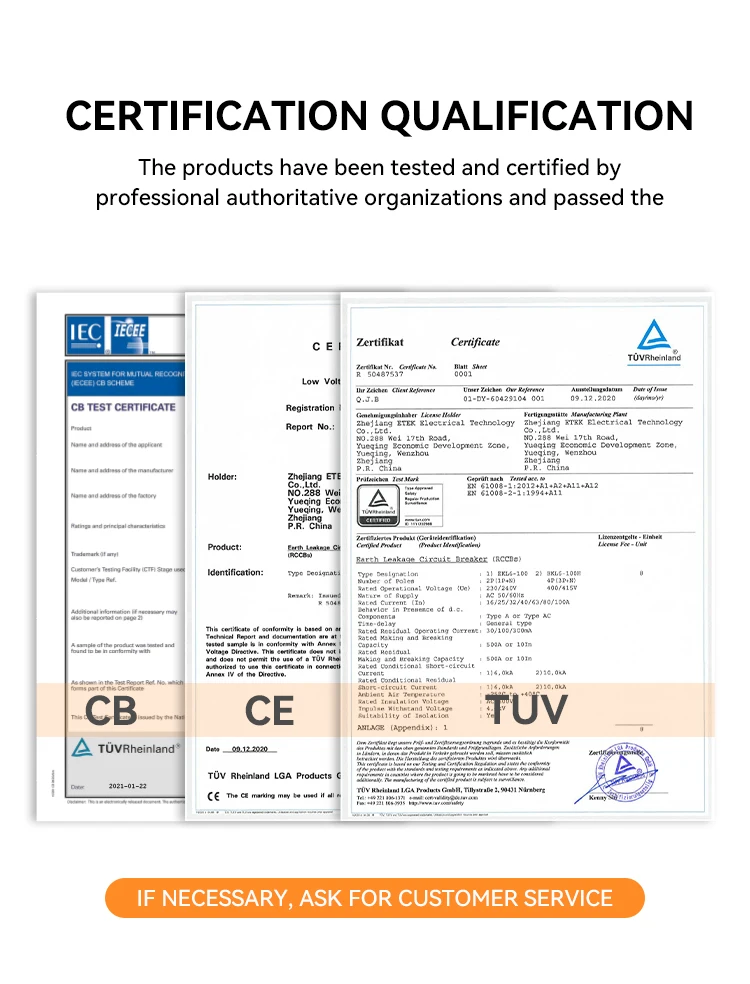

Wenzhou ETEK Electrical Technology Co.,Ltd. was founded on January of 2011, which has more than 200 employees now.It is a professional manufacturing company engaging in R & D, production and sale of high and low voltage electrical products, such as Terminal distribution electrical appliances, Industrial distribution electrical appliances, Industrial control electrical appliances, DC systems distribution appliances, etc. It possesses three major manufacturing departments and one import & export trading company. The three manufacturing departments are Terminal distribution electrical appliances manufacturing department, Industrial distribution electrical appliances manufacturing department and Industrial control electrical appliances manufacturing department. The series of products manufactured by the company are mainly sold to international market. All the products produced are in strictly accordance with international IEC/EN standards and China's GB standards. Most of these product have gained TUV and Intertek issued CCC,CE,TUV,SEMKO,EAC,SAA, INMETRO,ISO9001-2008 certificates and CB test reports. The products are sold to more than 50 countries and regions throughout the world, such as UK, France, Australia, Russia, Ukraine, Turkey, Brazil and so on. The quality of the products has been widely praised by the majority of users.
