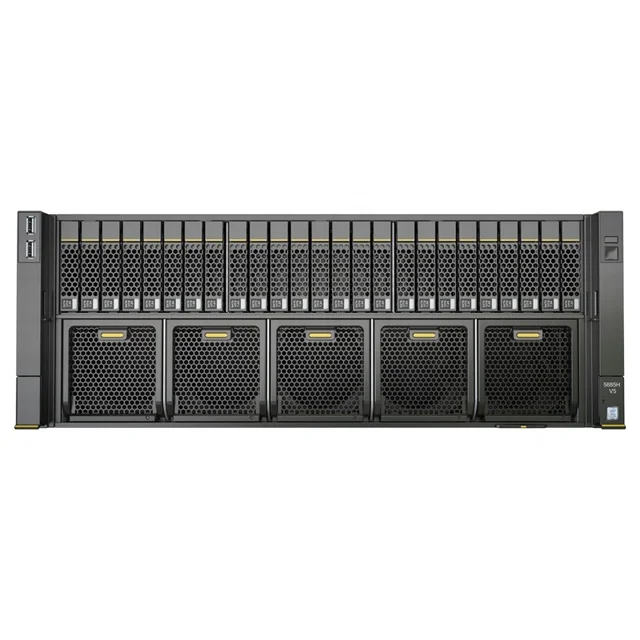

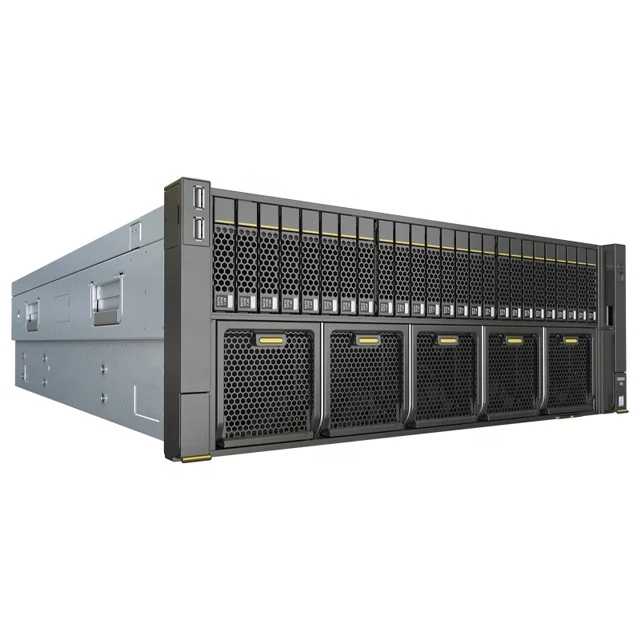

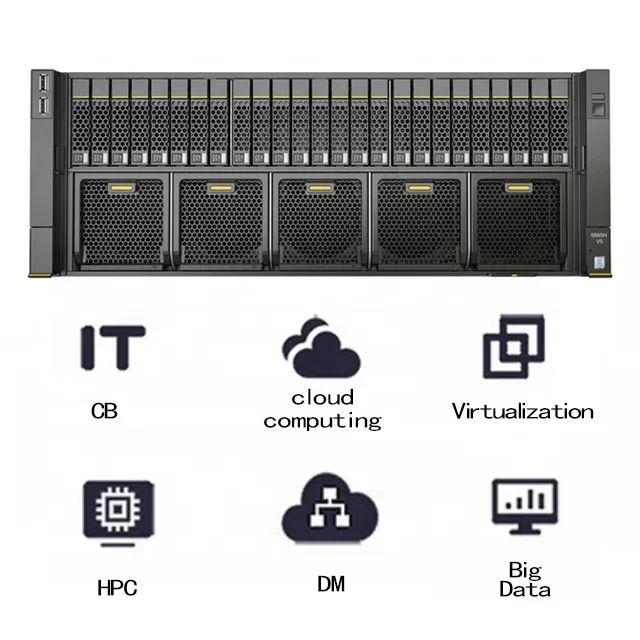

wholesale xfusion 5885H V5 4u 25*2.5in bays for HPC Intel Xeon Gold 5117*2 240GB SSD server rack

Form Factor

4U rack server

Processors

2 or 4 1st Generation Intel® Xeon® Scalable processors (5100/6100/8100 series), up to 205 W
2 or 4 2nd Generation Intel® Xeon® Scalable processors (5200/6200/8200 series), up to 205 W

Chipset

Intel C622

Memory

48 DDR4 DIMM slots, 2933 MT/s; 24 Intel® Optane™ PMem modules (100 series), 2666 MT/s

Internal Storage

Supports hot-swappable hard drives with the following configuration options:
• 8 x 2.5-inch front SAS/SATA hard drives
• 24 x 2.5-inch front SAS/SATA hard drives
• 25 x 2.5-inch front SAS/SATA hard drives
• 16 x 2.5-inch front SAS/SATA hard drives and 8 x 2.5-inch NVMe SSDs
• 24 x 2.5-inch front NVMe SSDs
Flash storage:
• 2 M.2 SSDs

RAID

RAID 0, 1, 5, 50, 6, or 60; optional supercapacitor for cache power-off protection ，RAID-level migration, drive roaming,
self-diagnosis,
and web-based remote configuration

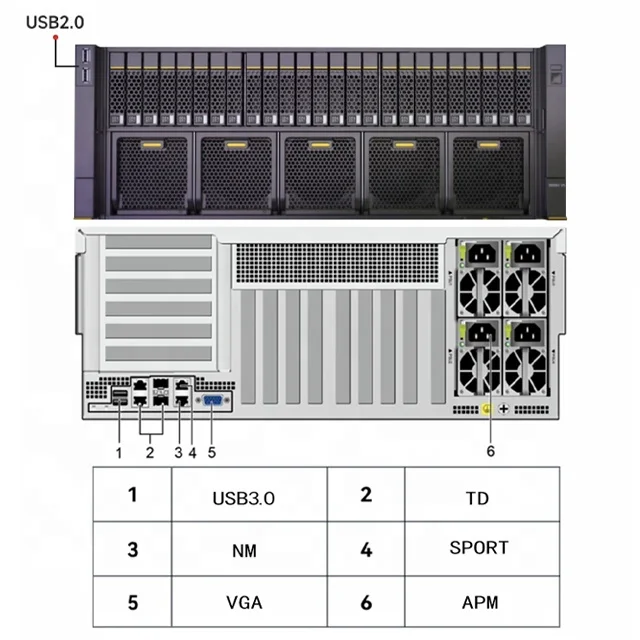

Network Ports

LAN on motherboard (LOM): 2 x 10GE + 2 x GE ports

PCIe Expansion

Up to 15 PCIe slots for 15 PCIe 3.0 slots
2 dual-width full-height full-length GPU cards (PCIe 3.0 x16) or 4 full-height half-length GPU cards (PCIe 3.0 x16)

Fan Modules

5 hot-swappable counter-rotating fan modules with optional N+1 redundancy

Power Supply

4 hot-swappable PSUs with optional 2+2 redundancy. Supported options include:
• 1500 W AC Platinum PSUs
1000 W (input: 100 V to 127 V AC)
1500 W (input: 200 V to 240 V AC, or 192 V to 288 V DC)
• 900 W AC PSUs (input: 100 V to 240 V AC, or 192 V to 288 V DC)
• 200 W DC PSUs (input: -38.4 V to -72 V DC)

Management

• iBMC integrates one dedicated management GE network port to provide comprehensive management features such as fault diagnosis,
automated O&M, and hardware security hardening.
• iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management interface based on HTML5/
VNC KVM; supports CD-free deployment and the Agentless feature, simplifying management.
• (Optional) Configured with the FusionDirector management software to provide advanced management features such as stateless
computing, batch OS deployment, and automated firmware upgrade, enabling smart and automatic entire- lifecycle management.

Operating Systems

Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, Citrix XenServer, VMware ESXi

Security

Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, and security front panel

Operating Temperature

5ºC to 45ºC (41ºF to 113ºF) (ASHRAE A3 and A4 compliant)

Certification

CE, UL, FCC, CCC, and RoHS

Installation Suite

L-shaped guide rails, adjustable guide rails, and holding rails

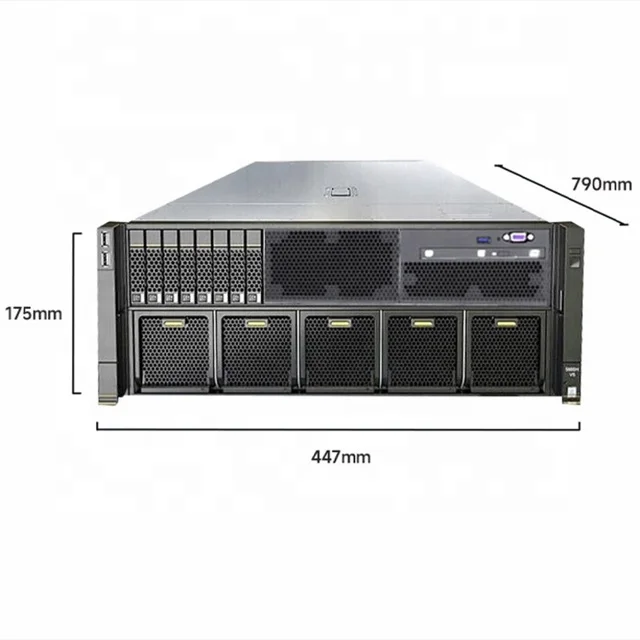

Dimensions (H x W x D)

175 mm x 447 mm x 790 mm (6.89 in. x 17.60 in. x 31.10 in.)
