Fully automatic sterilization and disinfection washing cup drinking water/jelly/beverage liquid filling and sealing machine
- Category: >>>
- Supplier: Wenzhou Chunlai Packing Machinery Co. Ltd.
Share on (1600745206254):
Product Overview
Description
Product Description

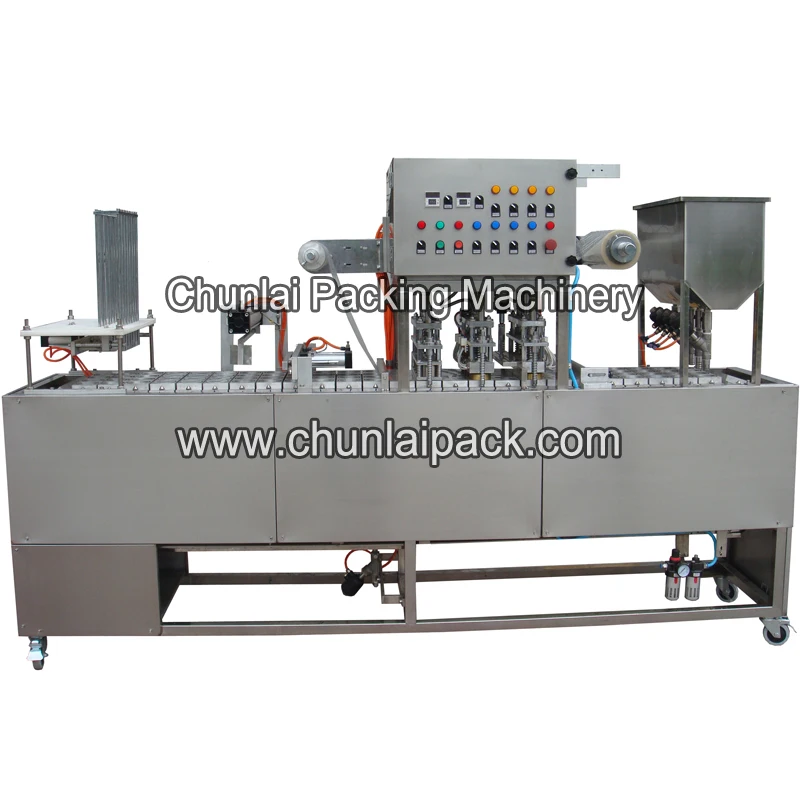

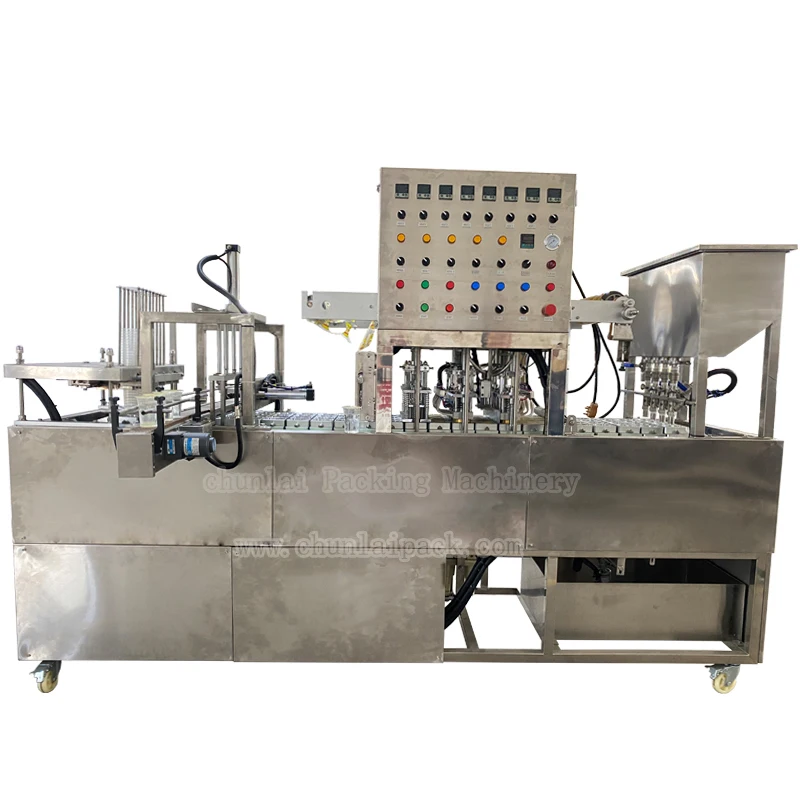

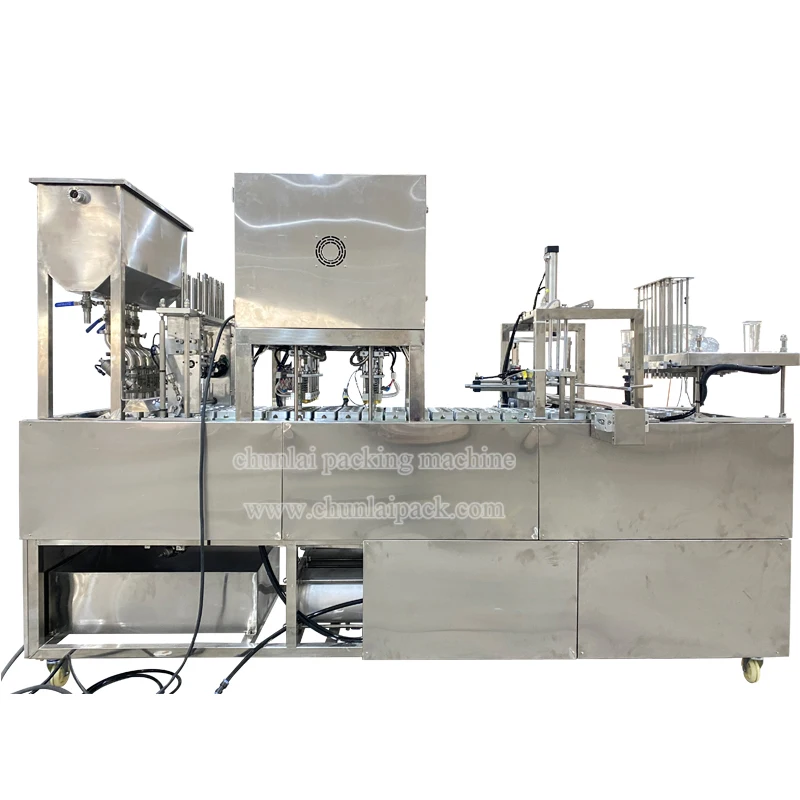

Cup Automatic Washing Filling and Sealing Machine
Can be customized according to customer's demand
Cup material available: PS, PP, PE, PET, paper and so on
Sealing film: roll film or pre-cut foil
GF Series Cup Washing Filling and Sealing Machine is specially customized for water cup packing. The machine can be used in a variety of applications for the beverage industry, such as pure water, mineral water, juice, milk, yogurt and more.
Depending on the output required, the GF Series Cup Washing Filling and Sealing Machine can be designed for 2 lines, 4 lines, 6 lines, 8 lines, 10 lines per time or more.
Machine basic function include cup de-nesting, washing, filling, heat sealing, automatic feed-out.
Machine Specifications:
Cup De-nesting System
Washing System:
Automatic Filling System: the fling quantity and speed could be adjusted. The filling system could be designed based on product feature.
Automatic Sealing System: independent temperature controller
1st sealing: heat sealing
2nd sealing: could be designed in Embossing sealing
Eye Mark Auto Correction
Collocating with a photocell sensor of film pattern mark
Automatic Cutting System: waste film automatic rewinding
Product Automatic Feed-out System: with conveyor
Operation Panel:
A-Type: Traditional Switches and Buttons for simple operation
B-Type: Touch Screen
Variable speed adjustment via speed controller arrange with inverter
Additional emergency stop switch for safety protection
Depending on the output required, the GF Series Cup Washing Filling and Sealing Machine can be designed for 2 lines, 4 lines, 6 lines, 8 lines, 10 lines per time or more.
Machine basic function include cup de-nesting, washing, filling, heat sealing, automatic feed-out.
Machine Specifications:
Cup De-nesting System
Washing System:
Automatic Filling System: the fling quantity and speed could be adjusted. The filling system could be designed based on product feature.
Automatic Sealing System: independent temperature controller
1st sealing: heat sealing
2nd sealing: could be designed in Embossing sealing
Eye Mark Auto Correction
Collocating with a photocell sensor of film pattern mark
Automatic Cutting System: waste film automatic rewinding
Product Automatic Feed-out System: with conveyor
Operation Panel:
A-Type: Traditional Switches and Buttons for simple operation
B-Type: Touch Screen
Variable speed adjustment via speed controller arrange with inverter
Additional emergency stop switch for safety protection
Product parameter
Model | GF-2 | GF-4 | GF-6 | GF-8 | GF-10 | ||||
Production capacity | 1600-2000 cups/hour | 3000-4000 cups/hour | 4800-6000 cups/hour | 6400-8000 cups/hour | 8000-10000 cups/hour | ||||
Filling range | 50-300ml or customized | ||||||||
Voltage | Single phase 220V, 3 phase 220V 3 phase 380V/400V/415V 50Hz/60Hz | ||||||||
Power | 2KW | 3.5Kw | 5 Kw | 6 Kw | 7.5 Kw | ||||
Air consumption | 0.6 mз/min | 0.8 mз/min | 1 mз/min | 1.2 mз/min | 1.6 mз/min | ||||
Dimension | 2400×650×1750 mm | 2800×750×1700 mm | 2800×850×1700mm | 3000×900×1700mm | 3000×1000×1700mm | ||||
Weight | 600Kg | 700Kg | 800Kg | 1000Kg | 1200Kg | ||||
Optional
Operation panel: Touch Screen
Servo motor driving
Intelligent design in the case of no cup, the machine will not automatically fill and seal.
Empty cup de-nesting function: according to different cups, some can be designed with vacuum sucker which can guide the cup enter into mold accurately.
Empty cup detecting function: no cup no filling or no cup machine stops
Filling: cup lifting function
Filling tank: level control, CIP washing ball
Foil Storage Device
Foil sensor for detect the film when it ran out, the machine will stop automatically
Blank Film Fixer: to calculate the film length of cup for saving the film cost
Eye Mark Auto Correction: Collocating with a photocell sensor of film pattern mark
Color ribbon date printer for roll film
Automatic Capping System: put plastic cap after sealing
Safety protection: it is optional function, it make up by plexigass, aluminium and stainless stee, has safety switches which protect the operator.
Servo motor driving
Intelligent design in the case of no cup, the machine will not automatically fill and seal.
Empty cup de-nesting function: according to different cups, some can be designed with vacuum sucker which can guide the cup enter into mold accurately.
Empty cup detecting function: no cup no filling or no cup machine stops
Filling: cup lifting function
Filling tank: level control, CIP washing ball
Foil Storage Device
Foil sensor for detect the film when it ran out, the machine will stop automatically
Blank Film Fixer: to calculate the film length of cup for saving the film cost
Eye Mark Auto Correction: Collocating with a photocell sensor of film pattern mark
Color ribbon date printer for roll film
Automatic Capping System: put plastic cap after sealing
Safety protection: it is optional function, it make up by plexigass, aluminium and stainless stee, has safety switches which protect the operator.
Sealing Method
1. Automatic cup dropping
2. Washing
3. Automatic filling
3. Automatic filling
4. Automatic foil suck
5. Automatic sealing
6. Automatic cup exiting
5. Automatic sealing
6. Automatic cup exiting
1. Automatic cup dropping
2. Washing
3. Automatic filling
4. Automatic heat sealing & film cutting
5. Wasted film recycling
6. Automatic cup exiting
3. Automatic filling
4. Automatic heat sealing & film cutting
5. Wasted film recycling
6. Automatic cup exiting
Pre-cut foil Sealing
Function
Automatic cup dropping
Automatic filling
Automatic foil suck
Automatic sealing
Automatic cup exiting

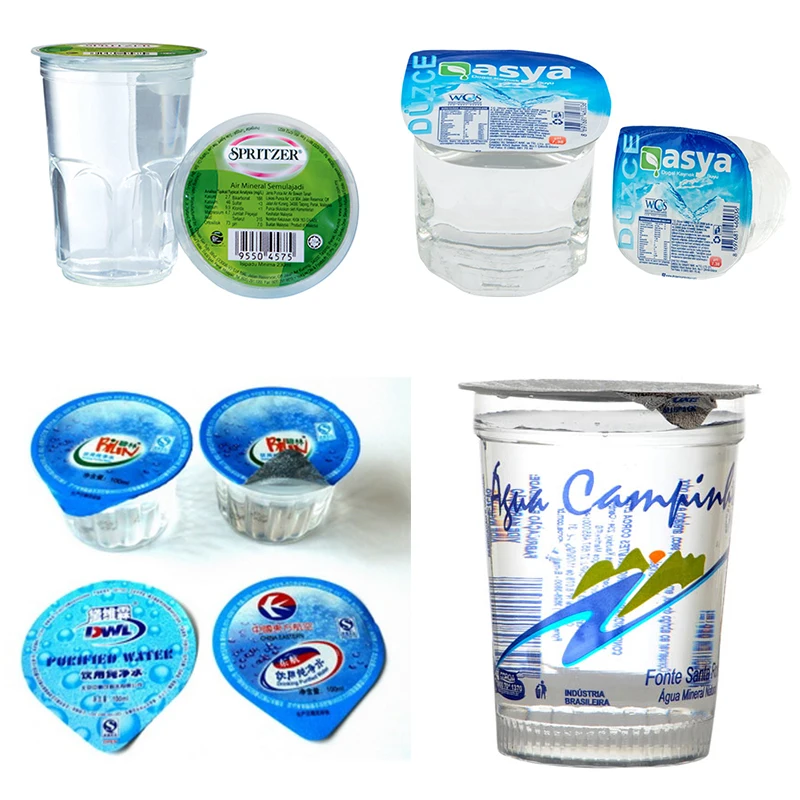

Sample
Roll film Sealing
Function
Automatic cup dropping
Automatic filling
Roll film sealing & cutting
wasted film recycling
Automatic cup exiting
Control panel（can be customized）
Component Parts
Scope Of Application
Filling for liquid ,paste,granule,powder,and so on. Sealing for cup,bottle,bowl,tray,can,jar,bucket etc... | ||||
Yogurt /Milk/Chocolate Filling Sealing Machine | Water Filling Sealing Machine | Juice Filling Sealing Machine | ||
Jelly/Pudding Filling Sealing Machine | Jam Filling Sealing Machine | Sauce Filling Sealing Machine | ||
Instant Noodles Sealing Machine | Tofu/Beancurd Sealing Machine | CoffeeFilling Sealing Machine | ||
Lunch box Sealing Machine | Frozen Food/MAP Packaging Machine | Potato Chips Canister Sealing Machine | ||
Porridge Filling Sealing Machine | Plastic Jar Sealing Machine | Plastic Bucket Sealing Machine | ||
Wet Wipe Can Sealing Machine | Dehumidifier Box Filling Sealing Machine | Cosmetic/Detergent Filling Sealing Machine | ||
