Product Overview
Description
Product Overview
Machine Introduction

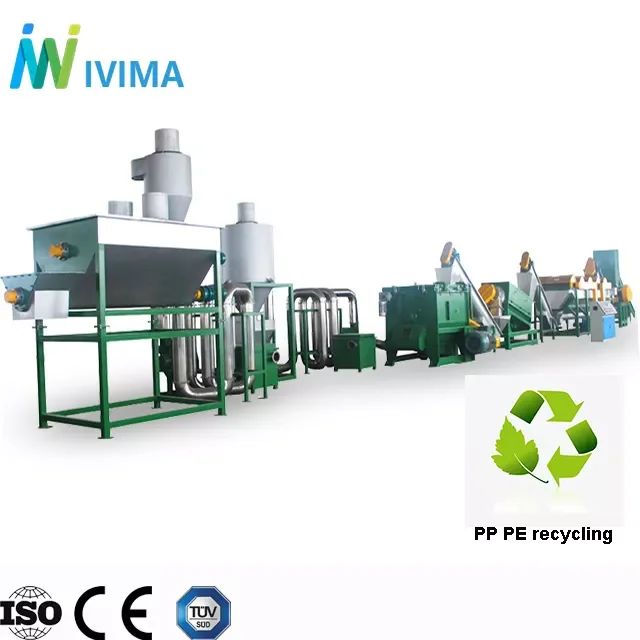

Plastic pp pe recycling machine washing line is widely used for recycling PE PP bag, woven bag, non-woven bag, HDPE milk bottle, oil barrel, Oil tank, basket, agricultural film etc. Our company can provide a wide range of standard and customized recycling systems to meet the different requirements of a modern recycling environment. The systems are capable of processing a wide range of plastic materials with varying levels of contamination including extremely heavy
contamination such as oil based substances and agricultural waste.
The output material can be applied for granulation, blow molding and injection. The whole production line is easy to operate, efficient and low energy consumption.
There are 300-2000kg/h capacity , we need your detailed requirements to make quotations according.
A typical pp pe washing plant is consist of the following components:

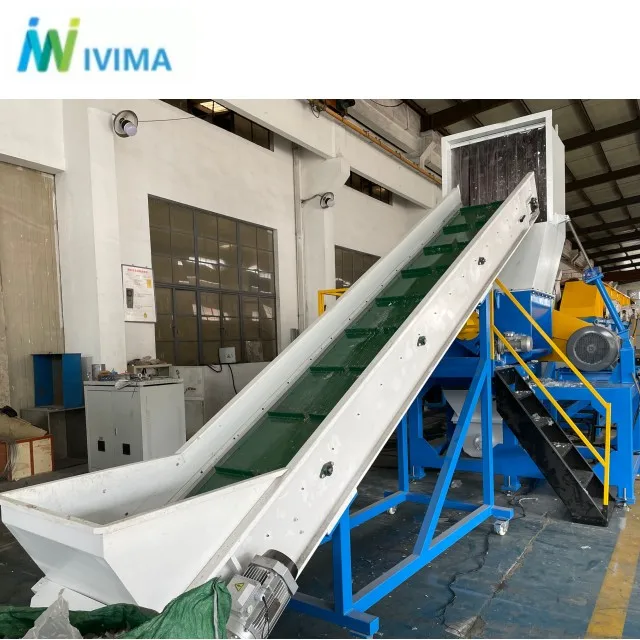

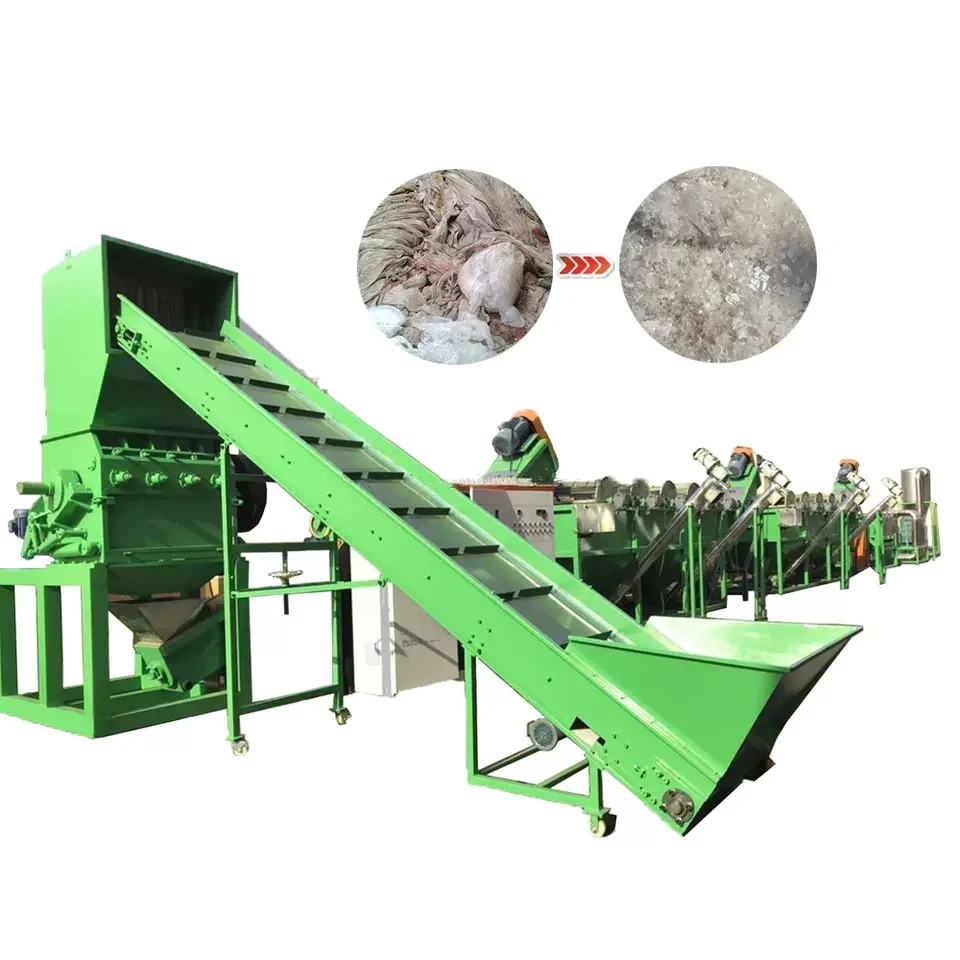

• Belt conveyor: For waste material infeeding.
• Metal Detector – detects metal contamination that may remain in the bottles
• Crusher: Wet crushing system.It used for material size reduction and pre-washing by water spraying from the top.
• Screw conveyor : For PP PE flakes transportion
• High speed Friction washer: High speed friction washing could achieve a good cleaning effects through the blades on the beating and rub.
contamination such as oil based substances and agricultural waste.
The output material can be applied for granulation, blow molding and injection. The whole production line is easy to operate, efficient and low energy consumption.
There are 300-2000kg/h capacity , we need your detailed requirements to make quotations according.
A typical pp pe washing plant is consist of the following components:
• Belt conveyor: For waste material infeeding.
• Metal Detector – detects metal contamination that may remain in the bottles
• Crusher: Wet crushing system.It used for material size reduction and pre-washing by water spraying from the top.
• Screw conveyor : For PP PE flakes transportion
• High speed Friction washer: High speed friction washing could achieve a good cleaning effects through the blades on the beating and rub.
• Hot Washing Tank/ steam washer – hot washing process with alkaline (caustic) soda to remove glue and oil.

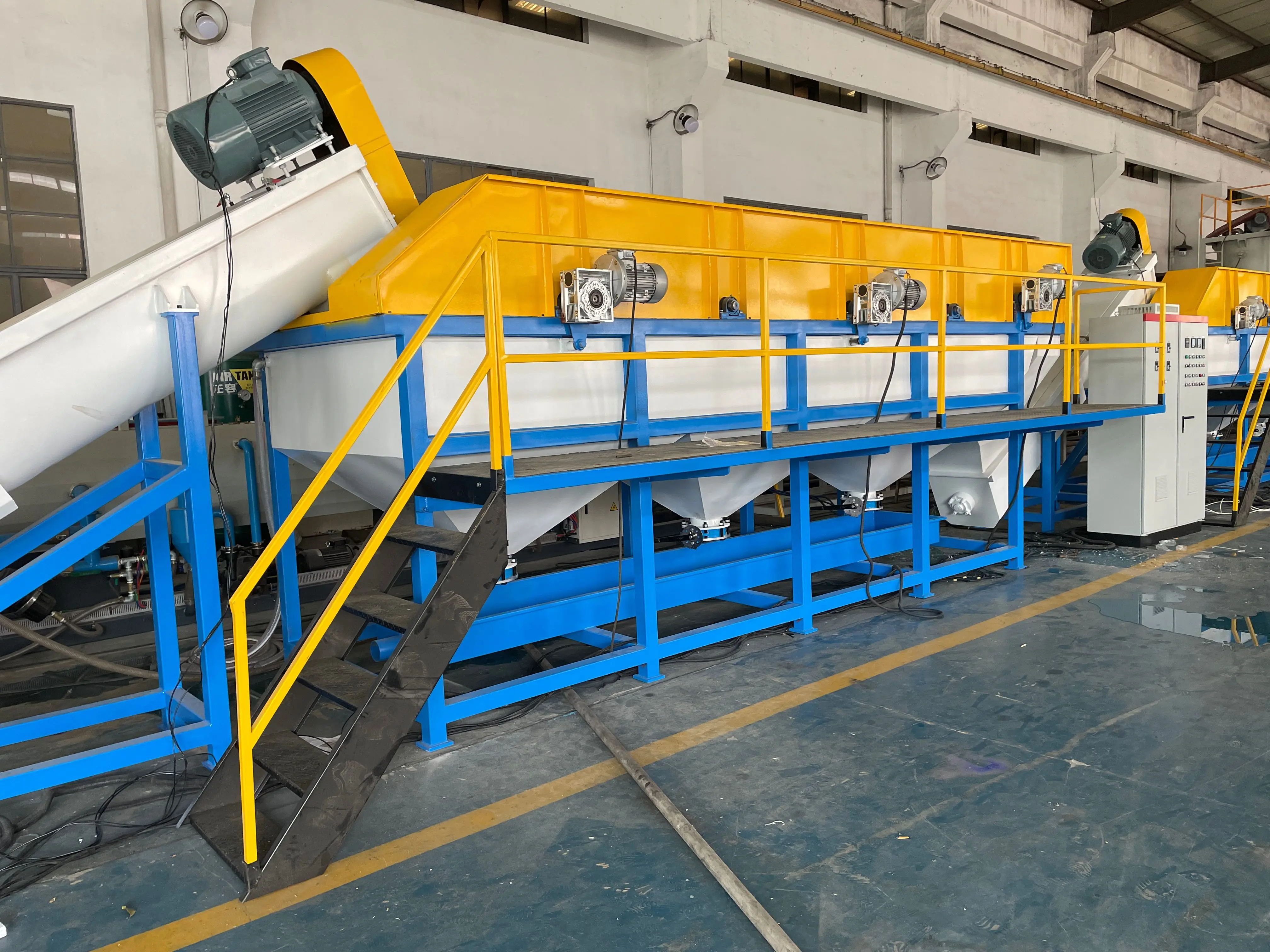

• washing tank/ float washer: For flakes floating washing and conveying.
• Horizontal dewatering machine( Dehydrator):This machine is mainly used for the drying of the pp pe flakes , it throw the water out from the screen by high speed rotating ,and the plastic get out of the machine enters into the next procedure from the outlet .The machine has a good drying effect and high energy efficiency. The paddle is made of high wear-resistant materials, can be replaced more conveniently.
• washing tank/ float washer: For flakes floating washing and conveying.
• Horizontal dewatering machine( Dehydrator):This machine is mainly used for the drying of the pp pe flakes , it throw the water out from the screen by high speed rotating ,and the plastic get out of the machine enters into the next procedure from the outlet .The machine has a good drying effect and high energy efficiency. The paddle is made of high wear-resistant materials, can be replaced more conveniently.
• Hot air dryer-this machine will dry the pet flakes further by hot air.
•
• Blower and transition silo: transportation to storage silo.

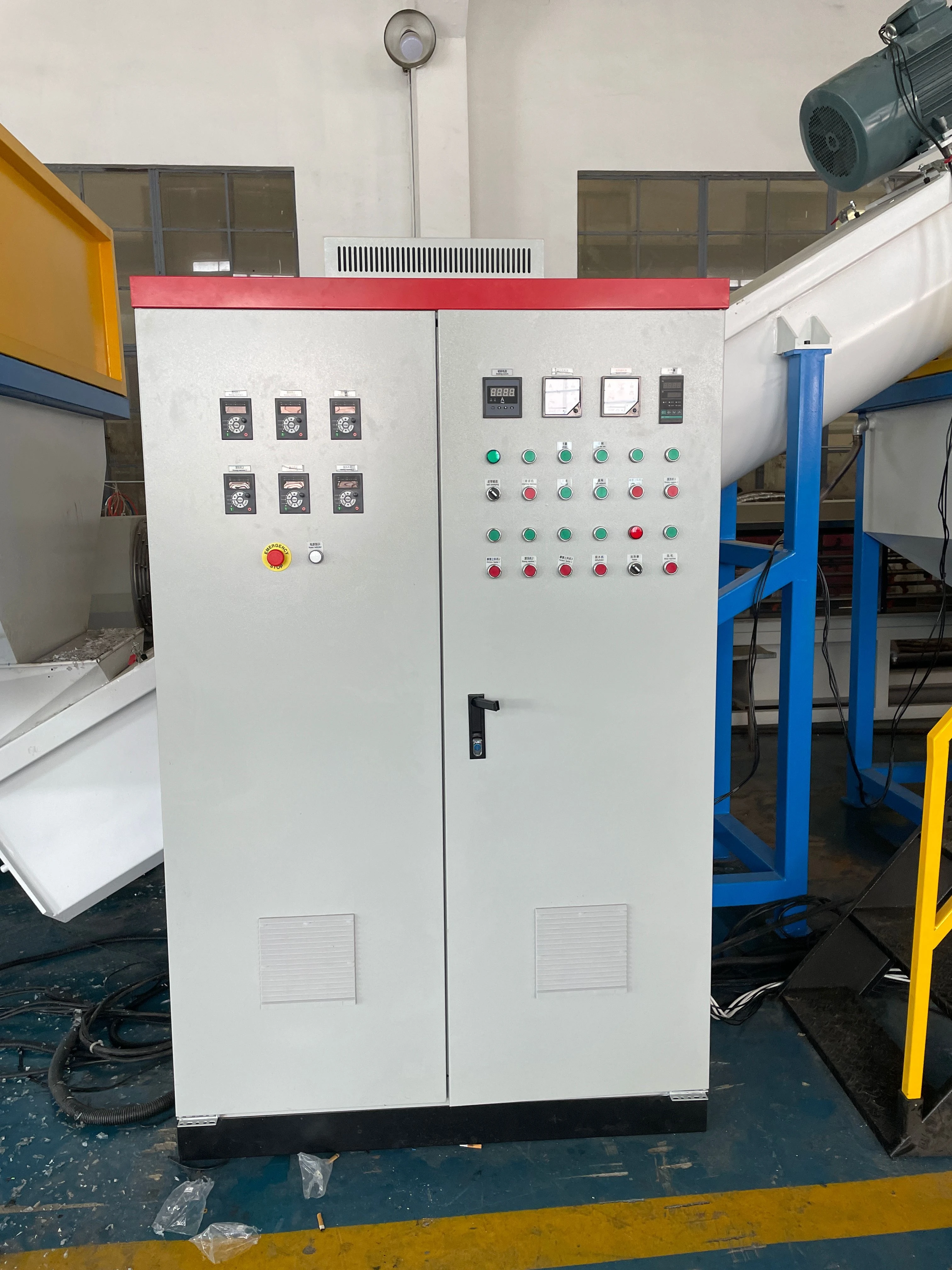

• Control cabinet: For control the whole system intensively.
output capacity : 300kg/h, 500kg/h, 800kg/h, 1000kg/h.
•
• Blower and transition silo: transportation to storage silo.
• Control cabinet: For control the whole system intensively.
output capacity : 300kg/h, 500kg/h, 800kg/h, 1000kg/h.
PRODUCT SPECIFICATIONS
Capacity | Ancillary staff | Installation power | Water Consumption | Workshop(M*M*M) |
300kg/h | 3Persons | 120KW | 3Ton/h | 23 (L)×5(W)×6(H) |
500kg/h | 3Persons | 185KW | 5Ton/h | 25 (L)×5(W)×6(H) |
1000kg/h | 4Persons | 270KW | 6Ton/h | 30 (L)×6(W)×6(H) |
2000kg/h | 5Persons | 380KW | 10Ton/h | 40 (L)×6(W)×6(H) |
FEATURES AT A GLANCE
1.Main material contact with water adopt stainless steel 304.
2.complete solution for washing line. installation，water circulation and operation training.
3.capacity is optional from 300kg per hour to 5000kg per hour.
4. negotiable washing process to help client get the most suitable washing line.
plastic crusher
friction washer
washing tank
squeezing granulator
squeezing compacting
dewatering machine
PRODUCT CONFIGURATION
Siemens motor optional
stronger blade shaft
SKD-11 blade material
Siemens electric part
Ormon temperature controller
ABB inverter
We can supply serve for all over the world
Successful Project
Project in China local
Project in France
Project in Japan
Recommend Products
Wet plastic pelletizing machine
Usage:special designed pelletizing machine for high moisture pp pe film，woven bag and jumbo bag.
Rigid plastic pelletizing machine
Usage: For hard plastic pelletizing only
agglomerate type pelletizing machine
Usage: For pe oo film pelletizing
FAQ:
What about the payment way?●TT,L/C at sight or Alibaba trade assurance.
If you can extend the guarantee time?
●Yes.Our guarantee time is 12 months.
If you will send engineer coming to our factory to install and make training for worker?
●Yes,Every set of machine, we will send professional engineer to your factory and help installation and making training for you.
If you have CE,SGS,ISO certificate?
●Yes,except these,if you also need other certificates,we also can help to apply.
If we buy your machines, can you offer us wear-out spare pats?
●Yes,We provide our high quality machine 1 years’ guarantee,and we will also offer you 1 years wear-out spare parts for free . Once your machines broken or doesn't work within 1 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tools. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
The voltage,if you can design according to our request?
●Yes.
If you support Alibaba trade assurance pay?
●Yes.100% support.
