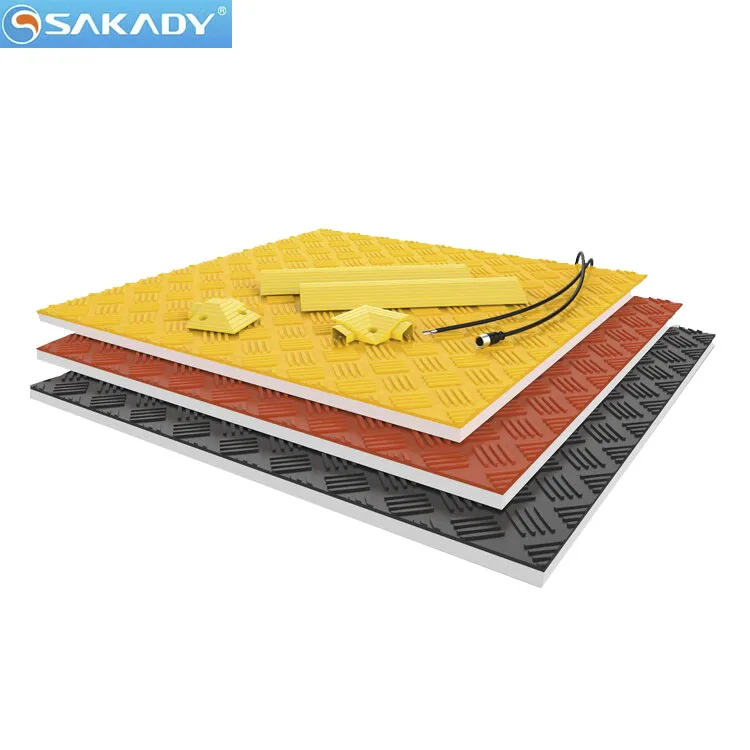

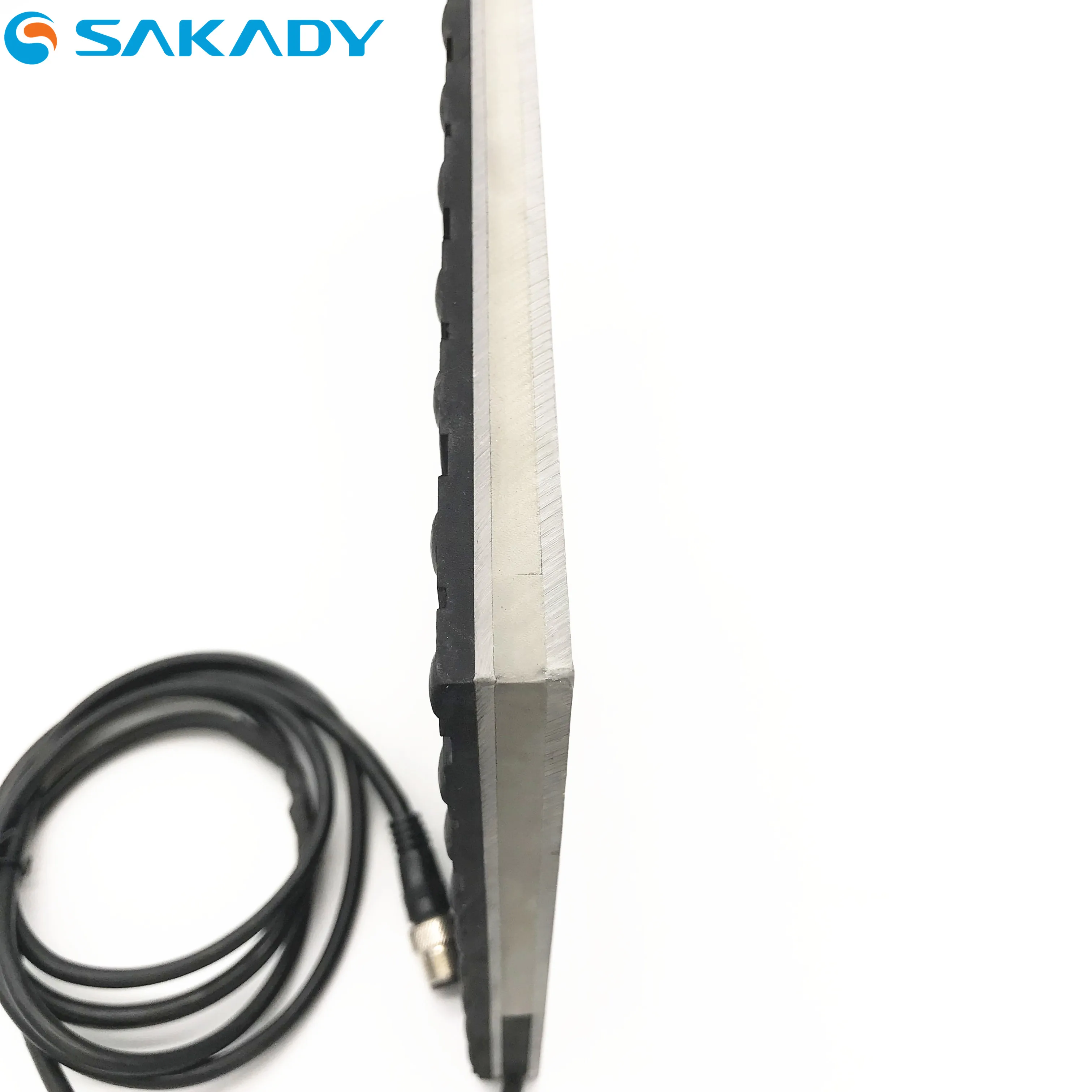

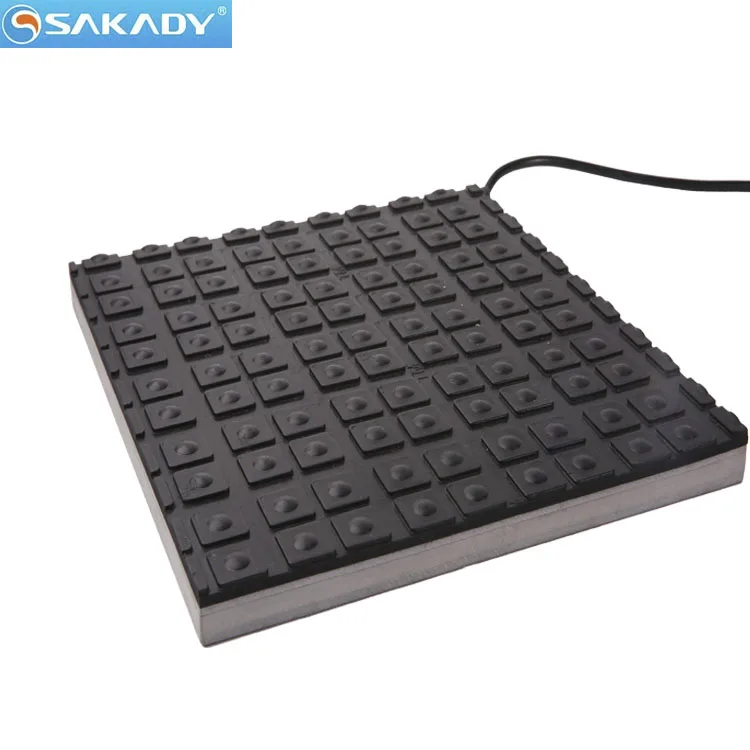

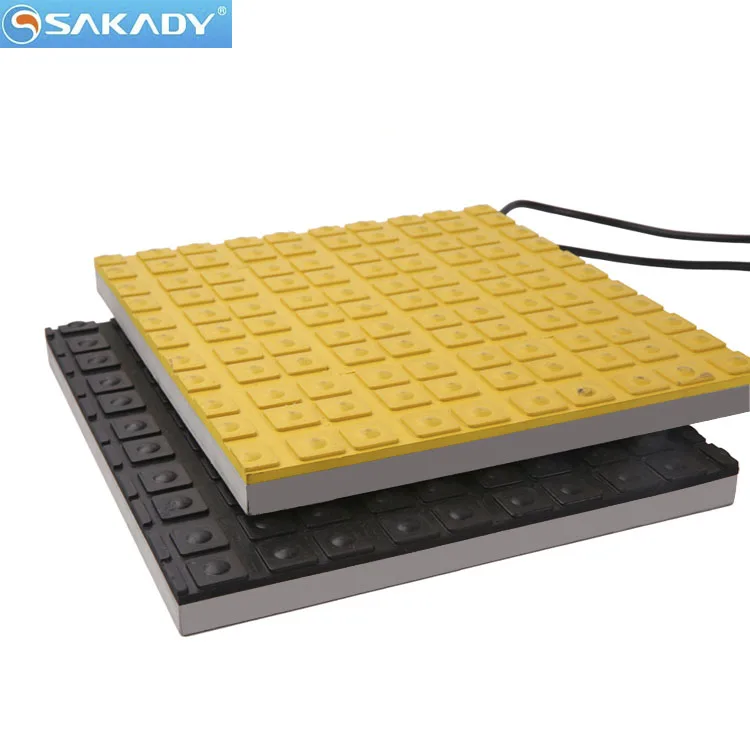

Industrial anti skid waterproof and oil proof safety pressure pad sensor
- Category: >>>
- Supplier: Hangzhou Sakady Sensor Co. Ltd.
Share on (1600745291699):
Product Overview
Description
Product Overview
● 8 safety mats can be used in series
● Provide special shape size, don’t need attachment resistor
● Conform to the standard of EN1760-1and ISO13849-1
● Combine with safety relay SR series, EN954-1 control level 3
● Longest response time 25ms
PRODUCT SPECIFICATIONS
Items | STU-□□□□*□□□□-□-□-□(Note 1) |
Sensing way | Pressure sensing type |
Sensing quality | 30kg or more |
Maximum loading | 2000N(EN1760-1 standard) |
Mechanical endurance | 1 million times or more |
Material | PVC(Polyvinyl chloride) |
Using environmental temperature | -37 ～+66℃(No dew condensation or icing allowed) |
Protection grade | IP67 |
Quality | 24.4kg/m² |
Surface material | Polyurethane, black |
Suitable height | 16mm |
Weight | 17kg/m² |
Cable | SMS 4:4x0.34mm² SMS 5:2pc. 2x0.34 mm² |
Cable length | 2m |
Response time | ≤25ms |
Allowable load | 2,000N/Ø80mm |
Invalid edge | ≤10mm |
Safety mat controller | ||||||||||
Appearance | Safety output | Aux output | Rating | Terminal | Model | |||||
SPST-NO | Without | 240VAC/24VDC | Screw terminal | SR-E10X | ||||||
SPST-NO | SPST-NC | 240VAC/24VDC | Screw terminal | SR-E16P | ||||||

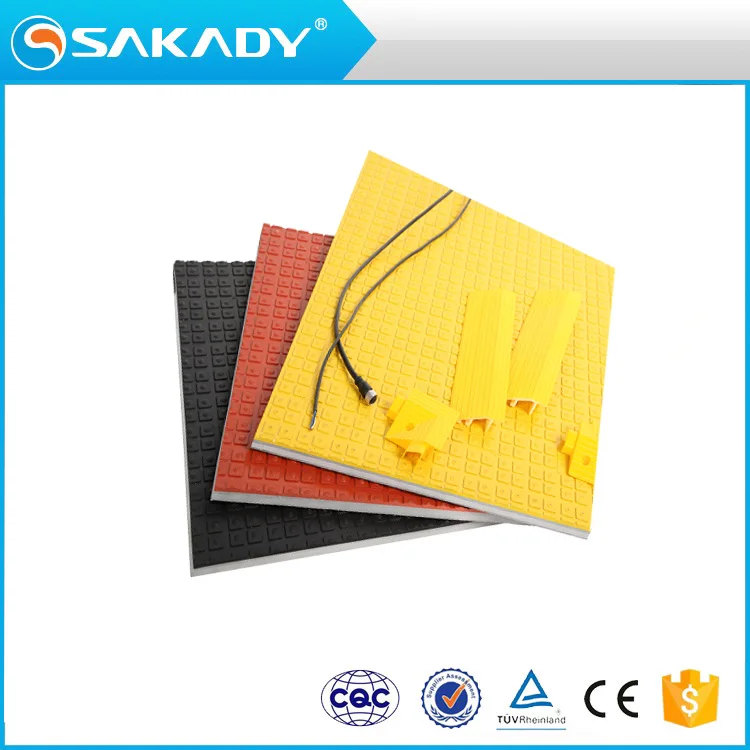

Shape size | Black | Yellow | Red | ||
A(mm) | B(mm) | Model | Model | Model | |
200 | 500 | STU-200*500-B-□-□ | STU-200*500-Y-□-□ | STU-200*500-R-□-□ | |
500 | 500 | STU-500*500-B-□-□ | STU-500*500-Y-□-□ | STU-500*500-R-□-□ | |
500 | 1000 | STU-500*1000-B-□-□ | STU-500*1000-Y-□-□ | STU-500*1000-R-□-□ | |
750 | 1000 | STU-750*1000-B-□-□ | STU-750*1000-Y-□-□ | STU-750*1000-R-□-□ | |
1000 | 1000 | STU-1000*1000-B-□-□ | STU-1000*1000-Y-□-□ | STU-1000*1000-R-□-□ | |
1000 | 1500 | STU-1000*1500-B-□-□ | STU-1000*1500-Y-□-□ | STU-1000*1500-R-□-□ | |
Optional parts | ||||
Length | Model | Note | ||
2m | M8-GM-2C | |||
5m | M8-GM-5C | |||
10m | M8-GM-10C | |||
2m | M8-G-2Y | |||
5m | M8-G-5Y | |||
2m | M8-M-2Y | |||
5m | M8-M-5Y | |||
2m | M12-M-2Y | |||
5m | M12-M-5Y | |||
