Product Overview

Description

Most popular fiber sensor detect softgel bottling counter tablet bottle filling capsule pill electric counting machine

Description:

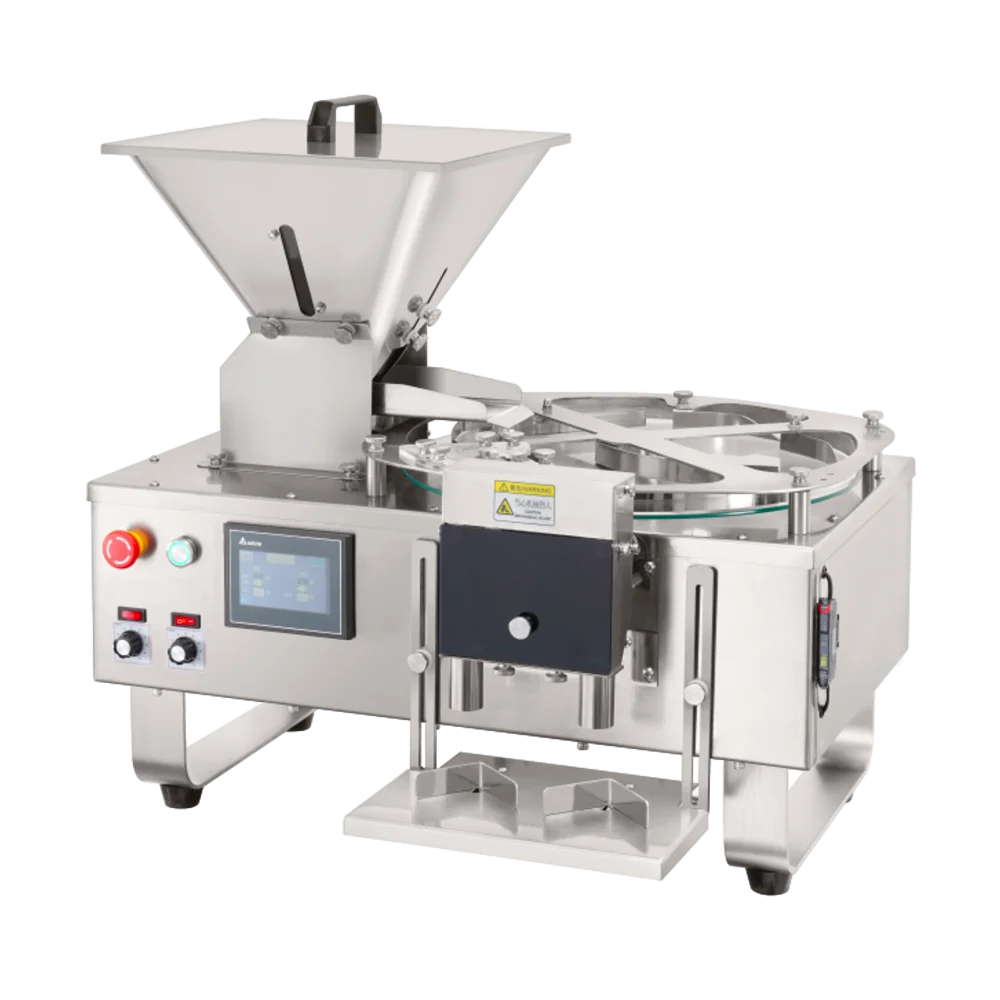

PY-2B Intelligent Electronic Counting Machine is made by our company using the most advanced international vibration type channel feeding, oscillator stepless speed regulation, touch screen PLC intelligent control, optical fiber sensing probe counting, system self-test, automatic stop, and other advanced technology. The machine is made of stainless steel and designed according to GMP standards, and it is a high-tech pharmaceutical counting machine. It can be bottled, boxed and bagged and is fully compliant with GMP requirements, especially suitable for research institutes, hospitals, new small pharmaceutical plants and health care plants.





Feature:

1). The number of pellet counted can be arbitrarily set up among 0-9999

2). Stainless steel material for whole machine body can meet with GMP specification.

3). Easy to operate and no special training required.

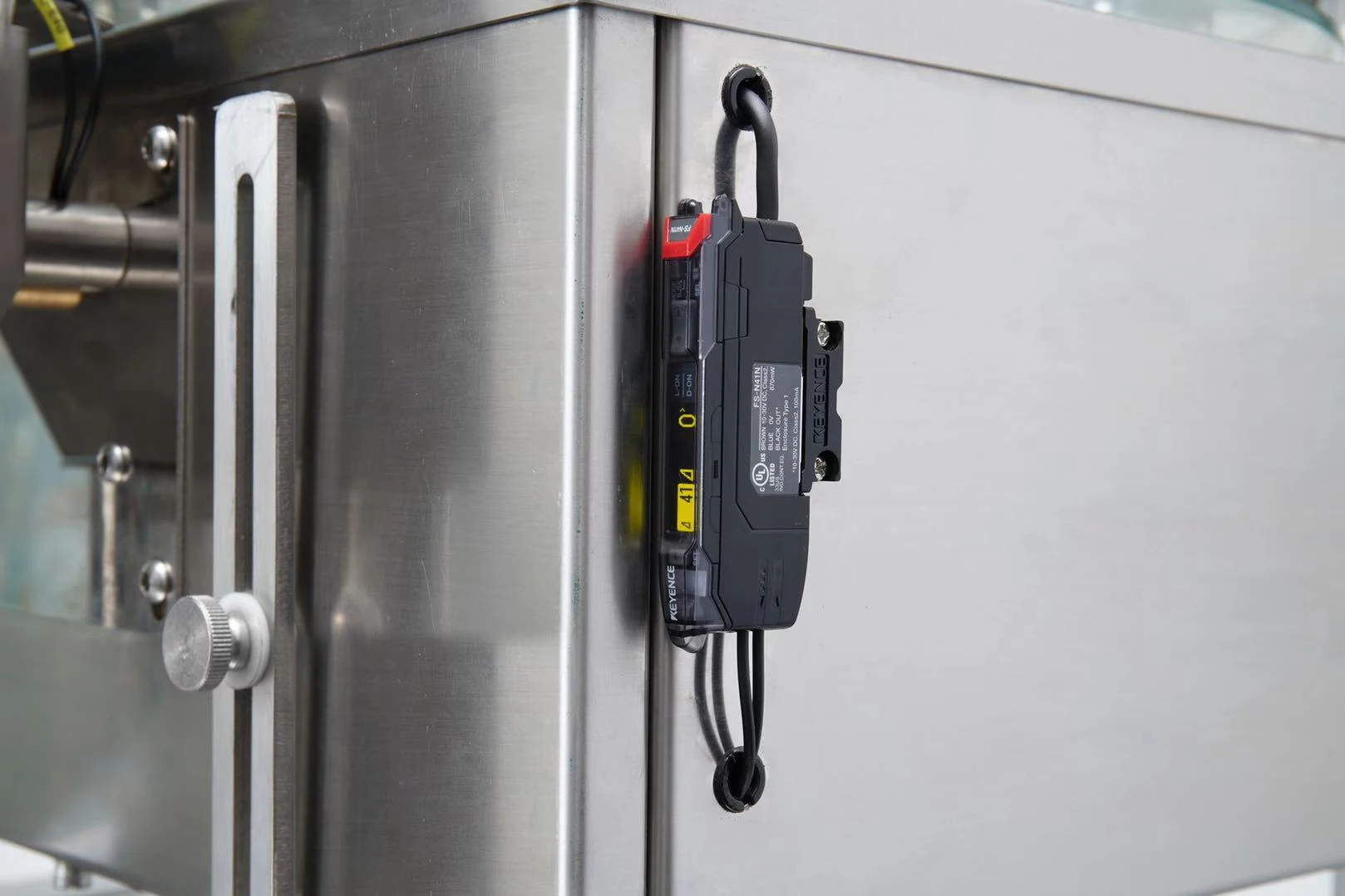

4). Precision pellet count with optical fiber sensing probe counting.

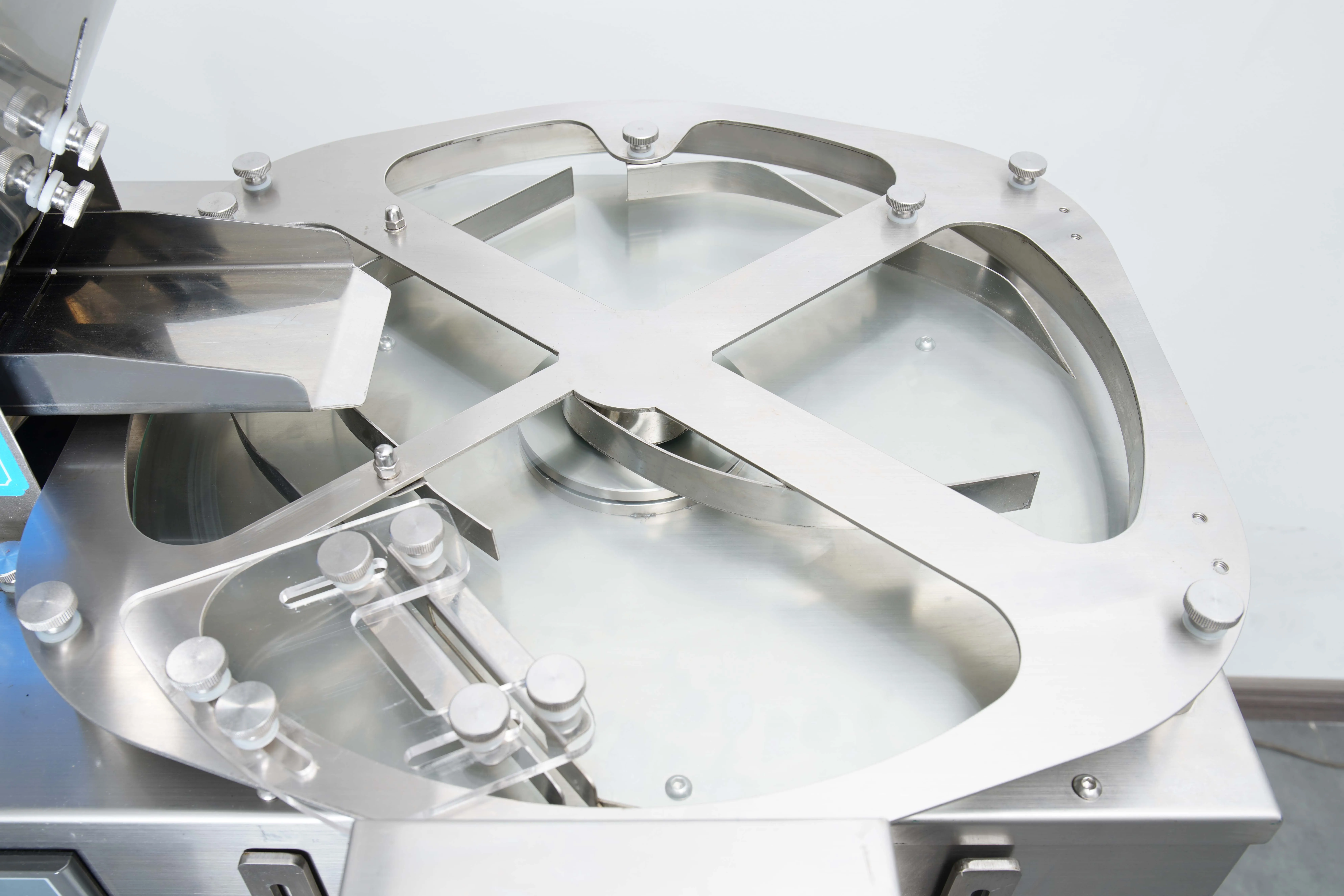

5). Rotary counting design with fast and smooth operation

6). The rotary pellet counting speed can be adjusted with steples according to the bottle putting speed manually.

7). The interior of the machine is equipped with dust cleaner to avoid the dust effect on the machine.

8). Vibration feeding design, the vibration frequency of the particle hopper can be adjusted with stepless based on the needs of the medical pellet out put.

9). Once start with one bottle and automatically to count the next when finished, easy to pick up and put down the bottle by hand.



10):work for all the tablet, capsule,hard /soft gel with diamtere 5-25mm in any color even transparent color.

Specification:

Speed	800 - 2000 capsules/min
Application Scope	Hard capsules, soft capsules, tablets, pills, etc.
Control Method	Touch screen control
Counting Method	Fiber optic infrared detection
Applicable Size	Capsule Model  00#-5#   Tablet Diameter  5-25MM
Bottle Size	Diameter 25-75mm, Height≤180mm
Counting Errors	±0.3%
Supply Voltage	220V/50-60Hz /100W
Net Weight (kg)	50kg
External Dimensions(L*W*H)	735mm×580MM×720MM
Machine Material	Stainless steel of main parts material 304(0Cr18Ni9)































































Comparsion with other models:



Model	YL-4	YL-2	YL-2A	PY-2B
LXWXH	92x75x81cm	76x66x70cm	42.7x32.7x52.5cm	72*58*72
Voltage	110-220V 50Hz-60Hz	110-220V 50Hz-60Hz	110-220V 50Hz-60Hz	110-220V 50Hz-60Hz
Net Weight	85kg	50kg	35kg	50kg
Capacity	2000-3500tablets/min	1000-1800 Tablets/min	500-1500tablets/min	800-1000pcs per min
Applicable Size	5-15	5-15	5-15mm	5-25mm
