Electrostatic Manual powder coating gun spare parts and powder coating gun price
- Category: >>>
- Supplier: Qingdao Mingderixin Technology Co. Ltd.
Share on (1600745322133):
Product Overview
Description
Electrostatic Manual powder coating gun spare parts and powder coating gun price

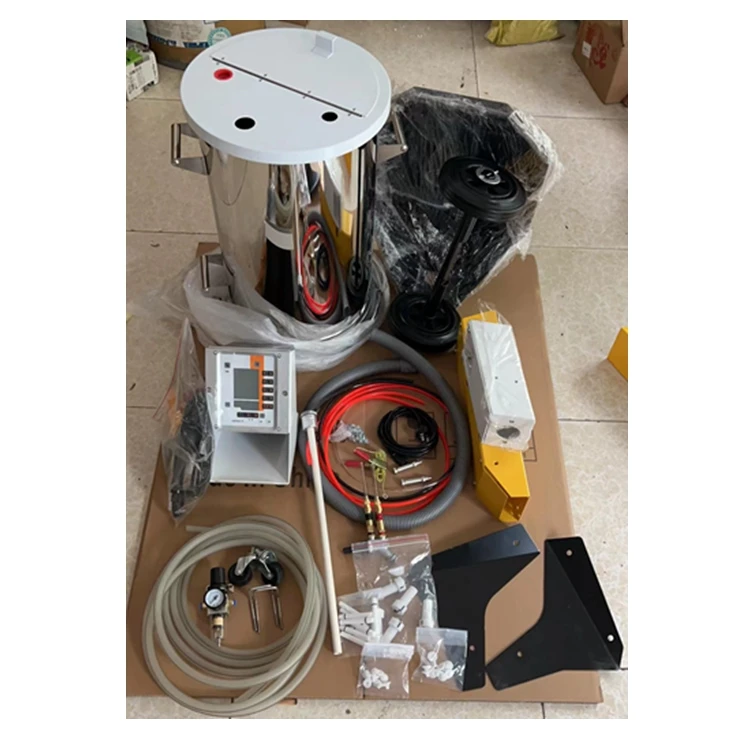

1-Specification
Part Name | Quantity |
Gun | 1 SET |
Controller | 1 SET |
Low Temperature Soft Powder Pipe | 1 SET /3.5Meters |
Vertical Powder Pump | 1 SET |
Stainless Steel Barrel | 1 SET /40L |
Overflow Pipe | 1 SET |
Movable Trolley | 1 SET |
Oil and Water Separator | 1 SET |
Consumables | Some |
2- Parameters
Electric Parameters | ||
1 | Supply Voltage | 220-240V,customized |
2 | Frequency | 50-60hz |
3 | Power | 50W |
4 | Security Grade | IP54 |
5 | Working Temperature | 0-40C |
Air Supply Parameters | ||
1 | Compressed air of main interface diameters | 8meters |
2 | Input air pressure | 4-8Bar |
3 | Maximum Water Content | 1.3g/m3 |
4 | Maximum Oil Content | 0.1mg/m3 |
Spraying Gun Parameters | ||
1 | Maximum Output Voltage | 120kv |
2 | Maximum Output Current | 120µA |
3 | The length of Powder Tube | 3.5meters |
4 | The length of Cable | 3.5meters |
5 | The Maximum Powder Output | 650g/min |
Package ( Fumigation-free Wooden Box) | ||
1 | Size | 500mm(L)*500mm(W)*1020mm(H) |
2 | Weight | 58KG |
3- Advantage
1,Digital control system,display preset Voltage and currency at the same time.
2,Preset Voltage and currency be set by knobs, easy to operate.
3,Alarm automatically if over the preset parameters
4,Adjust the output static electricity automatically according the change of workpiece’s size and distance
5,Could supply large amount powder under low pressure.
6,The inside circuit region is Independent sea, avoiding the powder incoming.
7,Good quality pressure gauge
8,Good quality dust-proof powder switch
9,Control the useless power strictly,low heating value,work continuously and steadily.
4-Other Models
No. | Model | Name |
1 | MD-SG01 | Top Quality Powder Coating Gun |
2 | MD-SG02 | Economical Powder Coating Gun |
3 | MD-SG03 | Enamel Powder Coating Gun |
4 | MD-SG04 | Vibration Base Powder Coating Gun |
5 | MD-SG05 | Automatic Powder Coating Gun |
Choose your favorite one according to your requirement | ||
