2023 HOT Geomative 2D ground penetrating radar gpr ground penetrating radar
- Category: >>>
- Supplier: Geomative Co.Ltd
Share on (1600745328848):
Product Overview
Description
Product Description

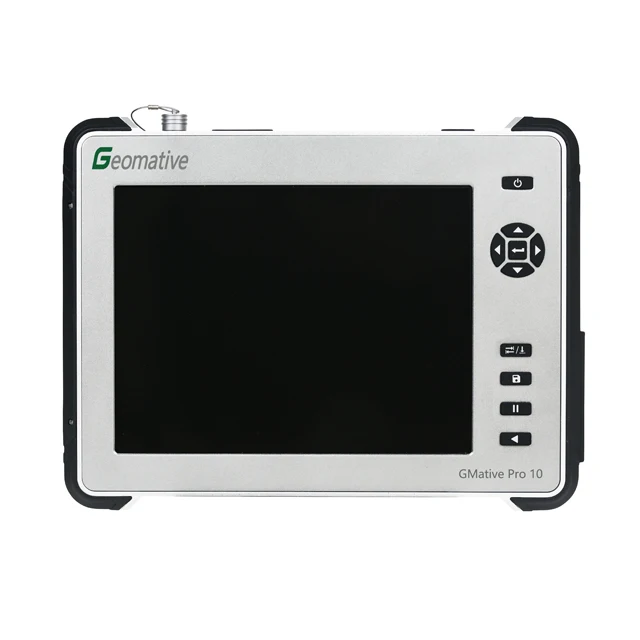

GeoPro 10 radar main machine
GeoPro10 is one portable, intelligent, high performance and full digitalize ground penetrating radar main machine, compatible GeoPro Tail whole series antennas, support most of the GPS equipment, stable and reliable complete Chinese collect system which based on Windows system are in accordance with operating habits of field operators, it has advantages at easy to carry, simple operation, better data quality and high collect efficiency, etc, widely applied in tunnel engineering, road engineering, water conservancy engineering, bridge engineering, civil engineering, military and archaeology areas.
ground penetrating radar data process explain software

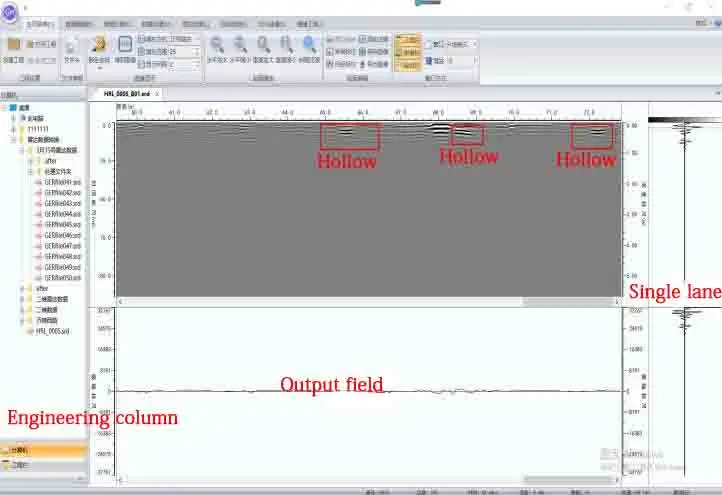

GeoPro Tail series ground penetrating radar data process explain software GeoPro Projectoris one syn data process software which aim at GeoPro Tail series common ground penetrating radar, able to process the operations like data transmit, data loading, data display and data process the ground penetrating radar data which collected by GeoPro Tail series products and international main other formats ground penetrating radar data, convenient for user find the abnormal information in the radar data and generate the follow report documents which are in accordance with national standards, this is one important tool for GeoPro Tail ground penetrating radar data process and analyse. The whole interface of software shown as the picture:
Road application cases
Adopt GDR900A antenna process quick detection at distance about 6cm aim at concrete structure road’s high damping characteristic road, able to continue and quickly detect the concrete thickness in the concrete road and defaults, process whole evaluation at concrete road. Also can adopt this method to detect the road structure layer and deep roadbed, obtain the structure layer thickness and defaults of road.
GDR900A ground penetrating radar to process road inspection
GDR900A concrete thickness inspection data
One high speed GDR900A antenna road structure inspection\t
Space under the GDR900A antenna concrete road plate
Specification
Modulus adapter bytes | 16 bit |
Gain range | -10dB~160dB |
GPS | Series (RS232) |
Volume | 314mm×238mm×64mm |
Weight | 3kg (without battery) |
Protection level | IP65 |
Collecting mode | Time mode, distance mode and point measure mode |
Tunnel application cases

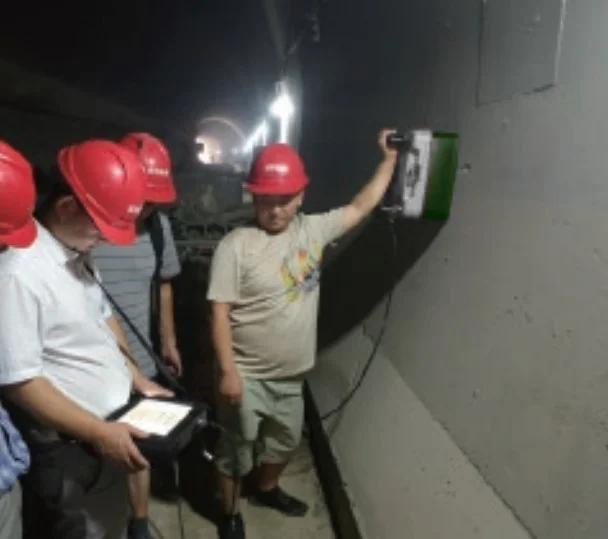

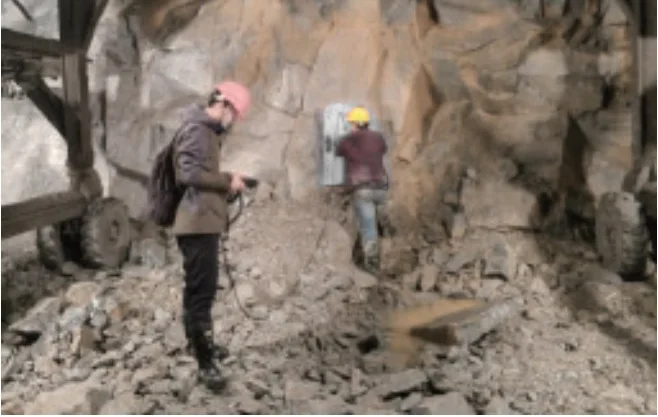

Ground penetrating radar as one main scientific instrument of tunnel engineering inspection, widely applied in the geology outstrip early report, lining, laying quality inspection, inverted arch quality inspection and the lining, laying harm inspection (empty, cavity and not density) during operation. The ground penetrating radar not only can improve the safety factor of tunnel engineering inspection, but also validly guarantee the scientific and reliable of tunnel engineering inspection data, very important performance in the tunnel engineering inspection application.

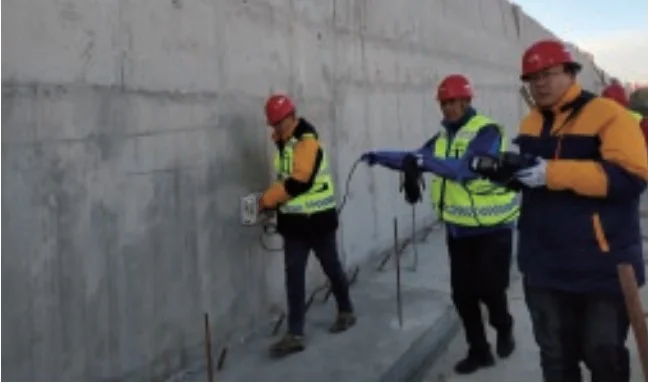

Initial support inspection
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Tunnel initial support arch frame distribution and harms fix position
Tunnel initial support arch frame distribution and harms fix position
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
ABOUT COMPANY
Founded in 2011, Geomative is strategically located in Canada and China (Shenzhen and Wuhan City), with manufacturing, marketing and technical support departments, so as to provide rapid and high-quality products and technical services to countries and regions nearby. We are an international corporation with extensive involvement in geophysical exploration technique research, instrument development & manufacturing, marketing & distribution, engineering and environmental geophysical exploration services. Our philosophy is to insist on technical development as our company pioneer, strict adherence to high quality product and services, focusing on our clients' needs. We are awarded with ISO 9001 Quality Management Systems certification and CE certification. We initiated "Geophysics +” concept, aiming at providing professional and reliable geophysical instruments, while offering comprehensive package solution and engineering technical services to our clients.
About the factory
We produce in a safe, quiet and reliable environment. The products are produced by ourselves, and we have obtained a number of national patents.
Major applications
Groundwater and mineral exploration Underground contamination detection Urban engineering investigation Detection of caves, voids,
caverns and fractured zones Bedrock detection for pile foundation Seawater intrusion survey Dam seepage and leakage detection
Geological mapping Archeological studies 4D Real-time monitoring of dam leakage, landslides and tailings dams. Sediment
detectionof rivers, lakes and reservoirs. Borehole logging
caverns and fractured zones Bedrock detection for pile foundation Seawater intrusion survey Dam seepage and leakage detection
Geological mapping Archeological studies 4D Real-time monitoring of dam leakage, landslides and tailings dams. Sediment
detectionof rivers, lakes and reservoirs. Borehole logging
About packaging
Strictly protected, fall-proof and very safe
The main machine is packed with shock-proof and anti-fall air boxAssembly and packaging
Product configuration is complete, stocking up 24 hours
