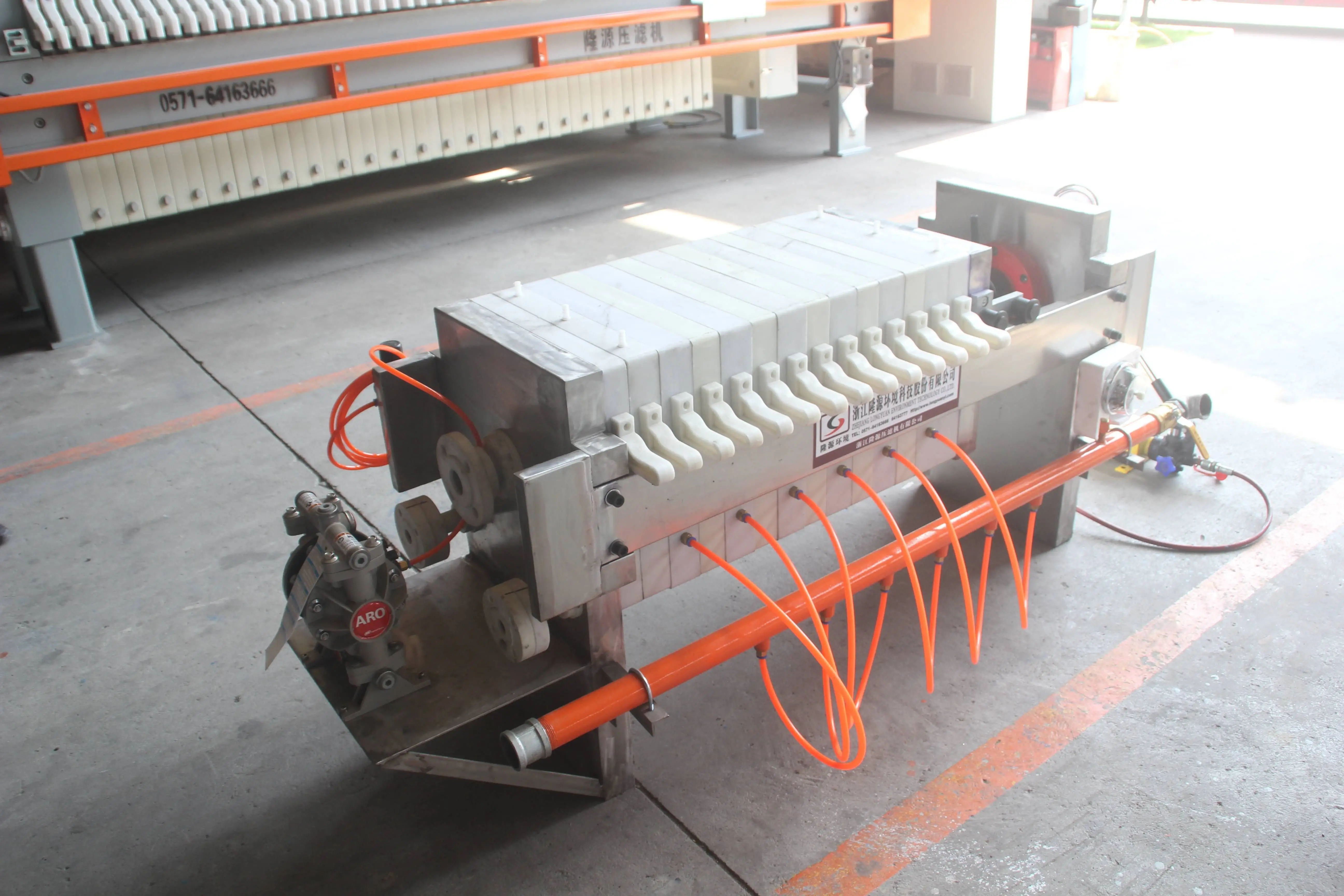

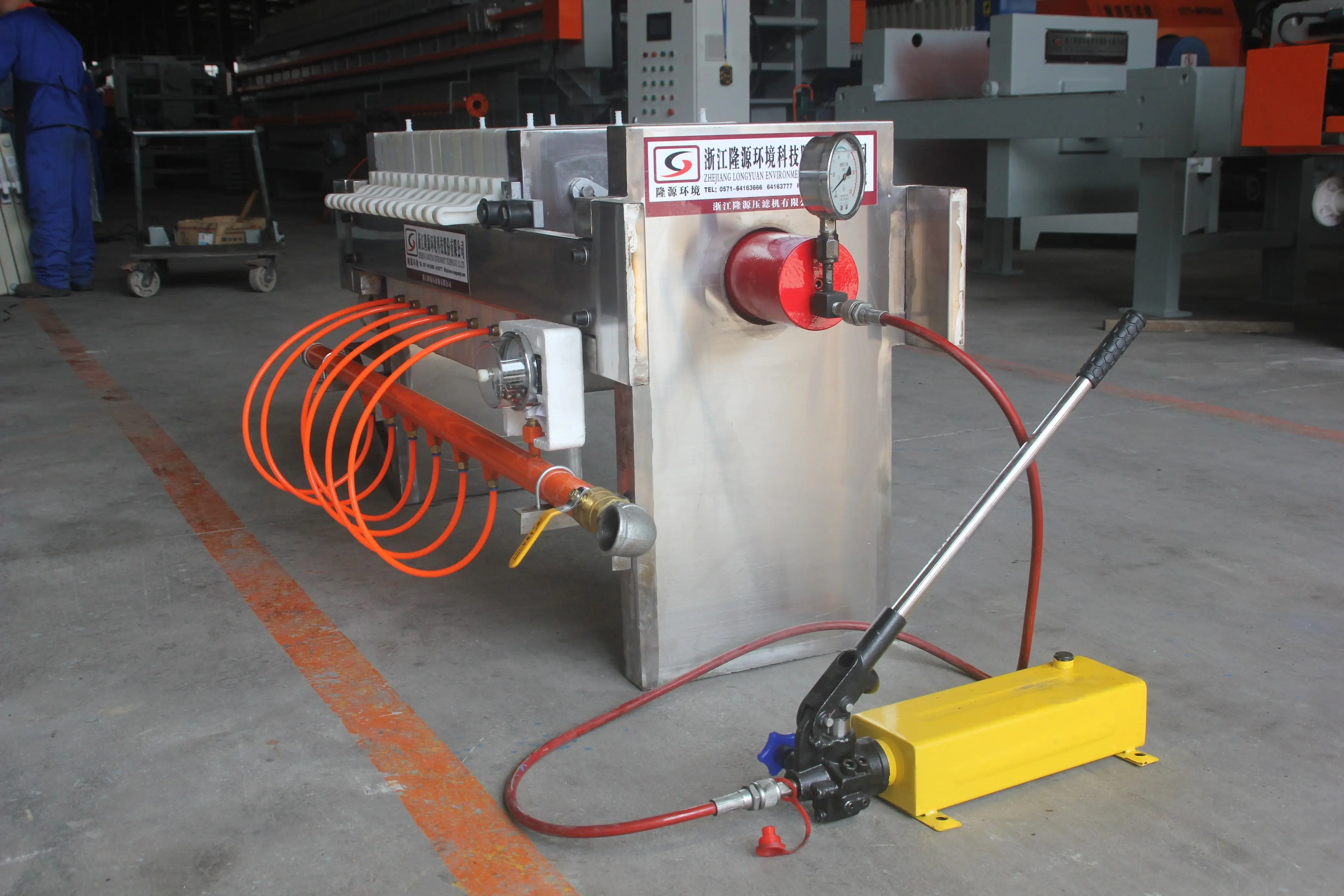

Small/miniature integrated manual filter press for filtering solids and liquids
- Category: >>>
- Supplier: Zhejiang Longyuan Environment Technology Co. Ltd.
Share on (1600745346041):
Product Overview
Description
Products Description
Specification | ||||||||
Machine type | Recessed plate filter press | |||||||
Filtration area | 2.5m2 | |||||||
Filter chamber volume (cake volume) | 38L | |||||||
Processing capacity (processing speed of sewage) | 380L/h | |||||||
Number of filter plate | 13 | |||||||
Size of filter plate | 400*400*50mm | |||||||
Thickness of cake | 25mm | |||||||
Filtration pressure | 1.0MPa | |||||||
Filtration temperature | 0~80 ℃ | |||||||
Voltage | 0 | |||||||
Electric power | 0 | |||||||
Certification | CE, ISO9001, ISO14001, national high-tech enterprise | |||||||
Colour | Grey,blue,yellow,green,white & as required | |||||||
After-sales service | Engineers available to service overseas | |||||||
Power type | Electric hydraulic | Manual hydraulic √ | ||||||
Cloth is embedded into plate | Yes | No √ | ||||||
Washing cloth automatically | Yes | No √ | ||||||
Machine body is clad with stainless steel | Main girder is clad with stainless steel | Whole machine body frame is clad with stainless steel √ | No | |||||
Filter plate shifting style | Auto shifting one by one | Auto shifting several by several | Manual shifting one by one √ | |||||
Diaphragm squeezing mode | PP diaphragm √ | Rubber diaphragm | Without | |||||
Drip tray | PP | Carbon steel | Stainless steel | Without √ | ||||
Equipped with vibration system to help in unloading sludge cake | Yes | No √ | ||||||
Equipped with feeding pump | pneumatic diaphragm pump,ARO,200L/min,0.83MPa,diaphragm material:Teflon | |||||||
Application field
Small manual filter presses are usually used for filtering small capacity of suspension liquid or used in laboratory.
Product description
Filter press is a machine for solid-liquid separation.The target product can be solid,can be liquid, of course can be solid and liquid at the same time. The following is working process of the filter press: 1. Compressing filter plates 2. Feeding target liquid 3.Maintaining pressure 4.Inflating the diaphragm (optional) 5.Loosening filter plates 6.Discharging the cake
Product feature
1.Filters of larger processing capacity can simply switch to filter smaller capacity liquid. Customers don't need to buy one or more extra smaller machine when facing multi task.
2.High efficiency, low power consumption, economic
3.Reliable, easy maintenance, easy operation
1.Filters of larger processing capacity can simply switch to filter smaller capacity liquid. Customers don't need to buy one or more extra smaller machine when facing multi task.
2.High efficiency, low power consumption, economic
3.Reliable, easy maintenance, easy operation
Recommend Products
Company Profile
Certifications
Packing & Delivery
FAQ
Q:Which country have your products been exported?
A:Many countries and regions, such as Eastern Europe, East Asia, North America, Russia, South America, etc.
Q:What is the voltage/phase for this machine ?
A:Can made as the clients’ need.
Q:How long can we get the goods?
A:We usually delivery in 35 days.
Q:What about Payment term?
A:T/T or L/C ---- 30% as prepayment, balance paid before delivery
A:Many countries and regions, such as Eastern Europe, East Asia, North America, Russia, South America, etc.
Q:What is the voltage/phase for this machine ?
A:Can made as the clients’ need.
Q:How long can we get the goods?
A:We usually delivery in 35 days.
Q:What about Payment term?
A:T/T or L/C ---- 30% as prepayment, balance paid before delivery
