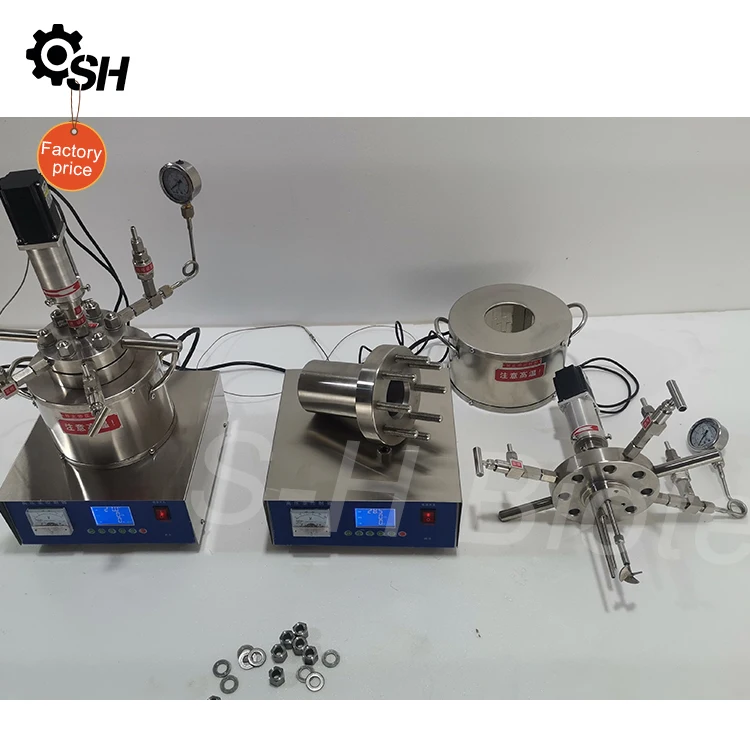

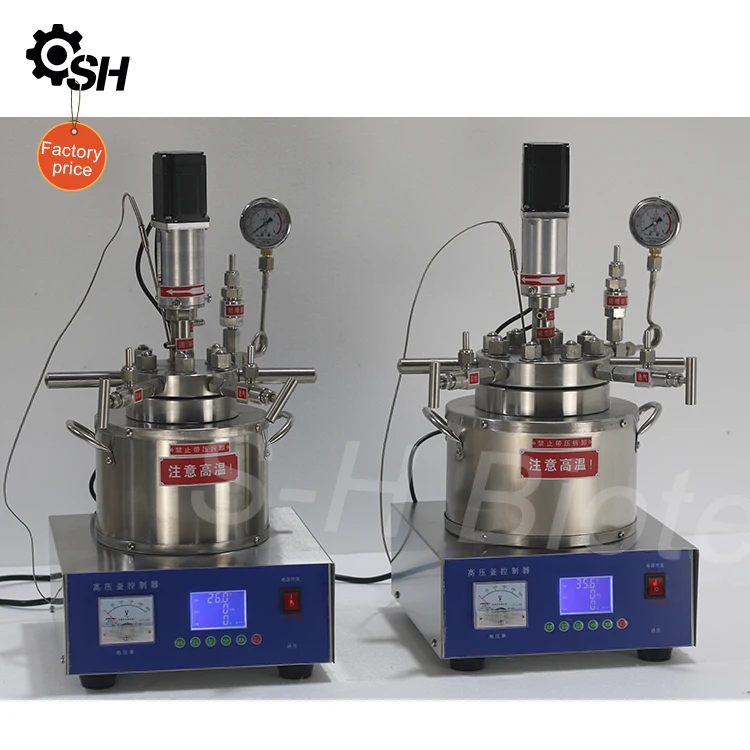

100ml Stainless Steel Magnetic Stirred High Pressure Chemical Reactor

Product Overview

Description

Micro-reactor series reactors are widely used in chemical process fields such as chemical, chemical, pharmaceutical, polymer, metallurgy, environmental protection and so on. Such as catalytic hydrogenation, polymerization, hydrometallurgy, esterification, fragrance synthesis, supercritical reaction, etc. Lab High Pressure High Temperature Stainless Steel Reactor



This reactor is mainly used for laboratory research, micro analysis, quantitative synthesis or supercritical reaction etc experiment.

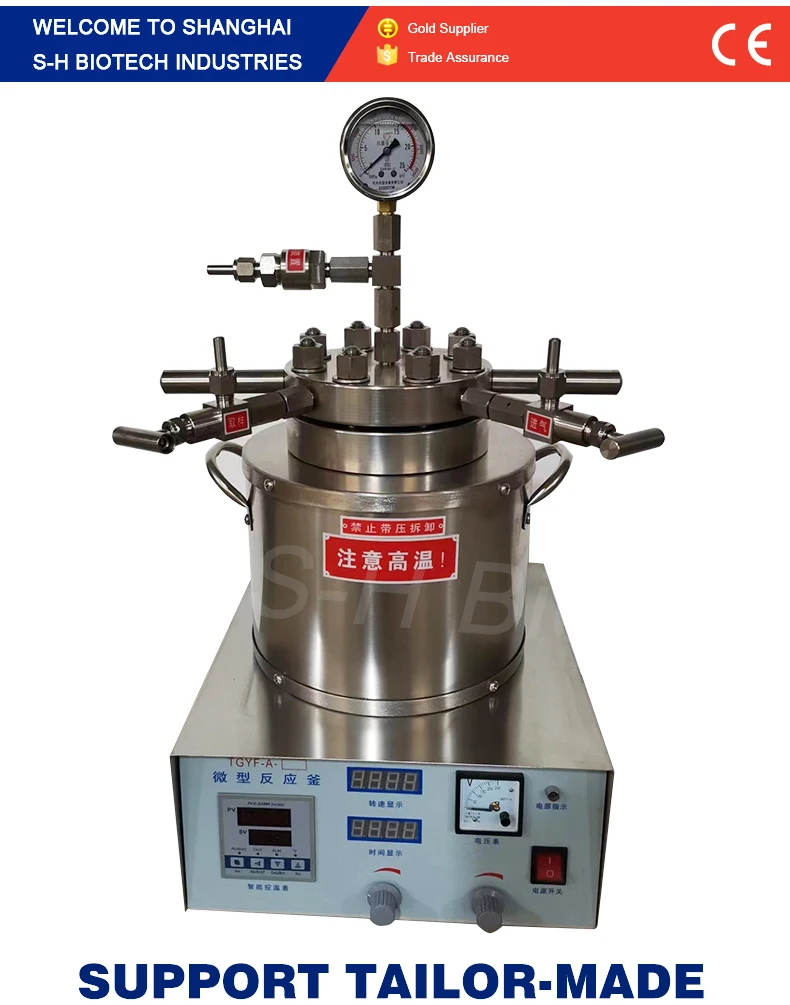

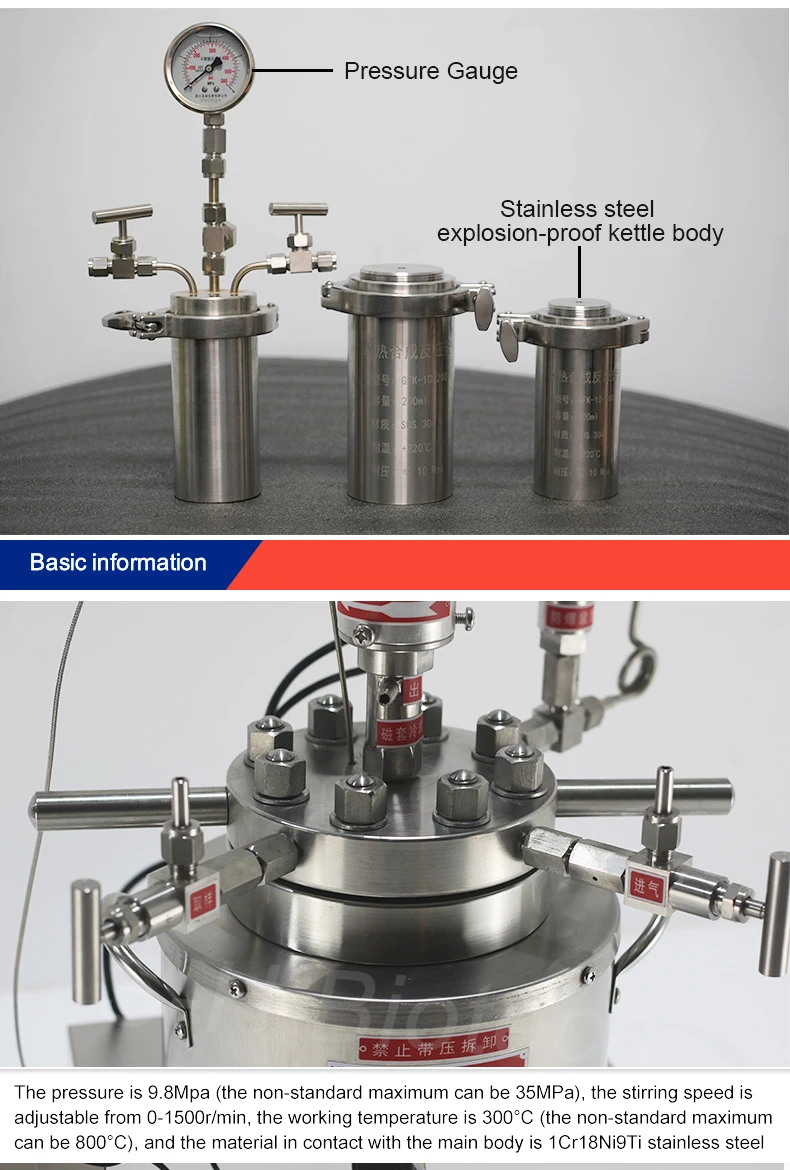

This is TGYF-A model, this reaction autoclave kettle is a bottom magnetic stirring chemical reactor.Static sealing system max temperature is 350 celsius degree, max design pressure is 22Mpa.

Product name	Micro High Pressure Stainless Steel Reactor
Model	TGYF-C-0.05	TGYF-C-0.1	TGYF-C-0.25	TGYF-C-0.5
Volume	50ml	100ml	250ml	500ml
Design pressure	22Mpa
Design Pressure	350 centidrage degree
Heating power	800W	900W	1200W	1500W
Stirring speed	0-2000rpm	0-2000rpm	0-2000rpm	0-2000rpm
Reactor material	SUS304(SS316 optional)
Heating method	Module electric heating

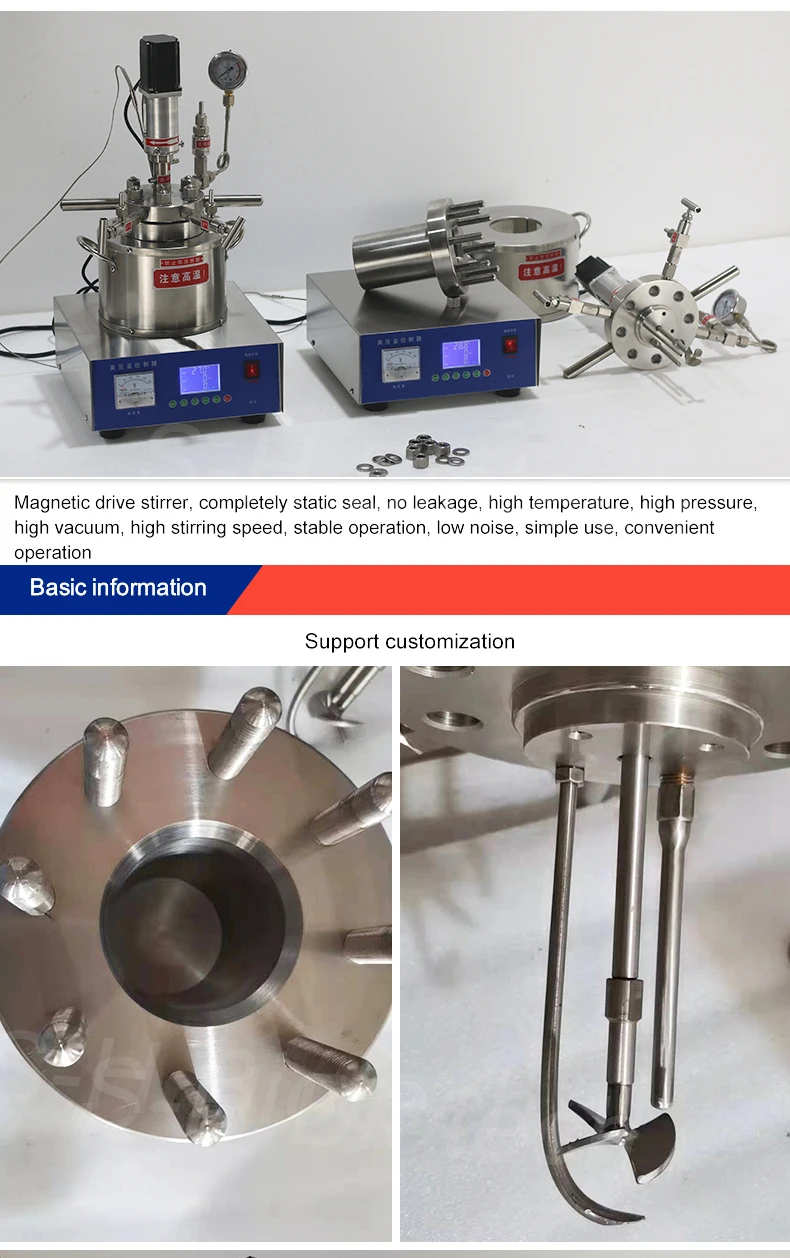

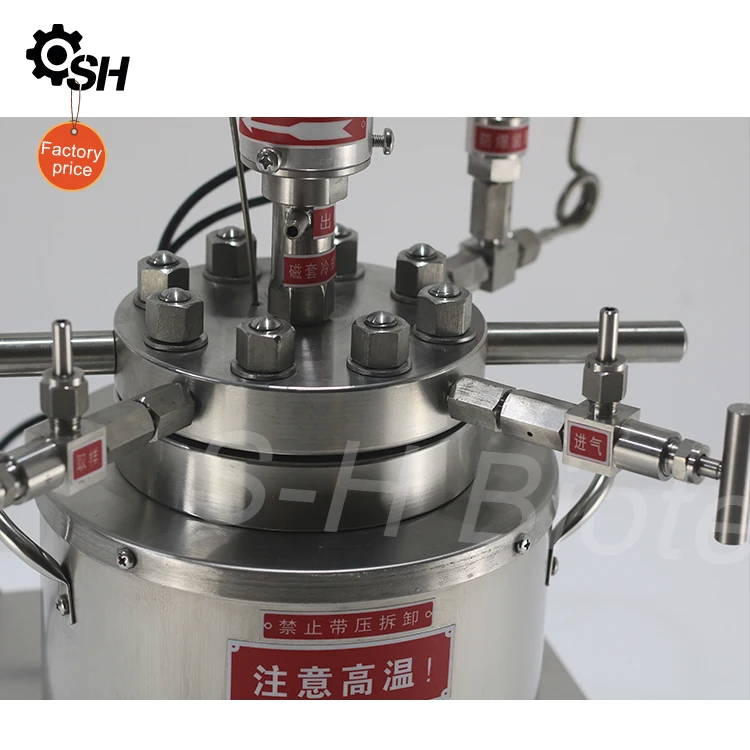

Sealing method	Static sealing,arc sealing

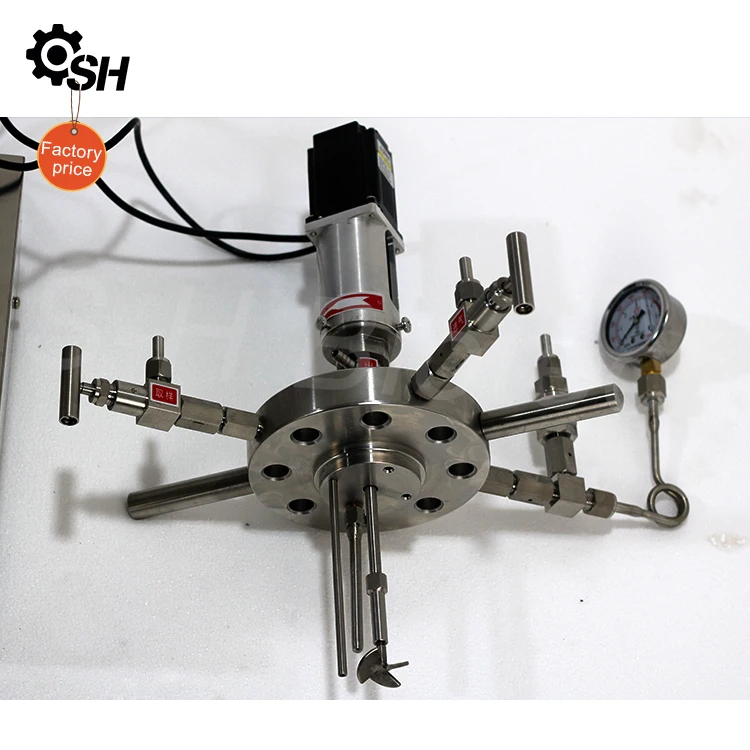

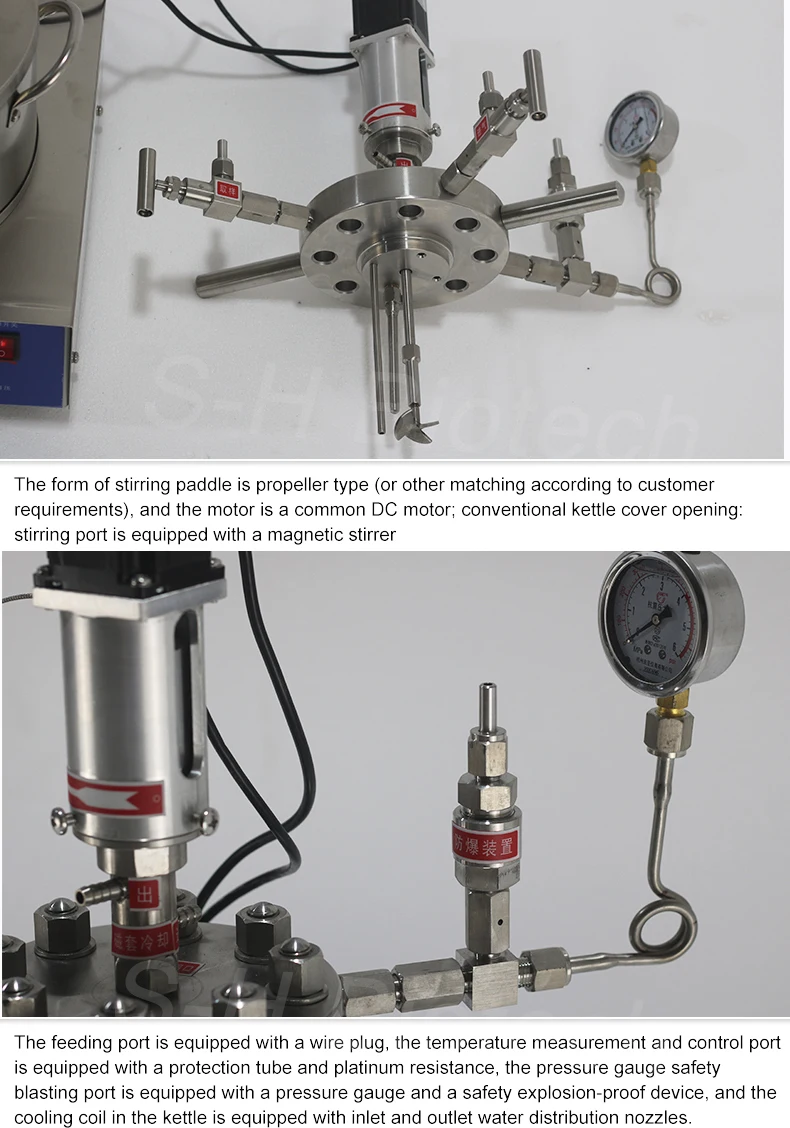

Stirring type	Bottom magnetic stirring

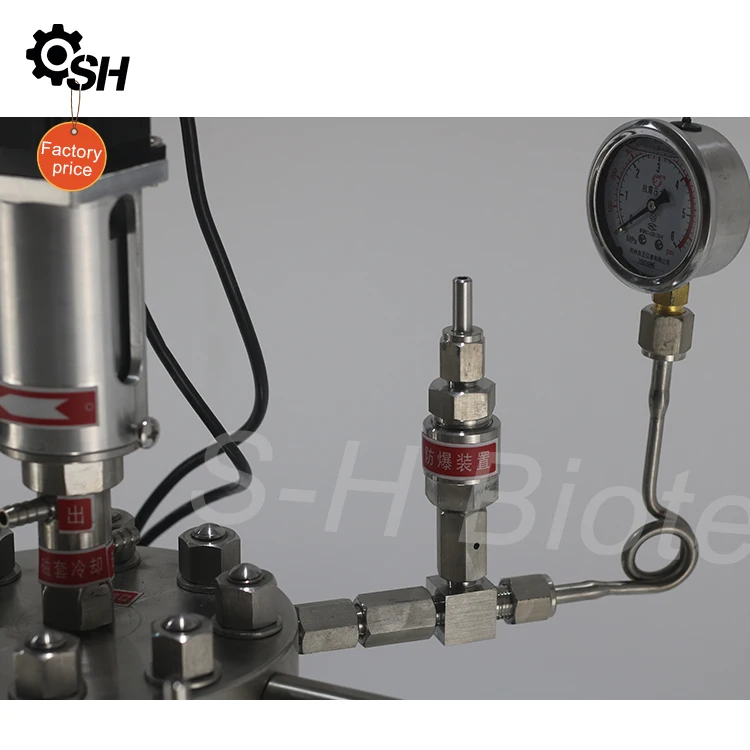

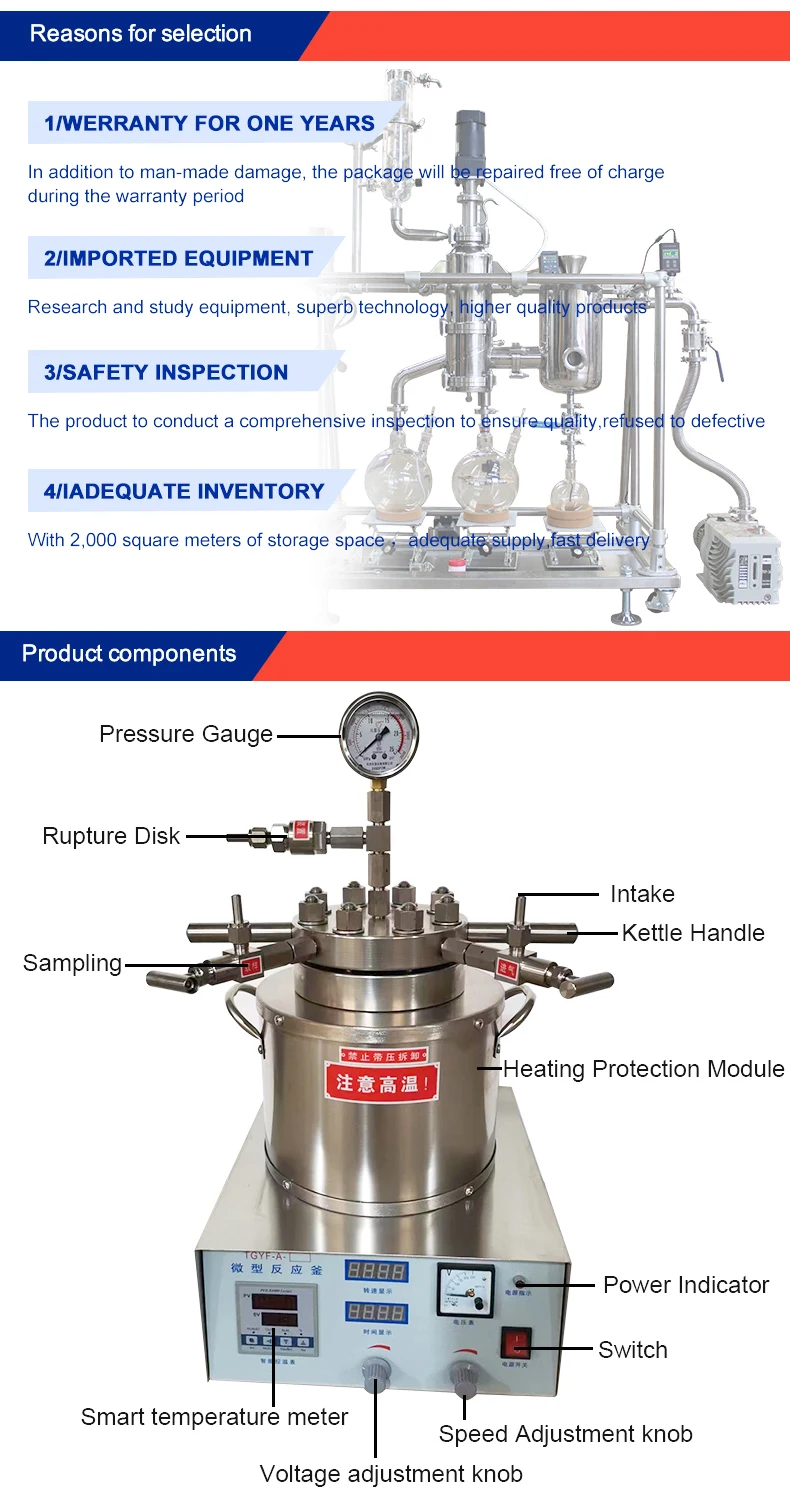

Functions	Machine include electric heating,Bottom magnetic stirring,and ex-proof valves
