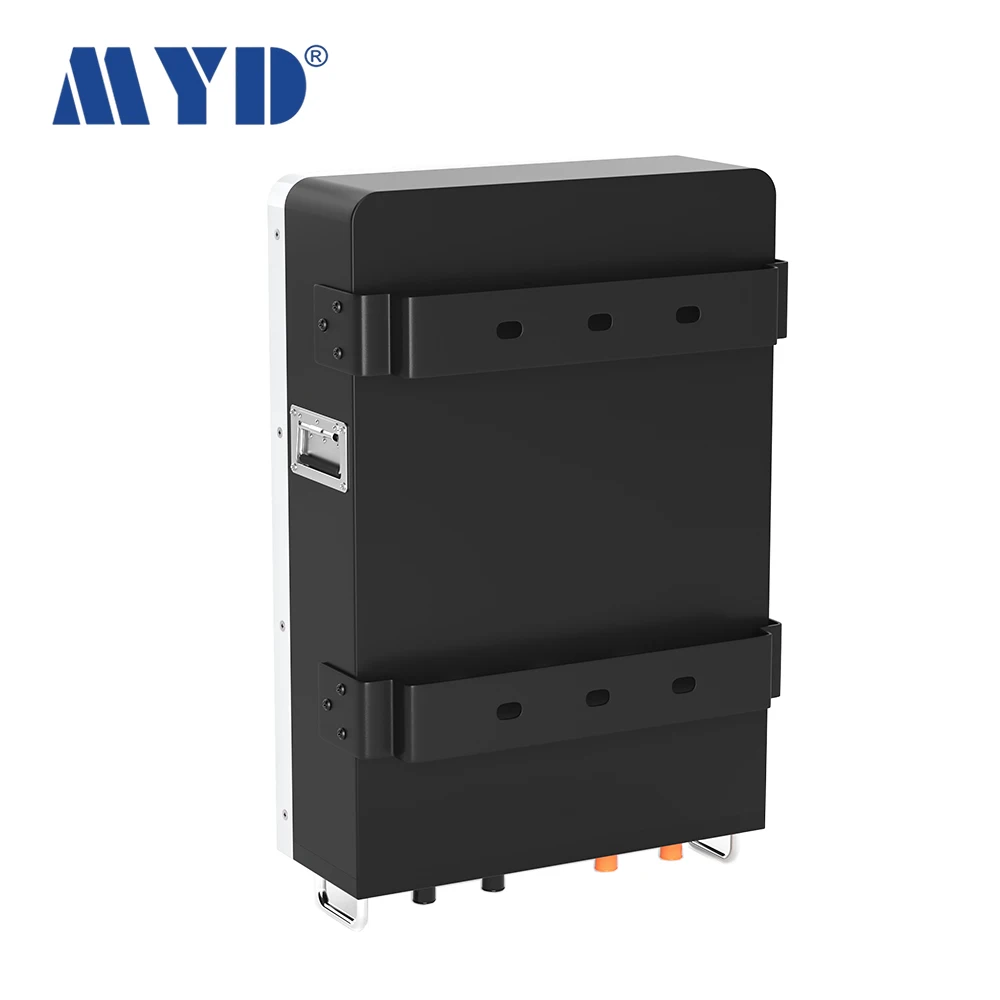

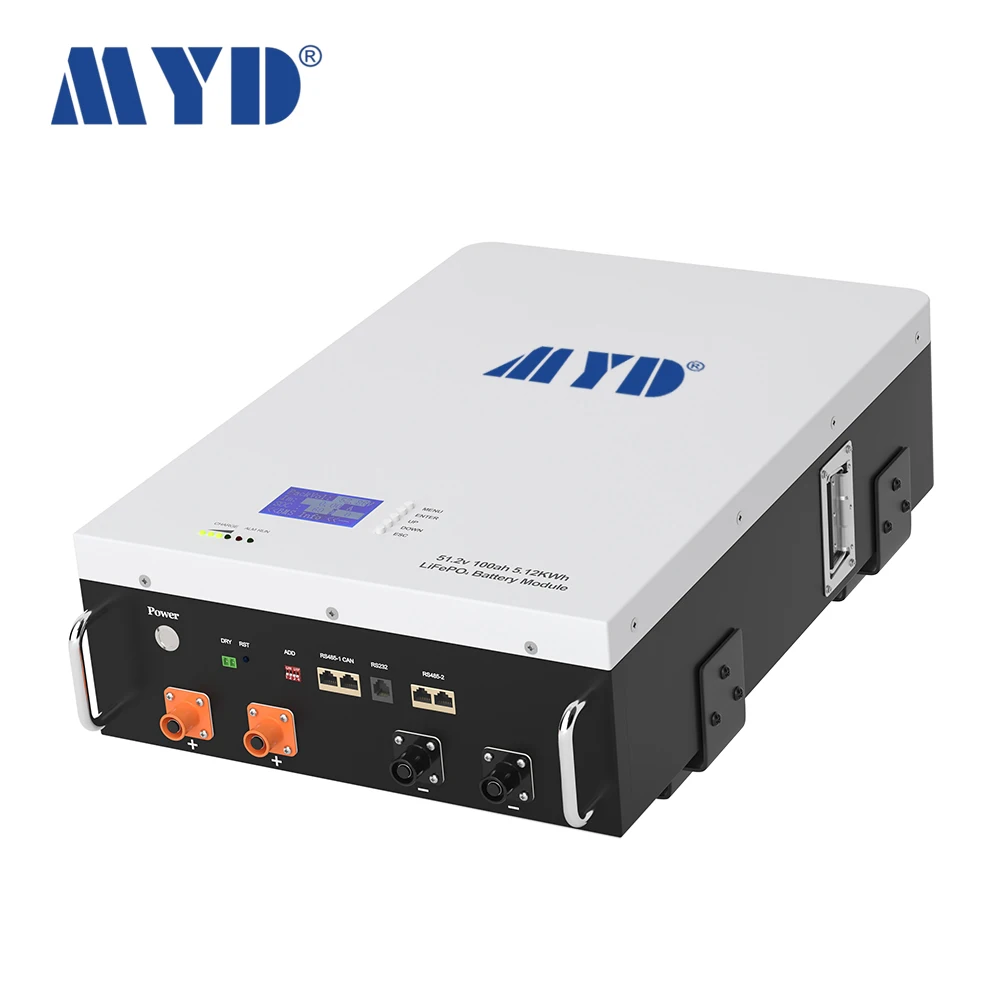

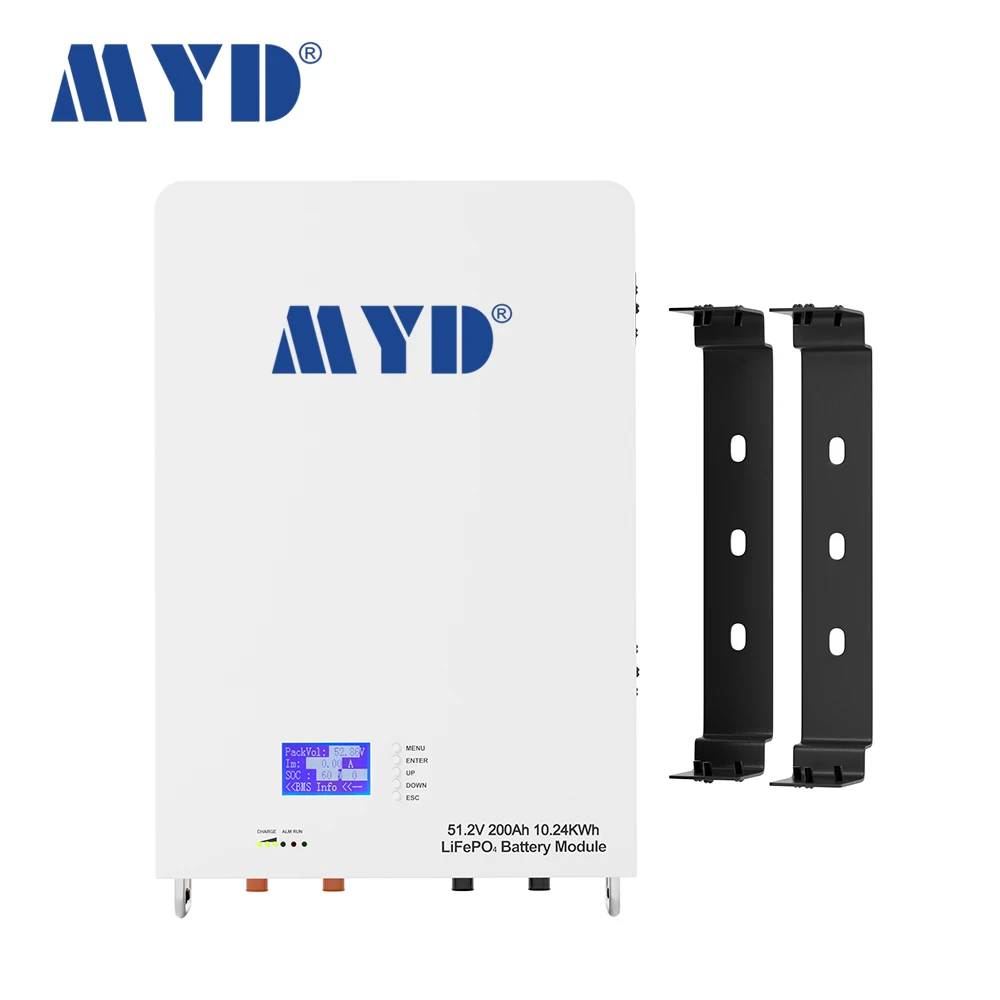

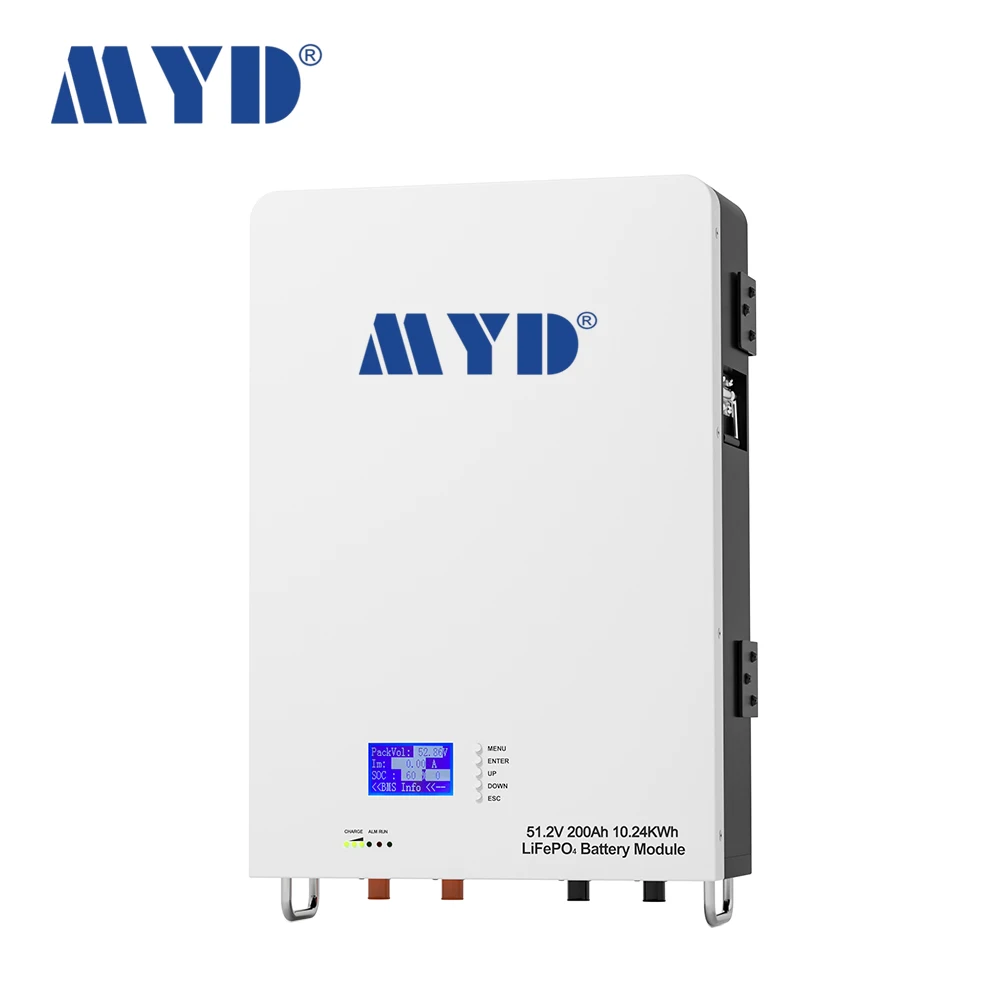

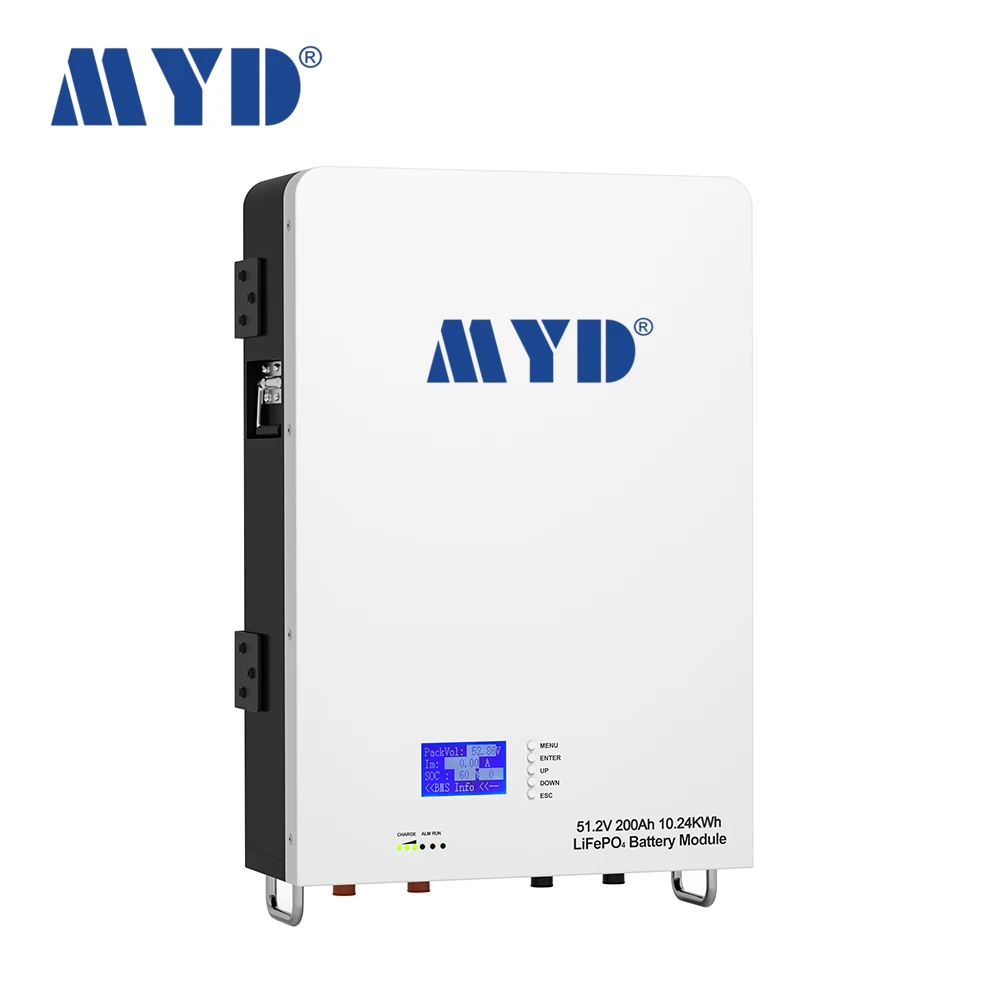

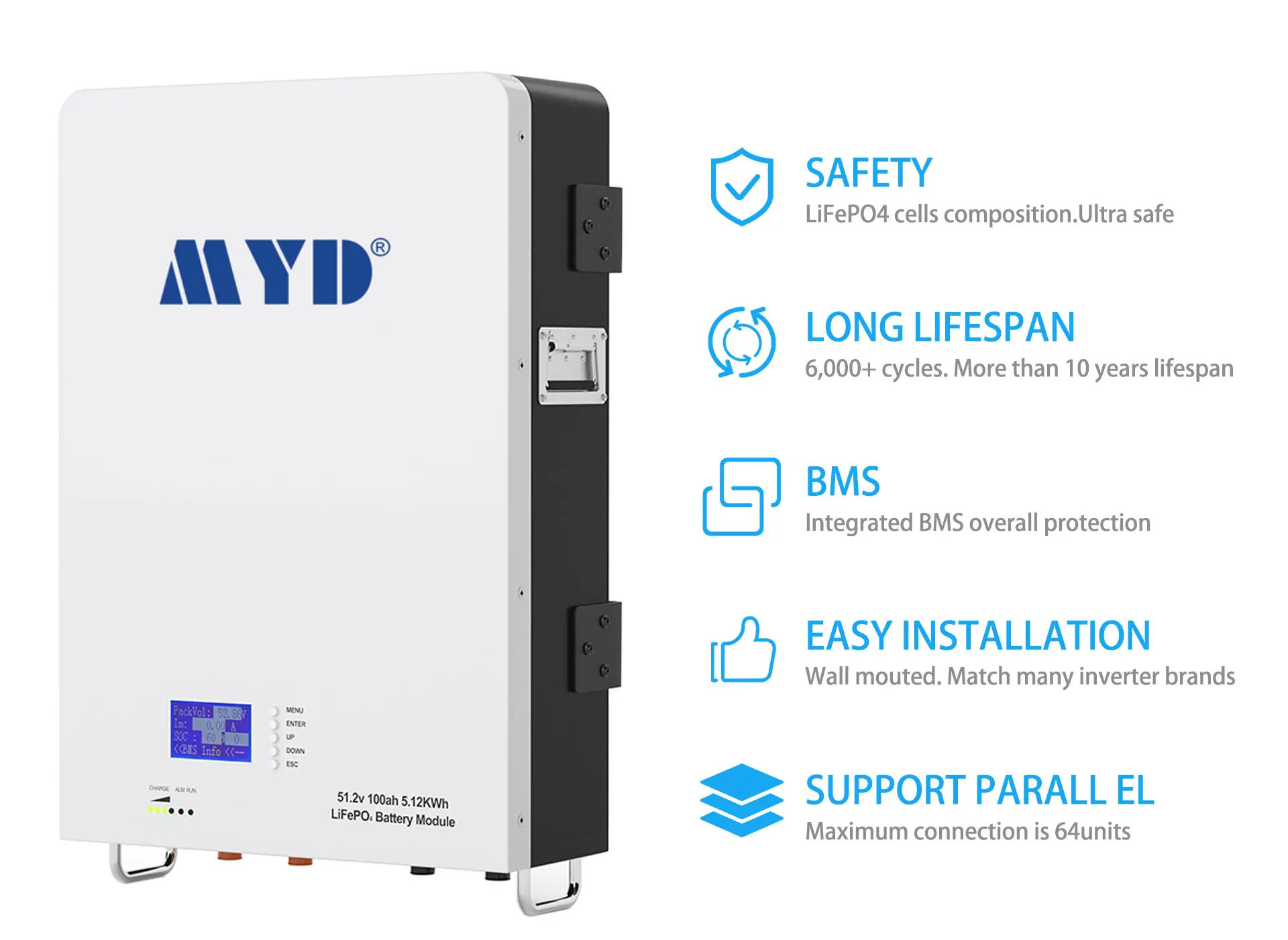

Best Quality Manufacturer 5kw 100Ah 10kw 48V 200Ah power wall For Complete Solar Home System
- Category: >>>
- Supplier: MYD New Energy Technology Limited
Share on (1600745360176):
Product Overview
Description
Matching Inverter
Precautions
Basic parameters | MYD48100 | MYD48120 | MYD48150 | MYD48200 |
Nominal Voltage(V) | 51.2 | 51.2 | 51.2 | 51.2 |
Nominal Capacity(Wh) | 5120 | 6144 | 7680 | 10240 |

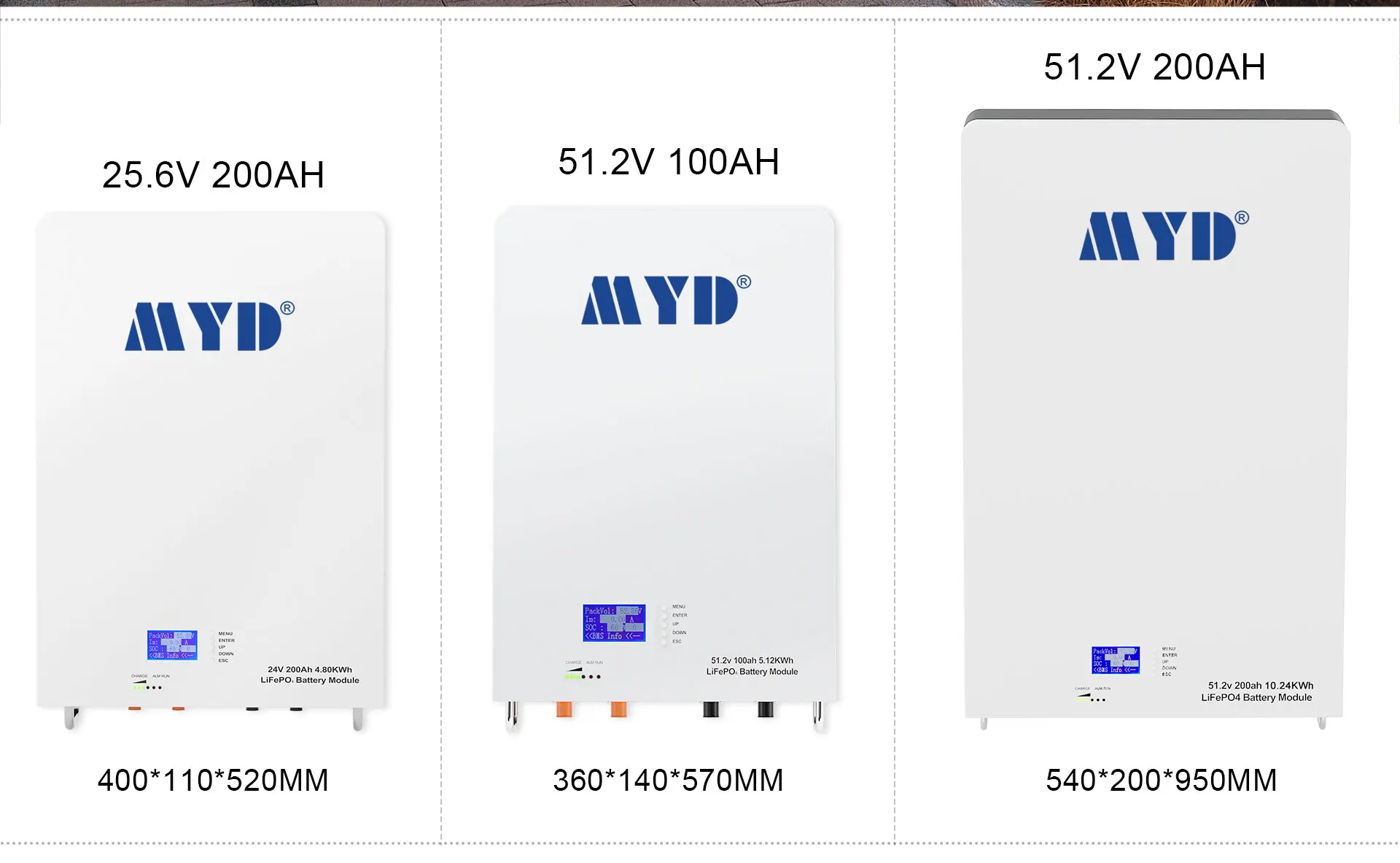

Dimension (mm) | 600*400*185mm | 600*420*210mm | 600*420*210mm | 680*520*200mm |
Weight (Kg) | 45 | 60 | 75 | 85 |
Discharge Voltage (V) | 45 ~ 54 | 45 ~ 54 | 45 ~ 54 | 45~54 |
Charge Voltage (V) | 52.5 ~ 54 | 52.5 ~ 54 | 52.5 ~ 54 | 52.5~54 |
Max Discharge Current (A) | 100 | 100 | 100 | 100 |
Max Charge Current (A) | 50 | 50 | 50 | 50 |
Communication | RS232,RS485,CAN | RS232,RS485,CAN | RS232,RS485,CAN | RS232,RS485,CAN |
Charging Temperature | 0°C~45°C | 0°C~50°C | 0°C~50°C | 0°C~50°C |
Discharging Temperature | -20°C~60°C | -20°C~60°C | -20°C~60°C | -20°C~60°C |
Shelf Temperature | -20°C~60°C | -20°C~60°C | -20°C~60°C | -20°C~60°C |
Certification | IEC / CE / UN38.3 | IEC / CE / UN38.3 | IEC / CE / UN38.3 | IEC / CE / UN38.3 |
Design life | 20+ Years(25°C/77°F) | 20+ Years(25°C/77°F) | 20+ Years(25°C/77°F) | 20+ Years(25°C/77°F) |
Cycle Life | >6000 ( 80% ) | >6000 ( 80% ) | >6000 ( 80% ) | >6000 ( 80% ) |
Product Performance
• Vertical industry integration ensures more than 6000 cycles with 80% .
• Compact and fashionable design fits in your sweet home environment.
• Deliver up to 5KW with single module (2.4KWh).
• Modular design gives the end customers the power of choice of capacity.
• Compatible with most of the available Hybrid inverters.
• Simple fixing minimize the installation time and cost.
• Safety Cert.TüV CE UN38.3 IEC.
• Compact and fashionable design fits in your sweet home environment.
• Deliver up to 5KW with single module (2.4KWh).
• Modular design gives the end customers the power of choice of capacity.
• Compatible with most of the available Hybrid inverters.
• Simple fixing minimize the installation time and cost.
• Safety Cert.TüV CE UN38.3 IEC.

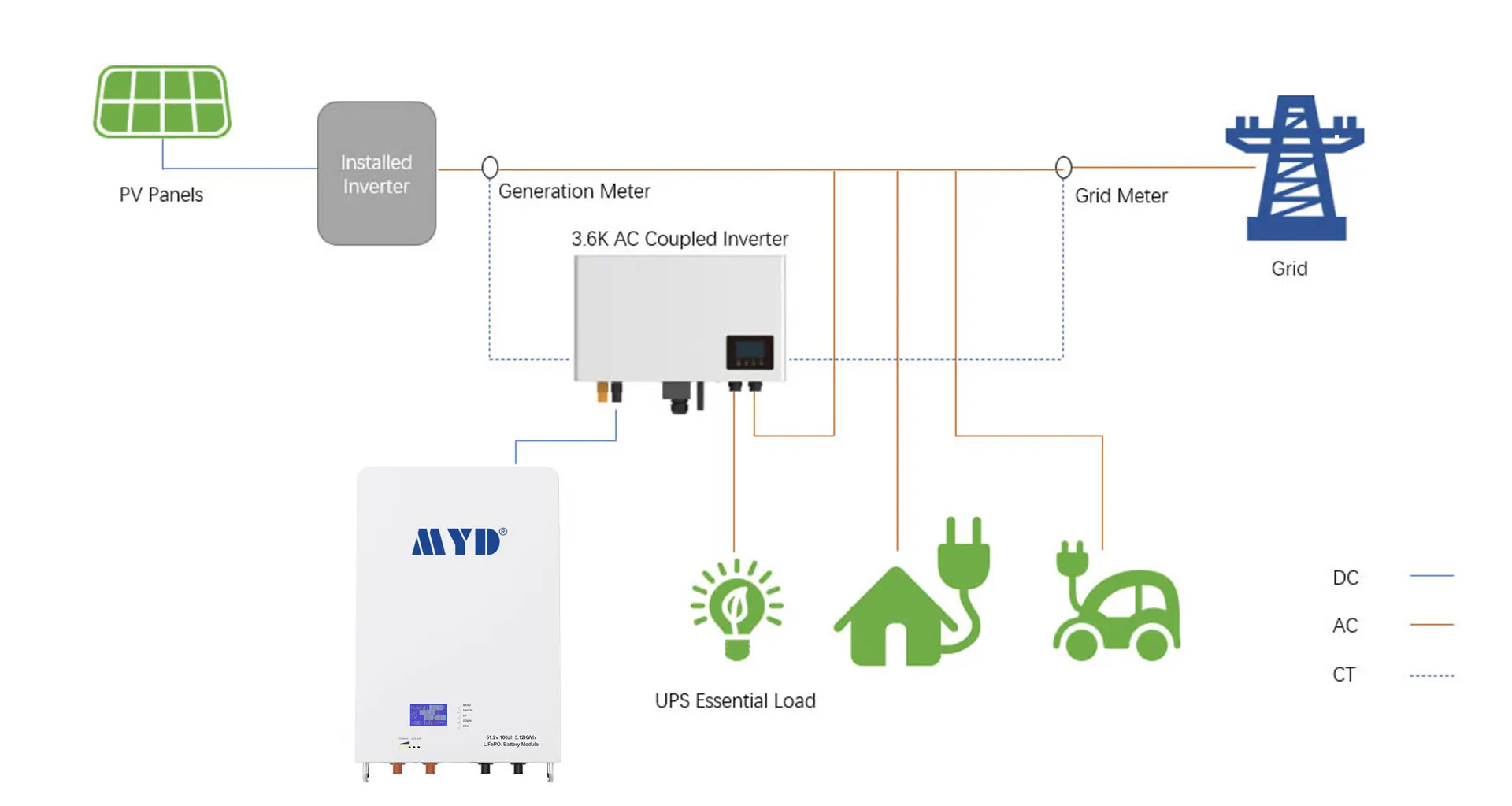

Applications
