2022 wood processor firewood processor
US $9000-$10000
Rima 30Ton Forest Handle Mount Log Splitter Wood Processor Wood Cutter and Splitter Firewood Processor With Gasoline Engine
- Category: Forestry Machinery >>>
- Supplier: Yantai,Rima,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Product Overview

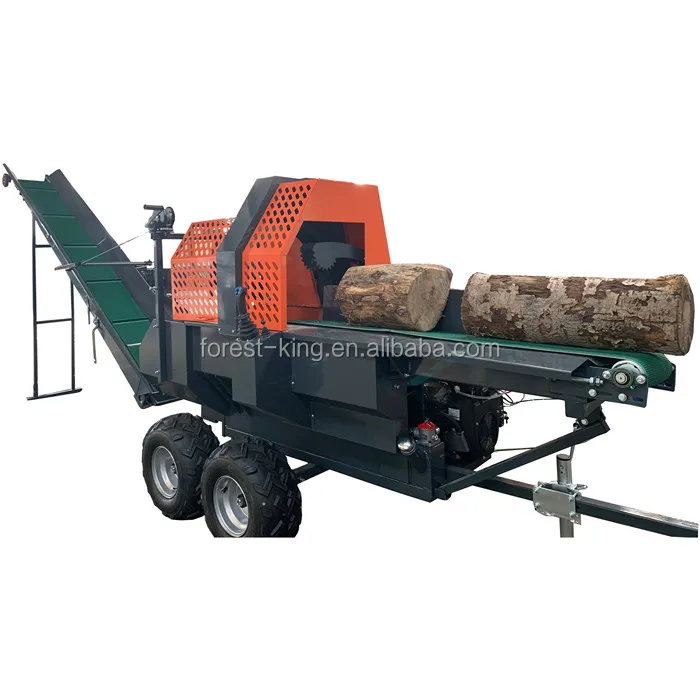

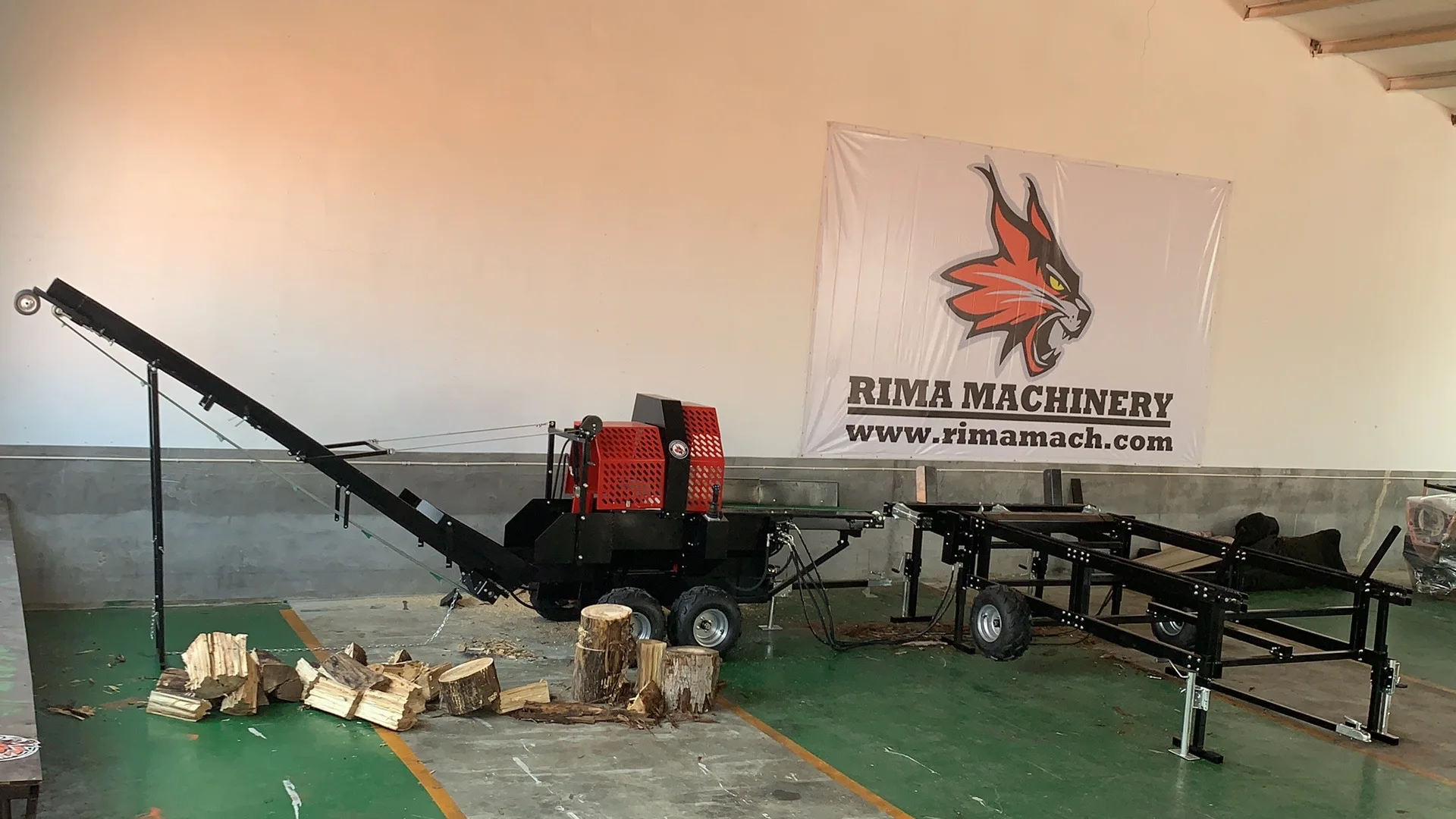

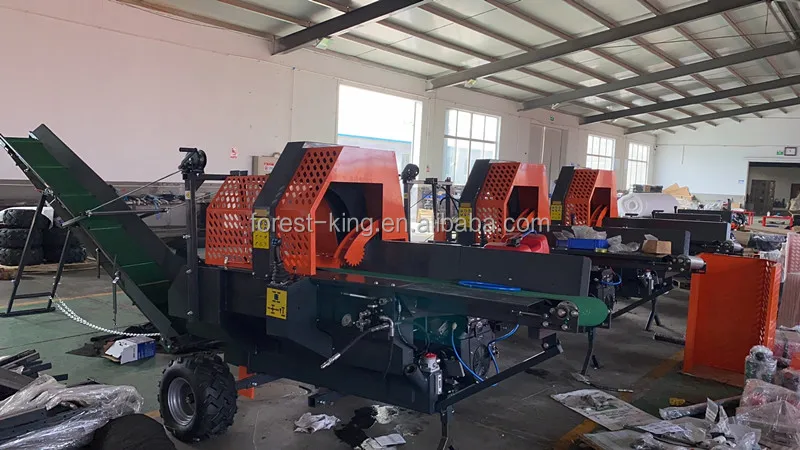

Firewood Processor
RM500 JOY
RM500 JOY
RM500 JOY is a fantastic processor, with a cutting diameter of 50cm and a splitting force of 30ton, exceptionally high outputs are easily achievable, it is on of the best machines in its class.

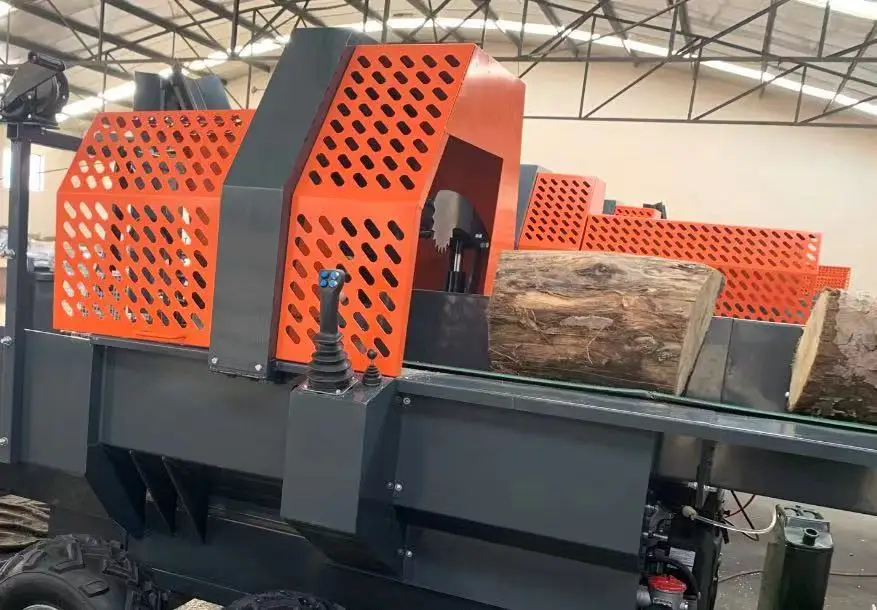

A single joystick controls all functions for easy operation and less user fatigue allowing the operator to get the most from the machine throughout the day.

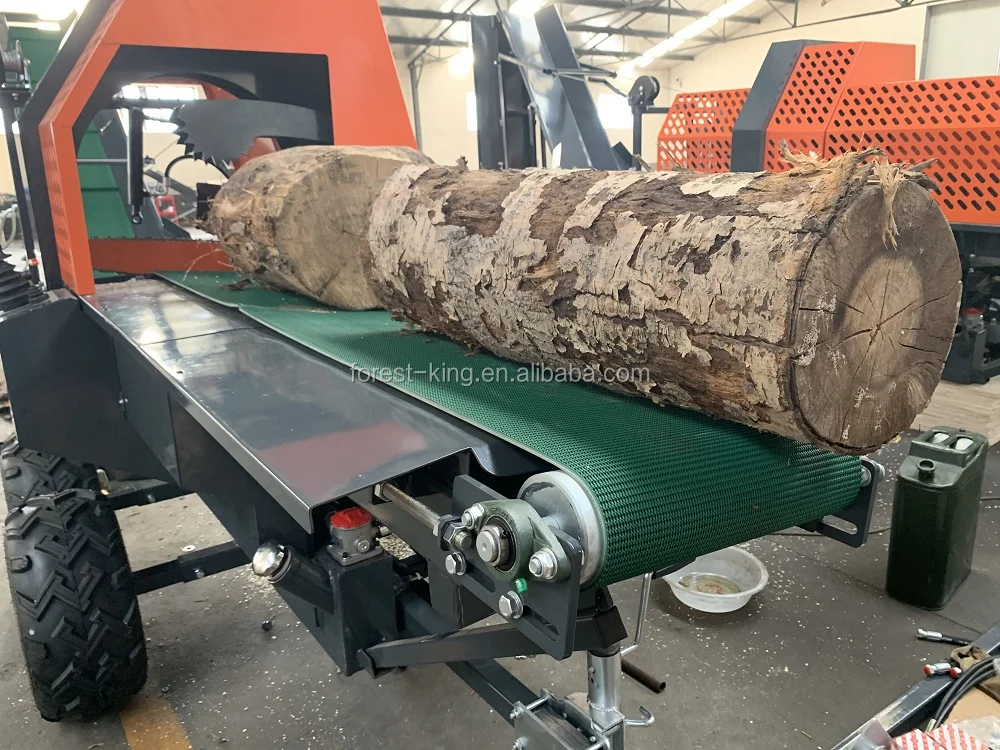

The machine has a powered in the feed conveyor belt, with a non-ship surface to help pull even bent timber into the machine.

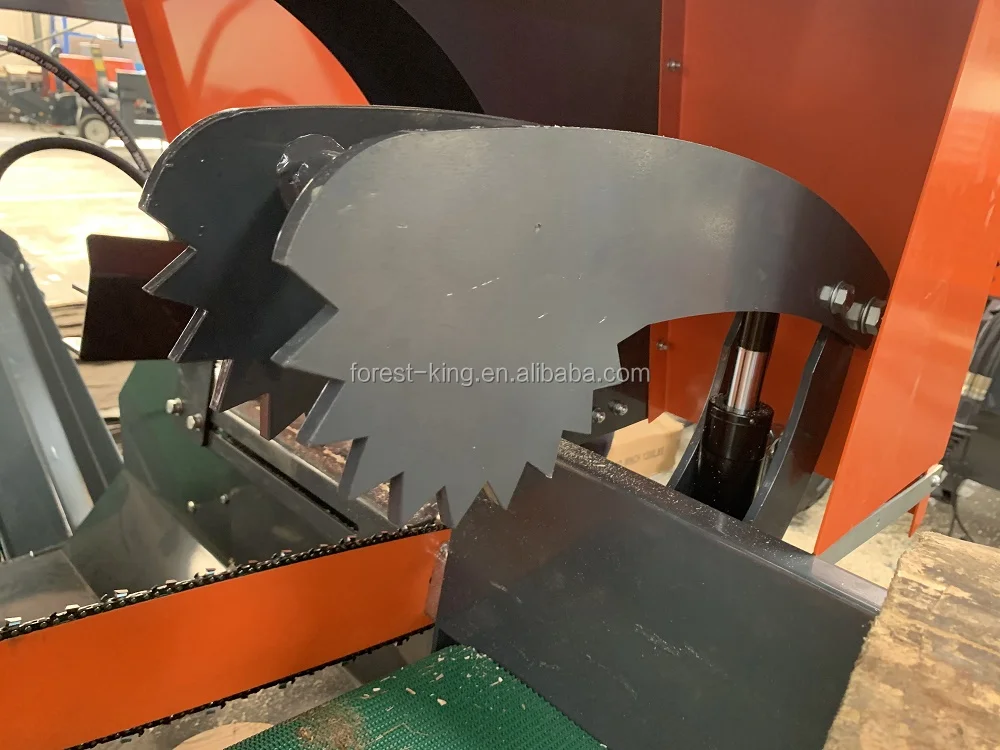

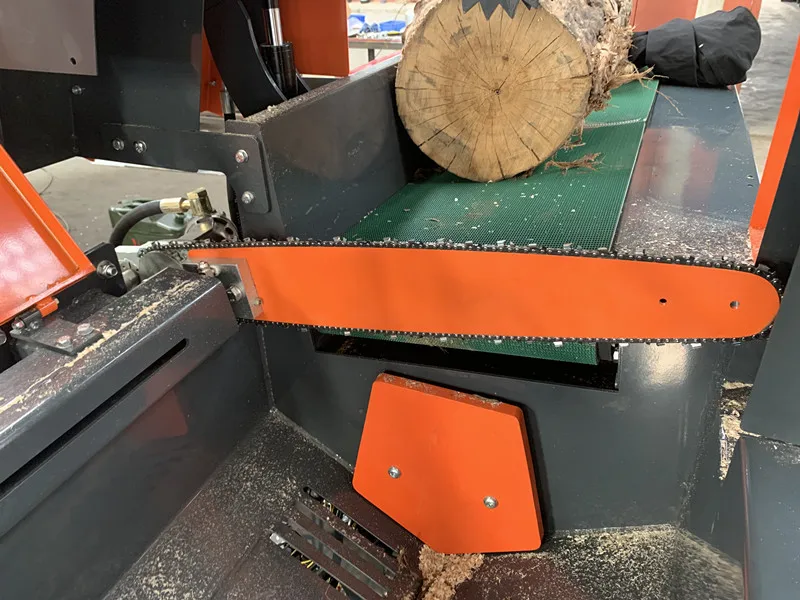

Paddle supports hold the log as it is cut, then release it into the splitter, dramatically reducing the chances of a log falling wrongly into the splitter.

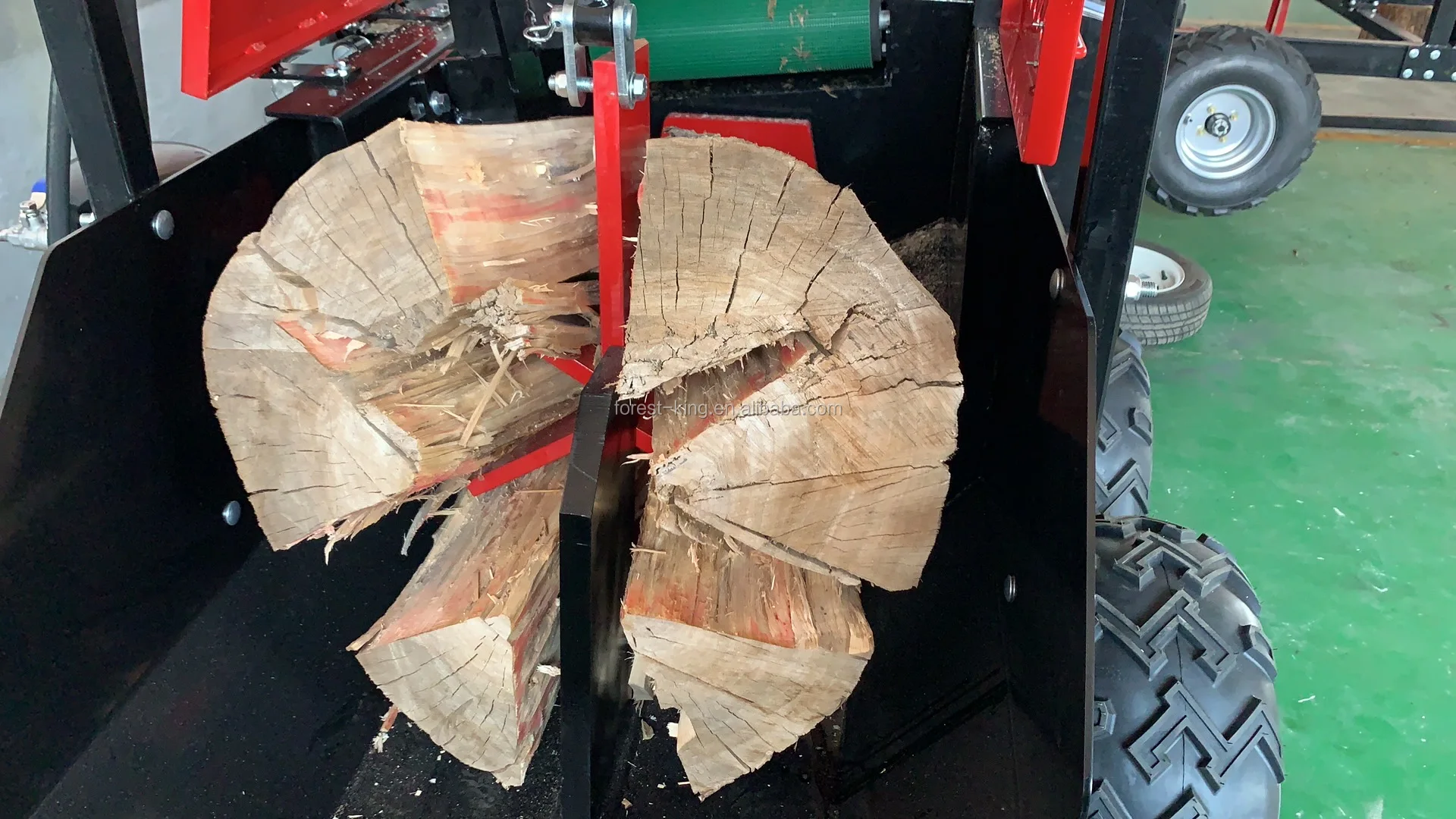

The powerful 30ton splitter pushes the log through the hydraulically adjustable splitting knife, before sending the split timber up a slewing output conveyor.

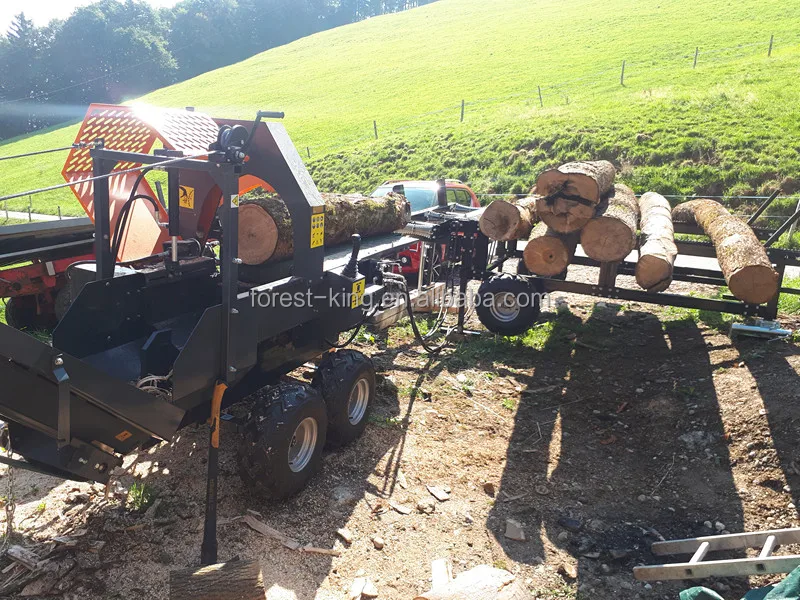

This machine is equipped with large wheel and a strong adjustable drawbar for towing and maneuvering.
A single joystick controls all functions for easy operation and less user fatigue allowing the operator to get the most from the machine throughout the day.
The machine has a powered in the feed conveyor belt, with a non-ship surface to help pull even bent timber into the machine.
Paddle supports hold the log as it is cut, then release it into the splitter, dramatically reducing the chances of a log falling wrongly into the splitter.
The powerful 30ton splitter pushes the log through the hydraulically adjustable splitting knife, before sending the split timber up a slewing output conveyor.
This machine is equipped with large wheel and a strong adjustable drawbar for towing and maneuvering.
Model | RM500 JOY | ||||||
Max . Splitting Force | 30Ton | ||||||
Max. Log Dia. | 500mm | ||||||
Max. Log Length | 500mm | ||||||
Max. Splitting Lift Height | 230mm(hydraulic) | ||||||

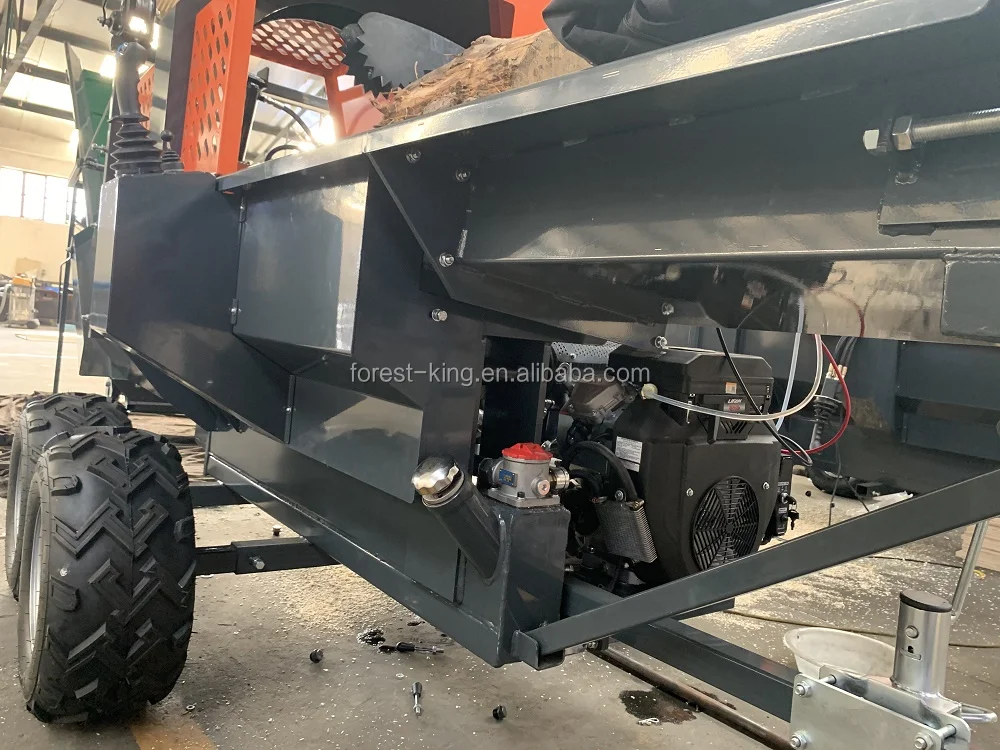

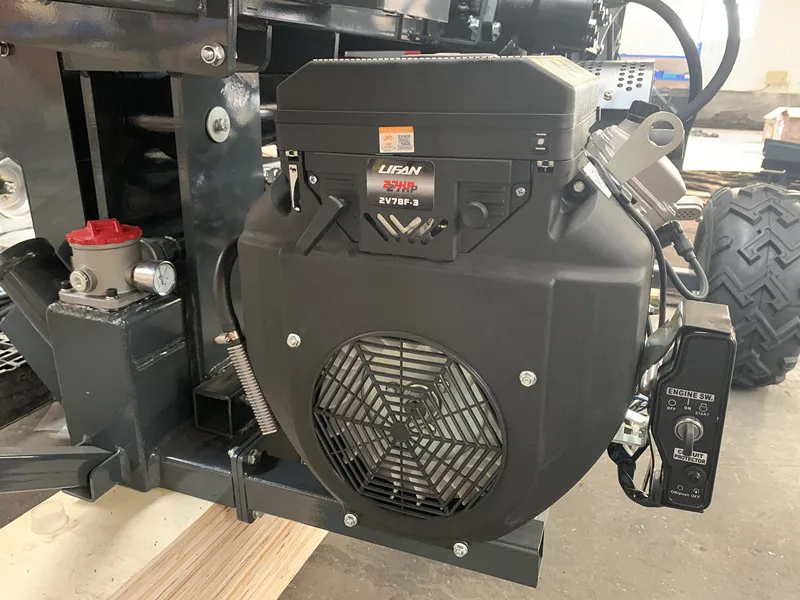

Engine Power | 27 HP LIFAN Engine, Electric start Optional: GX690 HONDA, Electric start | ||||||
Hydraulic Feeding | 1800x390mm (L* W) | ||||||
Firewood Conveyor | Standard Length: 3.5m, Belt width:300mm | ||||||
Control Type | Joystick | ||||||
Cycle Time | 6s | ||||||
Cylinder Size | 4.5 inch | ||||||
Knife | 6 way | ||||||
Weight | 1000kg | ||||||

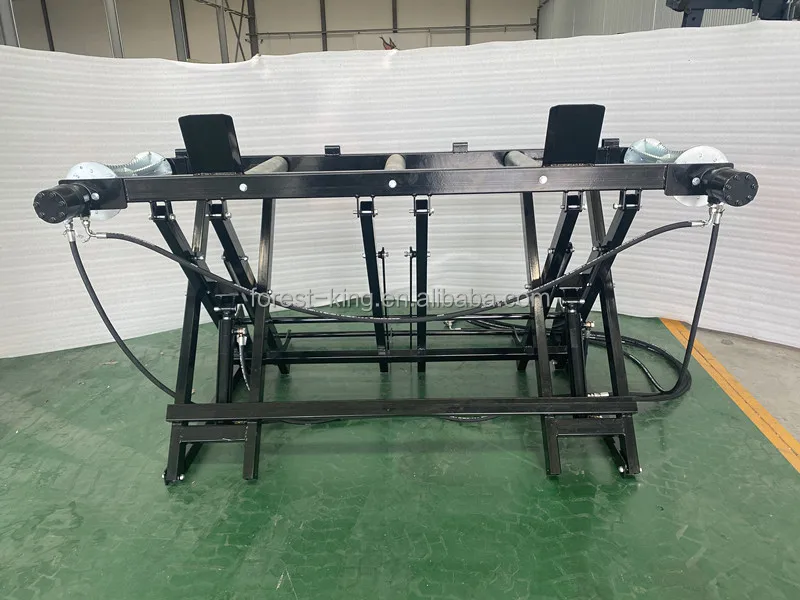

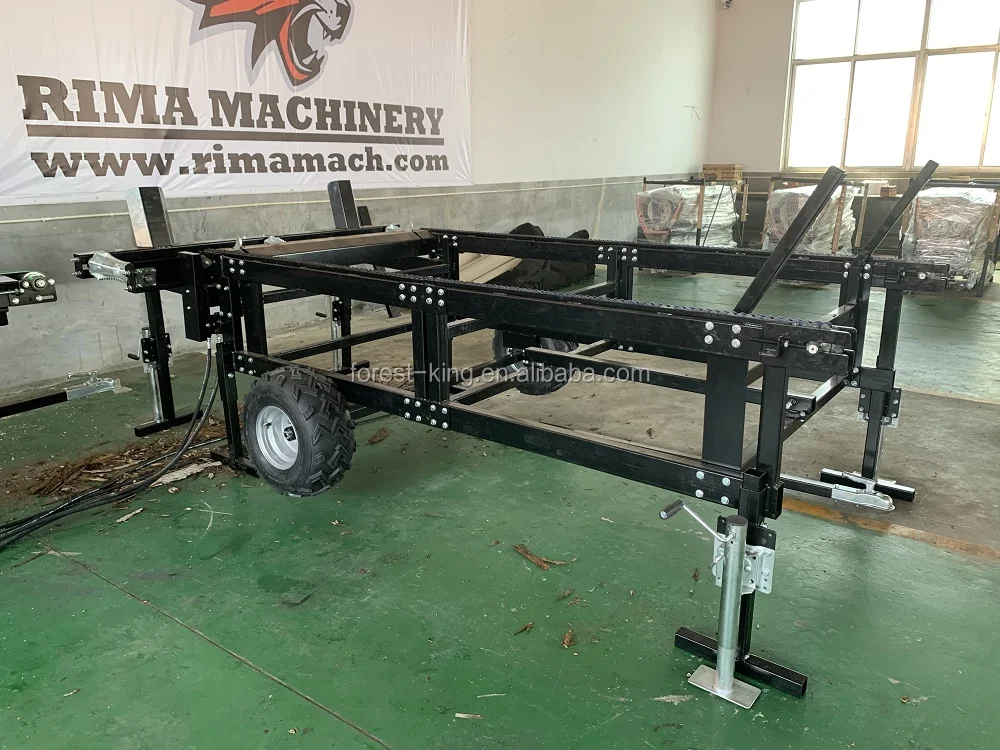

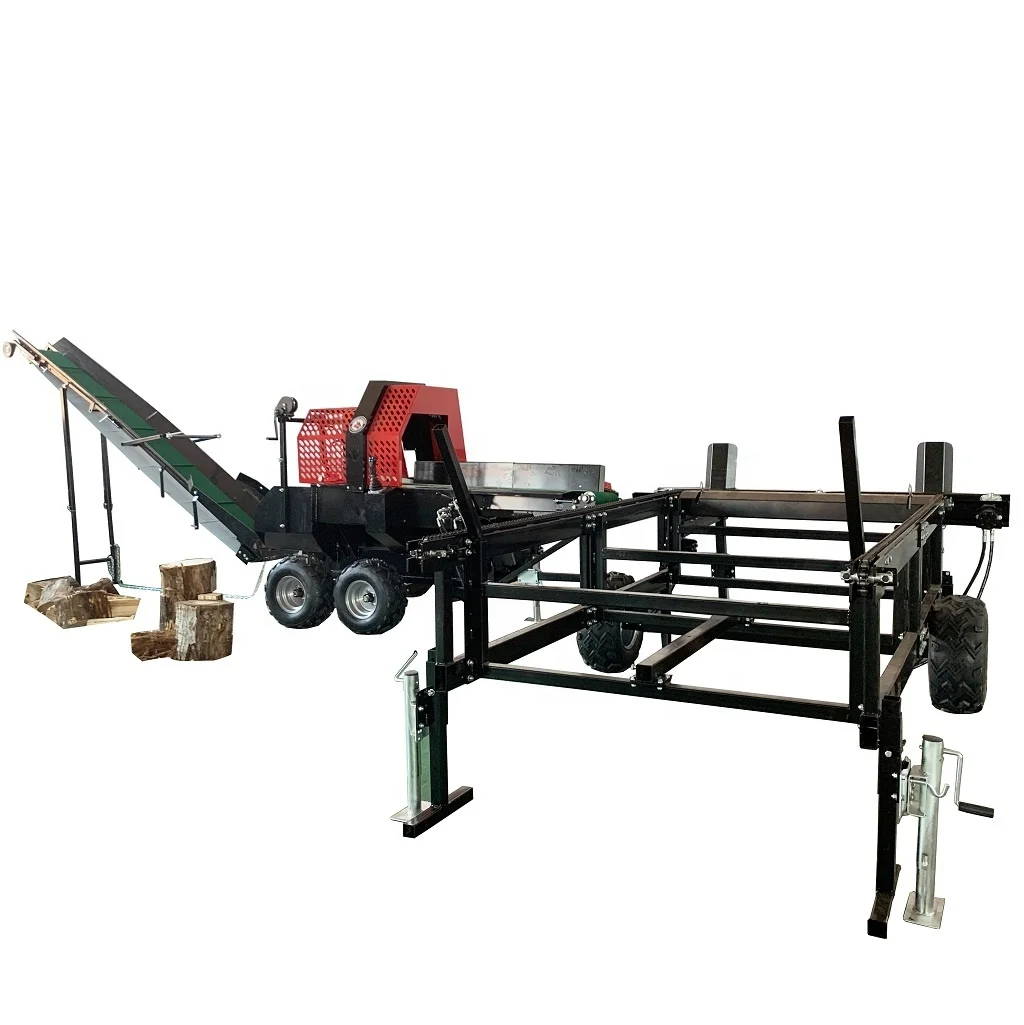

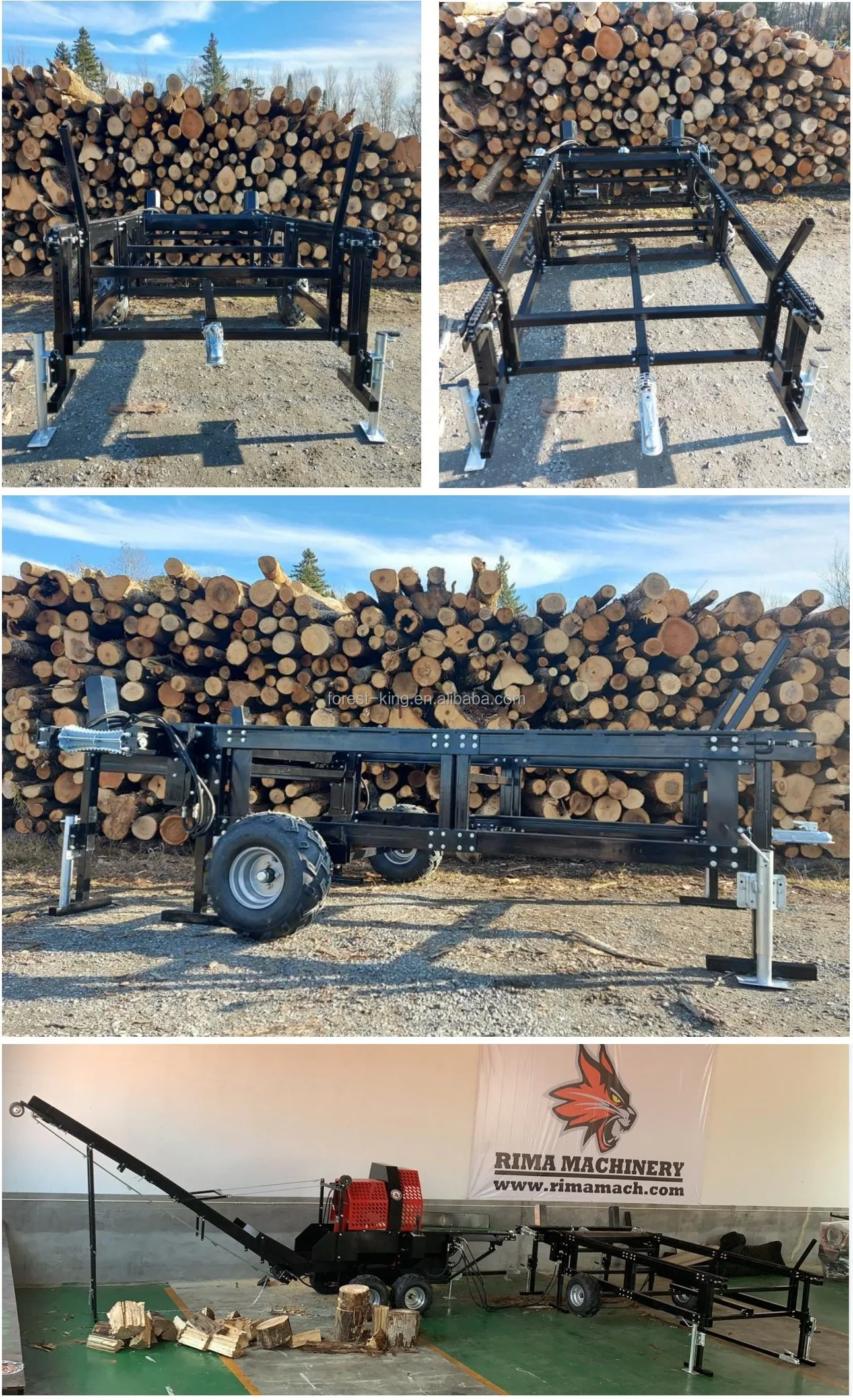

Model | RM4 | ||||||
Max. Loading capacity | 3000kg | ||||||
Drive | RM500 hydraulic system | ||||||
Control | On RM500JOY | ||||||
Hydraulic feeding | 2200x580mm | ||||||
Log deck size | 3000x1544mm | ||||||
Traction | 50mm ball | ||||||
Hydraulic Rotator | 2pcs | ||||||
Wheel | 22x11-10 | ||||||
Size (L*W*H) | 4950x2200x1600mm | ||||||
Weight | 600kg | ||||||
Main Features
1) A very efficient and user friendly firewood log splitter for cutting and splitting the log in one operation.
2) 24HP LIFAN gasoline engine or optional GX630 HONDA gas engine.
3) Fast cycle time: 6second.
4) Max split diameter can be up to 50cm.
5) Joystick control system.
1) A very efficient and user friendly firewood log splitter for cutting and splitting the log in one operation.
2) 24HP LIFAN gasoline engine or optional GX630 HONDA gas engine.
3) Fast cycle time: 6second.
4) Max split diameter can be up to 50cm.
5) Joystick control system.
PRODUCT CONFIGURATION
Company Profile
Yantai Rima Machinery Co.,Ltd.
Rima is one of the leading manufacturers in the production of agricultural equipments and forest machines,such as flail mower, firewood processor,log splitter, wood chipper,mini excavator,grapple etc. for compact utility tractors.
Established in 2009, it has built a strong cooperation with worldwide customers by quick growing. Thanks to its flexibility and attention to the customers’ requests, the company has developed a wide range of products for gardening, farming and forest, even with possibility of adapting them to the needs of the final users.
SALES AND SERVICE NETWORK

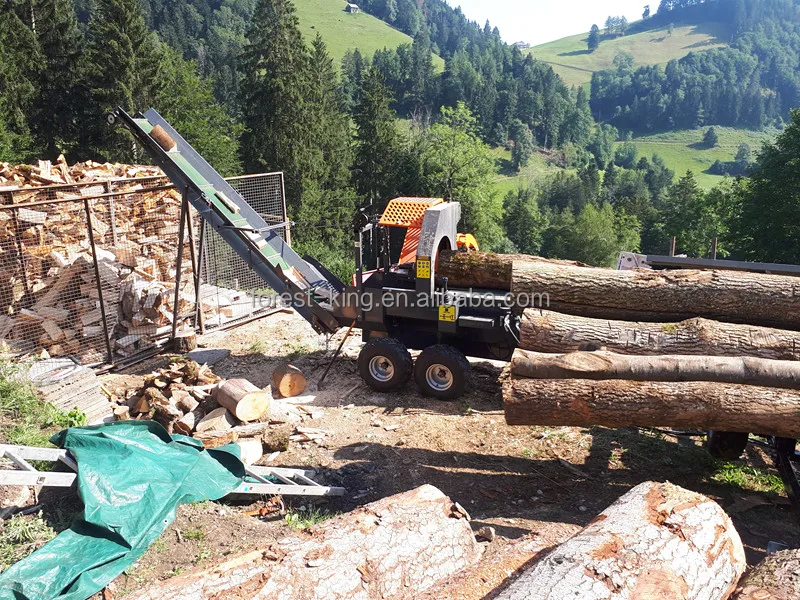

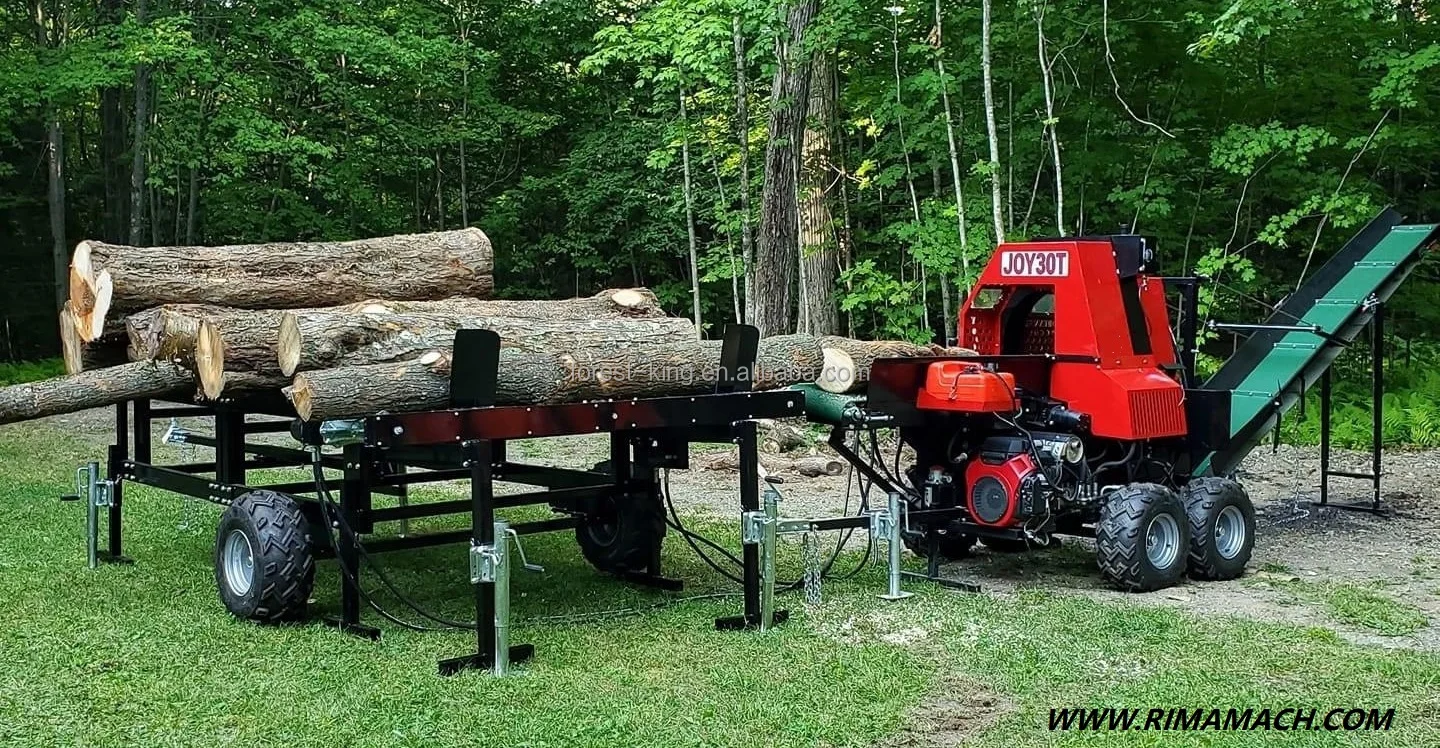

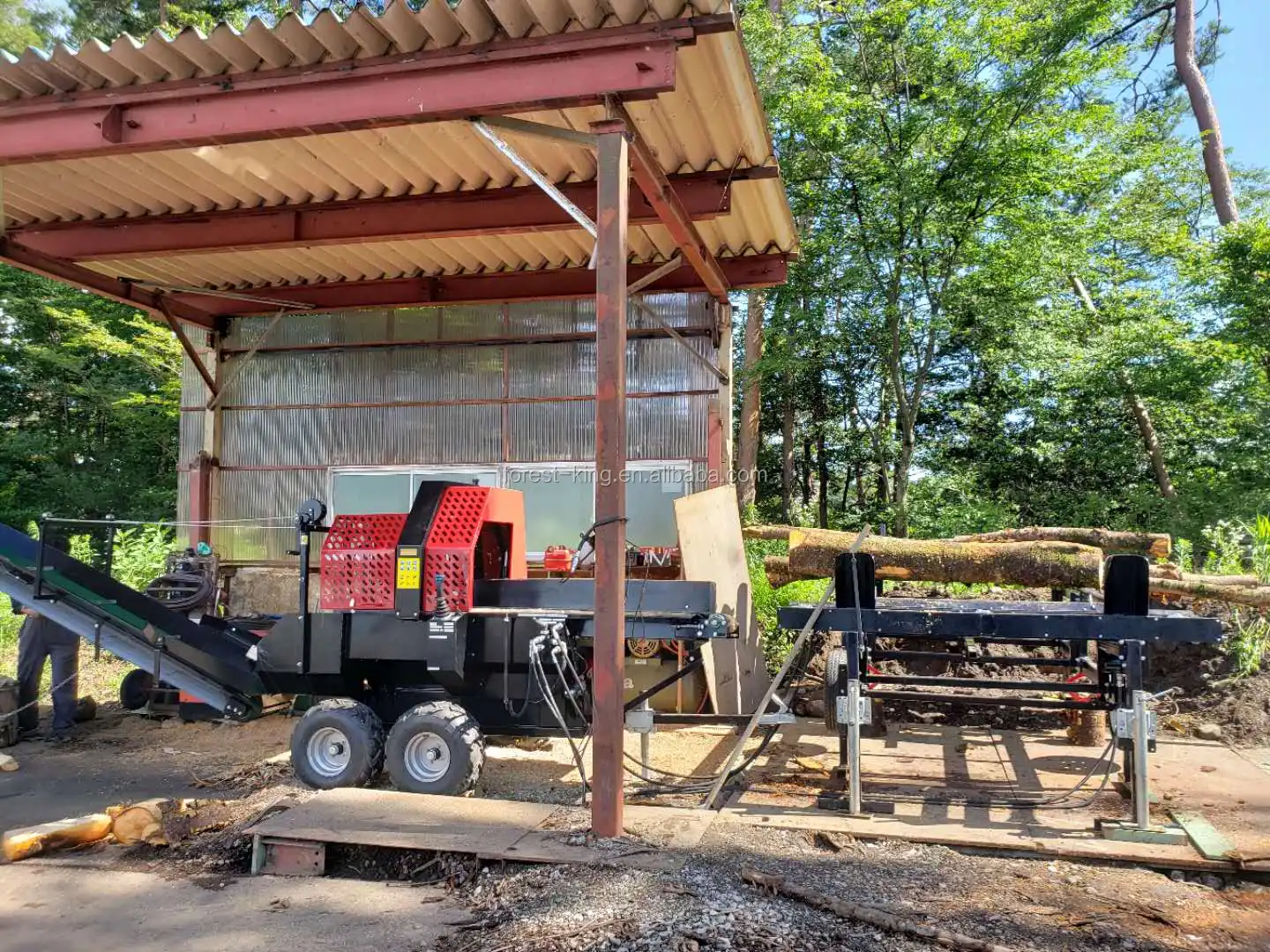

Successful Project
