Price:$5,300.00 - $5,500.00

Quantity:


Product Overview

Description



Product Description








1. Large torque at low frequency and stable output.
2. High performance vector control.
3. Fast dynamic torque response and high speed stability accuracy.
4. The braking of the main shaft and the forward and reverse direction are controlled by hydraulic pressure, and the speed of deceleration and parking is fast.
5. Strong anti-interference ability.

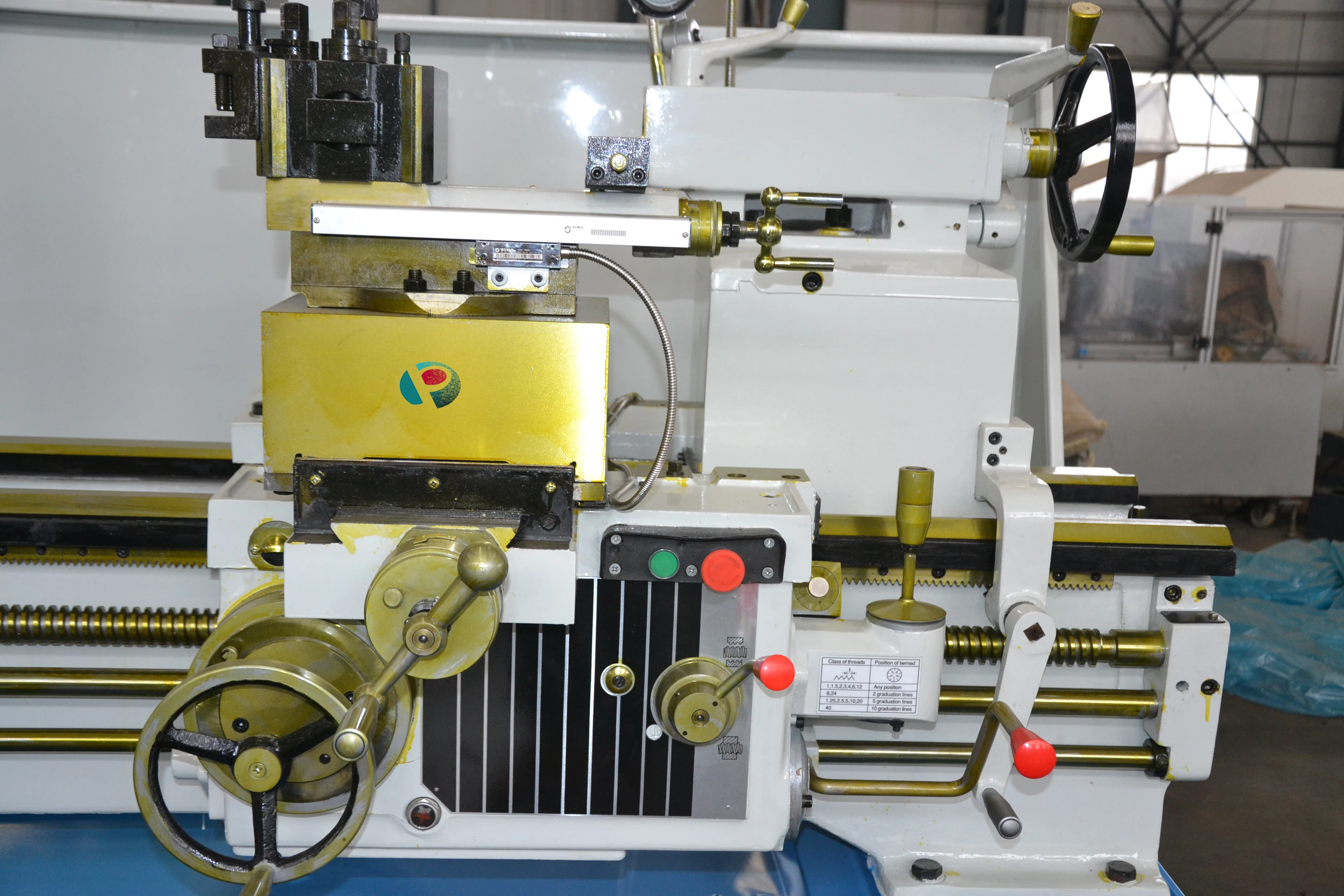

6. The control handles of the lathe are centralized, with great processing flexibility and strong adaptability.
7. Large power, strong rigidity, wide range of spindle speed adjustment, suitable for strong or high-speed cutting.
8. The head box is lubricated with pressure oil, and there are several spindle speed ranges for users to choose.
9. There is a safety mechanism inside the slide box, which can prevent the lathe from being damaged due to overload.
10. The guide rail of the body is quenched on the surface to improve the life of the guide rail.


Specification


SPECIFICATIONS
Units
C6150
Swing over bed
mm
500
Swing over cross slide
mm
300
Swing over gap
mm
-
Distance between centers
mm
750/1000/1500/2000/3000
Spindle bore
mm
52(Optional:80/105)
Spindle bore taper
-
MT6(Optional:Metric 1:20)
Spindle speed steps
-
9
Spindle speed range
rpm
16-1400
Cross slide travel
mm
250
Top tool post travel
mm
95
Tool size
mm
20 x 20
Longitudinal feeds range
mm/r
0.0832-4.6569
Cross feeds range
mm/r
0.048-2.688
Kinds of metric threads
kinds
19
Range of metric threads
mm
0.25-14
Kinds of inch threads
kinds
28
Range of inch threads
T.P.I.
2-40
Kinds of threads module
kinds
17
Range of threads module
MP
0.25-3.5
Tailstock quill diameter
mm
65
Tailstock quill taper
-
MT5
Tailstock quill travel
mm
150
Main motor power
kw
5.5
Coolant pump motor
kw
0.09
Weight for 750
kg
2060
Weight for 1000
kg
2140
Weight for 1500
kg
2290
Weight for 2000
kg
2640
Weight for 3000
kg
3400
Dimension for 750
mm
2440x1140x1750
Dimension for 1000
mm
2650x1140x1750
Dimension for 1500
mm
3150x1140x1750
Dimension for 2000
mm
3650x1140x1750
Dimension for 3000
mm
4800x1140x1750


Packing & Delivery




Company Profile




Zibo Jeps Trading Co., Ltd. is located in Zibo City, Shandong Province. It is a high-tech industry integrating product design, research and development, manufacturing and sales. The main production and operation of CNC lathes, CNC pipe threading lathes, plate shears, bending machines, metal band saws, etc. more than a dozen series of products. The products are sold in the domestic market and exported to many countries and regions in Europe, America, Southeast Asia and so on. The company has an advantageous geographical location, adjacent to the two major ports of Qingdao and Rizhao, where the China-Europe Express train passes, and the delivery is convenient. The company adheres to the business philosophy of "customer first, forge ahead" and adheres to the quality policy of "continuous innovation, customer satisfaction" to provide customers with high-quality services and welcome people from all walks of life to visit us.
