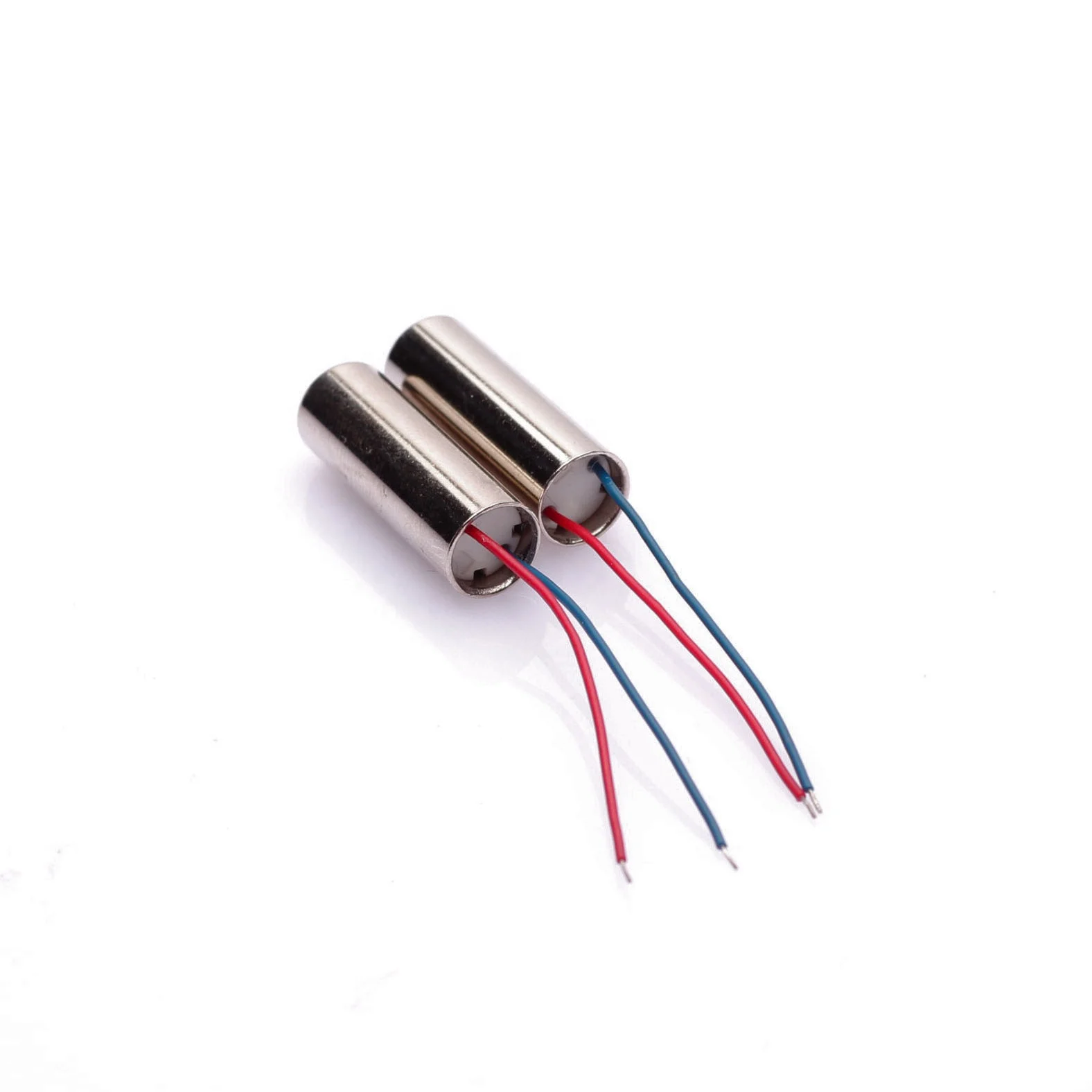

3v 0721 7mm Waterproof Micro Vibration Motor
- Category: >>>
- Supplier: Yichang Wingfong Industry & Trade Co. Ltd.
Share on (1600745442076):
Product Overview
Description

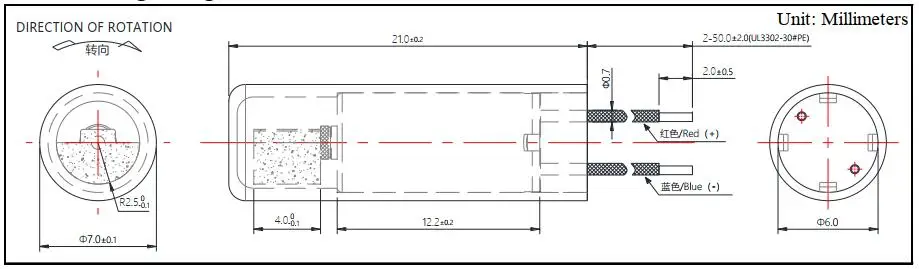

Outline Drawing
Motor Data
Dimensions | Motor Diameter | mm (inch) | 6(0.2362) |
Body Length | mm (inch) | 12(0.4724) | |
Parameters | Rated Voltage | V | 3 |
Rated Speed | rpm | 22000 | |
Rated Current | mA | 220 | |
Stall Current | mA | 270 | |
Counter- Weight | Size | mm | R 2.5* L4.0 |
Mass | g | 0.62 |
Mainly Customization
1.Counter Weight Size
2.Lead Wire Length
2.Lead Wire Length
3.Rated Speed.Torque and so on.
4.Electric connection: Terminals / Cable / Connector
Applications
MV0721 Coreless Motor Mainly Used in :
Sex Toys, Vibrating Toothbrush, Mobile Phone, Pager
Massager, Massage Rod, Eye Massagers, Medical Products
Massager, Massage Rod, Eye Massagers, Medical Products
Company Profile
Yichang Wingfong Industry & Trade Co.,Ltd
Yichang Wingfong Industry & Trade Co., Ltd. is a national high-tech enterprise specializing in the research, development and manufacturing of hollow-core (coreless) permanent magnet DC micro motors and various core motors .
These motors are widely in many areas such as tattoo machine, model train, aeromodelling, massagers, sex product, toothbrushes, drone and so on.
At present, our products passed ISO9001, CE, ROHS certification and so on.
We provide professional design, stable quality, reasonable price, timely delivery and sincerely service to every customer!
Product Packing
Recommend Products
FAQ
Q: Sometimes I don't know the exact required parameter，how can I choose a suitable model?
A: We will make some suggestion if you provide your specific requirement on size and performance. Or send us samples or application directly. Then we will make full assessment accordingly.
Q: Can I get some samples first? How soon can I get the samples?
A: Yes, we can make samples, usually 3-10 days is possible to send out.
Q: Is it possible for you to develop new motors if we provide the tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation and confirm if we can arrange or not.
A: We will make some suggestion if you provide your specific requirement on size and performance. Or send us samples or application directly. Then we will make full assessment accordingly.
Q: Can I get some samples first? How soon can I get the samples?
A: Yes, we can make samples, usually 3-10 days is possible to send out.
Q: Is it possible for you to develop new motors if we provide the tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation and confirm if we can arrange or not.
