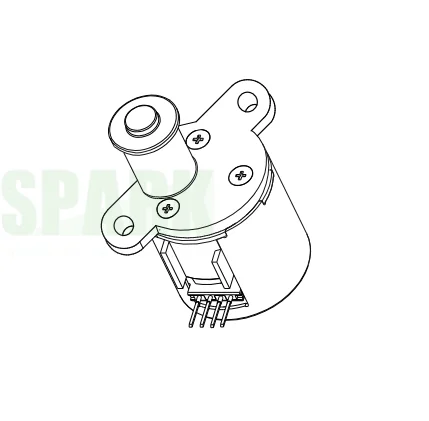

25BYJ/25BYJ412/25BY412 PM Linear Actuator for wifi programmable thermostatic radiator/valve actuator precise position control
- Category: >>>
- Supplier: Changzhou Spark Control Tech Co. Ltd.
Share on (1600745464987):
Product Overview
Description
Products Description

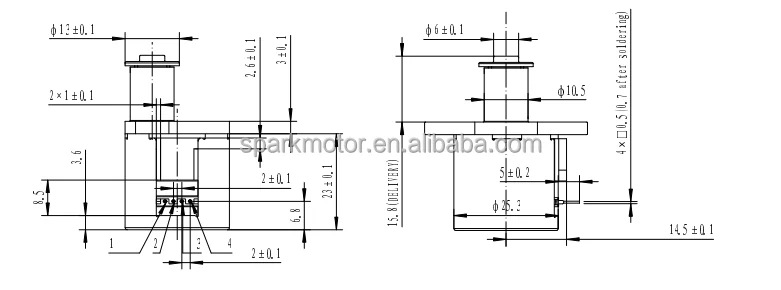

25BYJ Linear Actuator
PM linear actuator converts the rotation of the motor into a linear motion through the relative movement of the internal rotor and the screw. It is mainly used in smart home appliance, valve control, automatic buttons, medical equipment, textile machines, robots and other related fields.
General Specification:
Item | Specification |
Step Angle Accuracy | ±8%(full step, no load) |
Resistance Tolerance | ±10% |
Inductance Tolerance | ±20% |
Temperature Rise | 80.C Max.(rated current,2 phase on) |
Ambient Temperature | -20.C~+50.C |
Insulation Resistance | 100MΩMin. ,500VDC |
Dielectric Strength | 600VAC , 1sec , 1mA |
Rated voltage | No. of Phase | Step angle | Gear ratio | Winding Resistance | Current Per Phase | Max Pull-in Rate | Push Force at 500 PPS | Winding Temp. | Dielectric Strength |
V DC | degree | Ω at 20 ℃ | A | PPS | N | K | VAC 1Sec 1mA | ||
3.2V | 2 | 7.5/10 | 1/10 | 5±7% | 0.64 Max | 750 | ≥70 | ≤60 | 600 |
1.5V | 2 | 7.5/10 | 1/10 | 1.5±7% | 1 Max | 700 | ≥55 | ≤60 | 600 |
Customization On Call

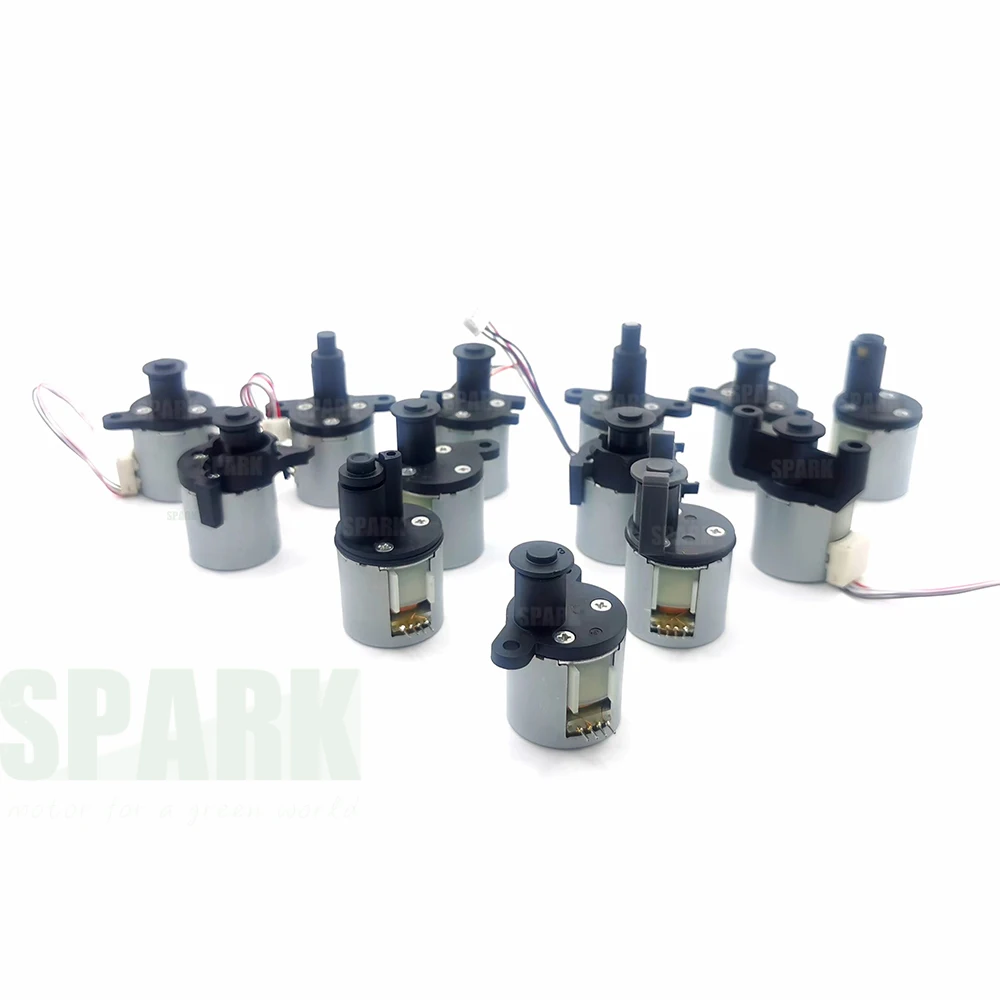

25mm stepper motor with 1:10 gear ratio reduction motor for smart TRV:
25BYJ412-55/ 25BYJ412-56/ 25BYJ412-03L/ 25BY048-03R/ 25BYJ412-45/ 25BYJ412-36C/ 25BYJ412-55/ 25BYJ412-63/ 25BYJ412-50B/ 25BYJ412-51/ 25BYJ-01
Optional accessories： | ||
Coil Modifications | Resistance and Inductance. | |
Voltage amendment | 2.4V, 3.2V, 5V, 12V, 24V | |
Magnets | to yield higher linear force or reduced detent levels. | |
Screw | metric or imperial tips, length. | |
Wire Harness | connectors, pins, lead length, shrink tubing. | |
Higher Strength Plastics for higher impact forces. | ||
Reduced or increased Detent Force to suit the application. | ||
Special Flanges, Connectors. | ||
Application
Wide applications
Stepper motors use input pulses to take proportional steps. These motors can be used for positioning and/or speed control in a wide variety of applications:
* Valve control. * Clinical Diagnostics
* CCTV system. * Printers and copiers
* Pharmaceutical dispensing. * Robotics Antenna positioning
* CCTV system. * Printers and copiers
* Pharmaceutical dispensing. * Robotics Antenna positioning
