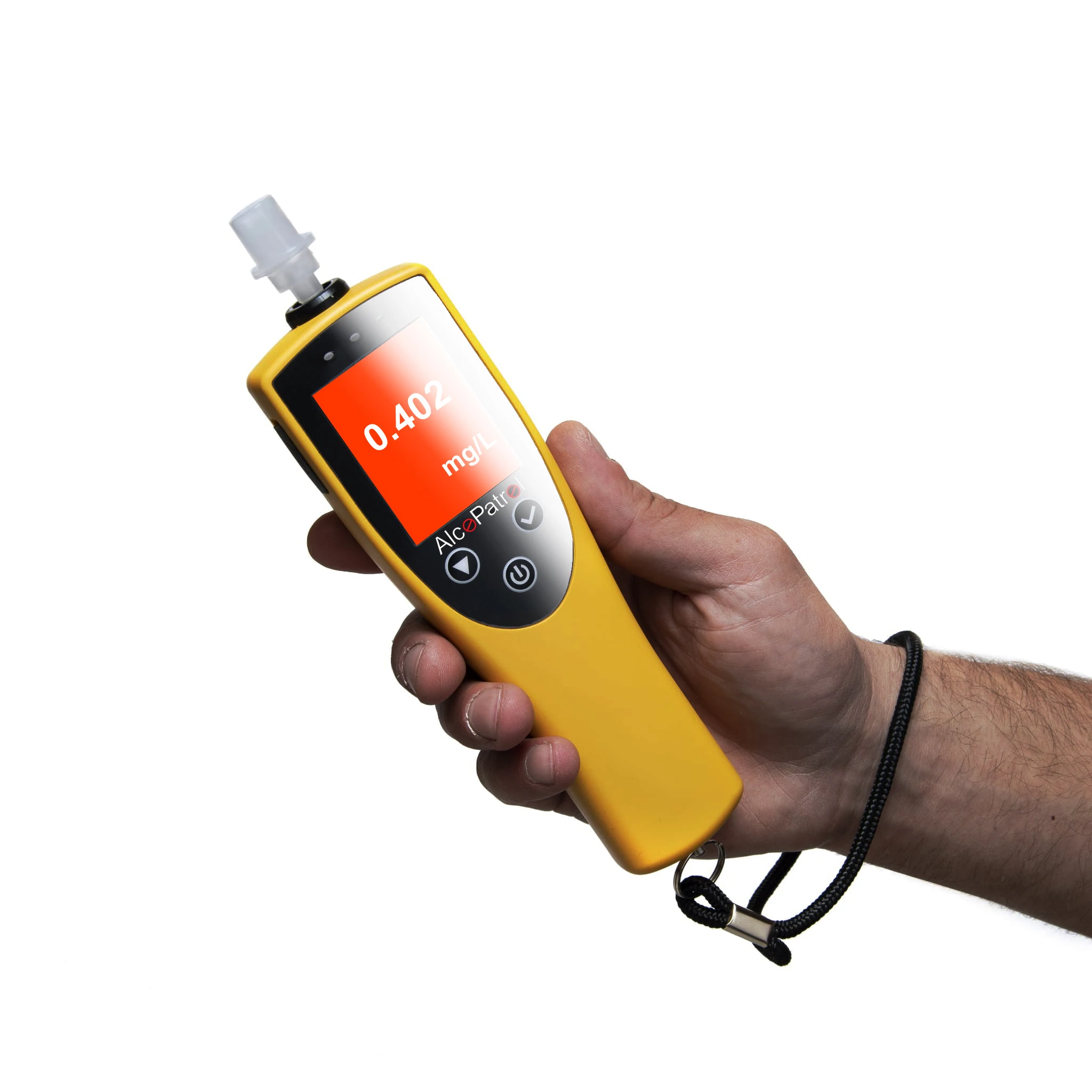

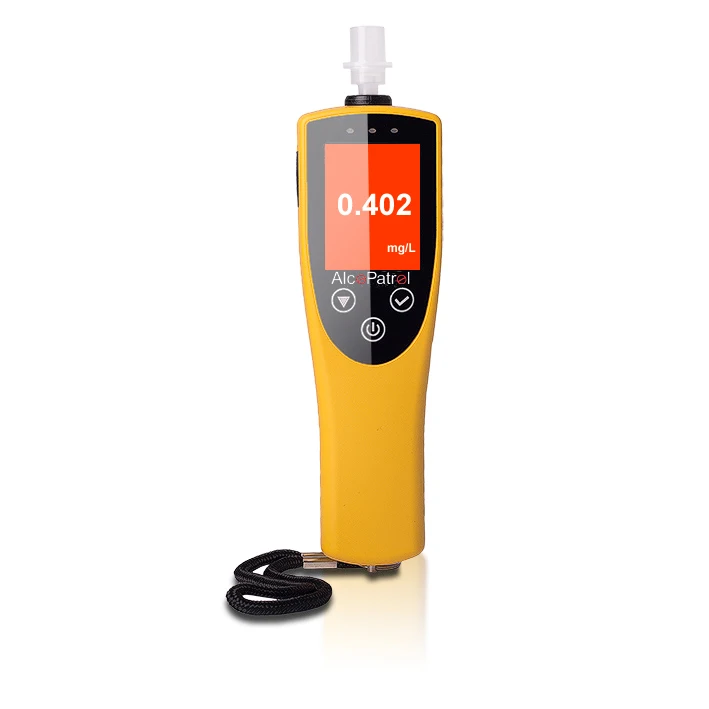

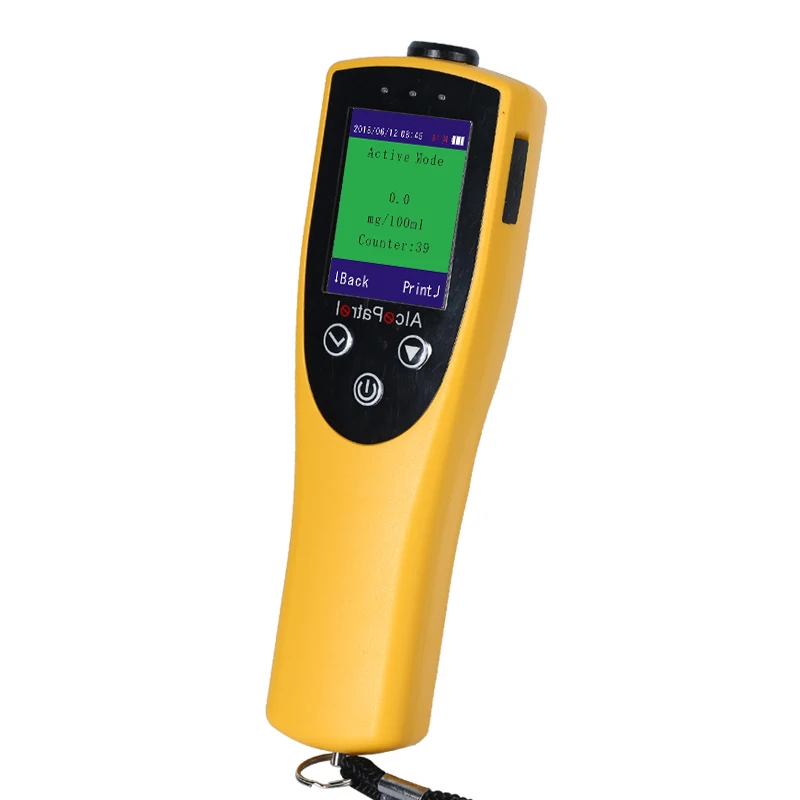

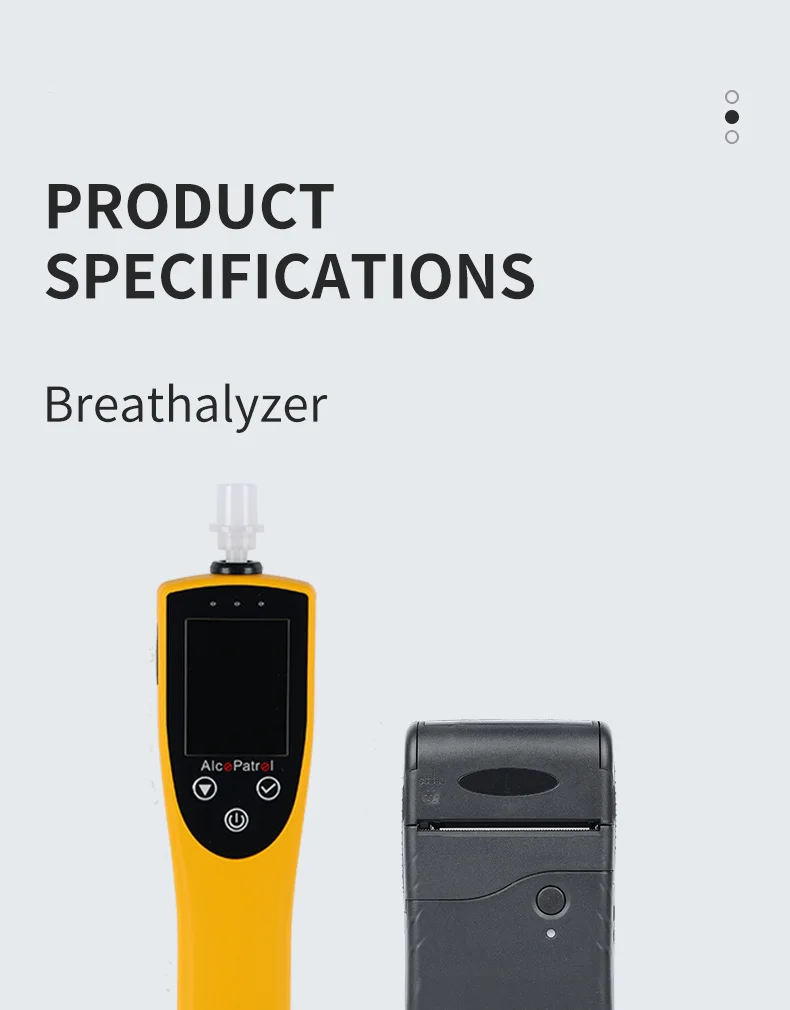

AlcoPatrol AP-4020+ PRO  Professional Breath Alcohol tester

 (Fuel Cell Sensor)

Law Enforcement Alcohol Tester with Bluetooth print to Bluetooth Portable Thermal printer

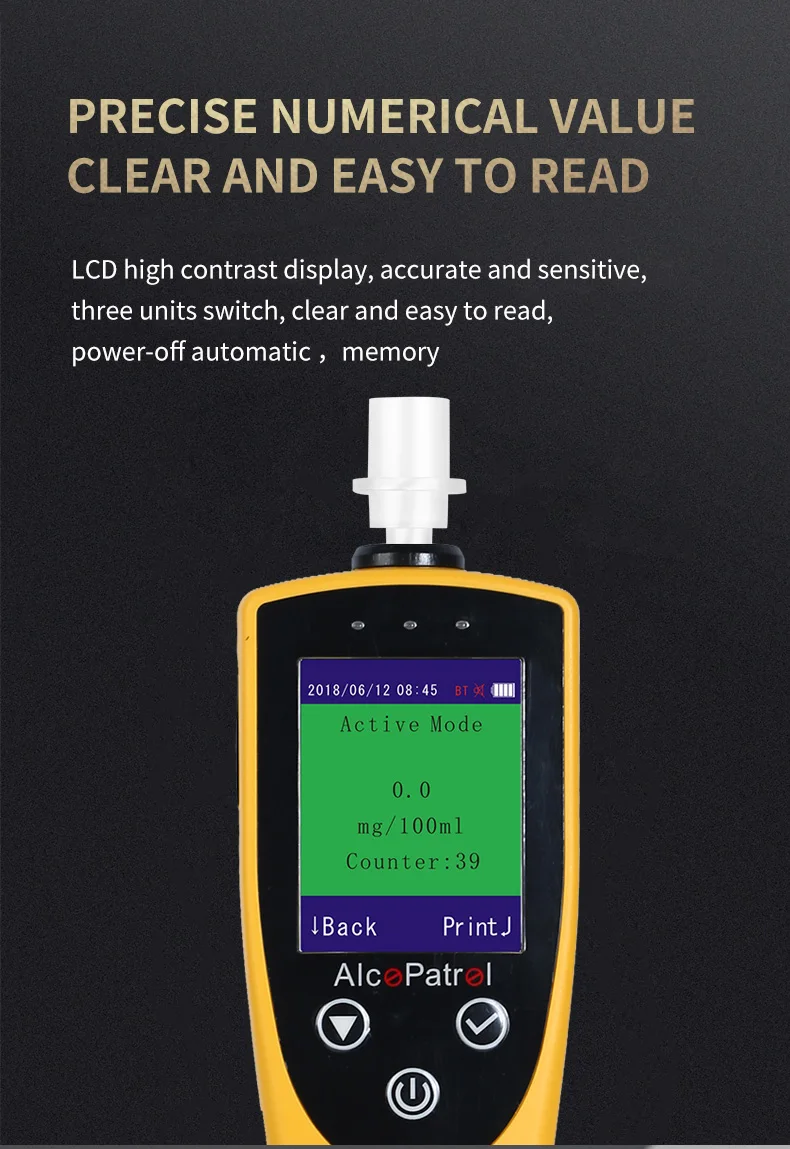

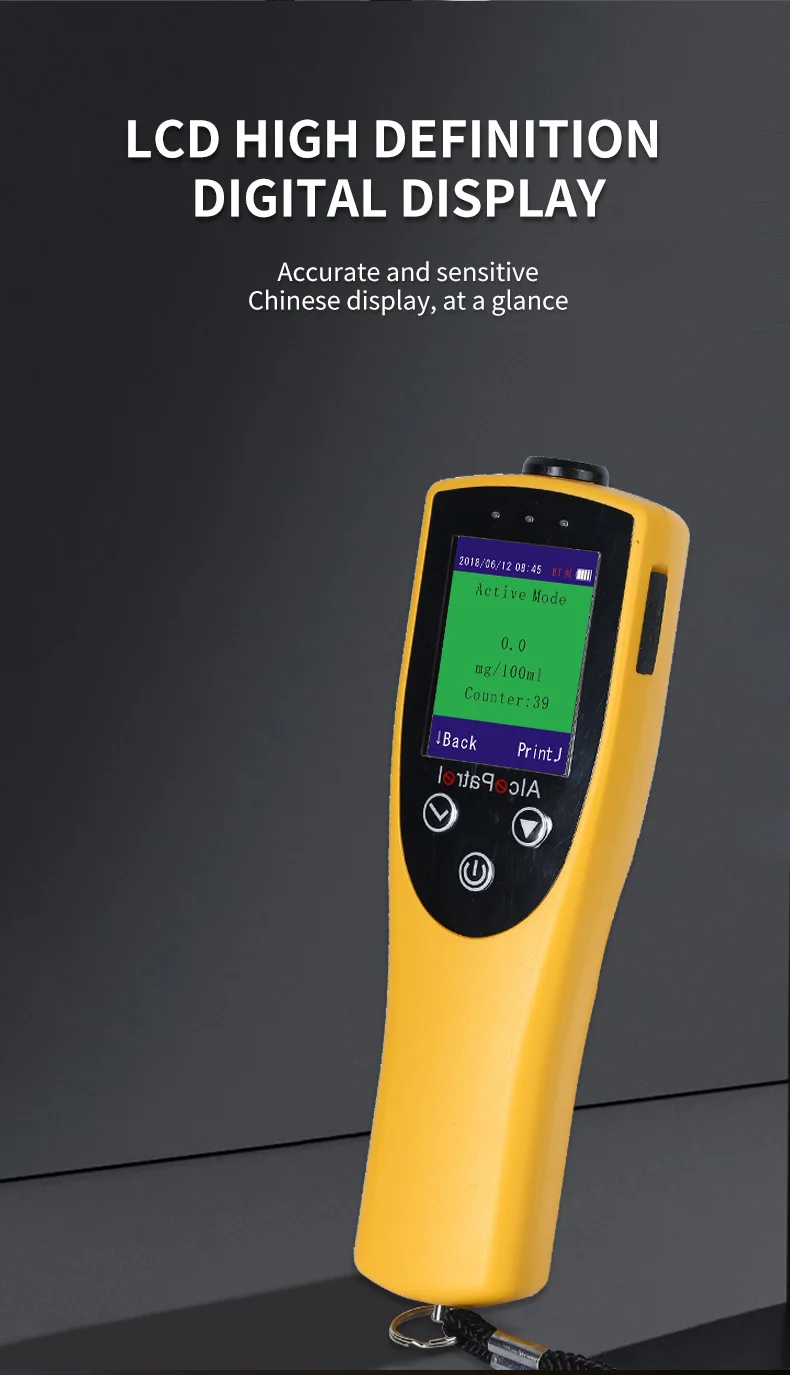

1. Display: TFT 2.4” TFT QVGA

2. Keyboard: 3 keys operation

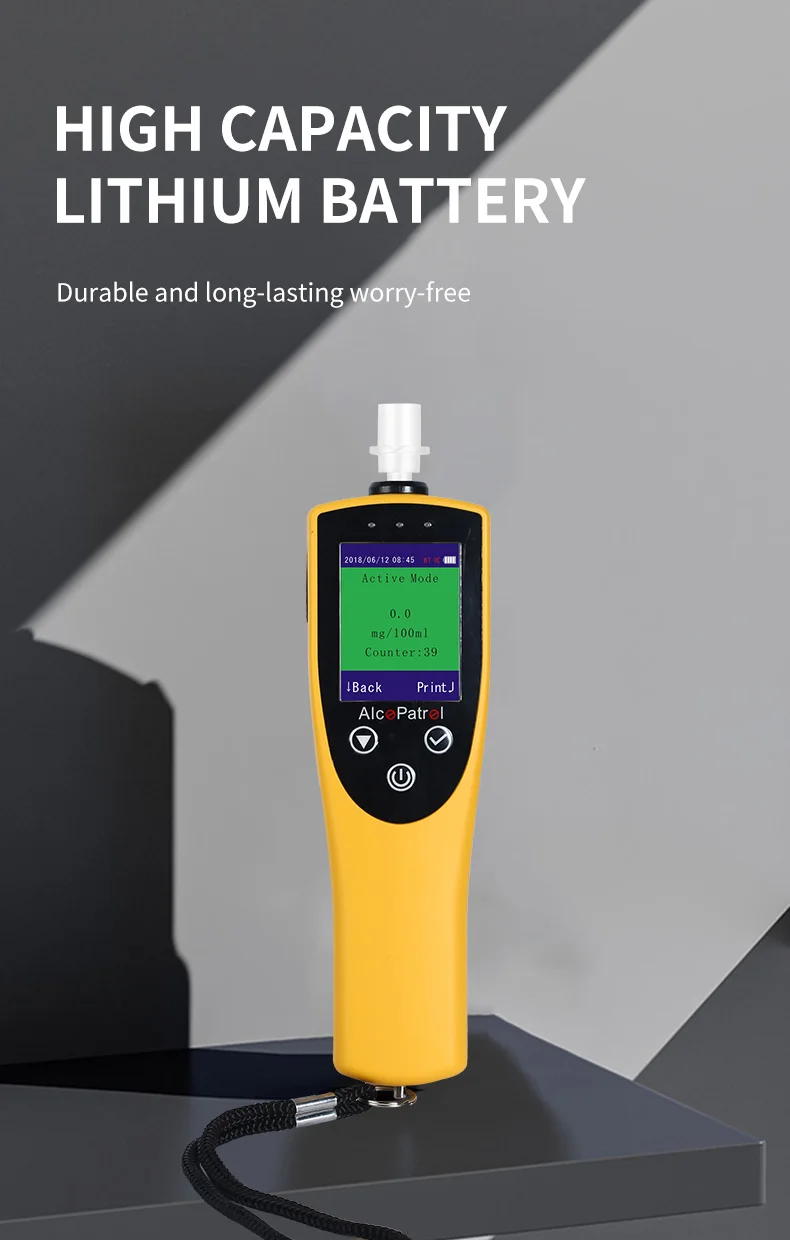

3. Power supply: Li-ion rechargeable battery

4. Heat warm up: Chamber & Sensor warm up automatically

5. Auto Flow monitoring: Flow detect automatically

6. Test Mode:  Active or Passive

7. Long Term Storage condition: Temperature: 0 Degree C to +55 Degree C.

Humidity:  30 to 90% RH

8. Temperature: From  -5℃ to + 50℃, (5 Degree C to +40 Degree C for optimum operation)

9. Data download: USB to PC Download records

10. Memories: 28,000 memories with ID & time stamp

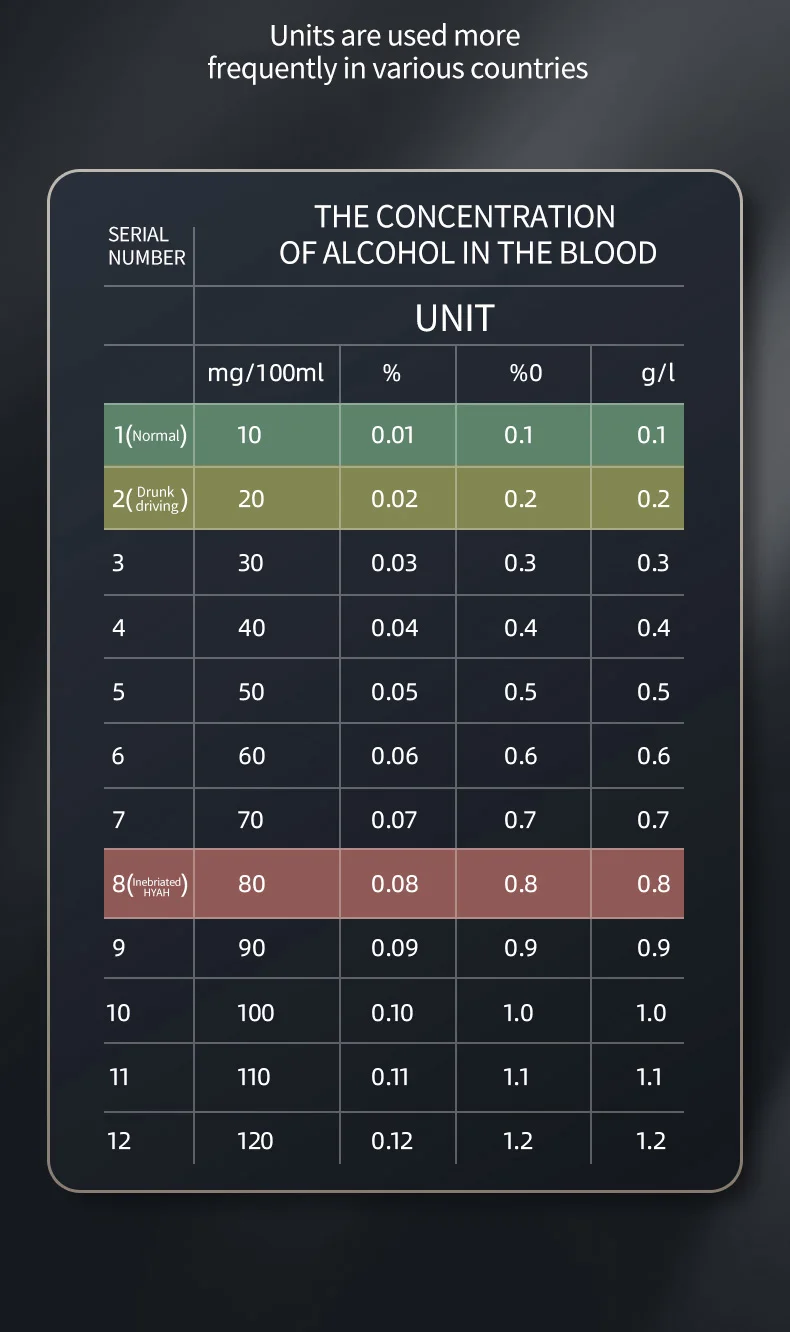

11. Measurement Range and precision:

0.00-9.00 %oBAC or 0.00-4.5mg/L (2000)

0 - 1 ‰:± 0.05 ‰

> 1 - 2 ‰: ± 5 % test level

Standard deviation +/–0.025 mg/L or +/–5 % of the measurement

Drift: typically < 0.8 % of the measurement value/month

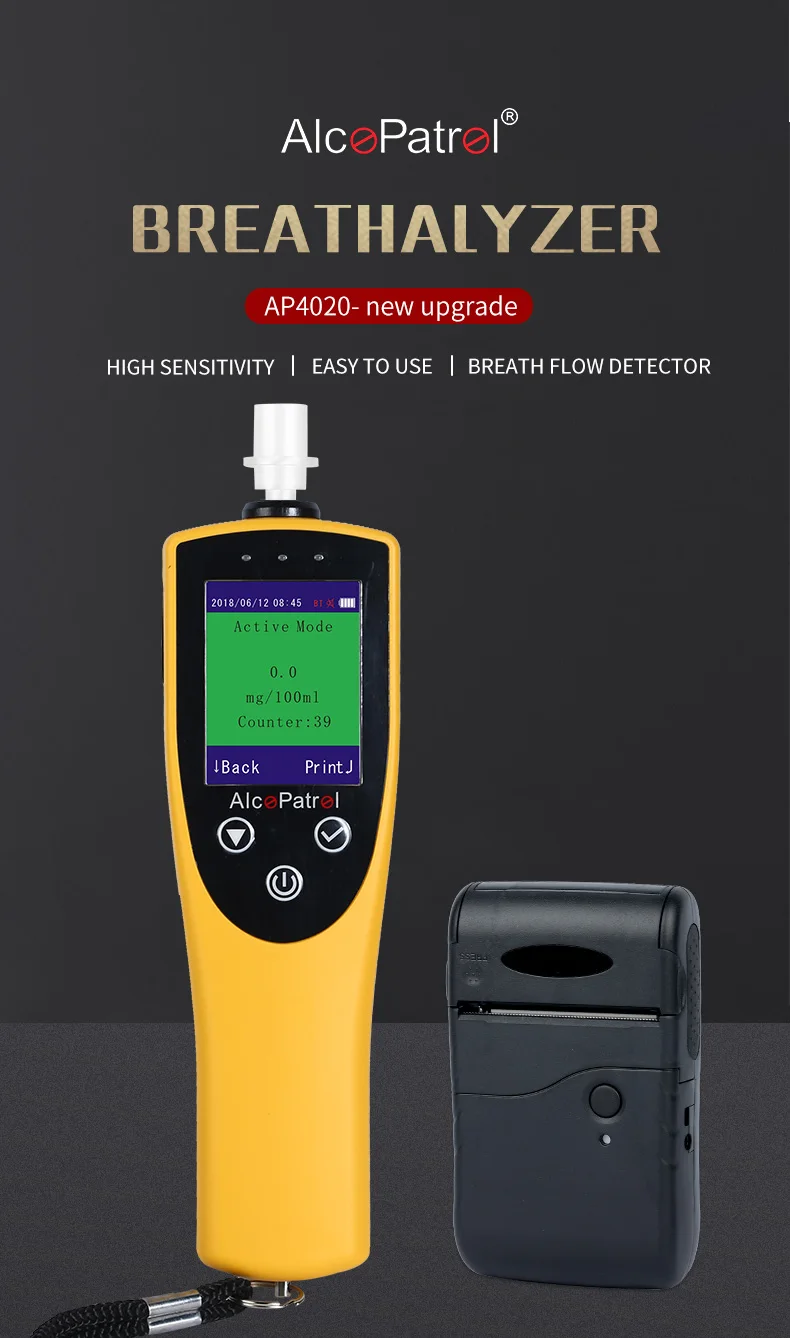

12. Printing: via Bluetooth to Portable printer(Printer Option to purchase)

13. Information input: intelligent key in police name , driver name, car number,

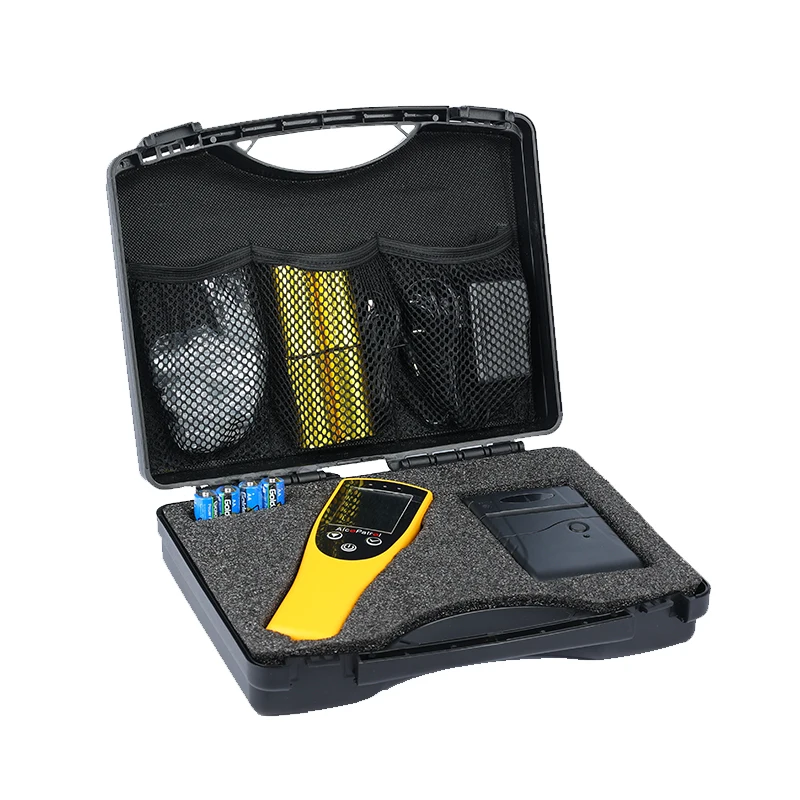

14. Packing: Including carry case; 2pcs blow tubes,

Details

Technical Data

Principle of measurement

Electrochemical Sensor, alcohol-specific

Measurement Range (BrAC)

0.000mg/L~4.500mg/L

Resolution

0.001 mg/L

Accuracy:

Max. Measuring error, in relation to the ethanol standard

initial verification

Ethanol Vapor Concentration

 C /(mg/L)

initial verification Tolerance

In use

Tolerance

C<0.400

±0.020mg/L

±0.032mg/L

0.400≤C<1.000

±5%

±8%

C≥1.000

±20%

±30%

Repeatability of Indicating Value

Ethanol Vapor Concentration C /(mg/L)

Deviation

C<0.400

0.007mg/L

0.400≤C<1.000

1.75%

C≥1.000

6%

Calibration

Every 12 months

Optimum Storage Conditions

Temperature:20℃±5℃,Humidity:<80%RH,Pressure:86kPa~106kPa

No vapor or electromagnetic disturbances in the environment are influencing the normal working conditions of the device

Blowing Time

5 seconds (breath flow:≥12L/min)

Warm-up Time

6 seconds after switching on

Recovery Time

1-5 minutes, depends on Ethanol Vapor Concentration

Analysis Time

Less than 10 seconds

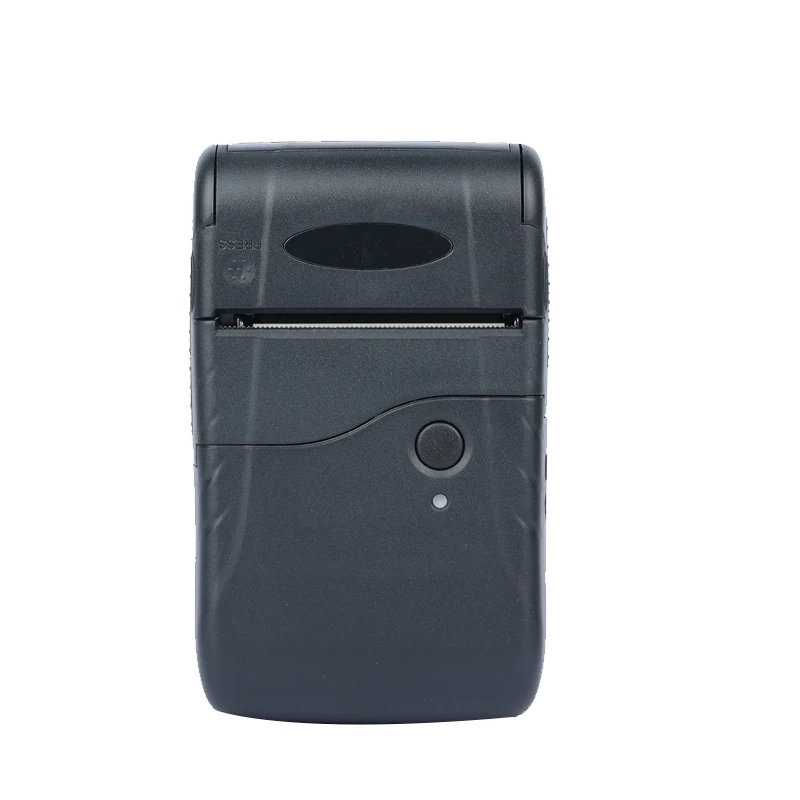

Printer

Bluetooth Thermal printer (Optional purchase)

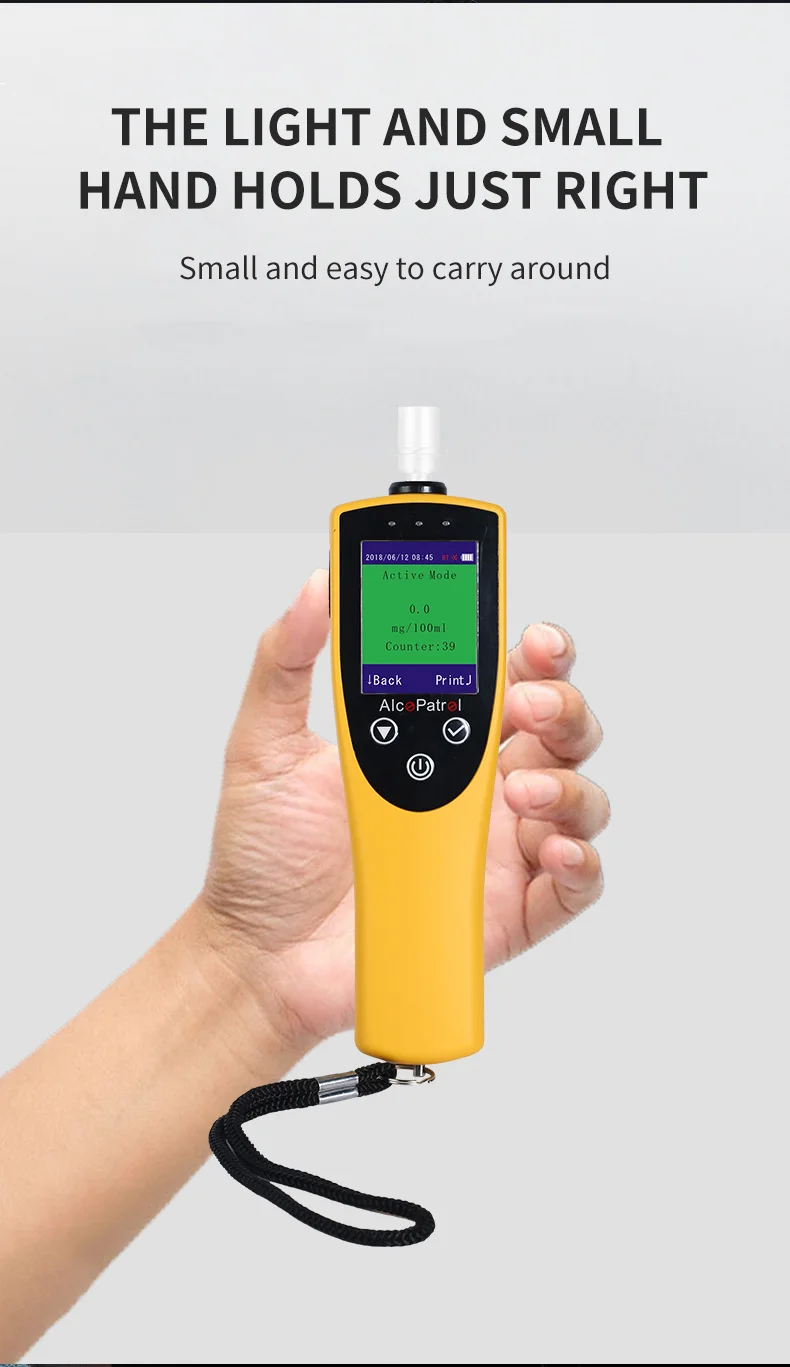

Dimensions(L x W x H)

Approx. 200mm*60mm*34.5mm

Weight

179 g
