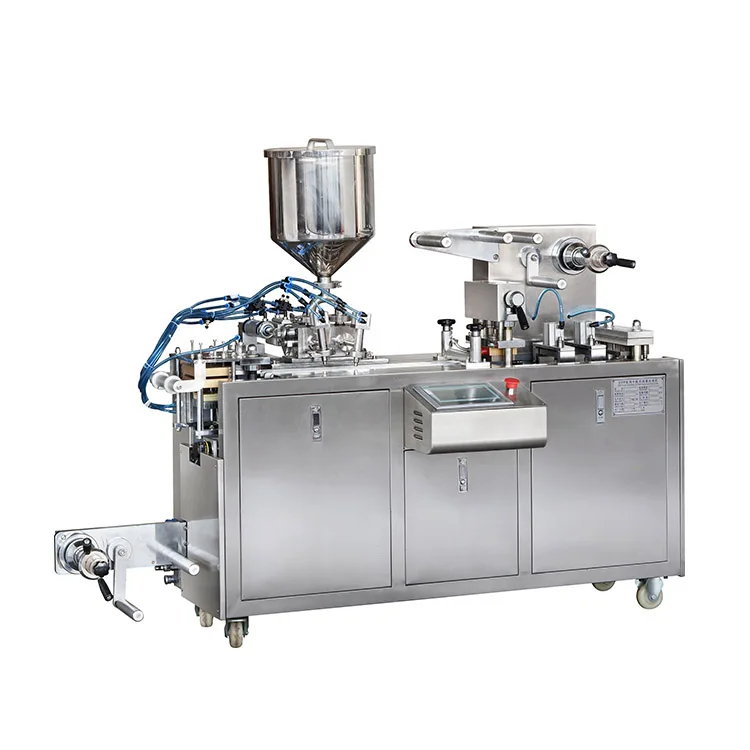

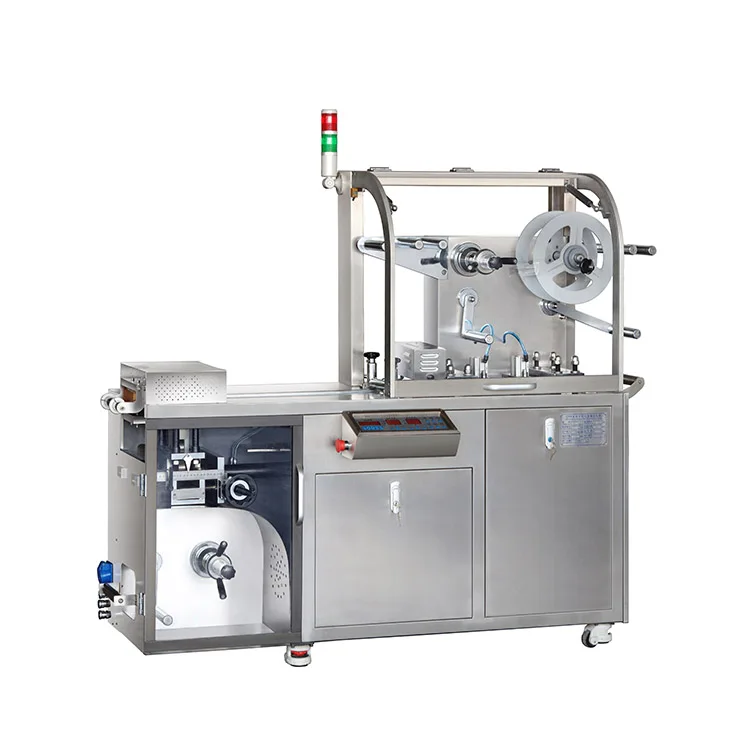

DPP Series Small Pvc Automatic Tablet Blister Packing Machine Mini Capsule Blister Packaging Machine
- Category: >>>
- Supplier: Wenzhou Urban Machinery Co. Ltd
Share on (1600745489397):
Product Overview
Description

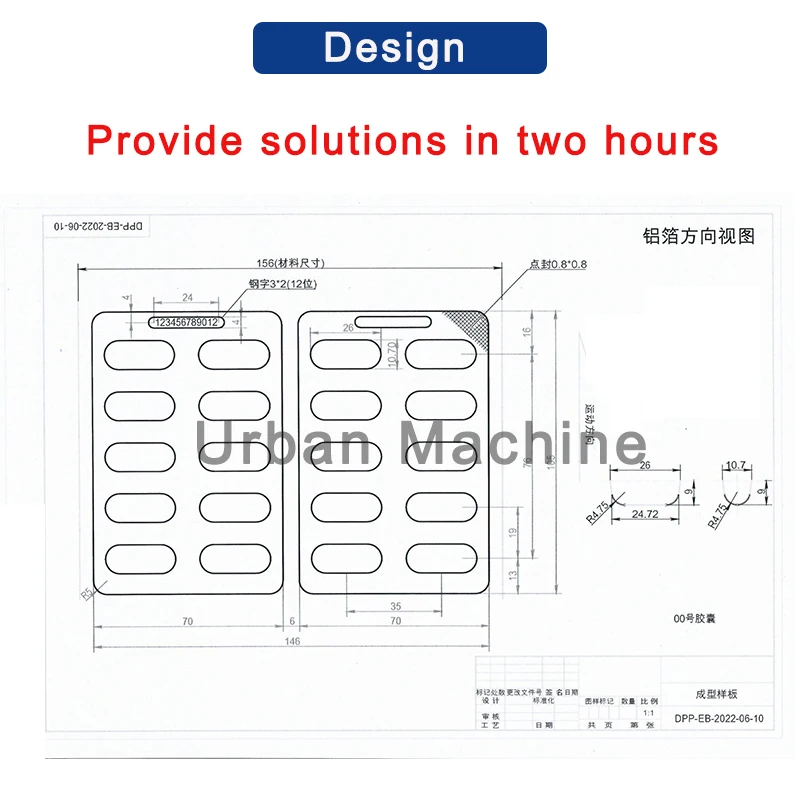

Product design: OEM/ODM custom design the shape and size of the blister product.
Products Description
Solid blister machine

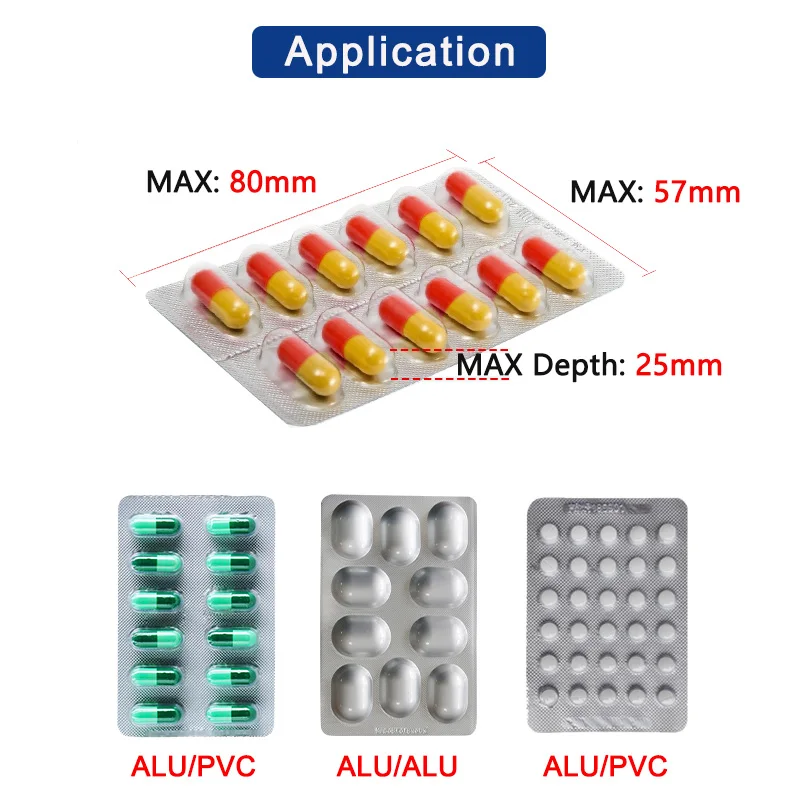

Application: toothbrush/perfume/car liquid perfume/car air freshener/capsule/tablet/small medical consumables, etc.
Liquid blister machine
Application:liquid/chocolate/butter/jam/honey/paste/sauce/ketchup blister packing machine,etc.
Model | DPB-80 | DPB-110 | DPB120 | DPB150 |
Punch frequency | 10-33times/min | 10-33tims/min | 10-33times/min | 10-35times/min |
Production capacity | 1980plates/hour | 1980plates/hour | 2400plates/hour | 4200plates/hour |
Max. Forming area & Depth | 105x70(standard depth <15mm) | 115x90(standard depth <15mm) | 125x70(standard depth <15mm) | 145xll0(standard depth <15mm) |
Max. Depth 25mm | Max. depth 26mm | Max. Depth 25mm | Max. depth 26mm | |
Standard Stroke range | 30-80mm | 35-90mm | 30-80mm | 50-120mm |
Standard plate size | 80x57mm | 80x57mm | 80x57mm | 80x57mm |
Air pressure | 0.4-0.6Mpa | 0.4-0.6Mpa | 0.4-0.6Mpa | 0.4-0.6Mpa |
Compressed air required | Air compressor>0.3m3/min | Air compressor>0.3m3/min | Air compressor>0.3m3/min | Air compressor>0.3m3/min |
Total power supply | 220V 50Hz 2.4Kw | 220V 50Hz 2.4Kw | 220V 50Hz 2.4Kw | 220V 50Hz 2.4Kw |
Main motor | 0.75Kw | 0.75Kw | 0.75Kw | 1.5KW |
PVC hard Film | 0.15-0.5xll0mm | 0.15-0.5X HOmm | 0.15-0.5 x 130mm | 0.15-0.5x 160mm |
PTP Aluminum film | 0.02-0.035 x HOmm | 0.02-0.035 x HOmm | 0.02-0.035 x 130mm | 0.02-0.035 x 160mm |
Mould cooling | Tap water or Recycling water | Tap water or recycling water | Tap water or Recycling water | Tap water or recycling water |
Overall Dimension(LxWxH) | 1450x590x 1100mm | 1600 x 620 x1420mm | 1870x610x1100mm | 2315 x 635 x 1405mm |
Weight | 465kg | 485kg | 660kg | 890KG |
Noise | <75dBA | <75dBA | <75dBA | <75dBA |
It adopts the newest type high-power transmission mechanism to arrange the chain and drive the main driving shaft. The errors and noises of other gear wheel transmission can be avoided.
Imported controlling system is adopted; also it can be equipped with detecting and rejection function device for number
ofmedicines according to the user’s requirement.
It adopts photoelectrical controlling system to make PVC, PTP, Aluminum/Aluminum material to be automatically fed and waste side to be cut automatically to guarantee the Synchronous stability of over- length distance and multi stations.
It can be optional equipped with photocell correction device, imported stepper motor traction and image- character register to optimize packing grade.
Imported controlling system is adopted; also it can be equipped with detecting and rejection function device for number
ofmedicines according to the user’s requirement.
It adopts photoelectrical controlling system to make PVC, PTP, Aluminum/Aluminum material to be automatically fed and waste side to be cut automatically to guarantee the Synchronous stability of over- length distance and multi stations.
It can be optional equipped with photocell correction device, imported stepper motor traction and image- character register to optimize packing grade.
