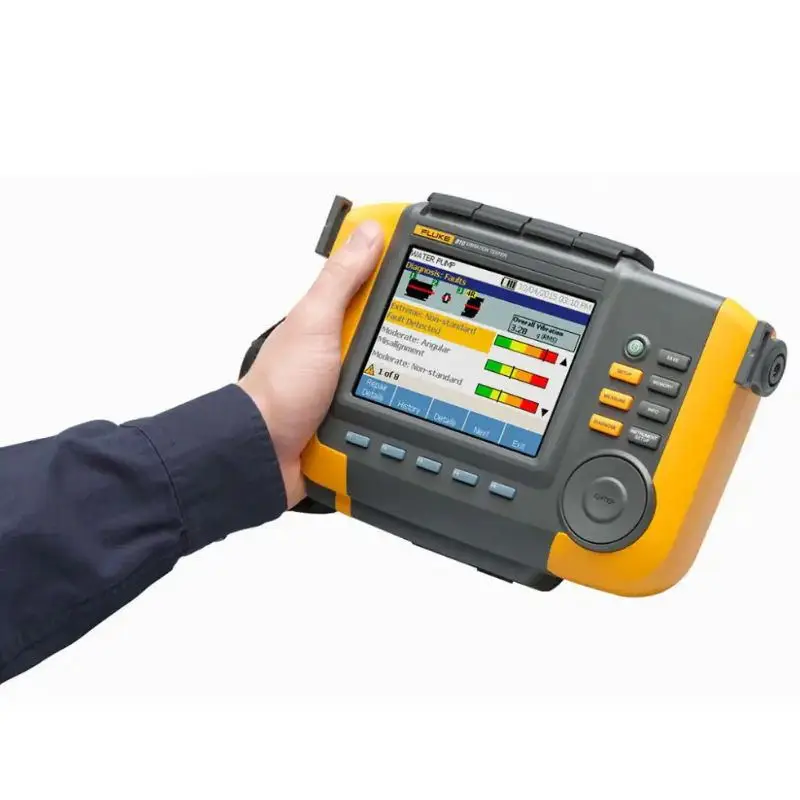

Fluke 810 Handheld Vibration Tester
- Category: >>>
- Supplier: Shenzhen Mepco Technology Co. Ltd.
Share on (1600745506191):
Product Overview
Description
Product Description
Features
* On-board identification and location of the most common mechanical faults (bearings, misalignment, unbalance, looseness) focus
maintenance efforts on root cause, reducing unplanned downtime
* Overall vibration level allows you to quickly assess overall machine health directly from the diagnosis screen
* Fault severity scale with four severity levels help you prioritize maintenance work
* Repair recommendations advise technicians on corrective action
* Detailed diagnostic reports and spectral diagrams help confirm data quality, and narrow down the root cause of failures
* On-board context sensitive help provide real-time tips and guidance to new users
* Flexible machine speed configurations gives the ability to test a broad range of assets including belt drives, gear boxes, andbevel gears
* 2 GB expandable on-board memory provides enough space for your machinery's data
* Self-test function ensures optimal performance and more time on the job
* Laser tachometer for accurate machine running speed promotes confident diagnoses
* Tri-axial accelerometer reduces measurement time by ⅔ over single axis accelerometers
* Viewer PC Software expands data storage and tracking capacity
* On-board identification and location of the most common mechanical faults (bearings, misalignment, unbalance, looseness) focus
maintenance efforts on root cause, reducing unplanned downtime
* Overall vibration level allows you to quickly assess overall machine health directly from the diagnosis screen
* Fault severity scale with four severity levels help you prioritize maintenance work
* Repair recommendations advise technicians on corrective action
* Detailed diagnostic reports and spectral diagrams help confirm data quality, and narrow down the root cause of failures
* On-board context sensitive help provide real-time tips and guidance to new users
* Flexible machine speed configurations gives the ability to test a broad range of assets including belt drives, gear boxes, andbevel gears
* 2 GB expandable on-board memory provides enough space for your machinery's data
* Self-test function ensures optimal performance and more time on the job
* Laser tachometer for accurate machine running speed promotes confident diagnoses
* Tri-axial accelerometer reduces measurement time by ⅔ over single axis accelerometers
* Viewer PC Software expands data storage and tracking capacity
Specification
Diagnostic Specifications | ||
Standard Faults | Unbalance, looseness, misalignment and bearing failures | |
Motors, fans, blowers, belts and chain drives, gearboxes, couplings, centrifugal pumps, piston pumps, sliding vane pumps, propeller pumps, screw pumps, rotary thread/gear/lobe pumps, piston compressors, centrifugal compressors, screw compressors, closed coupled machines, spindles | ||
Machine Rotational Speed Range | 200 to 12,000 rpm | |
Diagnosis Details | Plain-text diagnosis, fault severity (slight, moderate, serious, extreme), repair details, cited peaks, spectra | |
Electrical Specifications | ||
Ranging | Automatic | |
A/D Converter | 4 channel, 24 bit | |
Usable Frequency Bandwidth | 5 Hz to 20 kHz | |
Digital Signal Processing Functions | Automatically configured anti-alias filter, high-pass filter, decimation, overlapping, windowing, FFT, and averaging | |
Sampling Rate | 2.56 to 51.2 kHz | |
Dynamic Range | 128 dB | |
Signal to Noise Ratio | 100 dB | |
FFT Resolution | 800 lines | |
Spectral Windows | Hanning | |
Frequency Units | Hz, orders, cpm | |
Amplitude Units | in/sec, mm/sec, VdB | |
Non-Volatile Memory | SD micro memory card, 2 GB internal + user accessible slot for additional 2 GB storage | |
Environmental | ||
Temperature | Operating: 32 to 122°F (0 to 50°C) Storage: -4 to 140°F (-20 to 60°C) | |
Operating Humidity | 10 to 95% RH (non-condensing) | |
Agency Approvals | CHINA RoHS, CSA, CE, C TICK, WEEE | |
Electromagnetic Compatibility | EN 61326-1:2006, EN 61010:1:2001 2nd ed. | |
General Specifications | ||
Display | ¼ VGA, 320 × 240 Color (5.7" diagonal) TFT LCD with LED backlight | |

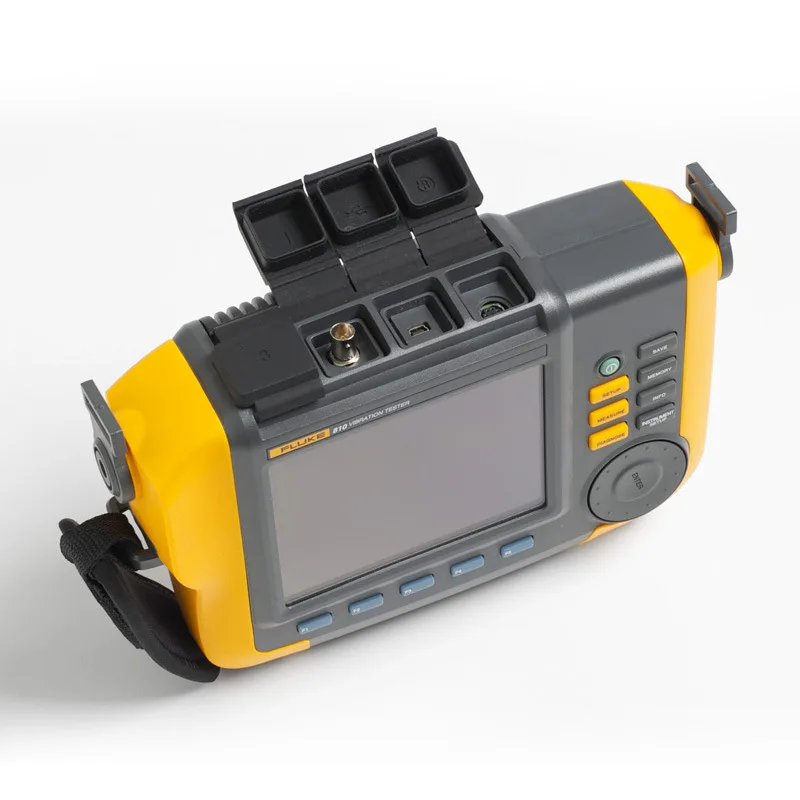

Input/Output Connections | Triaxial sensor connection: 4 pin M12 connector Single axis sensor connection: BNC connector Tachometer connection: Mini DIN 6 pin connector PC connection: Mini ‘B' USB (2.0) connector | |
Battery | Battery type: Lithium-ion, 14.8 V, 2.55 Ah Battery charging time: three hours Battery discharge time: eight hours (under normal conditions) | |
AC Adapter | Input voltage: 100 to 240 V AC Input frequency: 50/60 Hz | |
Operating System | WinCE 6.0 Core | |
Language Support | English, French, German, Italian, Japanese, Portuguese, Simplified Chinese, Spanish | |
Dimensions | 7.3 x 2.76 x 10.52" (18.56 x 7 x 26.72 cm) | |
Weight | 4.2 lbs (1.9 kg) with battery | |

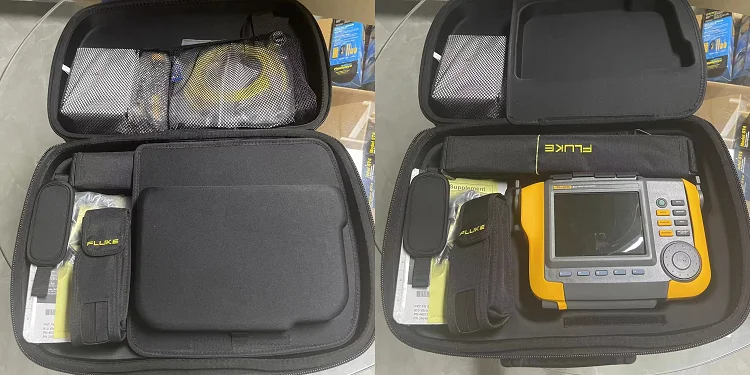

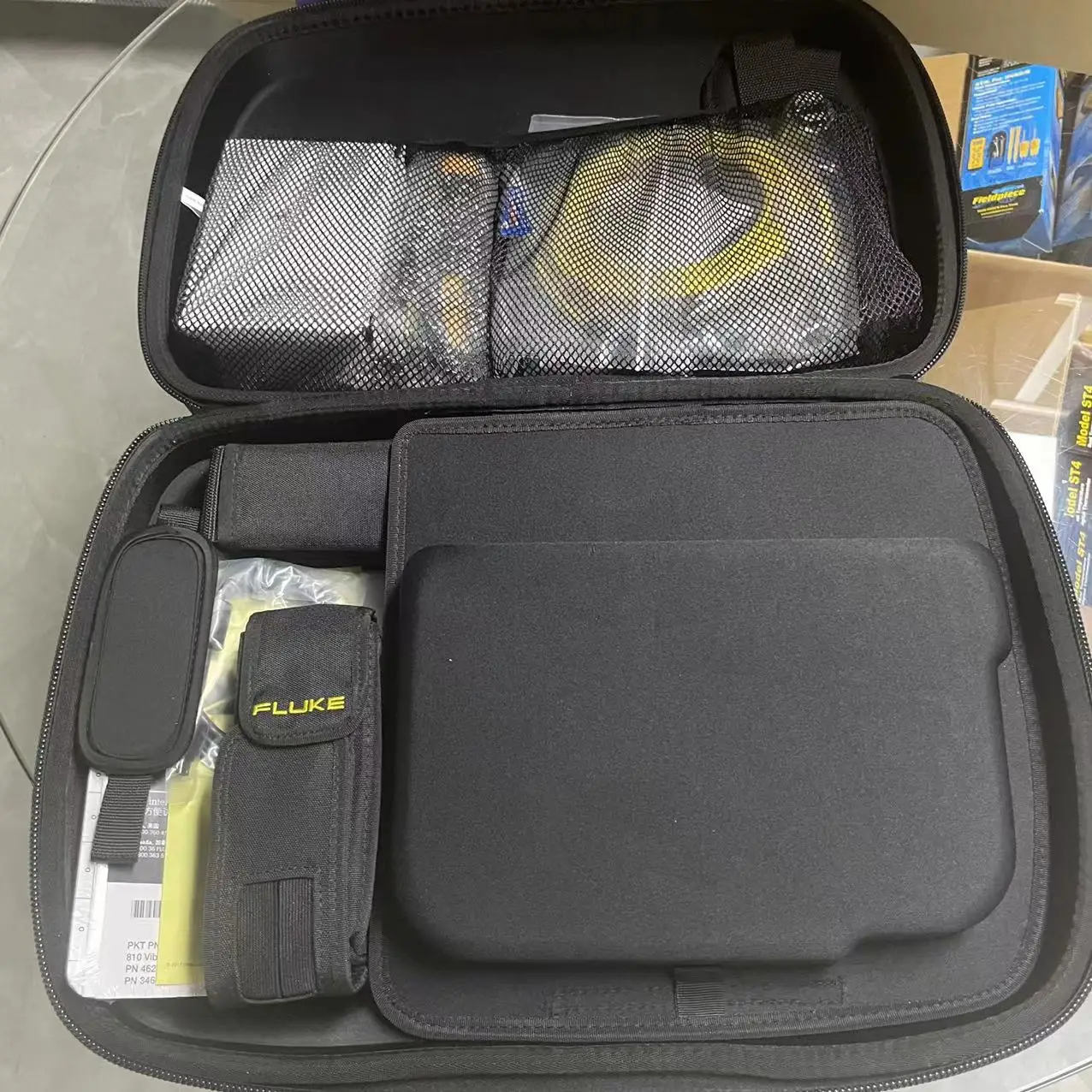

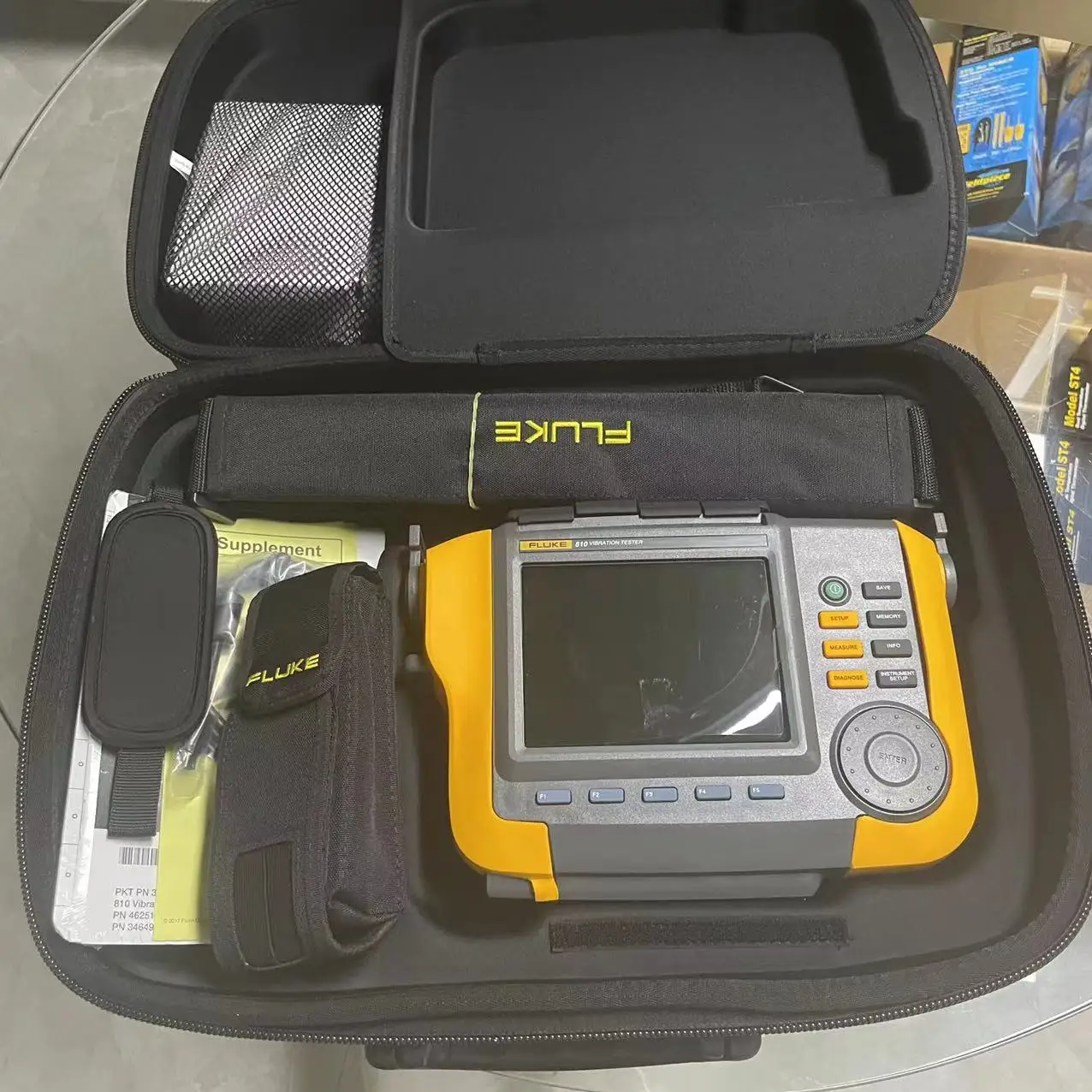

Packing & Delivery
