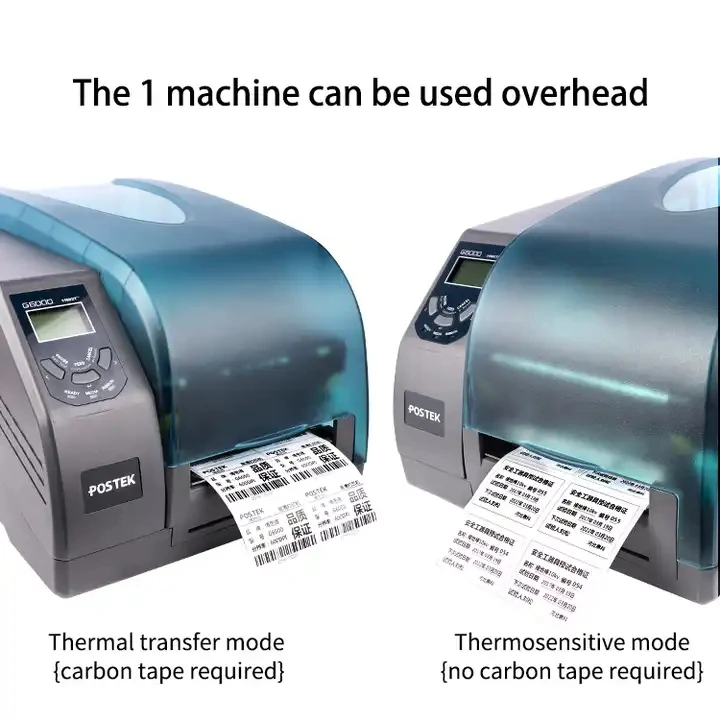

Printing method | Direct Thermal and Thermal Transfer |
Printing Resolution | 300 dpi |
Maximum Printing speed | 6 ips (152.4 mm/s) |
Maximum print width | 4.17″(106 mm) |
Max Printing Length | 157″(4000 mm) |
Heat "level | Level I |
Memory | 64 MB FLASH ROM, 16 MB SDRAM |
Media | Width: 4.4″(112 mm) max., 0.98″(25 mm) min. OD 6″(152 mm) max.; ID 1″(25.4 mm) min. |
Media Thickness | 0.003″~ 0.008″(0.08 ~ 0.20 mm), including liner |
Ribbon | Width: 4.3″(110 mm) max.; Length: 984.25′(300 m) max. OD 2.75″(70 mm) max.; ID 1″(25.4 mm) min. |
Fonts | Five built-in dot matrix ASCII fonts, user-downloadable TrueType Fonts |
Barcode Types | 1D Barcode : Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128, etc. 2D Barcode : MaxiCode, PDF417, Data Matrix, QR Code, CS Code, etc |
Media Sensor | Reflective (Adjustable) and Transmissive (Two positions) |

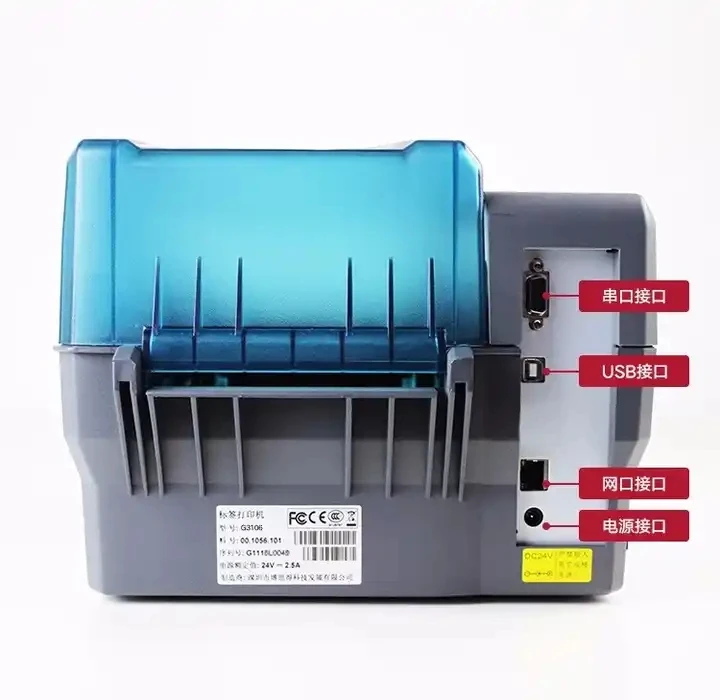

Interfaces | RS-232 Serial, 10/100 M Adaptive Ethernet, USB DEVICE 2.0, USB HOST |
Power Adapter | Input: AC 100~240 V, 50~60 Hz; Output: DC 24 V, 4.0 A |
Weight | 7.72lbs (3.5 kgs) |
Dimensions | W 10.2″(259 mm) × D 13.9″(354 mm) × H 8.1″(205 mm) |
Operating Environment | Temperature: 32°F ~ +104°F (0℃ ~ 40℃) Relative humidity: 5% ~ 85% non condensing |
Storage Environment | Temperature: -22°F ~ +140°F (-30℃ ~ 60℃) Relative humidity: 5% ~ 85% non condensing |
Optional Items | Centronics Parallel Port (Factory dependent) Cutter, External Label Rewinder, External Media Stand, Media Guide Adapter |
