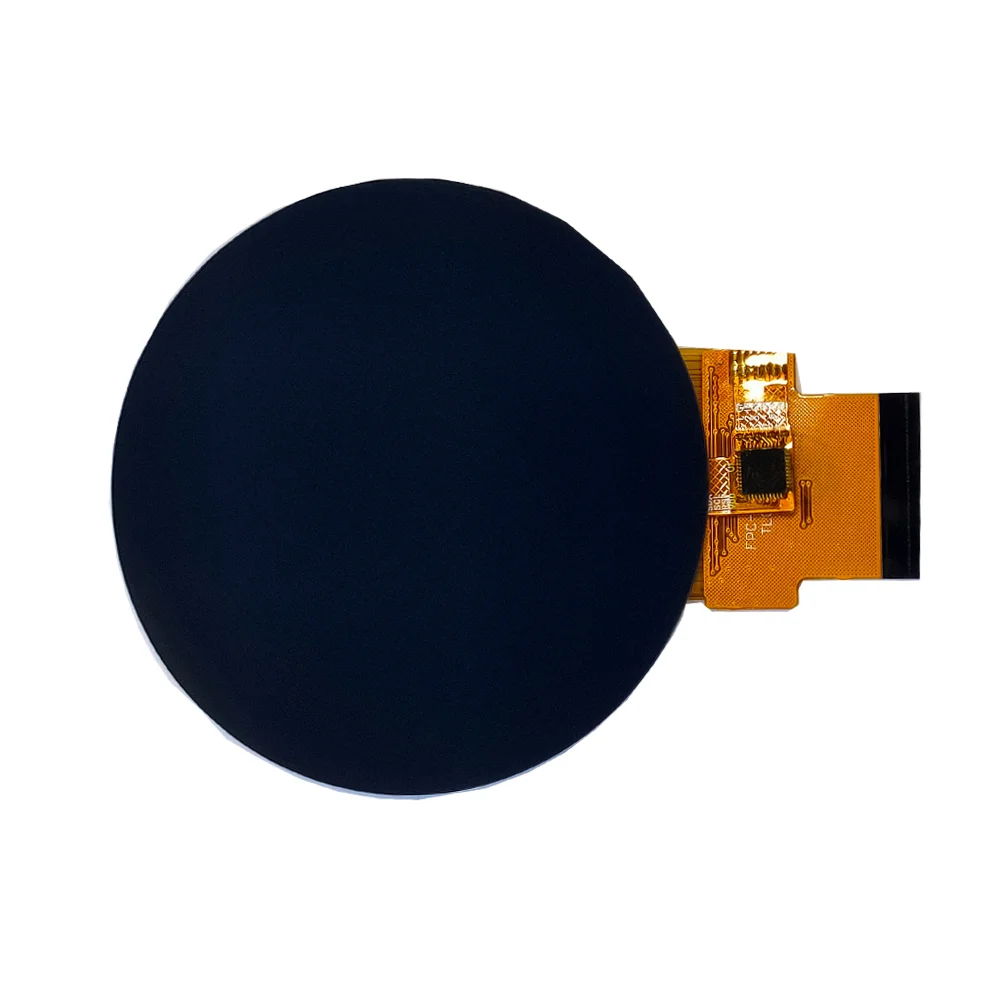

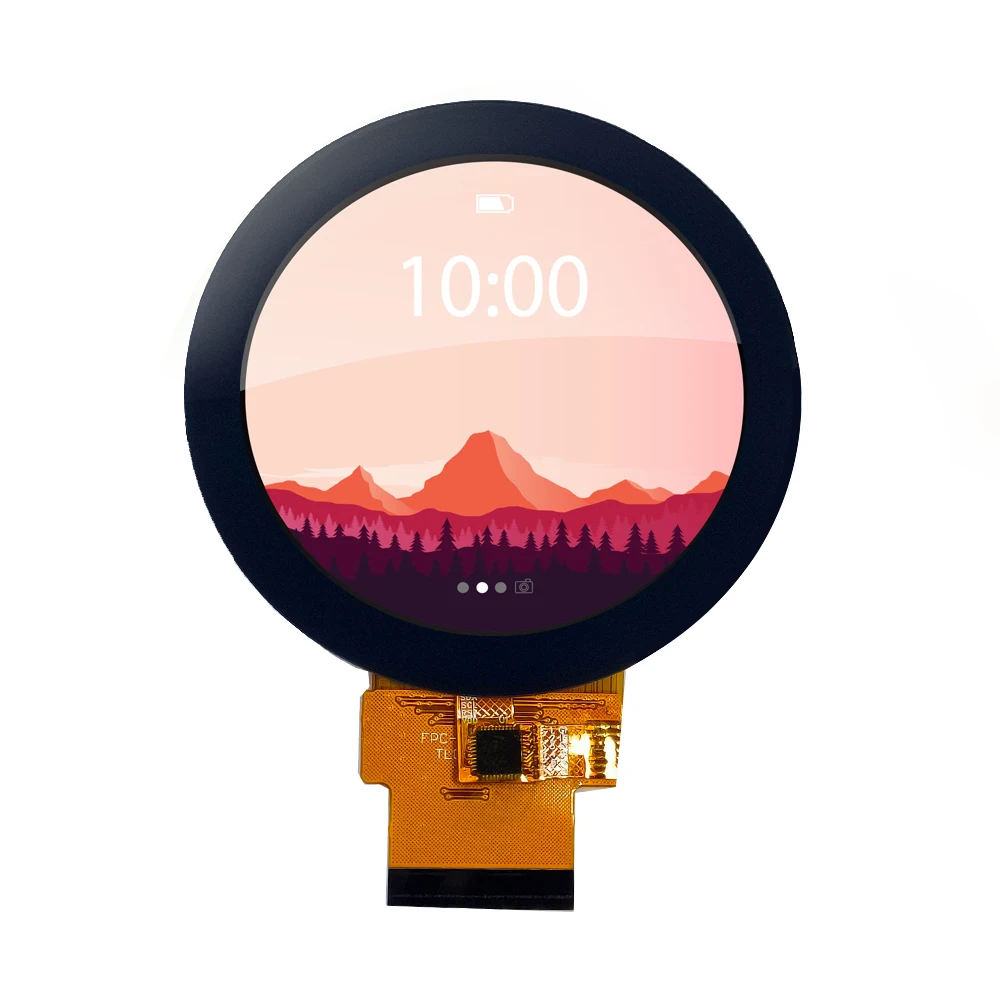

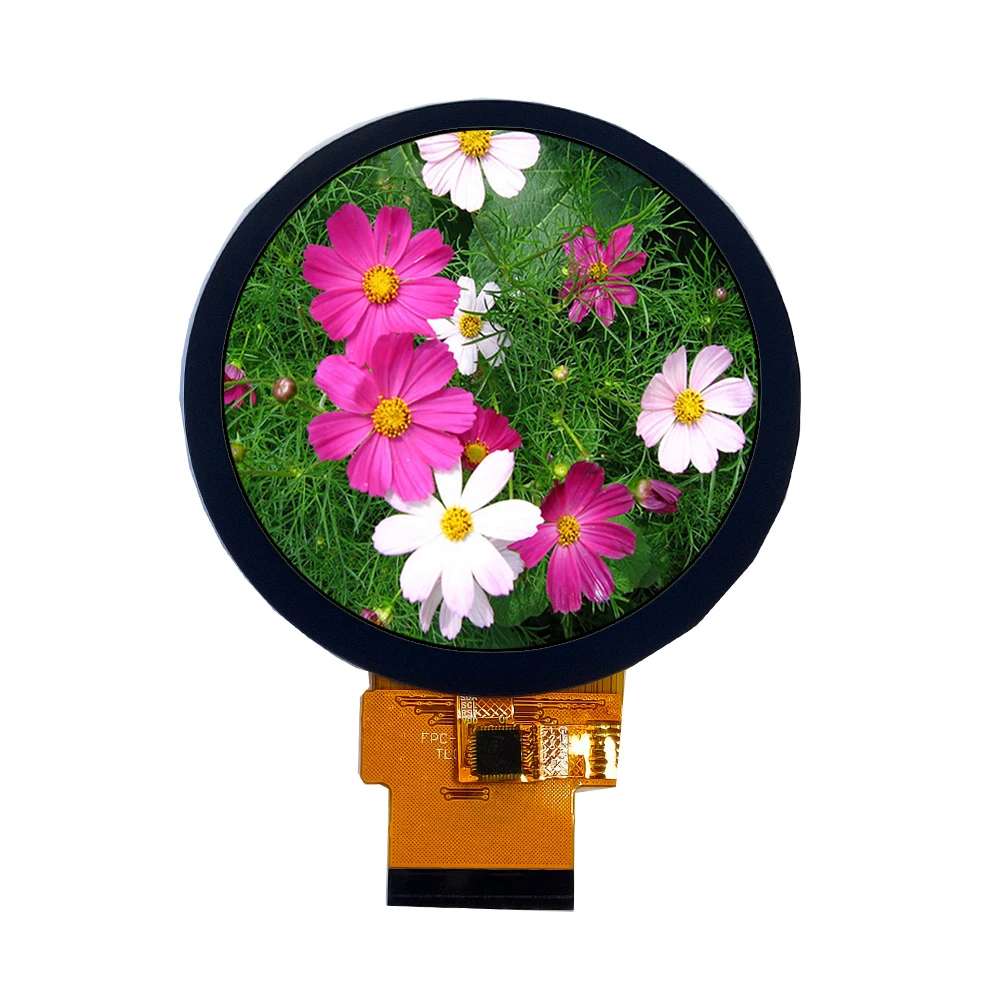

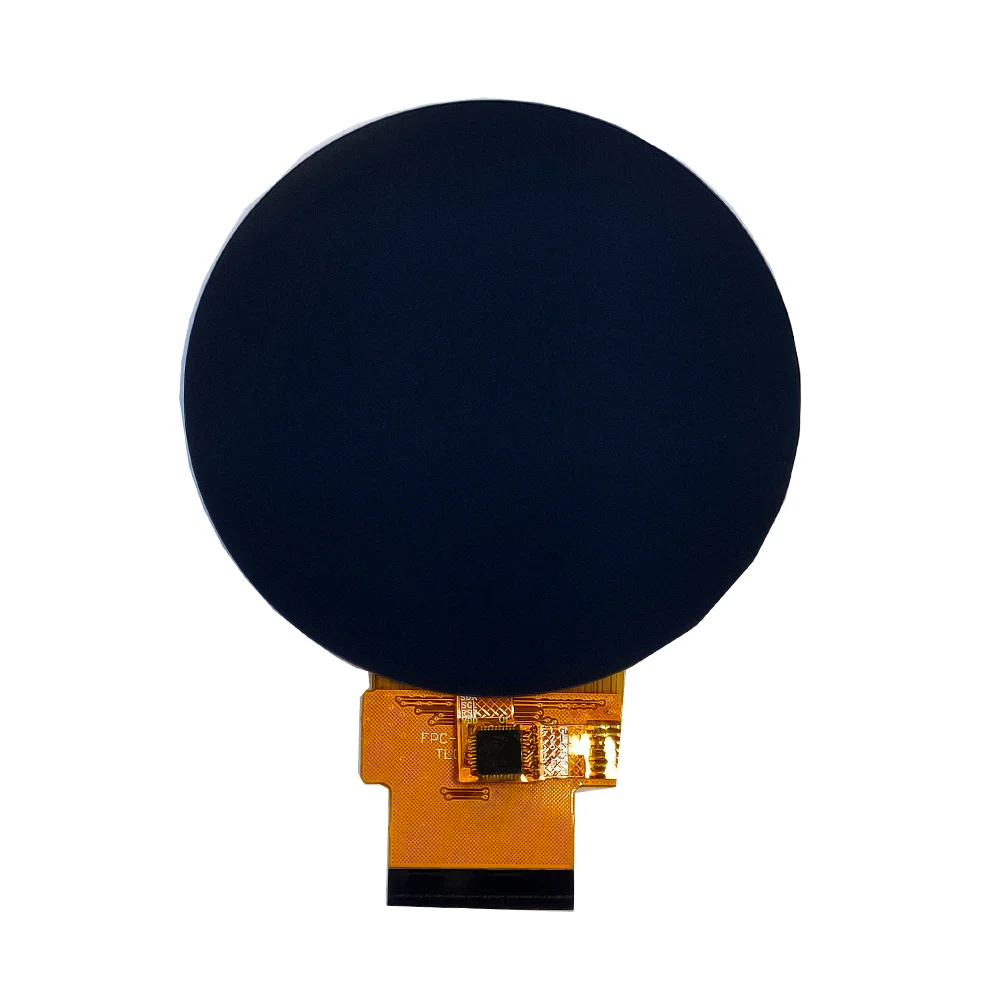

2.1 inch 480x480 Round TFT Display Module Colors IPS 3 SPI / RGB Interface
- Category: >>>
- Supplier: Dongguan Shineworld Innovations Co. Limited
Share on (1600745525638):
Product Overview
Description
Display General Description
The TFT21001A is a circular module that delivers an extraordinary visual experience. Manufactured by SWICN, this module showcases a stunning 2.1-inch TFT LCD screen that will mesmerize your senses. With its impressive 480x480 RGB pixel resolution against a sleek black background, prepare to be amazed by the breathtaking visuals it presents.
Featuring a typical brightness of 300cd/m2, the TFT21001A ensures crystal-clear visibility in any setting. Powered by the reliable ST7701S driver IC and supporting SPI and 18 Bit RGB interfaces, this module guarantees consistent and dependable performance, allowing you to rely on its exceptional display quality.
The TFT21001A seamlessly integrates with a wide range of MCUs, including 8051, PIC, AVR, ARDUINO, ARM, and Raspberry Pi. Its versatility makes it perfect for various applications, from embedded systems to wearables, from security systems to medical equipment, and beyond.
The TFT21001A features a 40-pin Flexible Printed Circuit (FPC) with FPC-connector mode. This seamless connection to your PCB's ZIF connector ensures a secure and reliable link, saving you precious time and effort.
Shineworld Innovations Limited offers a wide range of tailored options to meet your specific requirements. Whether you need a customized FPC, integrated cover lenses, touch screens, or driver boards, we have you covered. Our mission is to provide you with an optimized display solution that perfectly aligns with your unique needs and preferences. Additionally, we take pride in our ability to accommodate customer requests for customized demo kits, ensuring your experience is truly exceptional.
Featuring a typical brightness of 300cd/m2, the TFT21001A ensures crystal-clear visibility in any setting. Powered by the reliable ST7701S driver IC and supporting SPI and 18 Bit RGB interfaces, this module guarantees consistent and dependable performance, allowing you to rely on its exceptional display quality.
The TFT21001A seamlessly integrates with a wide range of MCUs, including 8051, PIC, AVR, ARDUINO, ARM, and Raspberry Pi. Its versatility makes it perfect for various applications, from embedded systems to wearables, from security systems to medical equipment, and beyond.
The TFT21001A features a 40-pin Flexible Printed Circuit (FPC) with FPC-connector mode. This seamless connection to your PCB's ZIF connector ensures a secure and reliable link, saving you precious time and effort.
Shineworld Innovations Limited offers a wide range of tailored options to meet your specific requirements. Whether you need a customized FPC, integrated cover lenses, touch screens, or driver boards, we have you covered. Our mission is to provide you with an optimized display solution that perfectly aligns with your unique needs and preferences. Additionally, we take pride in our ability to accommodate customer requests for customized demo kits, ensuring your experience is truly exceptional.
General Data
NO. | ITEM | SPECIFICATIONS | UNIT | ||
1 | Display Mode | TFT | |||
2 | Diagonal Size | 2.1 | Inch | ||
3 | Resolution | 480(RGB) x 480 | Dots | ||
4 | Active Area | 53.28(H) x 53.28(V) | mm | ||
5 | Outline Dimension | 56.18(H) x 59.71(V) | mm | ||
6 | Thickness | 2.3±0.1 | mm | ||
7 | Pixel Pitch | TBD | mm | ||
8 | Pixel Size | TBD | mm | ||
9 | Display Driver IC | ST7701S | - | ||
10 | Touch Driver IC | No Touch | - | ||
11 | Display Color | 262K | - | ||
12 | Gray Scale | 8 | Bit | ||
13 | Brightness | 300 (Typ.) | cd /m2 | ||
14 | Contrast Ratio | 900:1 (Typ.) | - | ||
15 | Interface | SPI+18 Bit RGB | - | ||
16 | IC Package Type | COG | - | ||
17 | Module Connecting Type | Connector (Pitch:0.5mm, 40PIN) | - | ||
18 | Weight | TBD±10% | g | ||
19 | Pins | 40 | Pins | ||
20 | Operating Temperature | -20~70 | ℃ | ||
21 | Storage Temperature | -30~80 | ℃ | ||

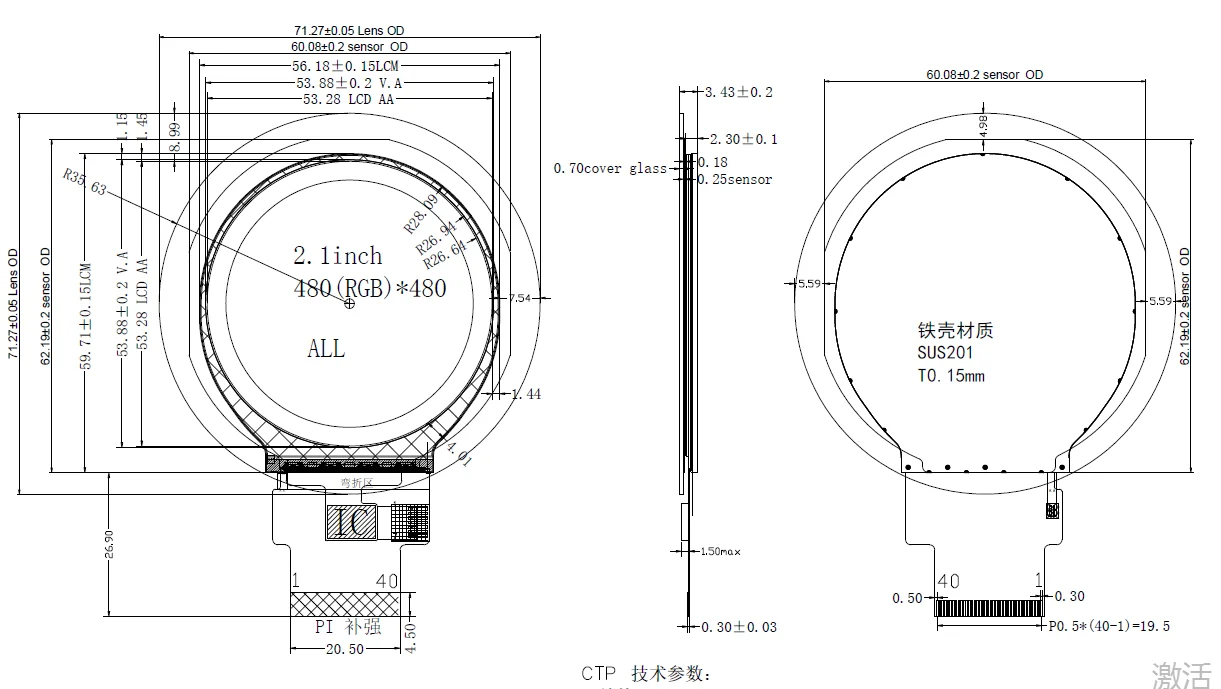

Drawing
Product Details
About TFT
SWI offers a wide product range of small to medium sizes TFT display modules in sizes ranging from 0.96” through 10.1”, no matter it is by engineering a custom display module, or by implementing a standard display from our wide selection of technologies, including being integrated with touch sensors and/or cover lenses. These TFT LCD modules are including options of TFT panel, TFT LCM with controller board, industry standard mono TFT LCM, TFT color display, IPS display and wide operating temperatures of -20°C to +70°C or -30°C to +80°C. The interface options are MCU / RGB / SPI / UART / 8080 / LVDS. We also offer customization of backlight or/and FPC. Our products have been applied in a wide range of industries including E-cigarettes, wearable deivices, energy meter equipment, fiscal processors, portable devices, intelligent home solutions, medical facilities and industrial control.
With our automatic direct bonding process, we can also integrate these displays with customized capacitive touch panels and/or cover lens using lamination of OCA, SCA or OCR.
