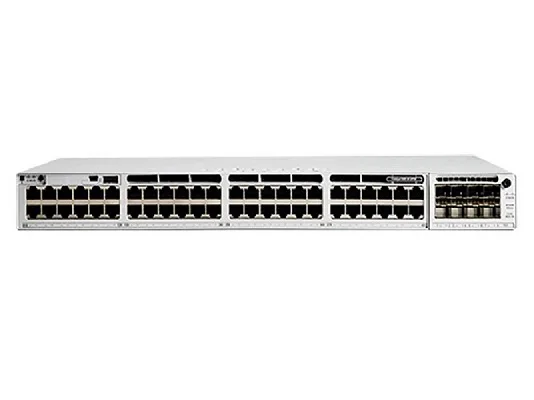

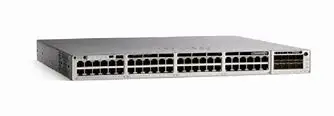

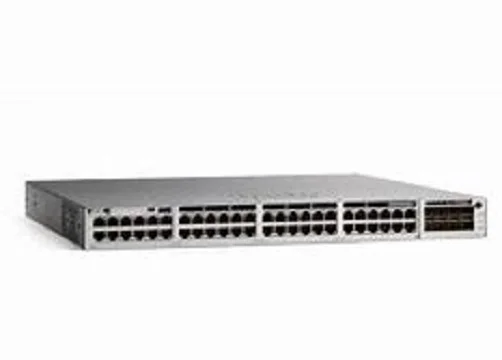

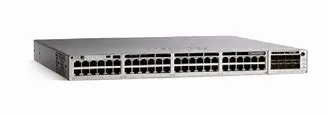

Enterprise C9300 48T A Managed Data Network Switch 48 Port Gigabit Ethernet Switch for Reliable Data Transfer
- Category: >>>
- Supplier: Beijing Fushui Churong Technology Co. Ltd.
Share on (1600745569218):
Product Overview
Description
Product Description
Product Name | C9300-48T-A |
Description | The Catalyst 9300 series is an advanced stackable switching platform. These network switches are built for security, IoT, and the cloud. |
Function | network switvhing |
Package | New in box carton |
Overview
The Catalyst® 9300 Series Switches are C’s lead stackable enterprise switching platform built for security, IoT,
mobility, and cloud. C9300-48T-A is 48-port data only, Network Advantage Switch of 9300 series. Catalyst 9300 Series are the next
generation of the industry’s most widely deployed switching platform. At 480 Gbps, they are the industry’s highest-density
stacking bandwidth solution with the most flexible uplink architecture. The Catalyst 9300 Series is the first optimized platform
for high-density 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future, with an x86
CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within
the switch.
Product Usage
Features
16MB packet buffer, 3 fans, 802.1x authentication, Access Control List (ACL) support, Application Visibility and Control (AVC),
StackPower technology, StackWise-480 technology, Class-Based Weighted Fair Queuing (CBWFQ), Control plane protection
(CoPP), DHCP support, Encapsulated Remote SPAN (ERSPAN), Ethernet over MPLS (EoMPLS), Flexible NetFlow (FNF), FTP client, Full
duplex mode, Hierarchical Virtual Private LAN Service (H-VPLS), Integrated Wireshark, IT Service Management (ITSM) integration,
Layer 3 VPN (L3VPN) support, MACsec support, Management Information Base (MIB), Multicast Source Discovery Protocol (MSDP),
Non-Stop Routing (NSR), Private VLAN, Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), Security Group Access Control
List (SGACL), Security Group Tag (SGT) caching, Source-Specific Multicast (SSM), Spanning Tree Protocol (STP) support, Stateful
switchover (SSO), Syslog support, Third-party IP Address Management (IPAM) integration, Trunking, Virtual Extensible LAN (VXLAN),
VLAN Double Tagging (Q-in-Q), Weighted Random Early Detection (WRED)
StackPower technology, StackWise-480 technology, Class-Based Weighted Fair Queuing (CBWFQ), Control plane protection
(CoPP), DHCP support, Encapsulated Remote SPAN (ERSPAN), Ethernet over MPLS (EoMPLS), Flexible NetFlow (FNF), FTP client, Full
duplex mode, Hierarchical Virtual Private LAN Service (H-VPLS), Integrated Wireshark, IT Service Management (ITSM) integration,
Layer 3 VPN (L3VPN) support, MACsec support, Management Information Base (MIB), Multicast Source Discovery Protocol (MSDP),
Non-Stop Routing (NSR), Private VLAN, Quality of Service (QoS), Remote Switch Port Analyzer (RSPAN), Security Group Access Control
List (SGACL), Security Group Tag (SGT) caching, Source-Specific Multicast (SSM), Spanning Tree Protocol (STP) support, Stateful
switchover (SSO), Syslog support, Third-party IP Address Management (IPAM) integration, Trunking, Virtual Extensible LAN (VXLAN),
VLAN Double Tagging (Q-in-Q), Weighted Random Early Detection (WRED)
characteristics
Part Number C9300-48T-A
Product Description
Catalyst 9300 48-port data only, Network Advantage
Total 10/100/1000 or Multigigabit copper ports 48
Catalyst 9300 48-port data only, Network Advantage
Total 10/100/1000 or Multigigabit copper ports 48
Default AC power supply 350WAC
Available PoE power -
StackWise-480 Yes
StackWise-480 Yes
StackPower Yes
Default power supply PWR-C1-350WAC
Switching capacity
256 Gbps on 48-port Gigabit Ethernet model
256 Gbps on 48-port Gigabit Ethernet model
Stacking bandwidth 480 Gbps
Total number of MAC addresses 32,000
Total number of IPv4 routes (ARP plus learned routes)
32,000 (24,000 direct routes and 8000 indirect routes)
32,000 (24,000 direct routes and 8000 indirect routes)
IPv4 routing entries 32,000
IPv6 routing entries 16,000
Multicast routing scale 8000
QoS scale entries 5120
ACL scale entries 5120
Packet buffer per SKU
16 MB buffer for 24- or 48-port Gigabit Ethernet models
FNF entries
64,000 flow on 24- and 48-port Gigabit Ethernet models
16 MB buffer for 24- or 48-port Gigabit Ethernet models
FNF entries
64,000 flow on 24- and 48-port Gigabit Ethernet models
DRAM 8 GB
Flash 16 GB
VLAN IDs 4000
Total Switched Virtual Interfaces (SVIs)
2000
2000
Jumbo frames 9198 bytes
Total routed ports per 9300 Series stack
208
208
Wireless bandwidth per switch
Up to 96 Gbps on 48-port Gigabit Ethernet model
Forwarding rate 154.76 Mpps
Up to 96 Gbps on 48-port Gigabit Ethernet model
Forwarding rate 154.76 Mpps
Dimensions (H x W x D)
1.73 x 17.5 x 17.5 Inches
1.73 x 17.5 x 17.5 Inches
Weight 16.33 Pounds
Mean time between failures (hours) 299,000
Safety certifications
● UL 60950-1
● CAN/CSA-C222.2 No. 60950-1
● EN 60950-1
● IEC 60950-1
● AS/NZS 60950.1
● UL 60950-1
● CAN/CSA-C222.2 No. 60950-1
● EN 60950-1
● IEC 60950-1
● AS/NZS 60950.1
● IEEE 802.3
Electromagnetic emissions certifications
● 47 CFR Part 15
● CISPR22 Class A
● EN 300 386 V1.6.1
● EN 55022 Class A
● EN 55032 Class A
● CISPR 32 Class A
● EN61000-3-2
● EN61000-3-3
● ICES-003 Class A
● TCVN 7189 Class A
● V-3 Class A
● CISPR24
● EN 300 386
● EN55024
● TCVN 7317
Electromagnetic emissions certifications
● 47 CFR Part 15
● CISPR22 Class A
● EN 300 386 V1.6.1
● EN 55022 Class A
● EN 55032 Class A
● CISPR 32 Class A
● EN61000-3-2
● EN61000-3-3
● ICES-003 Class A
● TCVN 7189 Class A
● V-3 Class A
● CISPR24
● EN 300 386
● EN55024
● TCVN 7317
Environmental
Reduction of Hazardous Substances (ROHS) 5
Reduction of Hazardous Substances (ROHS) 5
