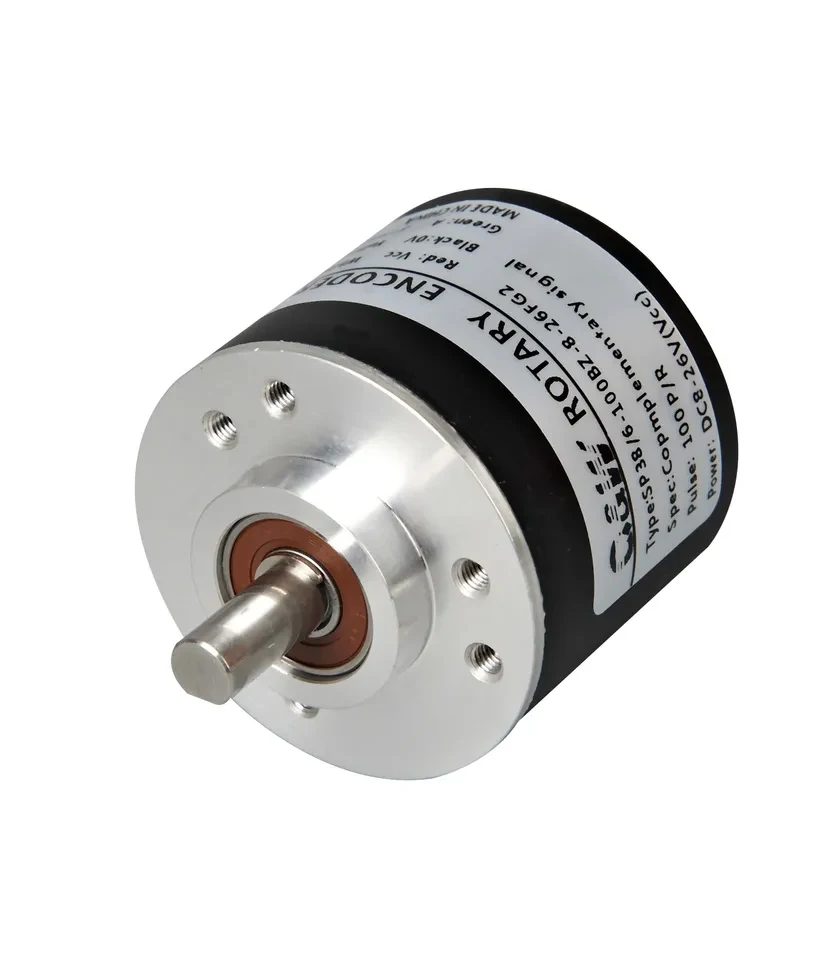

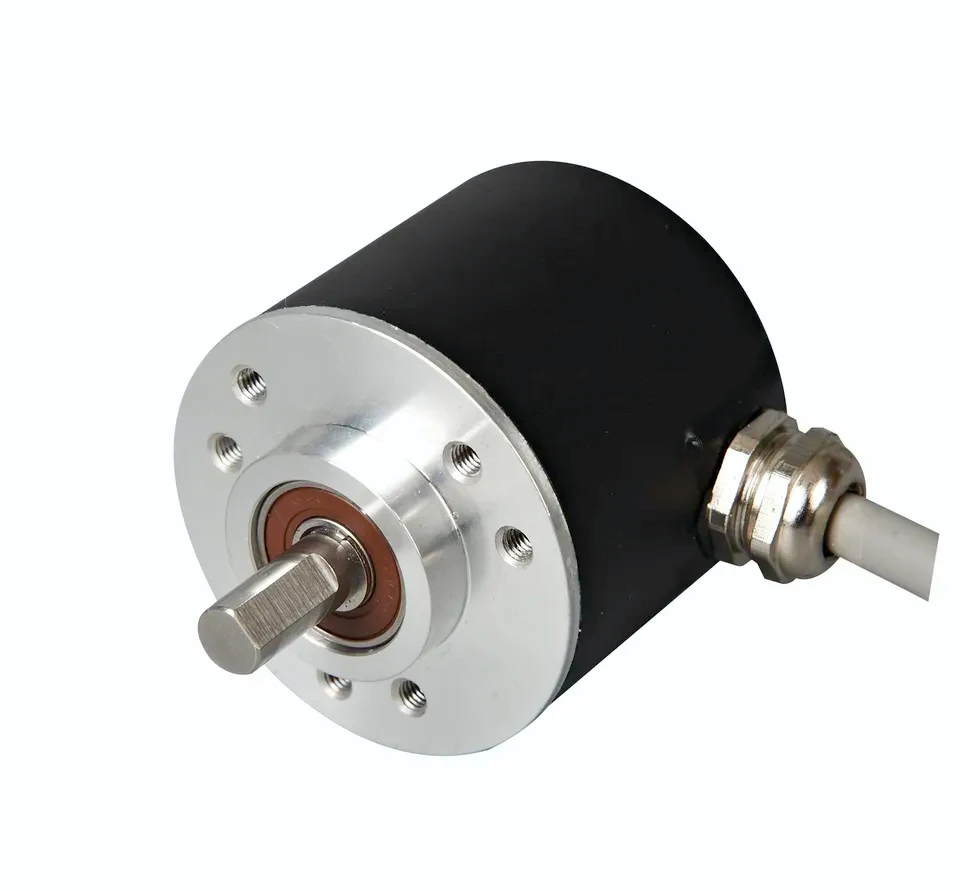

Manufacturer Professional Custom 500/1000/2500 Pulse 38/6 Series Multiple Specifications Incremental Rotary Encoder
- Category: >>>
- Supplier: Shanghai Nature Beyond Electric Technology Co. Ltd.
Share on (1600745620107):
Product Overview
Description
Product Overview

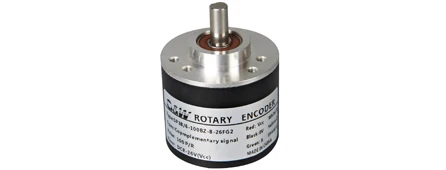

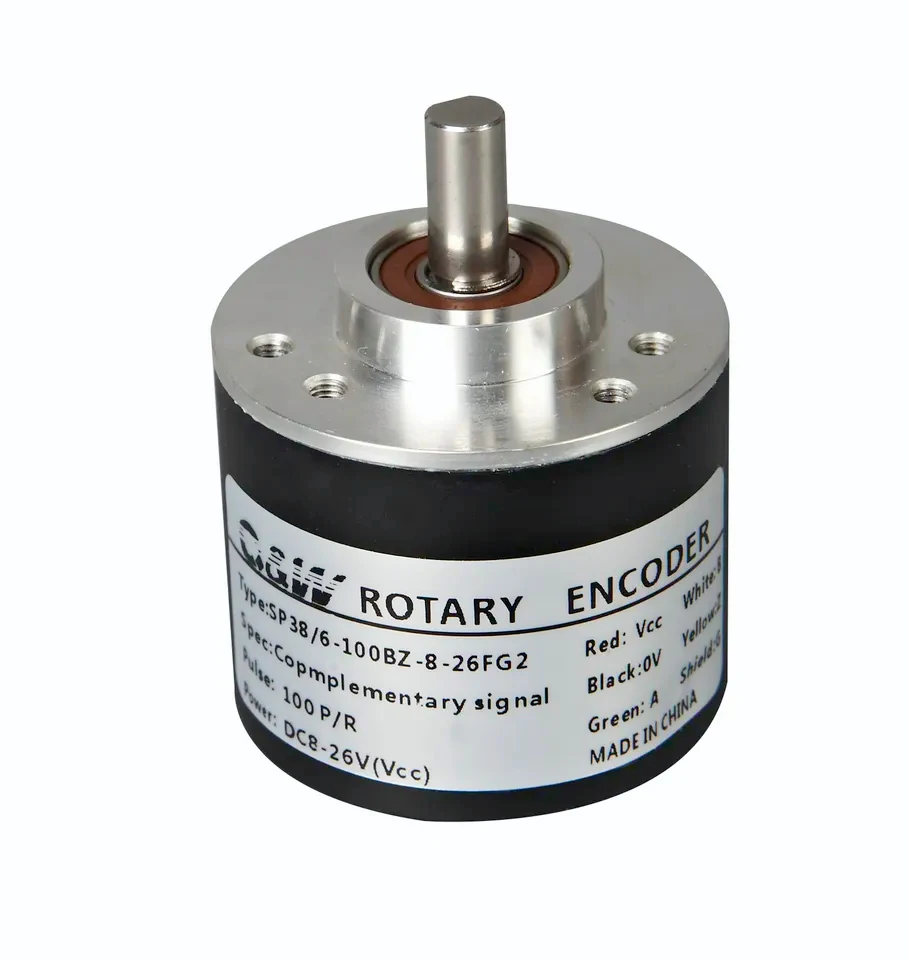

SP38/6 Series Incremental Rotary Encoder
Rotary encoder has series features, such as compact volume, light weight, more variety, low cost, small torgue, low wasted energy, high resolution ratio, high precision, high frequency, easy installation, big bearing capacity, strong anti-interference performance, stable capability, long service life etc.
FEATURES AT A GLANCE
Widely using temperature range: -10~ +70 ℃;
Highest revolution can reach: 12000 rpm;
Oiseismatic strength can reach: 5~200Hz;
Impacttrength can reach: 1000m/s2 (10ms);
Highest frequency response reach: 300KHz;
Precision range: 10'' ~ 0.1''
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Main diameter | 38mm |
2 | Axes diameter | 6mm |
3 | Pulse count | 10/20/30/50/60/100/120/125/180/200/250/300/360/400/500/512/600/720/800/900/1000/1024/1200/1250/1500/1800/2000/2048/2400/2500/3000/3600/5000 or customization |
4 | Output form | BZ: Two -phase with positive base point |
5 | Power voltage | 8-30V |
6 | Output circuit | Push-pull |
7 | Out cable form | cable side out |
8 | Cable length | 2m |
9 | Current consumption | 60mA Max |
10 | Allowable load | 30mA |
11 | Signal high electrical level | ≥ VCC*70% V |
12 | Signal Low electrical level | ≤ 0.5 V |
13 | Rise/Down time | ≤ 1 μs |
14 | Response frequency | 150 KHz |
FAQ
FAQ
1、Are you trading company or manufacturer?
1、Are you trading company or manufacturer?
We are manufacturer，specialize in producing proximity sensor, photoelectric sensor,switching power supply, sSR, and rotary encoder for 22 years.
2、What's the minimum order quantity?
1 piece, and we can offer free sample for testing.
3、what's your price?
We have economic and high-end products, can meet different customers' requirements.Meanwhile, we can offer much better price in large quantity.
4、When will you ship my order?
1 day shipping guarantee for stock item and 2-3 weeks for non-stock items.
5、What's your shipping terms?
We can provide courier(DHL, FEDEX,UPS,TNT etc...)service, air freight, sea freight(-FOB,C&F, CIF,DDP,DDU etc...) service.
6、How can you guarantee the product quality?
We ensure all products 100% tested before departure.Our products have passed CE,ISO9001:2000, ccC, and CB certification.
7、Do you accept OEM?
Yes.We can special customized waterproof lP68/IP69 sensor, and offer cable length perto customers" request.
8、How can I make an order?
Send inquiry→Tell us your requirements→Our sales will contact you within 2 hours
