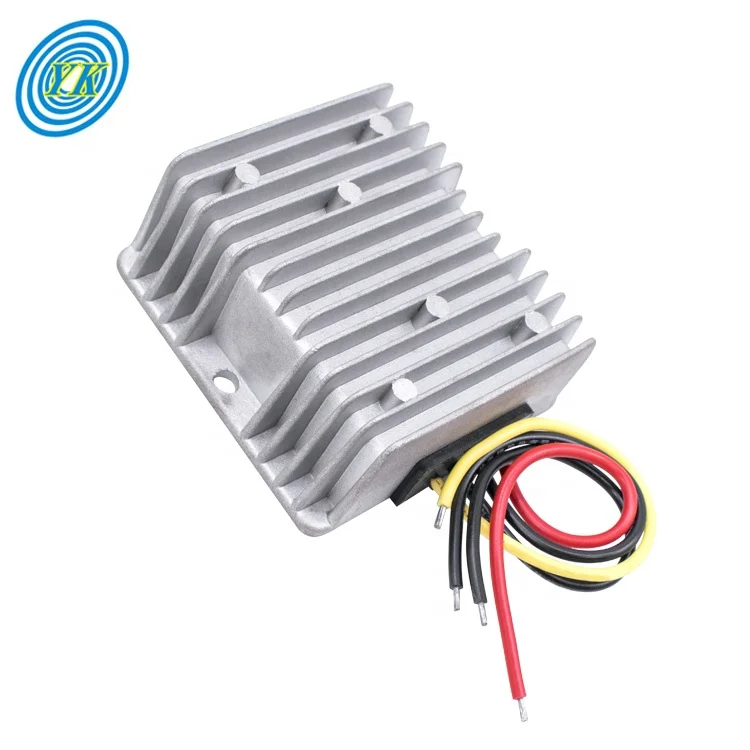

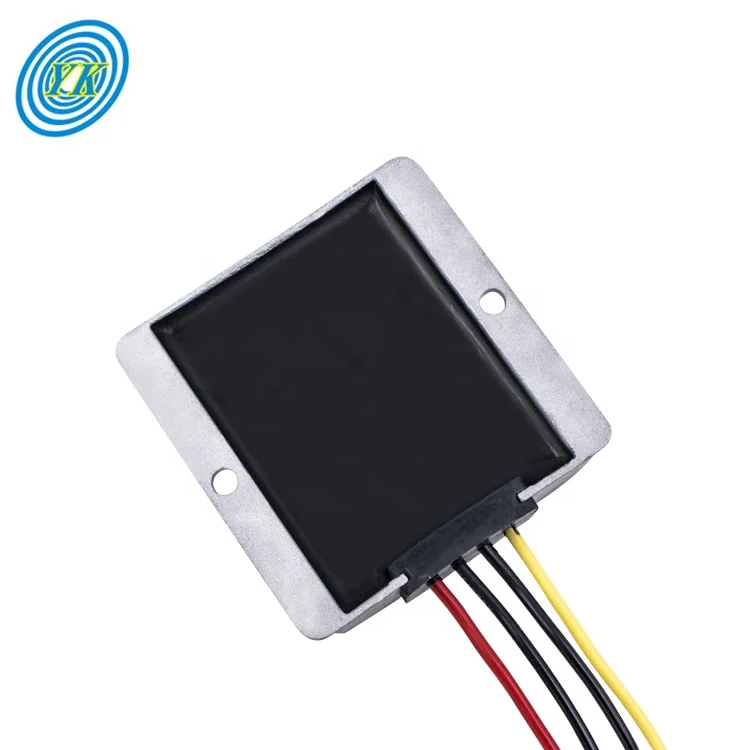

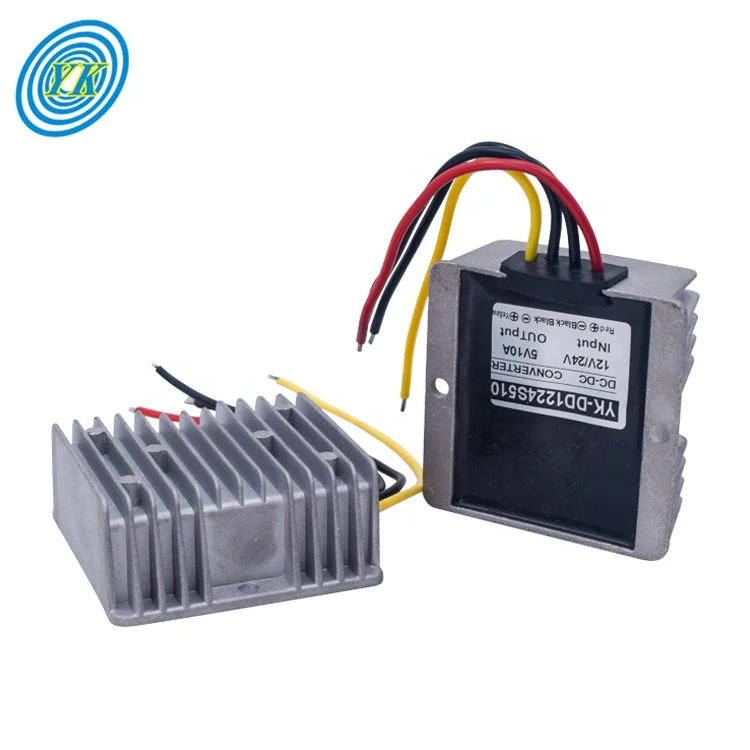

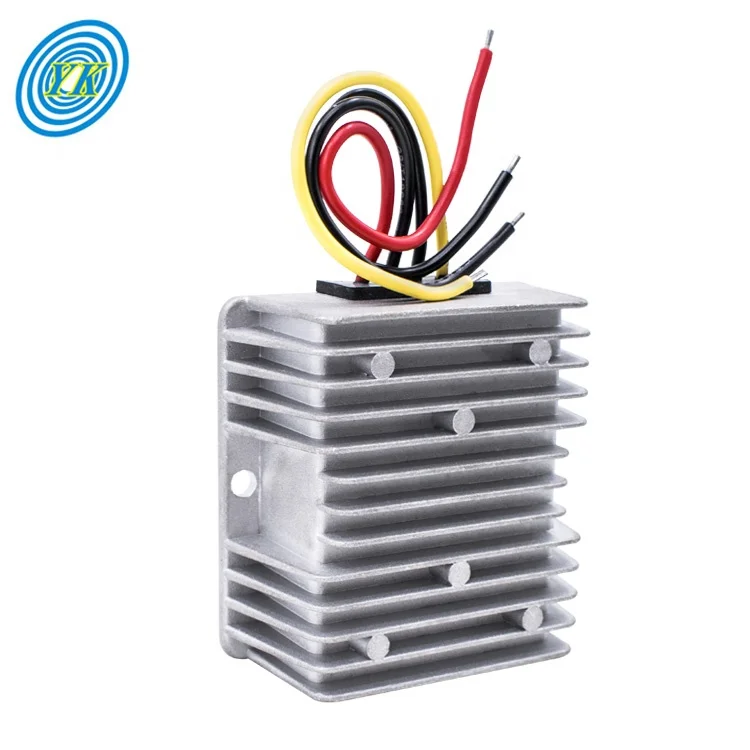

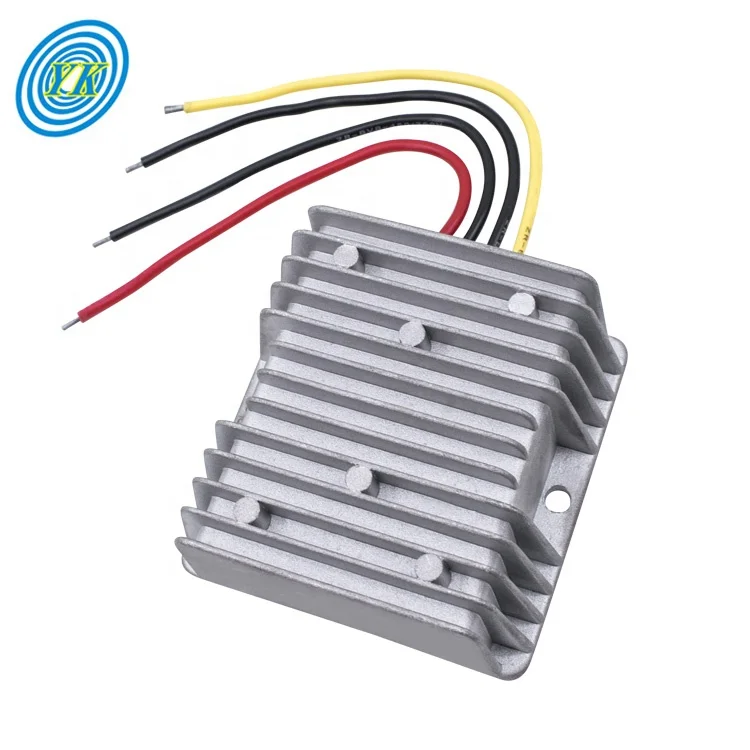

car voltage dc dc step down buck 24 volt 12 volt converter 15a
- Category: >>>
- Supplier: Yucoo Network Equipment Co. Limited
Share on (1600745684010):
Product Overview
Description
You may also like
Product Description
Specification
item | value |
Brand Name | YUCOO |
Model Number | YK-DD24S1215 |
Type | DC/DC Converters |
Output Type | Single |
Efficiency | >90% |
Warranty | 1 Year |
Rated power | 180W |
Material | Aluminum Shell |
Input voltage range | 18-32Vdc |
Waterproof | IP67 |
OEM | OEM Accepted |
Working temperature | -40℃ to 80℃ |
Application | Motor, audio, monitoring, LED display, air conditioning, electric fans |
Protections | Overload/overvoltage/short circuit protection |
Recommend Products Range
BUCK DC-DC CONVERTER MODEL LIST | ||||||
Model Series | Input-V | Output-V | Output Current | |||
YK-DD1224S5** | 12V/24V | 5V | 3A|5A|10A|15A|20A|30A|40A|50A|60A | |||
YK-DD24S12** | 24V | 12V | 1.5A|3A|5A|8A|10A|15A|20A|30A|40A|50A|60A|85A|100A | |||
YK-DD24S13.8** | 24V | 13.8V | 5A|10A|15A|20A|30A|40A|50A|60A | |||
YK-DD24S19** | 24V | 19V | 5A|10A|15A | |||
YK-DD36S12** | 36V | 12V | 5A|10A|15A|20A|30A|50A|60A | |||
YK-DD48S5** | 48V | 5V | 5A|10A|15A|20A | |||
YK-DD48S12** | 48V | 12V | 5A|10A|15A|20A|30A|50A|60A | |||
YK-DD48S13.8** | 48V | 13.8V | 5A|10A|15A|20A|30A|40A|50A|60A | |||
YK-DD48S19** | 48V | 19V | 5A|8A|10A | |||
YK-DD48S24** | 48V | 24V | 3A|5A|10A|15A|20A|30A|40A|50A | |||
YK-DD60S12** | 60V | 12V | 5A|10A|15A | |||
YK-DD60S24** | 60V | 24V | 5A|10A | |||
BOOST DC-DC CONVERTER MODEL LIST | ||||||
Model Series | Input-V | Output-V | Output Current | |||
YK-DD12S24** | 12V | 24V | 1A|2A|3A|5A|8A|10A|15A|20A|25A|30A|40A|50A | |||
YK-DD12S19** | 12V | 19V | 5A|8A|10A|15A|20A | |||
YK-DD12S28** | 12V | 28V | 3A|5A|8A|10A|15A|20A|25A|30A|40A | |||
YK-DD12S48** | 12V | 48V | 1A|2A|3A|4A|8A|10A|15A|20A | |||
YK-DD24S48** | 24V | 48V | 3A|5A|10A|20A|30A|40A | |||
YK-DD24S36** | 24V | 36V | 5A | |||
BUCK& BOOST DC-DC CONVERTER MODEL LIST | ||||||
Model Series | Input-V | Output-V | Output Current | |||
YK-DD12S12** | 8-40V | 12V | 1A|2A|3A|5A|6A|10A|15A|20A|25A | |||
YK-DD12S13.8** | 8-40V | 13.8V | 3A|5A|10A|15A|20A|25A | |||
YK-DD24S24** | 9-40V | 24V | 2A|3A|4A|6A|10A|15A | |||
