T225 26 Soft Magnetic Coils Iron Core/Transformer Iron Powder Core/Ferrite Toroidal Core For PC Power Supply UPS Charging Pile
- Category: >>>
- Supplier: Dongguan Feixia Magnetoelectric Co. Ltd.
Share on (1600745811564):
Product Overview
Description
Product Description
Product Name | T225-26 Ferrite Transformer Iron Powder Core/Soft Magnetic Core/Toroidal Coil Core For Diferenial-mode EMI Line Chokes&DC Chokes |
part no | T225-26 |

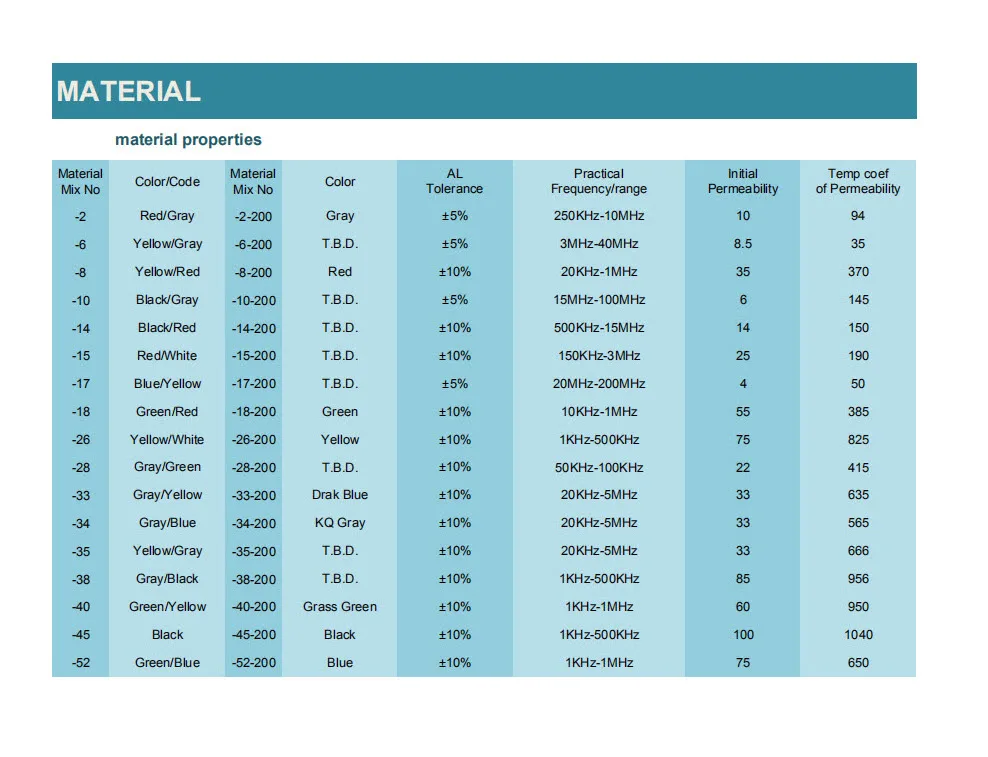

Material | iron powder -26 |

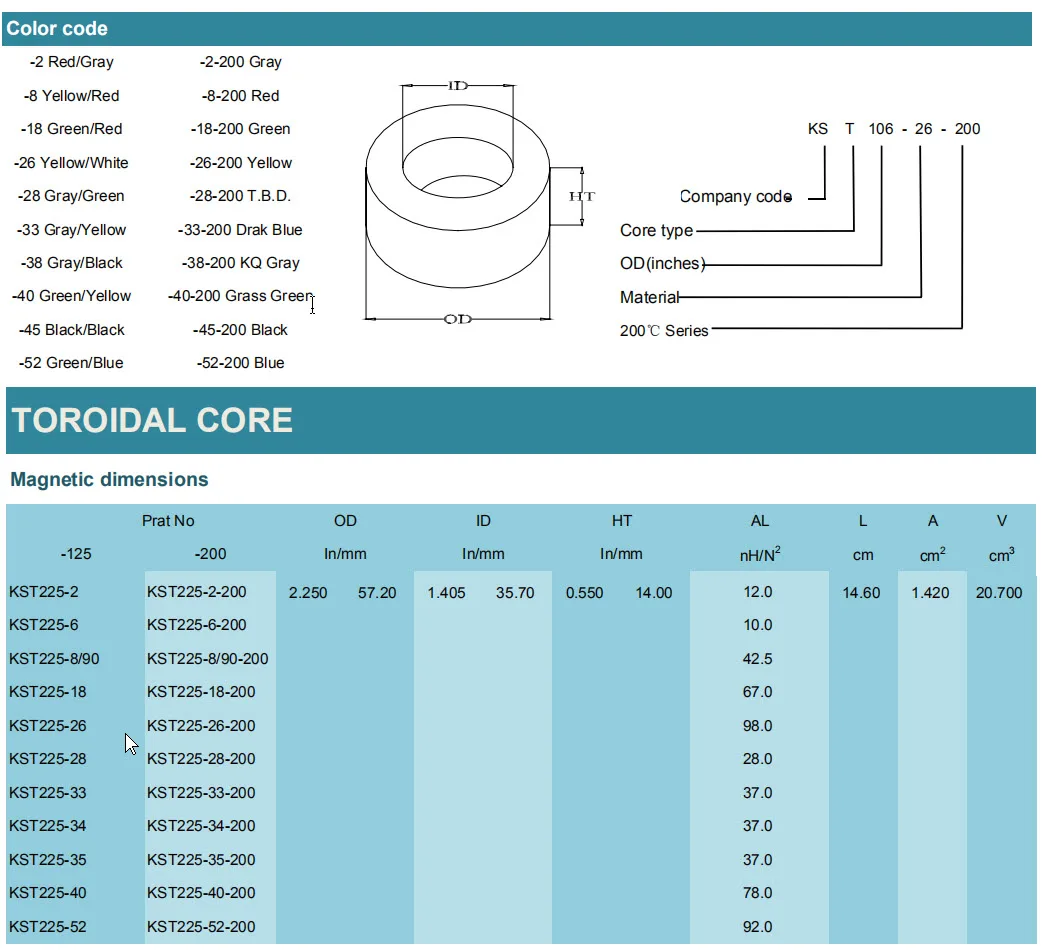

SIZE mm | OD57.15 ID35.69 HT13.97 |
color | yellow/white |
Al nH/N² | 98 |
Effective magnetic Path length cm | 14.6 |
Effective magnetic Cross area cm² | 1.42 |
Effective volume cm³ | 20.7 |

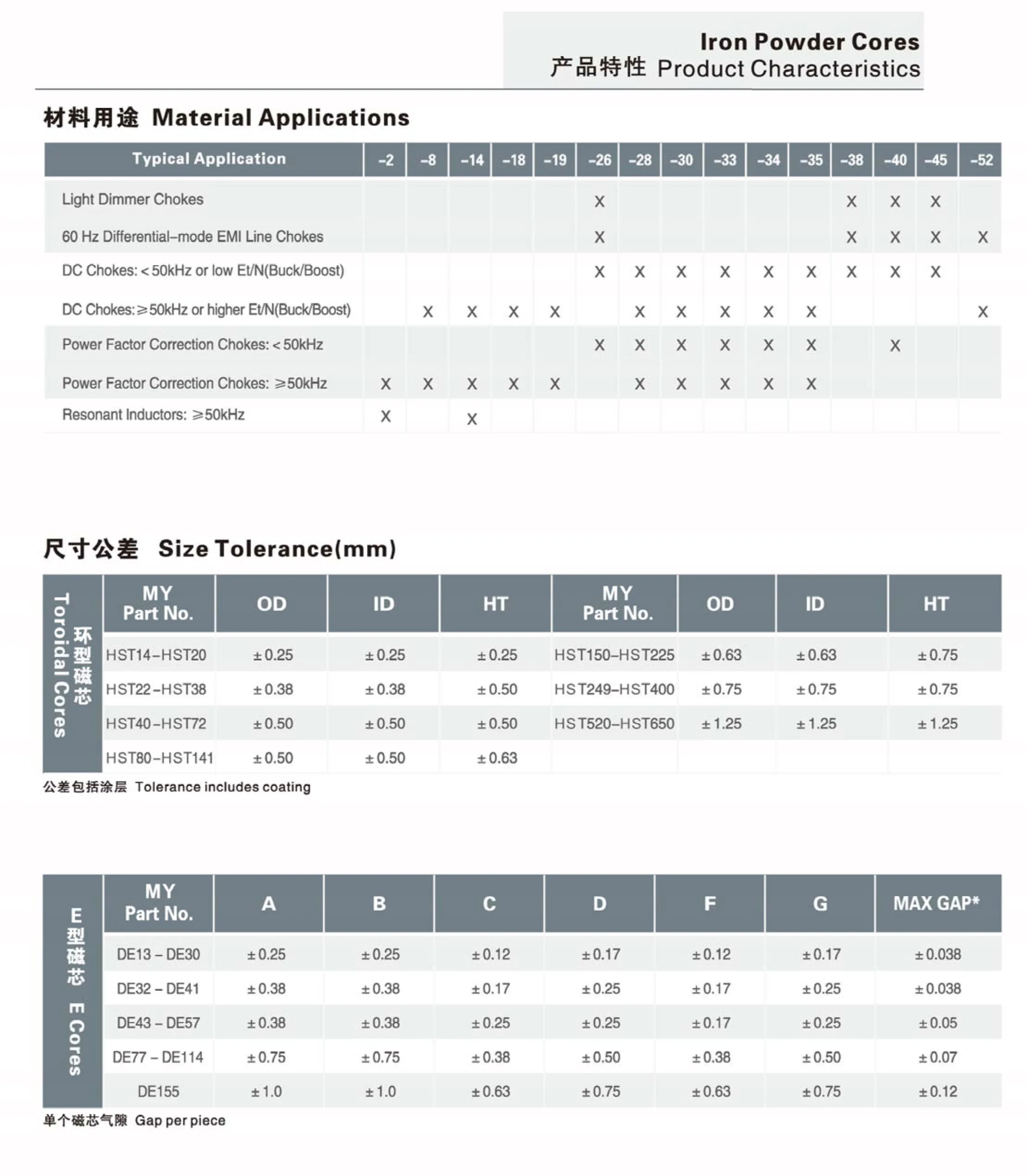

-2 Material application area | Power Factor Correction Chokes: ≥50kHz |
Resonant Inductors: ≥250kHz | |
-8 and -18 Material application area | DC Chokes:≥250kHz or higher Et/N(Buck/Boost) |
Power Factor Correction Chokes: ≥50kHz | |
-26 -40 Material application area | Light Dimmer Chokes |
60Hz Differential–mode EMI Line Chokes | |
DC Chokes:<50kHz or low Et/N(Buck/Boost) | |
Power Factor Correction Chokes:<50kHz | |
-28 -30 -33 -34 -35 Material application area | DC Chokes<50kHz or low Et/N(Buck/Boost) |
DC Chokes≥250kHz or low Et/N(Buck/Boost) | |
Power Factor Correction Chokes:<50kHz | |
Power Factor Correction Chokes: ≥50kHz | |
-38 -45 Material application area | Light Dimmer Chokes |
60Hz Differential–mode EMI Line Chokes | |
DC Chokes:<50kHz or low Et/N(Buck/Boost) | |
-52 Material application area | 60Hz Differential–mode EMI Line Chokes |
DC Chokesz50kHz or low Et/N(Buck/Boost) |
product advantages
Non-aging, sensitivity tolerance/strength/shape/loss/deflection and other core indicators are in the leading position in the industry.Mainly used in PC power/line filter/power conversion

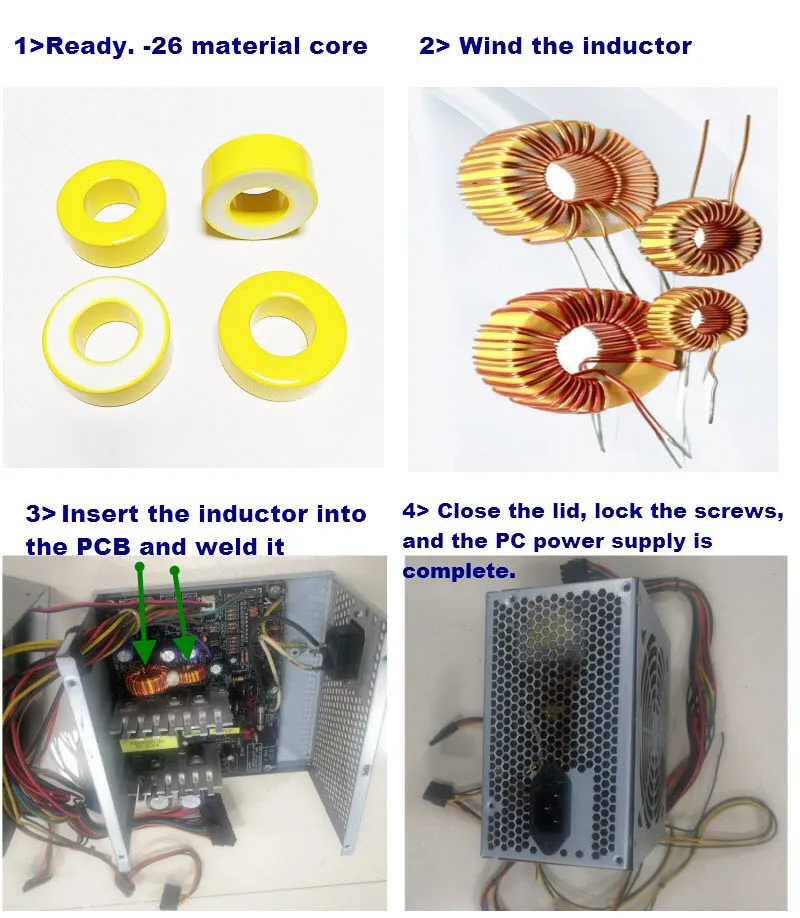

Product Usage
Description of product use effect
Differential–mode EMI Line Chokes
DC Chokes:<50kHz or low Et/N(Buck/Boost)
DC Chokes:<50kHz or low Et/N(Buck/Boost)
DC Chokes:≥50kHz or low Et/N(Buck/Boost)
Power Factor Correction Chokes:<50kHz
Power Factor Correction Chokes:<50kHz
Power Factor Correction Chokes:≥50kHz
Resonant Inductors: ≥50kHz
