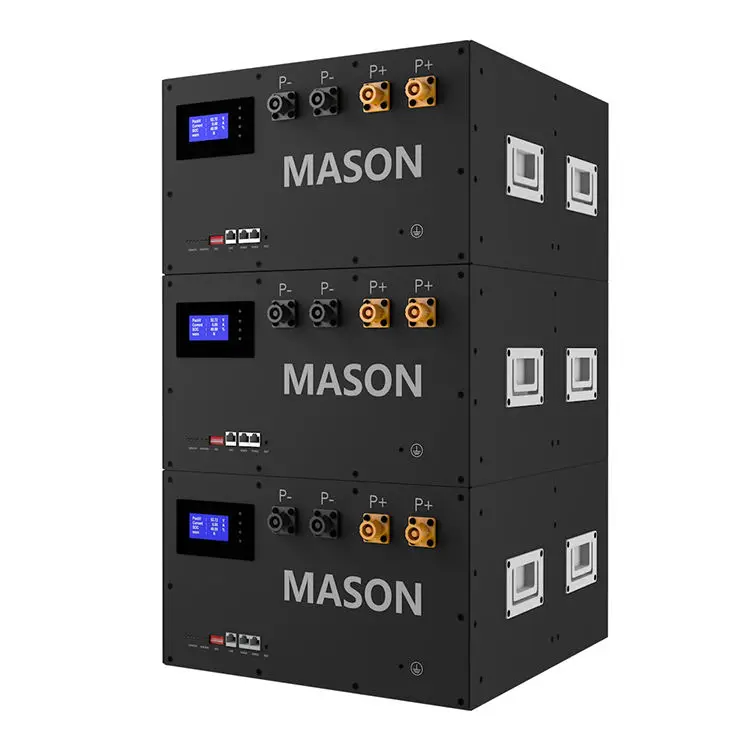

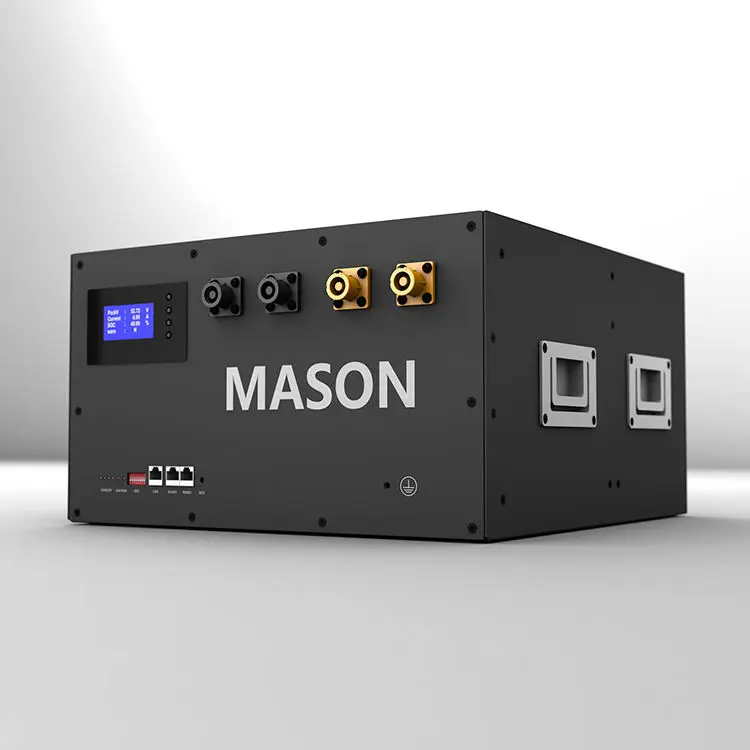

Seplos MASON 280 DIY kit 24V 48V Energy Solar Home Storage DIY Battery Case Box Lithium Battery Kit 16s 280Ah Battery Box
- Category: >>>
- Supplier: Shenzhen ZYD New Energy Co. Ltd.
Share on (1600745832085):
Product Overview
Description
Specification
Product Name | 16S 48v 280Ah LiFePO4 battery pack kits |
Nominal Voltage (V) | 51.2V |
Nominal Capacity (Ah) | 280Ah @0.5C discharge current 25±2°C |
Nominal Power (Wh) | 14.3KWh |
Weight (Kg) | 112±5KG |
Discharge Cut-off Voltage (V) | 41.6V |
Charge Voltage (V) | 57.6V |
Continuously Charge/Discharge Current(A) | 140A @25±2°C (Recommended) |
Max Standard Charge/Discharge Current (A) | 200A @25±2°C |
Standard Charge/Discharge Current (A) | 140A @25±2°C (Recommended) |
Working Temperature | 0~50°C(Charge） |
-10~50°C(Discharge） | |
-20～55℃(Storage) | |
SOC Range | 5%-100% |
Recommunication SOC Range | 15-95% |
Communication Interface | CAN(Default)or rs485 |
Humidity | 10%-85% |
Product Description
BMS SPECS | ||||||||||||||||||
Battery type and serial number | LFP(16S/15S) | NCM(14S/13S) | ||||||||||||||||
Continuously charging/discharging current | 50A | 100A | 150A | 200A | 50A | 100A | 150A | 200A | ||||||||||
Communication protocol | CANBUS（defult） RS485(Please contact Sale man) | |||||||||||||||||
Custom function | Heating function、External switch、RS485 protocol | |||||||||||||||||
Discharge Output Impedance | <2mΩ | |||||||||||||||||
Working Temperture | -20℃-70℃ | |||||||||||||||||
compensating impedance | 10mΩ | |||||||||||||||||
Pre-charging | 0-3000ms | |||||||||||||||||
Current Balance | Passive balance | 150mA(Max) | ||||||||||||||||
Power consumption | Working mode power consumption | <40mA | ||||||||||||||||
Sleeping mode power consumption | 0uA | |||||||||||||||||
Capacity protection | Nominal capacity | 5-500Ah | ||||||||||||||||
Remaining capacity protection | 5% | |||||||||||||||||
Short Circuit protection | Short circuit protection lock | Continuously short in the output circuit | ||||||||||||||||
Short circuit protection lock times | 5 times | |||||||||||||||||
Short circuit protection lock release | Connected with charger | |||||||||||||||||
Individual cell voltage protection | Over voltage protection | 3650mV | 4200mV | |||||||||||||||
Under voltage protection | 2700mV | 2900mV | ||||||||||||||||
Voltage protection | Over voltage protection | 57.6V | 58V | |||||||||||||||
Under voltage protection | 41.6V | 40.6V | ||||||||||||||||
Current protection | Over current protection | 60A | 110A | 160A | 210A | 210A | 110A | 160A | 210A | |||||||||
Over current protection time delay | 30mS | |||||||||||||||||
Current limiting(charging) | Passive current limiting | 10A | ||||||||||||||||
Heating function | Start | 0℃ | ||||||||||||||||
Stop | 10℃ | |||||||||||||||||
Battery box and bms are all with screws fixation, it's easy to check battery pack condition anytime, bms support 15 parallels.

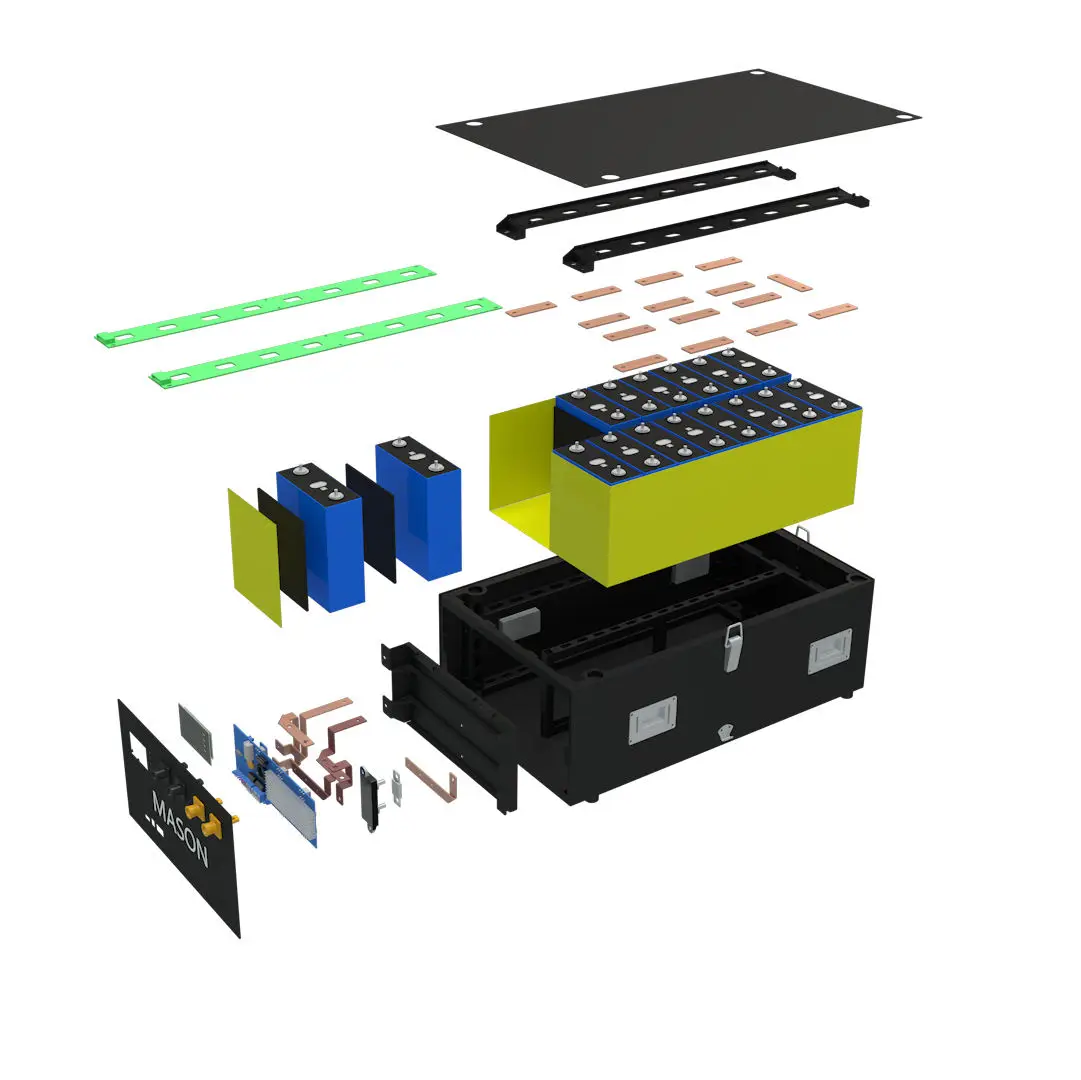

Packing List：
1 * Battery Case (Bottom case, Front Panel, Top Bracket, Front Bracket, Top cover)
1 * 48V 200A 16S SEPLOS BMS(48V 150A 16S SEPLOS BMS)1 * 58V 400A Fuse
4 * Handle

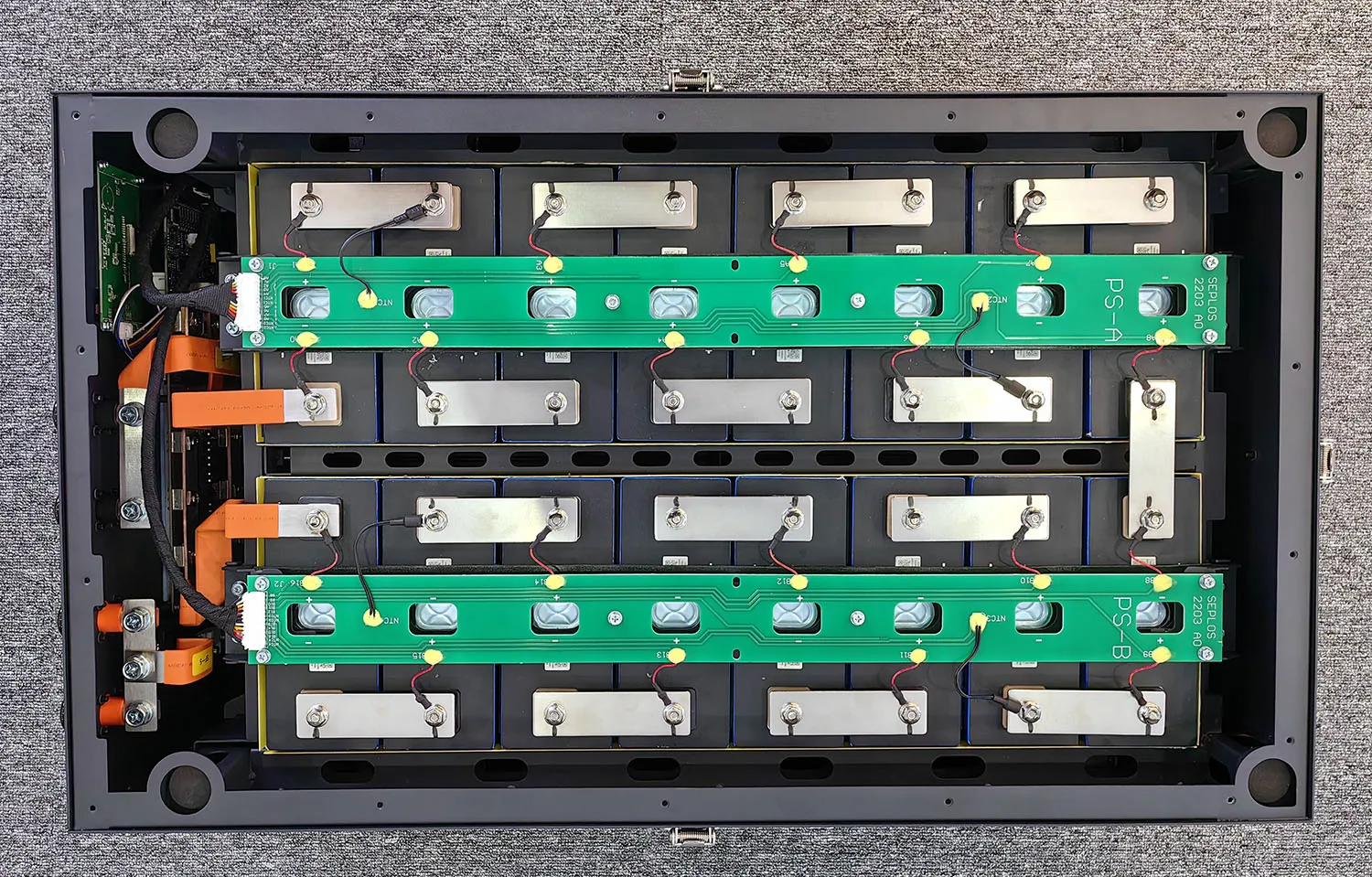

2 * PCB Board for BMS and Cell Connection
3 * Upper and Lower Latch lock
1 * LCD Screen
1 * LCD Screen Sticker
4 * Button Cap
3 * Wires (LCD Screen wire, PCB board A and PCB board Connector)
2 * Battery Terminals (P+ Terminal and P- Terminal)
1 * 48V 200A 16S SEPLOS BMS(48V 150A 16S SEPLOS BMS)1 * 58V 400A Fuse
4 * Handle
2 * PCB Board for BMS and Cell Connection
3 * Upper and Lower Latch lock
1 * LCD Screen
1 * LCD Screen Sticker
4 * Button Cap
3 * Wires (LCD Screen wire, PCB board A and PCB board Connector)
2 * Battery Terminals (P+ Terminal and P- Terminal)
Other components includes:
6 * Copper bus bars (BMS connection)
15 * Aluminum bus bars (Cell connection)
10 * Epoxy sheet (Between cell and the case)
26 * EVA Tape (Between cells)
1 * PC sheet (Top cover)
15 * Aluminum bus bars (Cell connection)
10 * Epoxy sheet (Between cell and the case)
26 * EVA Tape (Between cells)
1 * PC sheet (Top cover)
Screws Details:
12 * Phillip Hex M4 * 8mm (PCB board fix)
9 * Phillip Hex M5 * 8mm + Washer + Spring Set(Ground cable and top bracket fix)
7 * Phillip Hex M6 * 25mm + Washer + Spring Set(Front Panel fix)
10 * Phillip Round M3 * 8mm + Washer + Spring Set(BMS and LCD Screen fix)
12 * Phillip Pan M5 * 10mm (Latch fix)
16 * Hexagan Socket Pan M4 * 10mm (P+/P- Terminals fix)
42 * Hexagan Socket Countersunk M4 * 10mm (Handle and battery case)
4 * Phillip Hex M6 * 14mm + Washer + Spring Set(foot fix)
5 * Phillip Hex M8 * 10mm + Washer + Spring Set (P+/P- Bus bar fix)
8 * Phillip Round M5 * 10mm + Washer
9 * Phillip Hex M5 * 8mm + Washer + Spring Set(Ground cable and top bracket fix)
7 * Phillip Hex M6 * 25mm + Washer + Spring Set(Front Panel fix)
10 * Phillip Round M3 * 8mm + Washer + Spring Set(BMS and LCD Screen fix)
12 * Phillip Pan M5 * 10mm (Latch fix)
16 * Hexagan Socket Pan M4 * 10mm (P+/P- Terminals fix)
42 * Hexagan Socket Countersunk M4 * 10mm (Handle and battery case)
4 * Phillip Hex M6 * 14mm + Washer + Spring Set(foot fix)
5 * Phillip Hex M8 * 10mm + Washer + Spring Set (P+/P- Bus bar fix)
8 * Phillip Round M5 * 10mm + Washer
Compatible with

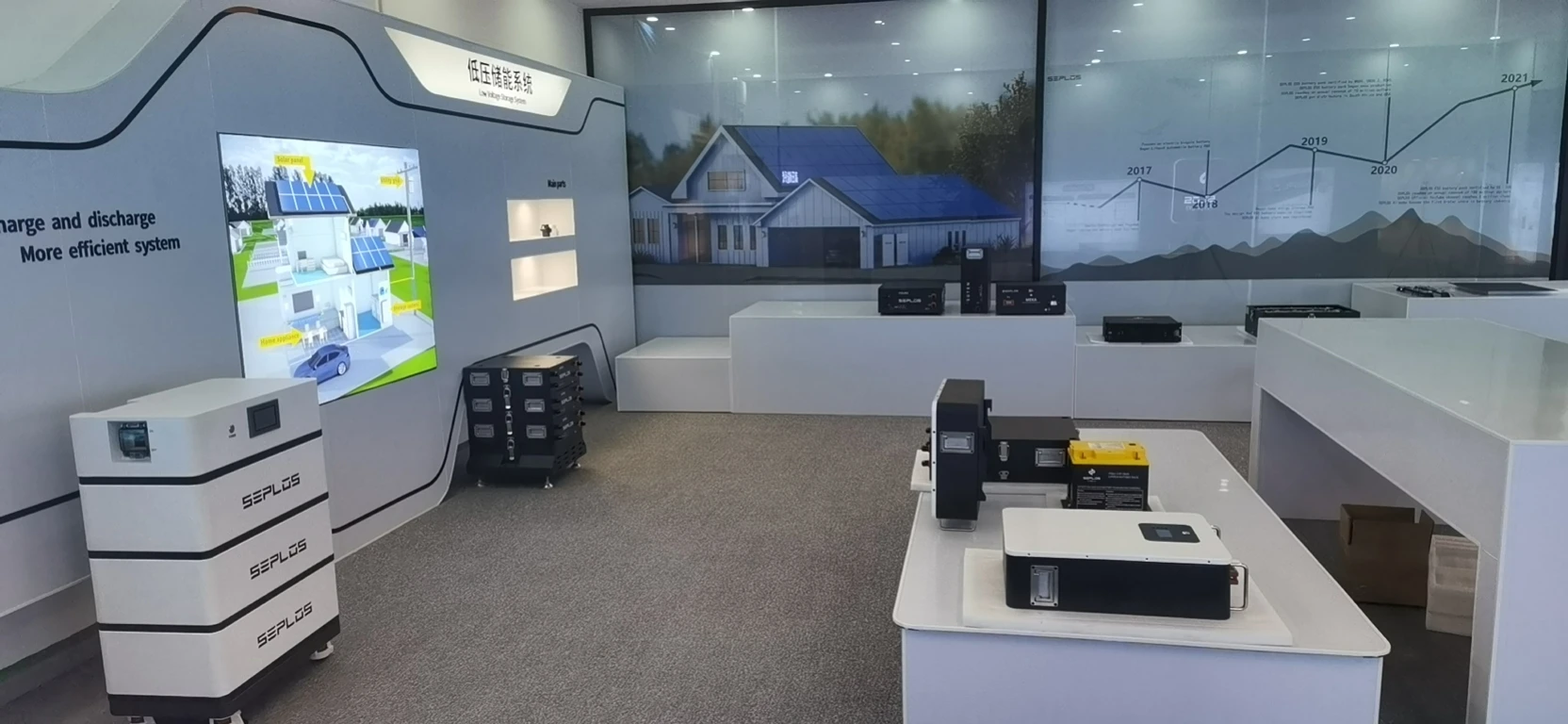

Company Profile
Shenzhen Seplos Technology Co., Ltd. was established on June 8, 2017, by SmartBli, Yihua, Zhongxi, Biliyuan and ihigee,WTT company investment, was rated as an international brand Establish the Seplos Manufacturing Group in China. In this group, Seplos With prismatic battery factory, BMS factory, Packaging factory and r & D company. Seplos focuses on the development of solar cell storage systems for home use and provides some great solutions for both products. The main markets for SEplos are ERU, the United States and Australia.
FAQ
Q：Does your BMS have current balance?
A：Yes, We have the current passive balance function, the passive balance function module is integrated on the BMS board, do not need external balance device.

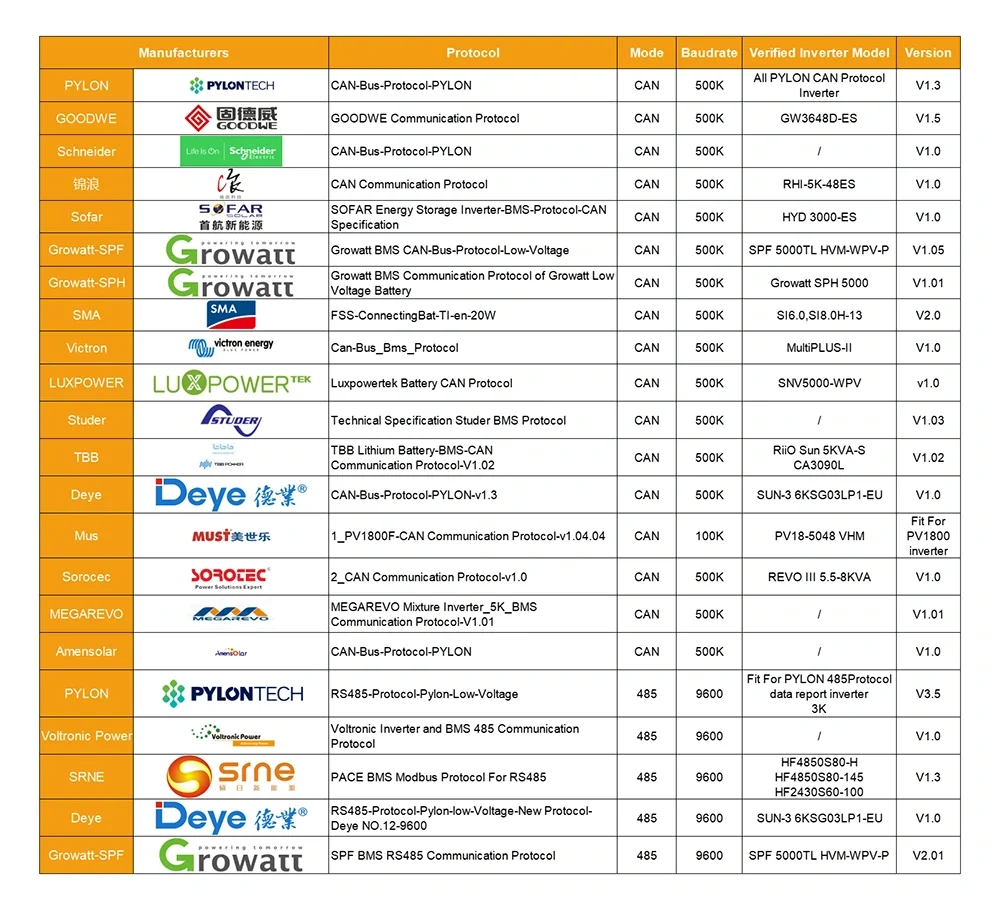

Q：What brand of inverter can your BMS connect to?
A：This is the inverter brand we have actually tested,they are work well together,
1.Goodwe
2.Growatt
3.Victron
4.Voltronic
5.LUXPOWET
6.Sofar
7.DEYE
8.Sermatec
9.RENAC
10.TBBPOWER
11.SOLIS
12.SMA
13.FoxESS
Q：How does your BMS look at battery data?
A：We can view the simple data of the battery string through the LCD screen connected with BMS, or view the detailed data of the
battery string from the inverter after communicating with the inverter, or connect the computer through RS485 to USB adapter, and
view the upper computer software we provide installed on the computer.
Q：What brand of inverter can your BMS connect to?
A：This is the inverter brand we have actually tested,they are work well together,
1.Goodwe
2.Growatt
3.Victron
4.Voltronic
5.LUXPOWET
6.Sofar
7.DEYE
8.Sermatec
9.RENAC
10.TBBPOWER
11.SOLIS
12.SMA
13.FoxESS
Q：How does your BMS look at battery data?
A：We can view the simple data of the battery string through the LCD screen connected with BMS, or view the detailed data of the
battery string from the inverter after communicating with the inverter, or connect the computer through RS485 to USB adapter, and
view the upper computer software we provide installed on the computer.
