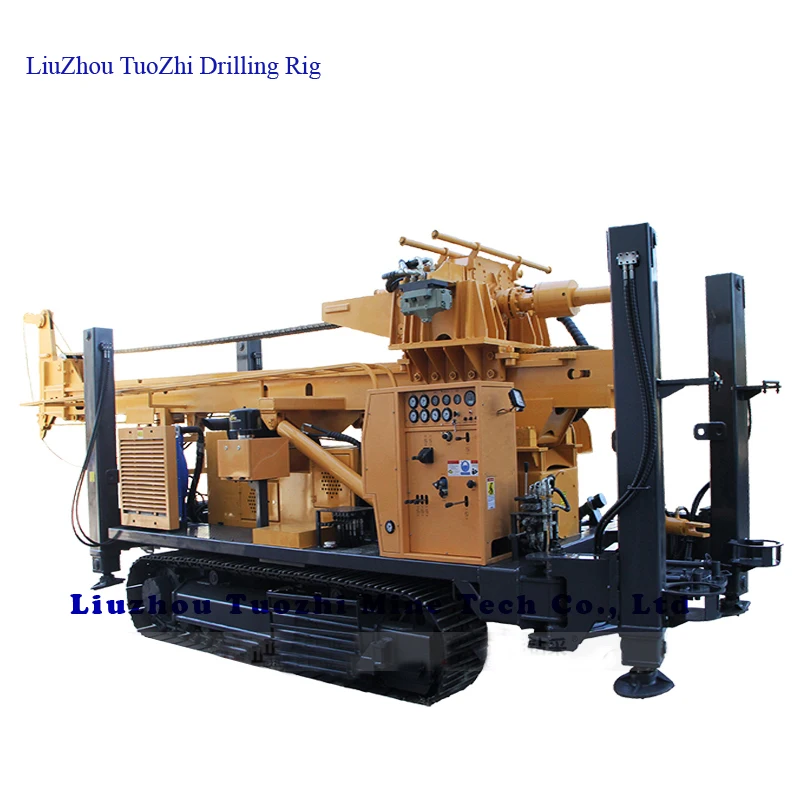

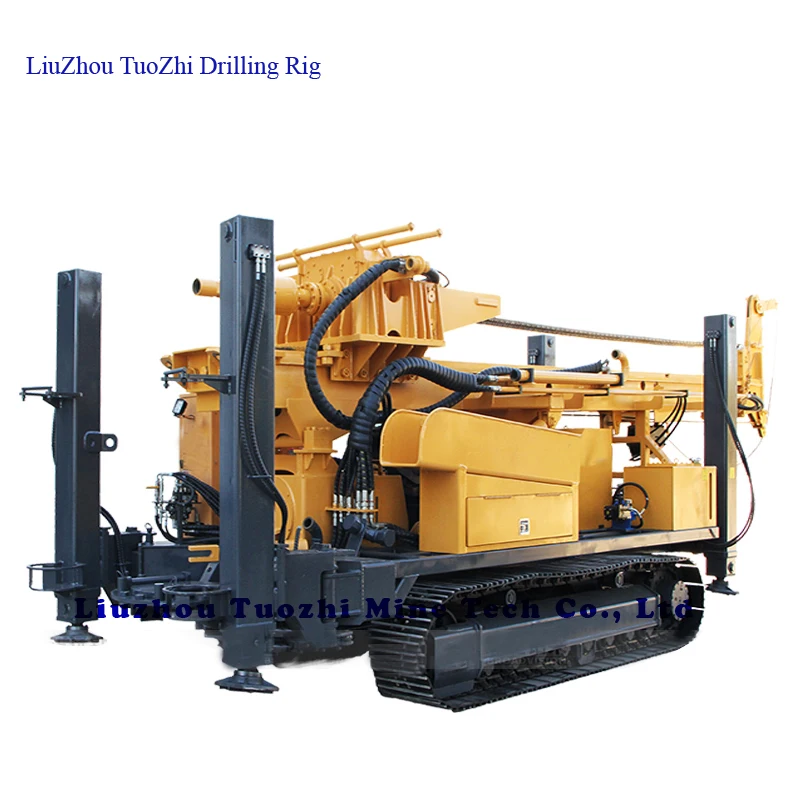

Compressor Drilling 1500m Depth Top Drive Water Well Drilling Rig
Compressor Drilling 1500m Depth Top Drive Water Well Drilling Rig
Compressor Drilling 1500m Depth Top Drive Water Well Drilling Rig
Compressor Drilling 1500m Depth Top Drive Water Well Drilling Rig

Compressor Drilling 1500m Depth Top Drive Water Well Drilling Rig

Share on (1600746012937):


Price:

Quantity:


Product Overview

Description



Product Overview


Deep Well Water Well Drilling Rigs
We Liuzhou Tuozhi Mine Tech Co., Ltd are specialized in producing and designing water well drilling rigs and down the hole drilling rigs for more than 20 years. We have very rich drilling experience, according to different geological conditions, we will provide customers with the best solutions, and if customers need, we will provide operation training. Or we send our staff to the customer's location for training.


Products Features
High Quality and High Efficiency
Big Torque and Strong Lifting Force
Independent radiator,Ensure oil no overheat
Simple Opeartion
Easy Maintenance and Durable
Acceptable special customization


Front elevation
Right elevation
Left elevation




PRODUCT SPECIFICATIONS


Model
TZ-1000
TZ-1200
TZ-1500
TZ-2000
Max drilling depth
1000m
1200m
1500m
2000m
Drilling diameter
105-800mm
105-900mm
105-900mm
105-1000mm
Air pressure
1.6-8Mpa
1.65-8Mpa
1.65-8Mpa
1.65-8Mpa
Air consumption
16-96m3/min
16-120m3/min
16-120m3/min
16-120m3/min
Drill pipe length
6m
6m
6m
6m
Drilling pipe diameter
114mm
127mm
127mm
127mm
Axial pressure
11T
10T
13T
19T
Lifting force
51T
60T
80T
100T
Fast lifting speed
29m/min
29m/min
24m/min
26m/min
Fast feeding speed
42m/min
51m/min
44m/min
43m/min
Max rotary torque
20000/10000 Nm
24000/12000 Nm
31000/15500 Nm
36000 Nm
Max rotary speed
70/140 R/min
85/170 R/min
80/160 R/min
52/104 R/min
Big winch lifting force
4T
4T
4T
4T
Little winch lifting force
1.5T
1.5T
1.5T
1.5T
Drilling efficiency
10-35m/h
10-35m/h
10-35m/h
10-35m/h
Weight
17.5T
23T
28T
28T
Dimension Of Rig
7x2.25x2.65m
7x2.25x3m
11.5x2.6x3.5m
12x2.6x3.6m
Drilling method
To drive hydraulic rotary and pushing hammer or mud drilling
