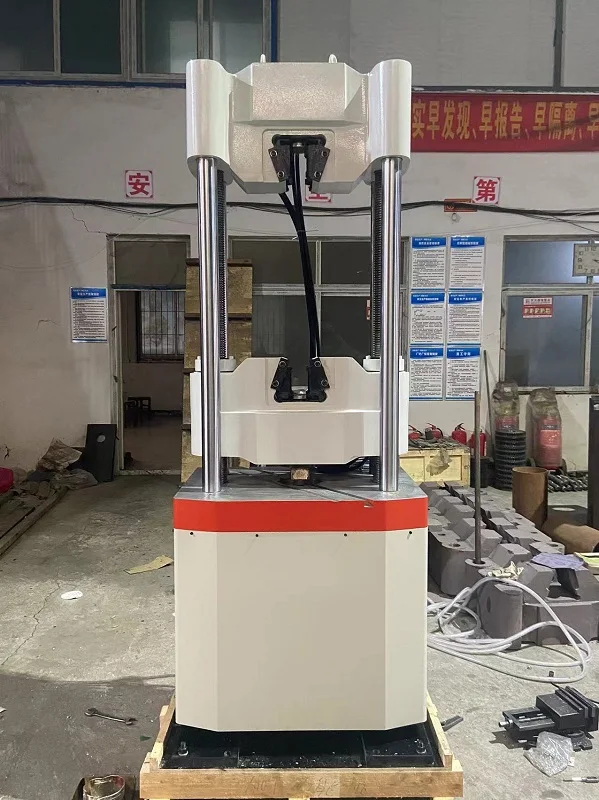

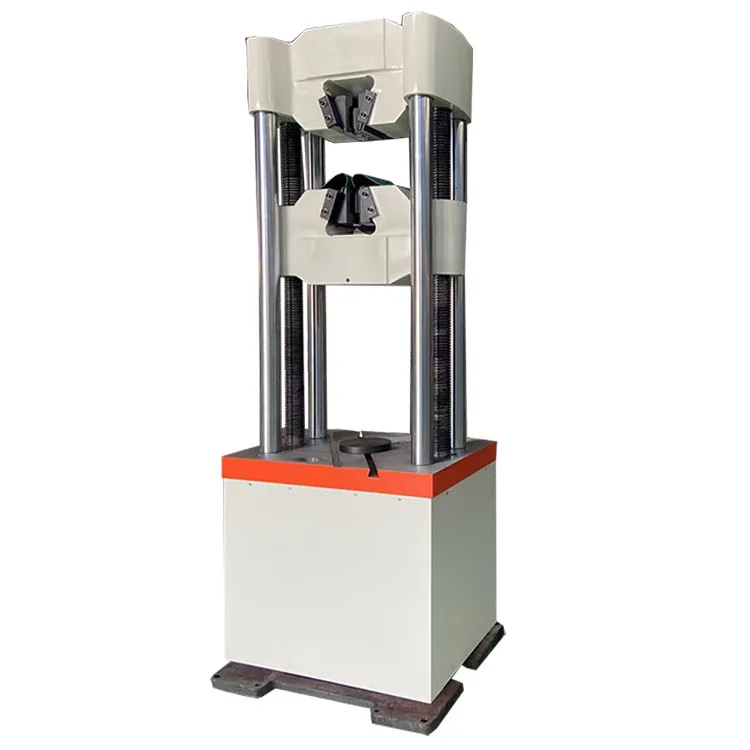

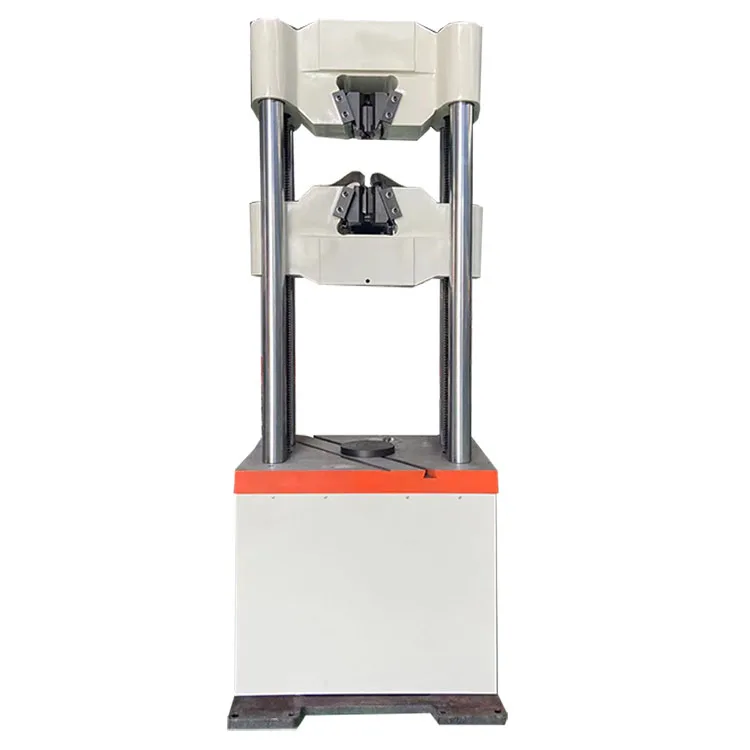

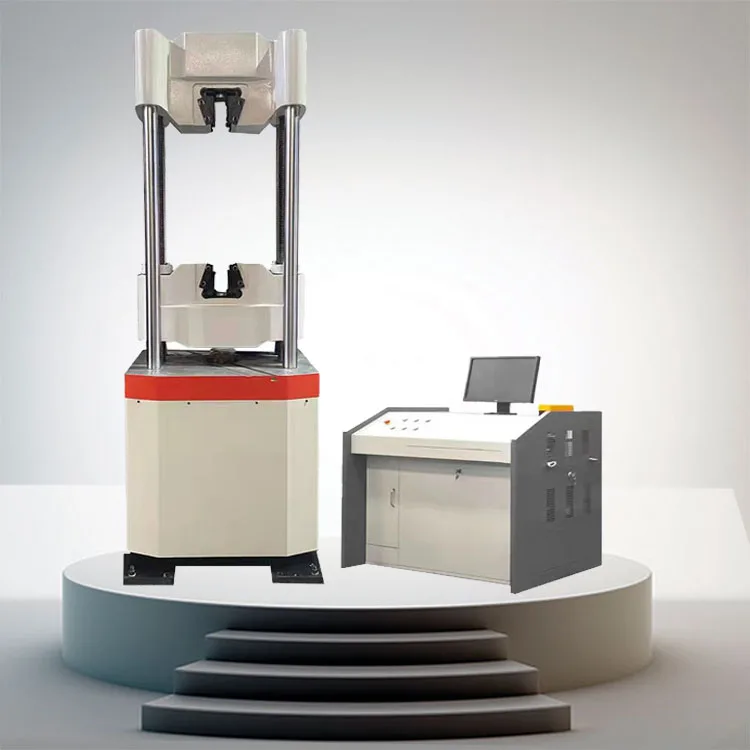

60t steel sleeve tensile and compressive test equipment, hydraulic universal material testing machine, tensile tester

Product Overview

Description

WAW-600 microcomputer-controlled servo-type universal testing machine is mainly used for tensile, compression, bending, shear and other mechanical property tests of metal, non-metal, composite materials and products. At the same time, it can conduct tests and data processing according to GB, ISO, JIS, ASTM, DIN and various standards provided by users. It is widely used in the inspection and analysis of materials in aerospace, machinery manufacturing, wires and cables, rubber and plastics, building materials and other industries, and is an ideal test equipment for scientific research institutions, colleges and universities, industrial and mining enterprises, technical supervision, commodity inspection and arbitration and other departments.
Main technical parameters and specifications:
1. Maximum test force: 600kN
2. The test force is divided into 0~60kN 0~1200kN, 0~300kN, 0~600kN
3. Maximum spacing of tensile test jaws 550mm
4. Clamping diameter of circular section specimen φ 6~ φ 26mm
5. Clamping thickness of flat sample 0~30mm
6. Maximum distance between compression surfaces 400mm (optional)
7. Dimensions of upper and lower pressure plates φ 160mm
8. Bending test support roll distance 450mm
9. Bending roller width 140mm
10. Allowable bending: 100mm
11. Test speed rise and fall speed 0-100 mm/min
12. Overall dimension of main machine: 720 × five hundred and eighty × 2100mm

Functions and features:
1. The testing machine uses a microcomputer-controlled servo motor to drive the high-precision ball screw to drive the middle beam up and down. It can automatically control the test force, displacement and deformation in various modes, and complete the tensile, compression, bending and bending tests of the sample, meeting the requirements of the national standard GB/T228-2002.

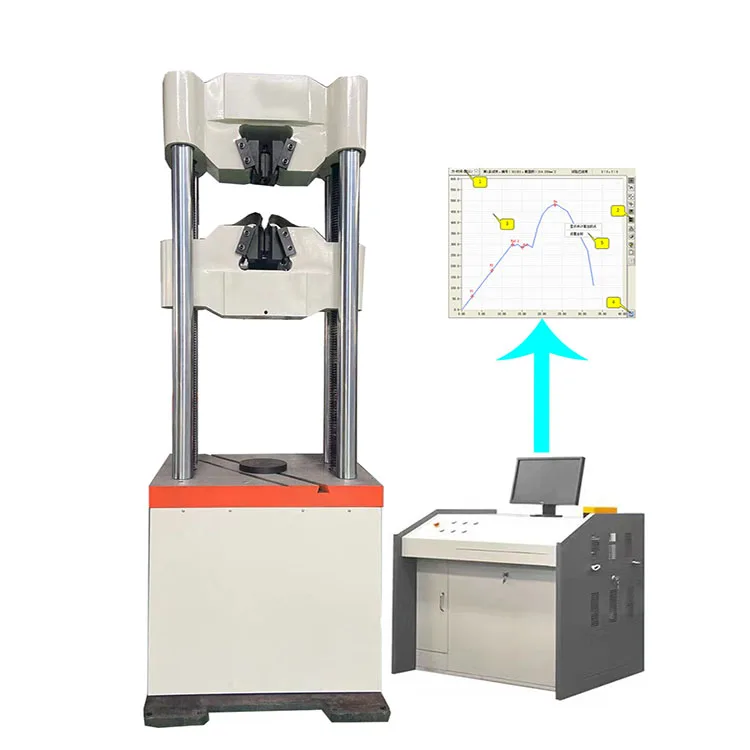

2. The brand computer is used to complete the setting of test parameters, control of test process, data acquisition, processing, analysis, storage and display (test data include: upper and lower yield point, tensile strength, breaking strength, elastic modulus, elongation at each point δ 0.2, etc.), control and measurement are precise and accurate.
3. It is equipped with special software for Windows universal testing machine to measure the performance parameters of each material according to the national standards or the standards provided by the user, and to statistics and process the test data, and then output and print various required test curves and test reports. It is equipped with test curve amplification, comparison, traversal functions, intelligence and convenience.
4. Self-built powerful test database, test data can be saved, queried and called at any time, and data transmission and conversion with user LAN and Internet can be realized.
5. With convenient closed-loop control function, the operation is direct, fast and efficient.
6. Fully automatic control of test force, stroke, stress and strain rate to realize tensile, compression and bending tests of various materials.
7. Powerful self-inspection function and perfect protection function.
qa
The three-guarantee period of the equipment is one year from the date of official delivery, and it is maintained for life. During the three-guarantee period, the supplier shall provide timely and free maintenance services for all kinds of equipment failures. All kinds of parts damaged by non-human factors shall be replaced free of charge in time. The new machine is installed and debugged free of charge. The supplier is responsible for providing technical training to the ordering party's personnel so that the trainers can master the operation, adjustment and basic troubleshooting of the testing machine.
