miTEC Handicap Emergency Call System Toilet Panic Button Wire Cord Pull Trigger Disabled Alarm Kits with Battery Backup
- Category: >>>
- Supplier: Dongguan Mitec Electronics Company Limited
Share on (1600746118680):
Product Overview
Description
Products Overview
miTEC Accessible Toilet Emergency Call System
miTEC Emergency Call Kit provides the perfect solution for emergency call for assist situation, including disabled toilet, elderly washroom, and any other situation where someone might encounter emergency and need instant help.
The main control of the kit work as the power supply unit and backup battery for the system, connect and supply power to all components through simple wiring, and ensure system well function even when power outages.
This system is meant to provide the greatest safeguard to anyone who encounter emergency situation, perfect for commercial building such as shopping mall, elderly center, government building, office building, hotels, restaurant, etc.

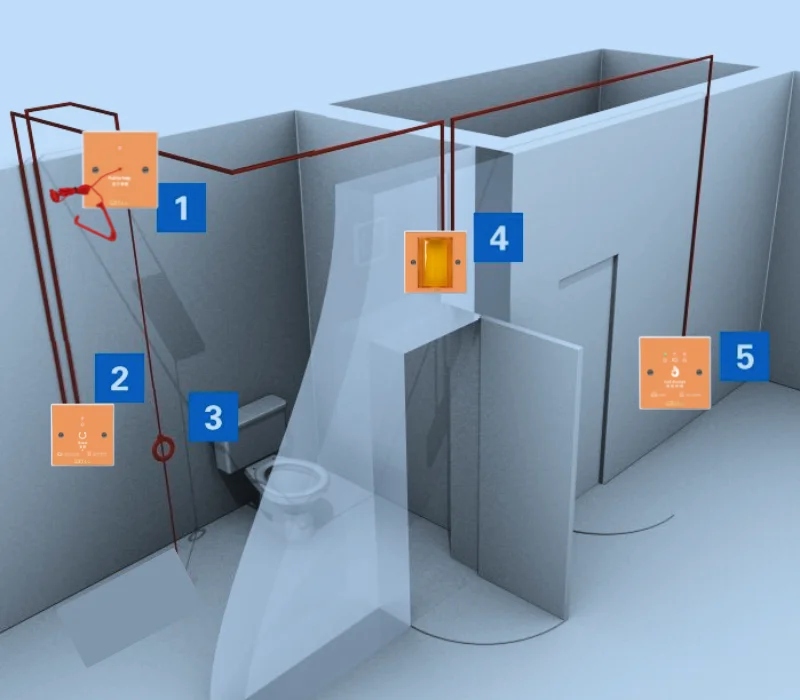

Installation Guide Diagram
1. The Pull Cord should be installed on ceiling or wall in a position where it is close and easy access from the WC or Shower Area
2. The reset button should be positioned where it is reachable from the WC and a wheel chair level.
3. The red handle should be located between 80cm to 100cm above floor level
4. The over door indicator should be installed outside of the room, which provide visible and audible indication to the coming helpers.
5. The main control should be installed in the control monitoring center or reception or place where officials will standy and available to provide assistance.

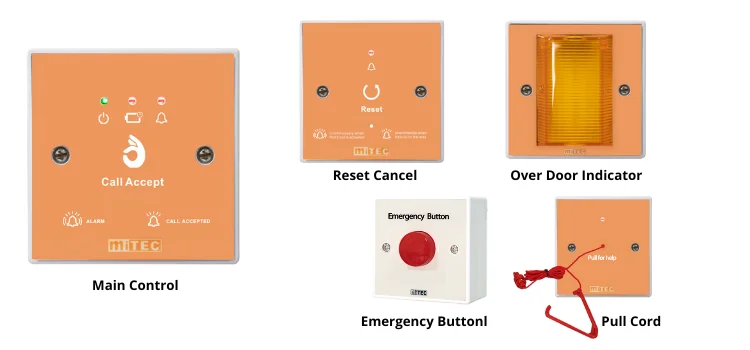

Standard Kit include 1*Main Control, 1*Pull Cord, 1*Reset Button, 1*Over Door Indicator
*Options to add emergency button

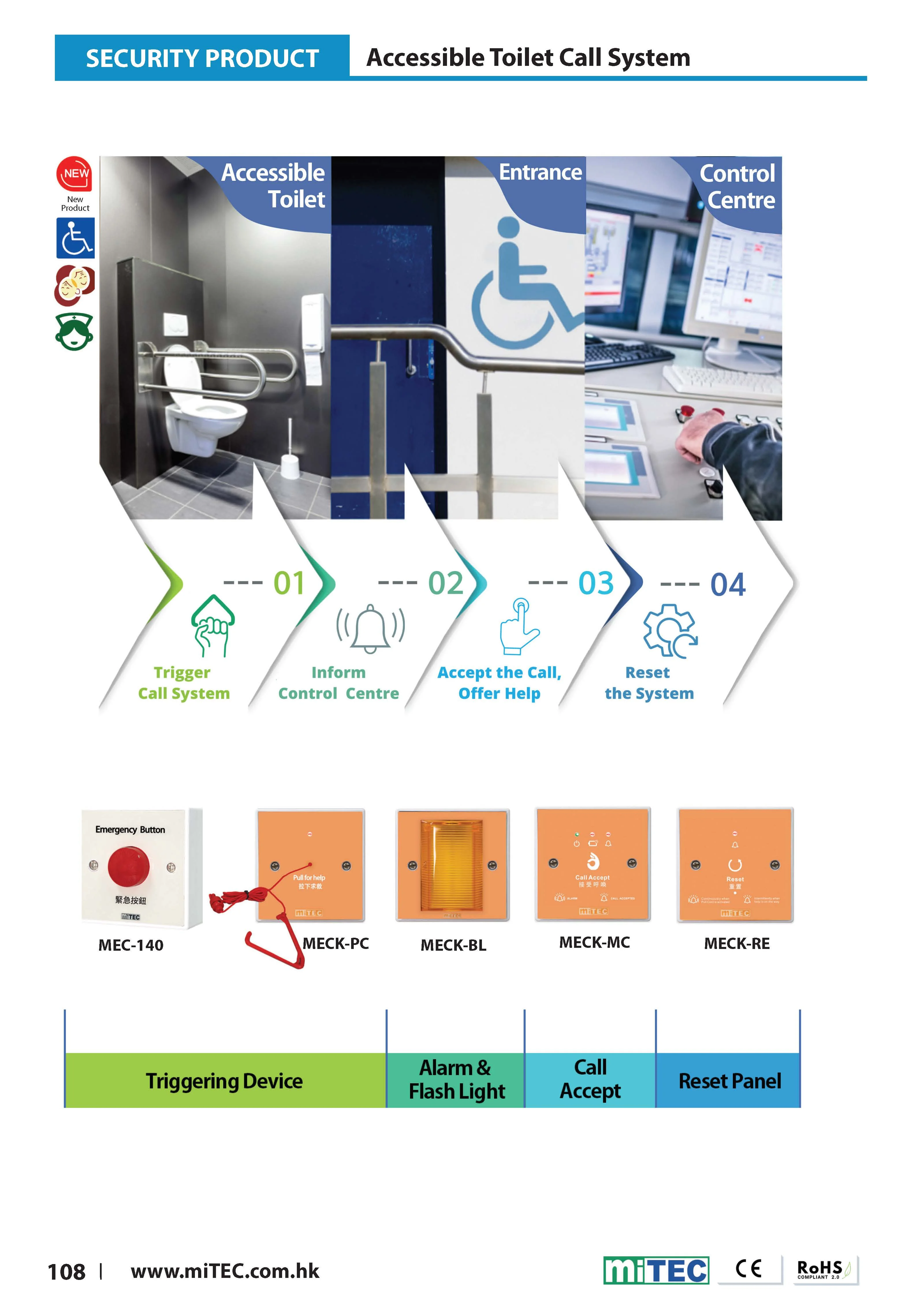

Emergency Operation Workflow
1. Users trigger alarm by pulling pull cord or pressing emergency button (Audible & Visible Indication Constant On)
2. Monitoring center receive audible notice and press call accept button (Audible & Visible Indication Turn Slow Flash & Beep)
3. Officials arrive and offer help to users, problem eliminated and official press the reset button (Audible & Visible Indication Off)
Model | MECK-MC |
Function | Call Accept & Siren + Power Supply Unit + Backup Battery |
Power Input | AC 230V 50/60Hz |
Power Output | DC 12V 0.35A |
Audible Indication | 85dB 30cm; 66dB 100cm |
Protection Standard | IP 54 |
Dimensions | 87 (L) x 87 (W) x 41 (H) mm |

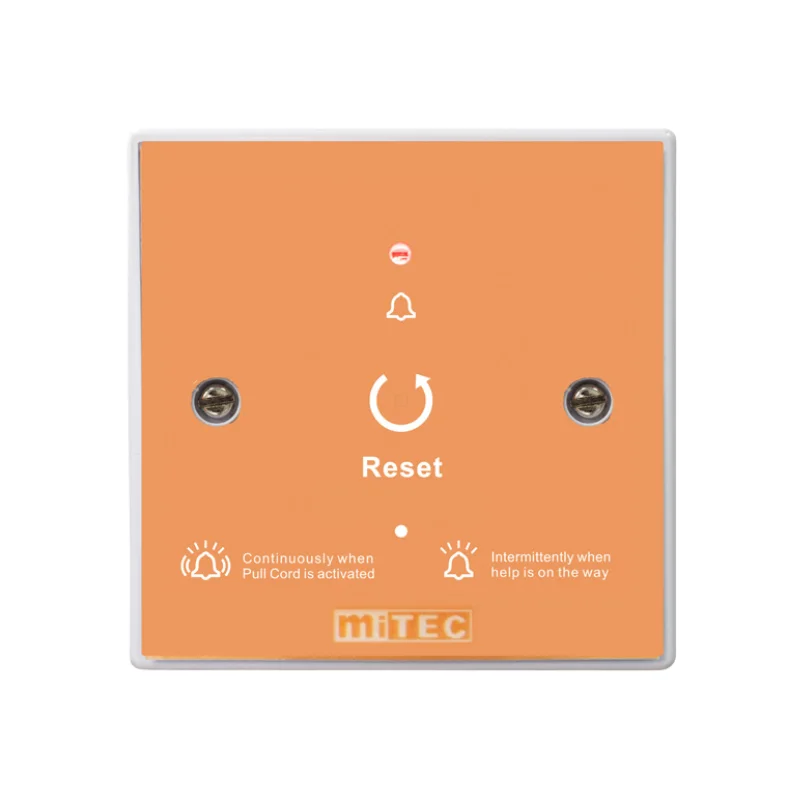

Model | MECK-RE |
Function | Reset Button & Siren |
Power Input | DC 12V 20mA |
Visible Indication | Red LED Active During Alarm |
Audible Indication | 85dB 30cm; 66dB 100cm |
Protection Standard | IP 30 |
Dimensions | 87 (L) x 87 (W) x 41 (H) mm |

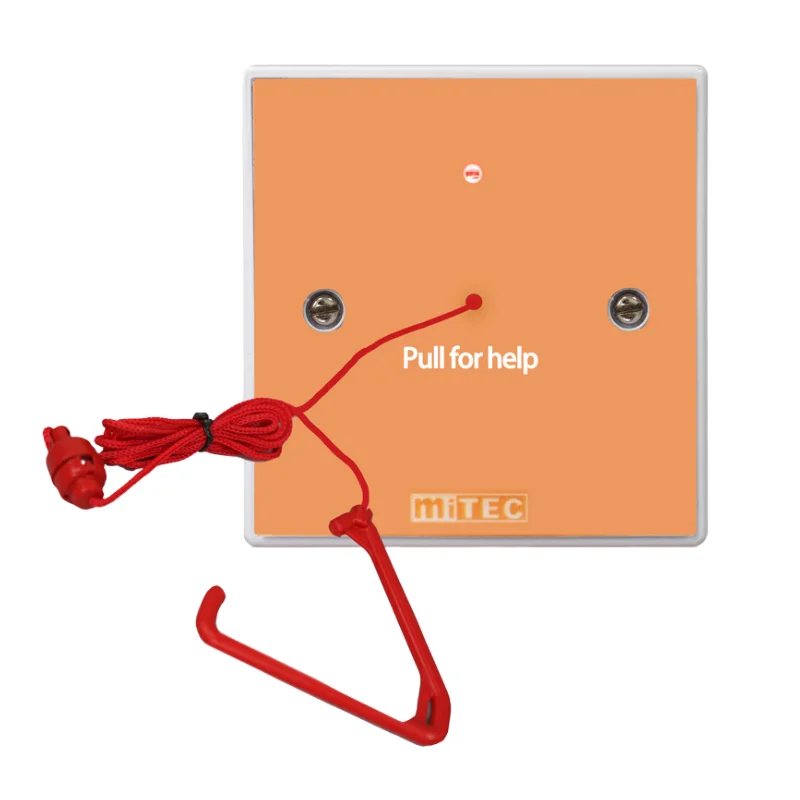

Model | MECK-PC |
Function | Pull Cord Alarm Trigger |
Power Input | DC 12V 10mA |
Visible Indication | Red LED Active During Alarm |
Pull Length & Force | 3M Length / 11N |
Protection Standard | IP 54 |
Dimensions | 87 (L) x 87 (W) x 41 (H) mm |

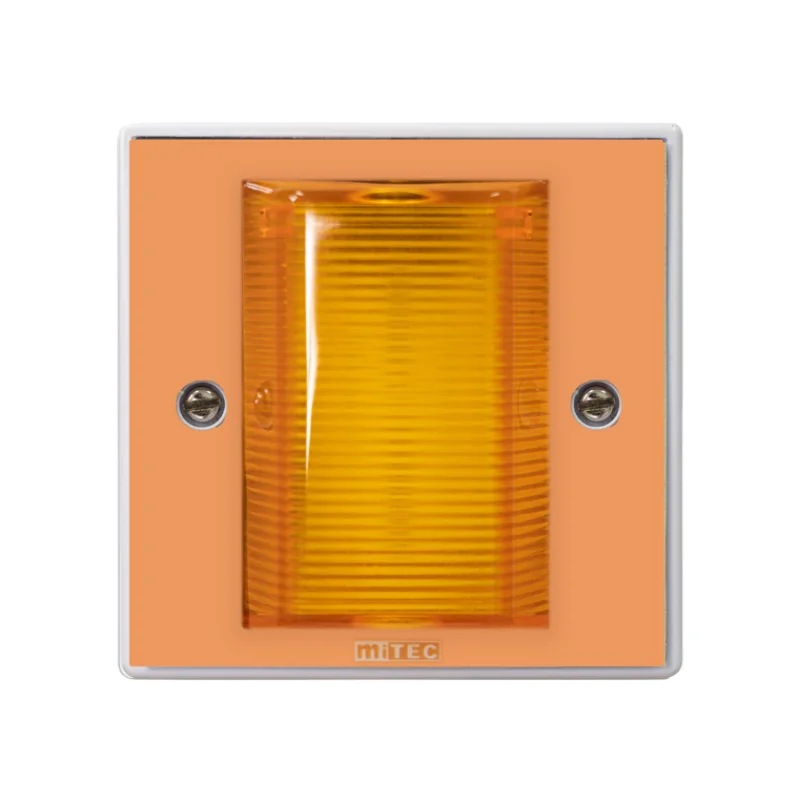

Model | MECK-BL |
Function | Over Door Visible & Audible Indication |
Power Input | DC 12V 60mA |
Visible Indication | Constant On when Alarm Trigger, Slow Flash when Call Accept |
Audible Indication | 85dB 30cm; 66dB 100cm Constant Beep when Alarm Trigger, Short Beep when Call Accept |
Protection Standard | IP 30 |
Dimensions | 87 (L) x 87 (W) x 41 (H) mm |

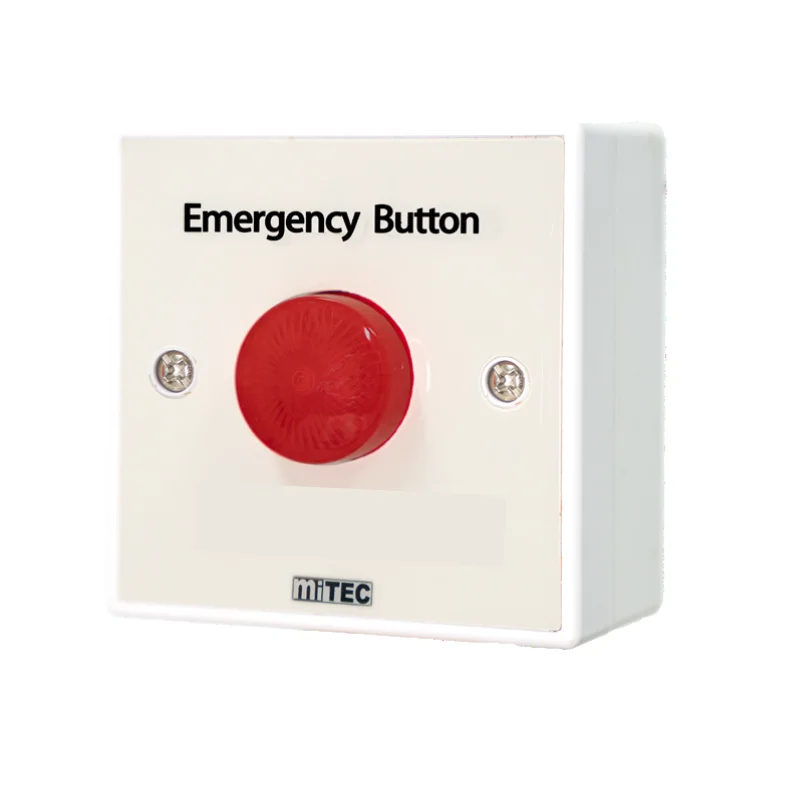

Model | MEC-140 |
Function | Push Button Alarm Trigger |
Power Input | DC 12V 15mA |
Visible Indication | Red Button LED Active when Trigger |
Protection Standard | IP 65 |
Dimensions | 87 (L) x 87 (W) x 56 (H) mm |
