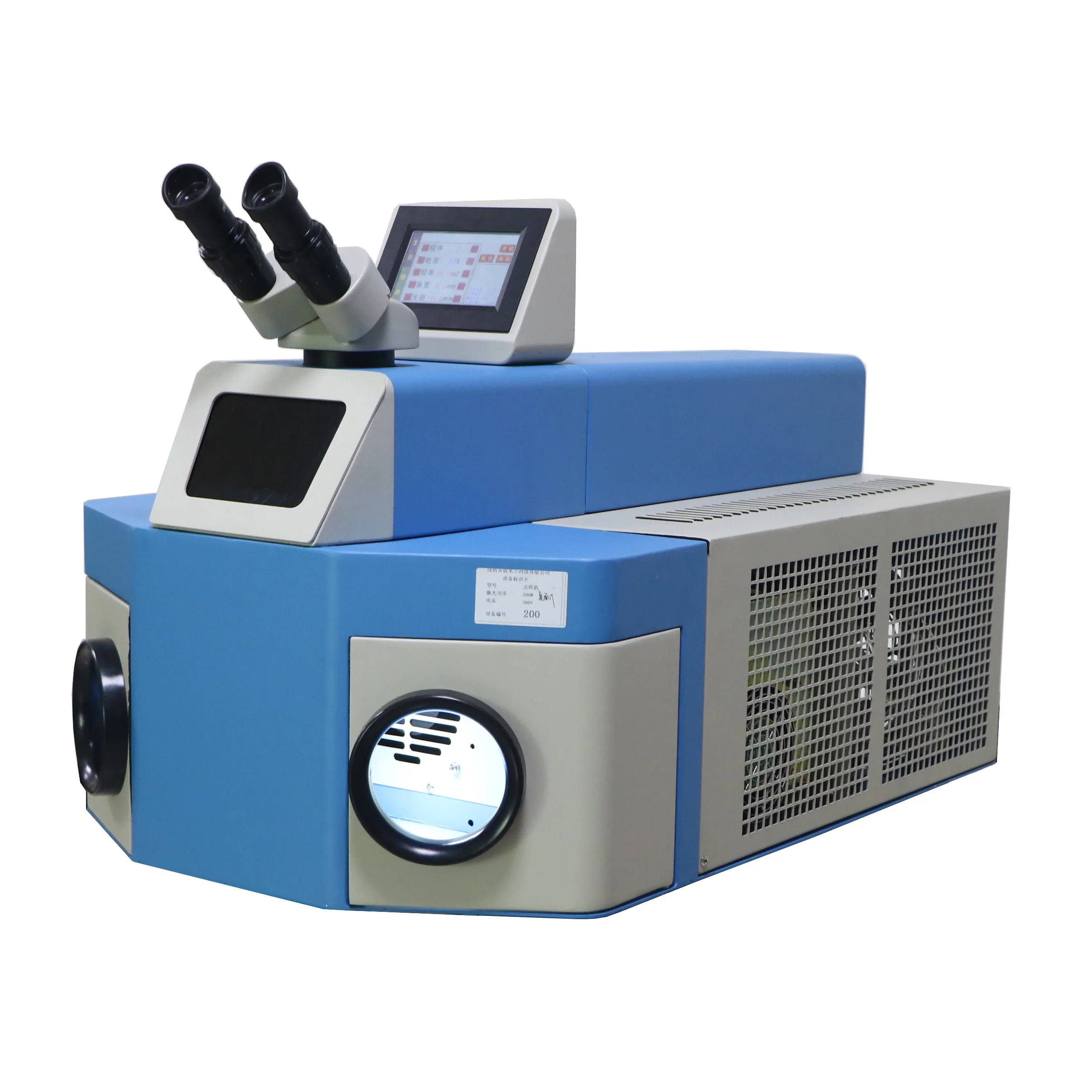

YAG Jewelry Laser Spot Welding Machine for Gold Silver metal
- Category: >>>
- Supplier: Youmir Laser Technology Co. Ltd.
Share on (1600746148107):
Product Overview
Description
Product Paramenters
Product description
1、Adopt imported ceramic concentrating cavity, high reflectivity, strong energy, high temperature resistance, corrosion resistance and long service life；
2、The whole machine is with ergonomic design, more suitable for the jewelry industry, the product is fine, beautiful, with stable performance, suitable for long-term continuous work needs；
3、The internal space is large, which is convenient for the placement of laser spot welding tools and fixtures; the welding debris recovery box is installed to facilitate cleaning and gold welding residue recovery;
4、LED ring type shadowless lamp, observe the workpiece without shadow, with high-definition parallel light path microscope, laser welding position observation is more clear；
5、 High-magnification beam expansion system, to obtain a more precise spot, to meet the needs of fine laser spot welding.
2、The whole machine is with ergonomic design, more suitable for the jewelry industry, the product is fine, beautiful, with stable performance, suitable for long-term continuous work needs；
3、The internal space is large, which is convenient for the placement of laser spot welding tools and fixtures; the welding debris recovery box is installed to facilitate cleaning and gold welding residue recovery;
4、LED ring type shadowless lamp, observe the workpiece without shadow, with high-definition parallel light path microscope, laser welding position observation is more clear；
5、 High-magnification beam expansion system, to obtain a more precise spot, to meet the needs of fine laser spot welding.

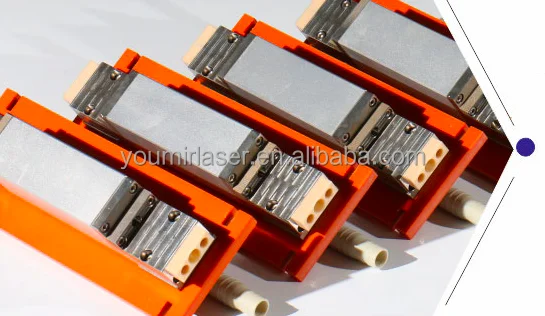

Ceramic condenser cavity
Ceramic condenser cavity, with high energy, high temperature resistance, corrosion resistance, long service life.

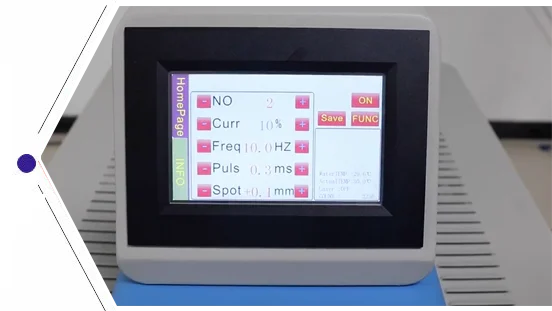

Autonomous welding system
Own intellectual property rights of laser power system ,many years of development and upgrad ,Chinese/English interface ,simple operation

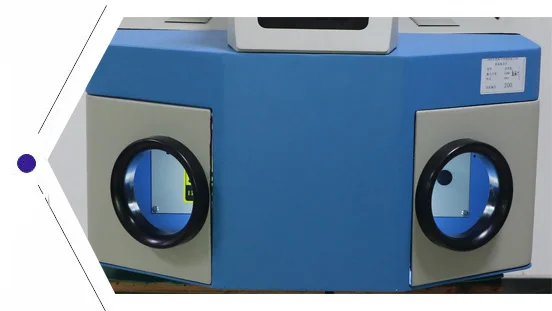

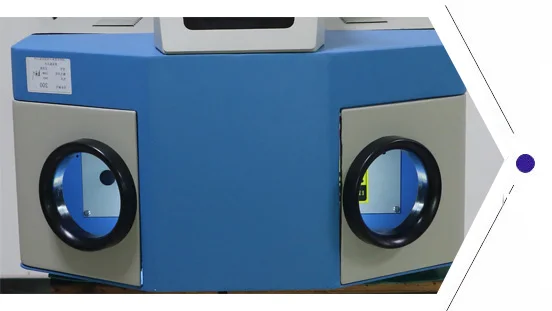

Closed table
Large internal Space,convenient for laser spot welding tools,jig placement,The welding chip recovery box is installed to facilitate cleaning and gold welding slag recovery.

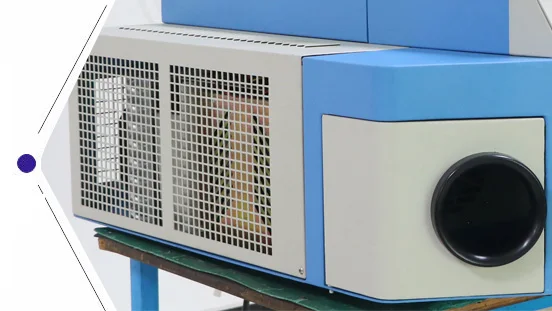

Water chiller
200w is equipped with 1P, or you can choose a built-in water machine, which can meet the demand for a long time. High-power welding is more stable.
Device parameters
Device parameters | ||||
Machine No | YME-150W-FBS | |||
Maximum laser power | 150W | |||
The laser wavelength | 1064nm | |||
Laser frequency | 1-20Hz | |||
Pulse width | 0.1-10Ms | |||
Light spot adjustment range | 0.1-1.5mm | |||
Aiming and positioning | Microscope and red light (optional camera system) | |||
Cooling power of chiller | Built-in air cooler | |||
Maximum single pulse energy | 60J | |||
Demand for electricity | 220V±5V 50Hz/40A | |||

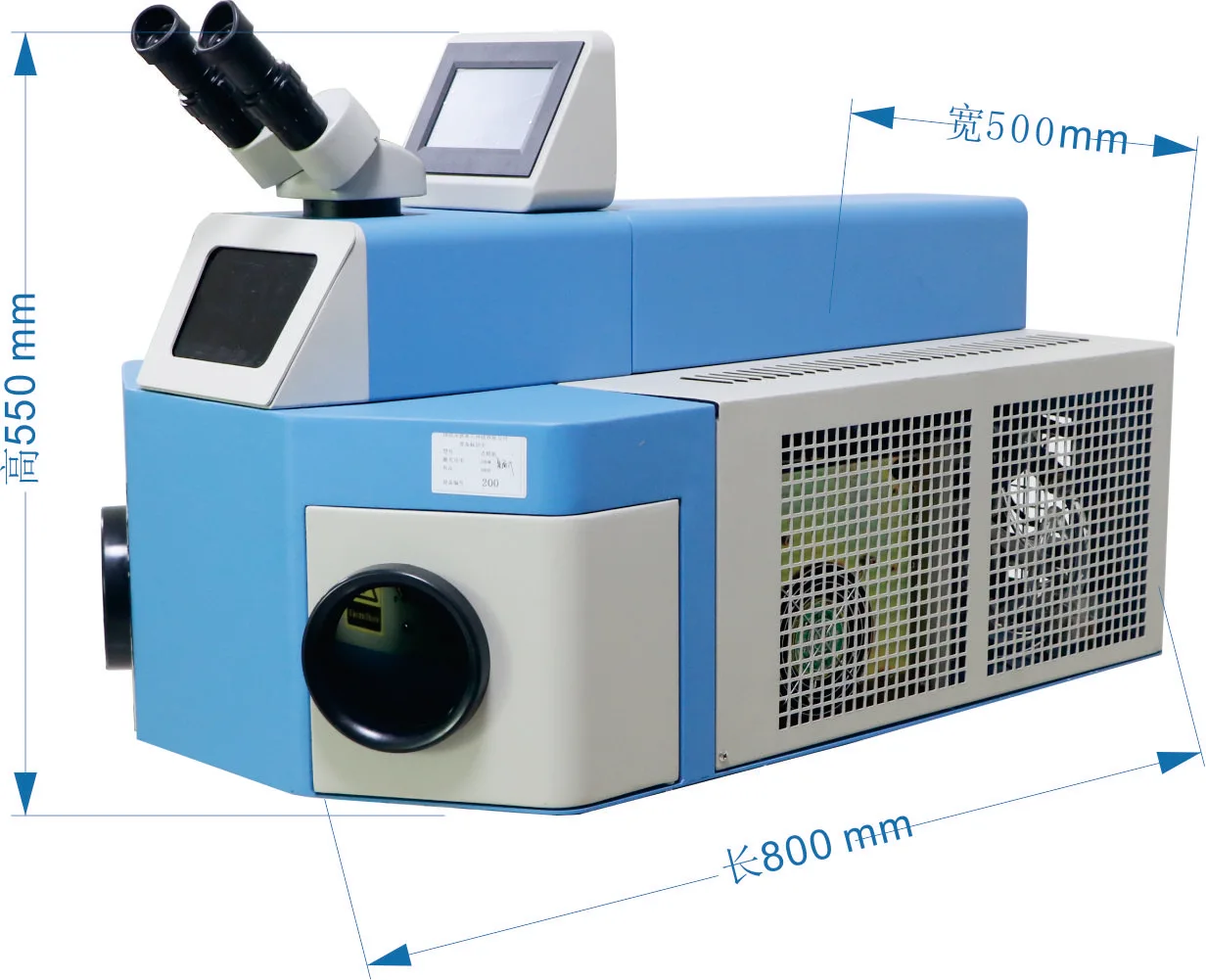

External dimensions/net weight | Host machine:800×500×550mm | 108kg | ||
1. A set of YAG laser;
2. A set of laser power supply;
3. A set of optical system;
2. A set of LCD display system;
3. A set of refrigeration and water temperature detection and protection systems;
4. A microscope;
5. A set of mainframe cabinets.
2. A set of laser power supply;
3. A set of optical system;
2. A set of LCD display system;
3. A set of refrigeration and water temperature detection and protection systems;
4. A microscope;
5. A set of mainframe cabinets.

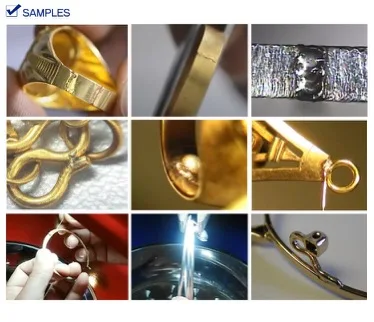

Sample Display
Product packaging
