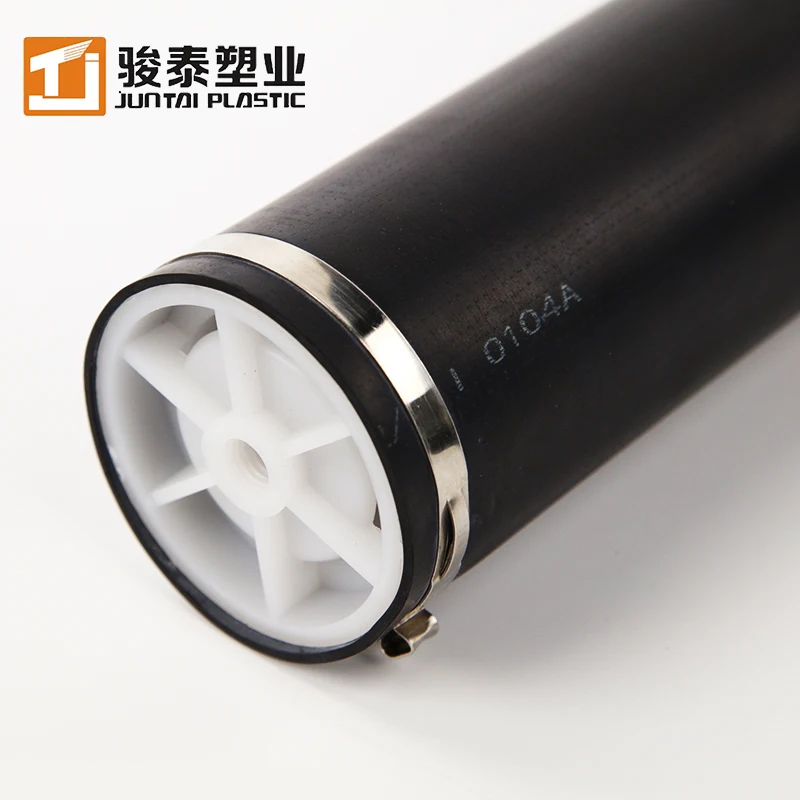

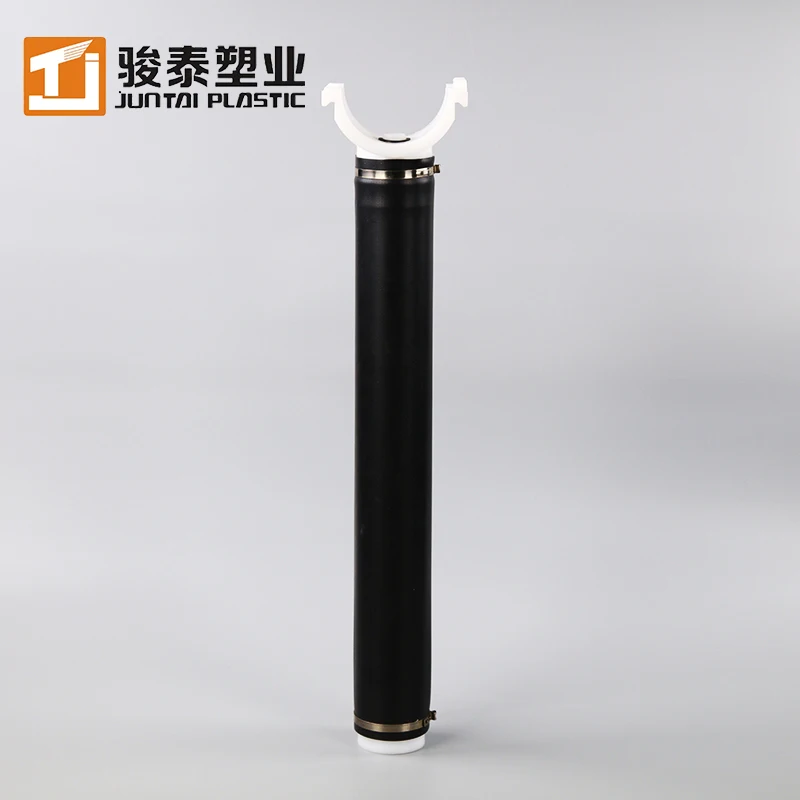

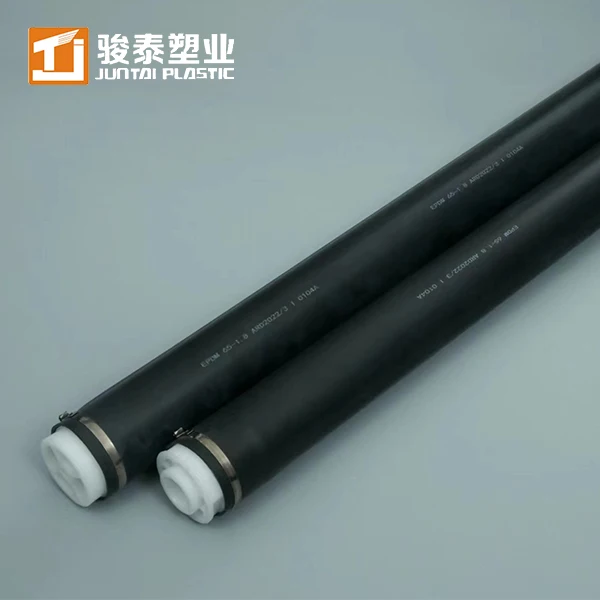

High Efficiency EPDM Fine Bubble Tube Diffuser For Wastewater Treatment
- Category: >>>
- Supplier: Hangzhou Juntai Plastic Products Co. Ltd.
Share on (1600746152641):
Product Overview
Description
Products Description
Product Parameter :

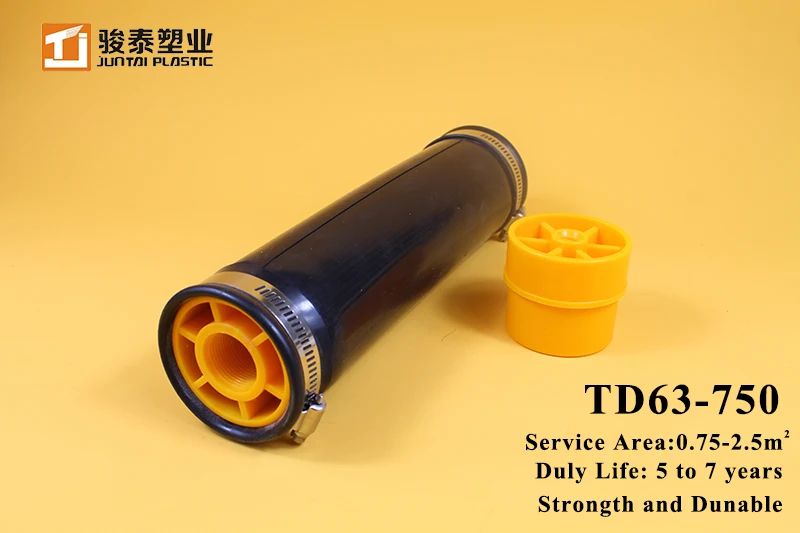

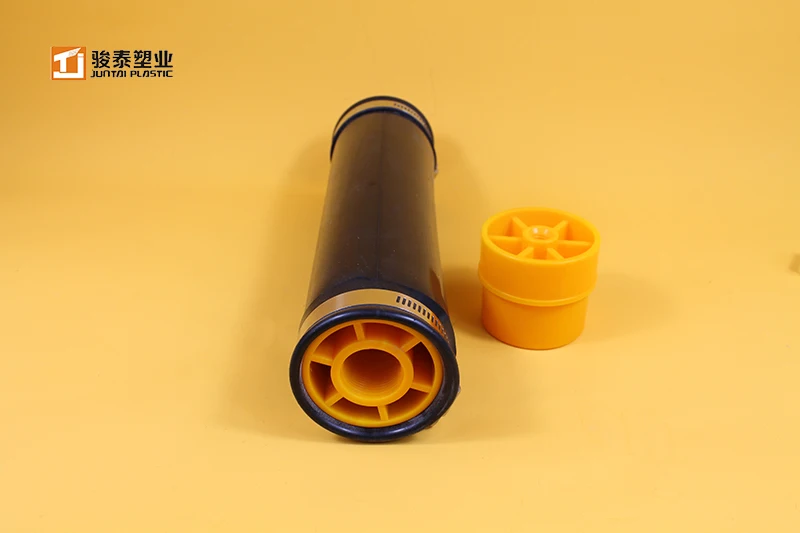

Item number | TD63 | TD93 | TD113 | ||
Bubble type | Fine Bubble | Fine Bubble | Fine Bubble | ||
Tube diameter(mm) | 63 | 93 | 113 | ||
Material | Special Formula EPDM with UV Protector import from Germany /Silicon Membrane | ||||
Moc | Tube material :Acrylonitrile-butadiene-styrene with UV Protector (ABS) | EPDM/Silicon membrane ABS tube | EPDM/Silicon membrane ABS tube | ||
Length | 500/750/1000mm | 500/750/1000mm | 500/750/1000mm | ||
Connector | 3/4NPT | 3/4NPT | 3/4NPT | ||
Flow range(m³/h) | 2-14 | 5-20 | 6-28 | ||
Bubble Size(mm) | 1-2 | 1-2 | 1-2 | ||
Service Area(m²) | 0.75-2.5 | 1.0-3.0 | 1.5-2.5 | ||

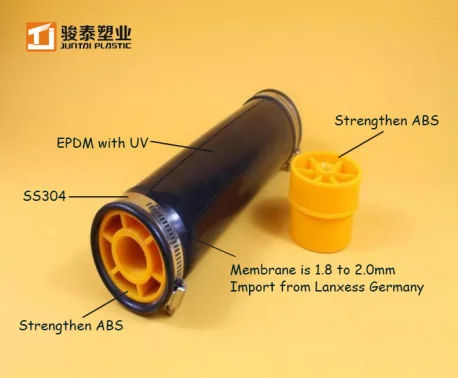

2.Fomular DPEM import from Lanxess Germany.Juntai Diffuser use the fomular EPDM wich UV protector which import from Lanxess Germany. This kind of EPDM with less plasticizer.

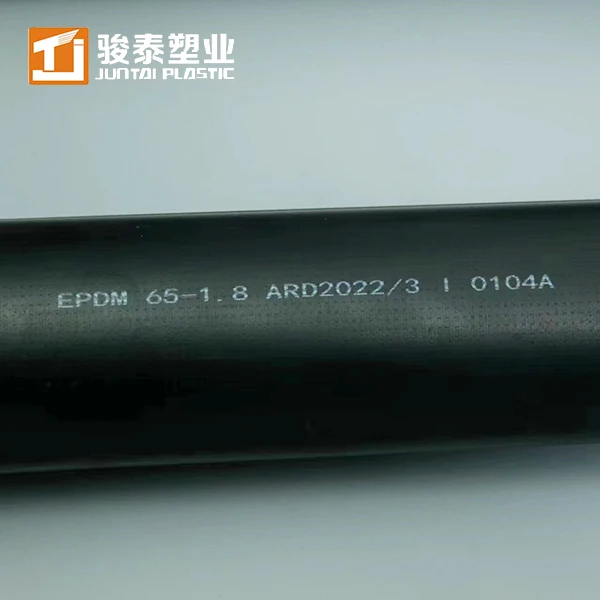

3.Low pressure loss and longer duly life.The Wall thickness of the Membrane is 1.8 to 2.0mm ,which is not too thick and too thinner.
4.Quality Control.Strictly Quality Control when producing, then make each tube diffuser Consistent quality which can make you total Aeration tank easy Maintain
5.Double Check valve
6.Non tearing & non clogging --shaped slits.
3.Low pressure loss and longer duly life.The Wall thickness of the Membrane is 1.8 to 2.0mm ,which is not too thick and too thinner.
4.Quality Control.Strictly Quality Control when producing, then make each tube diffuser Consistent quality which can make you total Aeration tank easy Maintain
5.Double Check valve
6.Non tearing & non clogging --shaped slits.
1.Outstanding Capabilities and Efficiency：
The tiny bubbles are exhausted from the 4000 air holes with the size of 1~3mm on the surface to exhibit up to 25% oxygen transfer efficiency (OTE) at 4M water depth/air volume 2CMH. Juntai Smart tube diffuser also has a larger surface to provide high aeration efficiency. It can satisfy the oxygen demand (BOD/COD) required by the aeration tank.
2.Improved Design with Lower Price：
Juntai Smart tube diffuser has the advantages of simple structure and lightweight. It can take less time to install (2 mins for each diffuser) and can reduce material costs. It can be easily adaptable to existing basins for plant upgrades. Besides, The membrane closely fits the support pipe, so it is nearly impossible to crease.
3.Prevent The Backflow of Sludge：
With the outstanding design, the EPDM membrane closes over the diffuser inlet when the air supply is interrupted, resisting backflow and production of algae. Also, the self-cleaning function makes the high-quality small bubbles spirally rise during aeration to reduce the risk of clogging or fouling.
4.High Reliability and Durability：
The rubber membrane is made of ethylene propylene diene terpolymer (EPDM) with high deformation resistance and elasticity. With the manufacturing process by injection molding pressure, the thickness of the membrane can be made consistent. It also has the advantages of low pressure, low resistance curve, low-pressure loss, and can provide excellent chemical resistance and stain resistance.

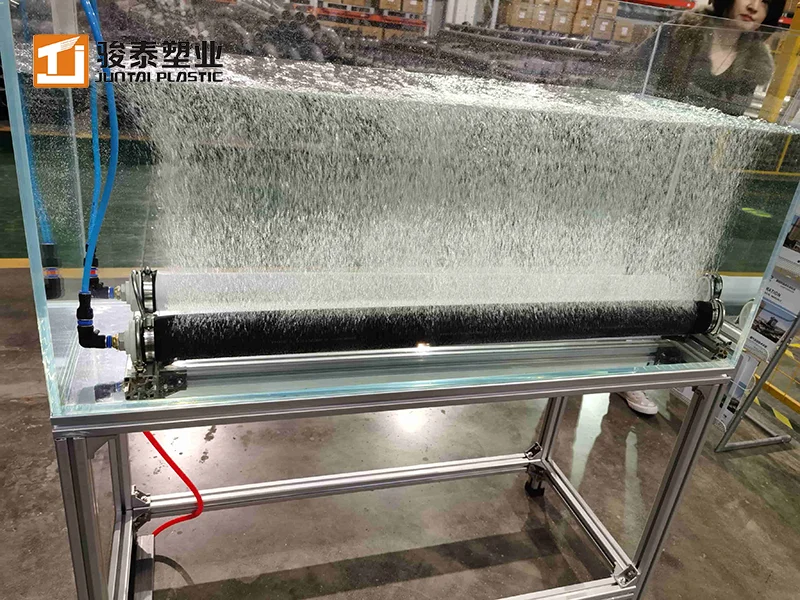

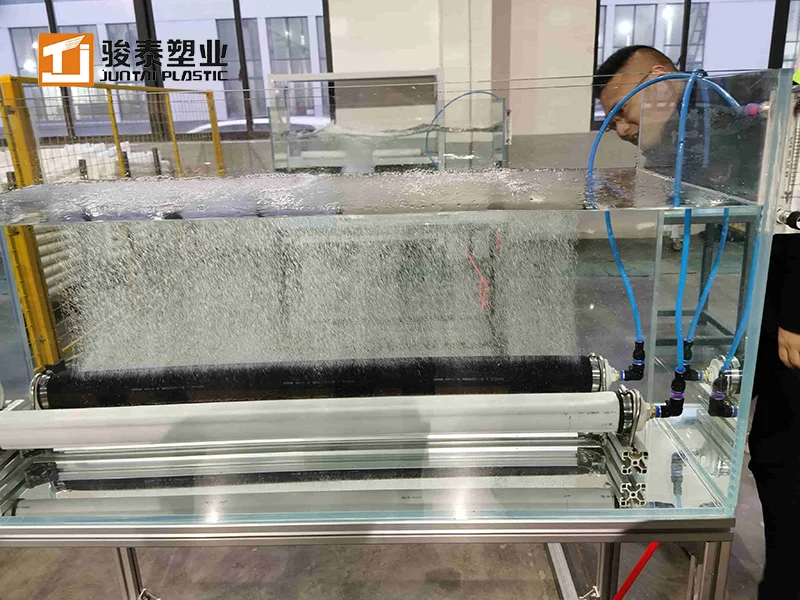

Laboratory testing and field tests
In our laboratory we systematically test all products for mechanical strength and head loss performance in clean water. As part of regular audits we test the Juntai diffusers’ durability and material fatigue with up to 10000 cycles more.
In case of applications with specific waste water substances we recommend conducting pilot studies. Diffusers made of different membrane materials are installed on a testing frame. After a certain contact period with waste water the membrane characterictics possibly change thus durability and longevity may be estimated.In addition, we offer to evaluate the residual life span of our diffusers for our customers. After dismantling single diffusers out of the aeration tank, we examine the head loss caused by potentially changing materials and deposits. In that way, we can estimate whether a chemical and/or mechanical cleaning can extend the diffusers’ life time or it is more economic to completely replace the diffuser.
In case of applications with specific waste water substances we recommend conducting pilot studies. Diffusers made of different membrane materials are installed on a testing frame. After a certain contact period with waste water the membrane characterictics possibly change thus durability and longevity may be estimated.In addition, we offer to evaluate the residual life span of our diffusers for our customers. After dismantling single diffusers out of the aeration tank, we examine the head loss caused by potentially changing materials and deposits. In that way, we can estimate whether a chemical and/or mechanical cleaning can extend the diffusers’ life time or it is more economic to completely replace the diffuser.

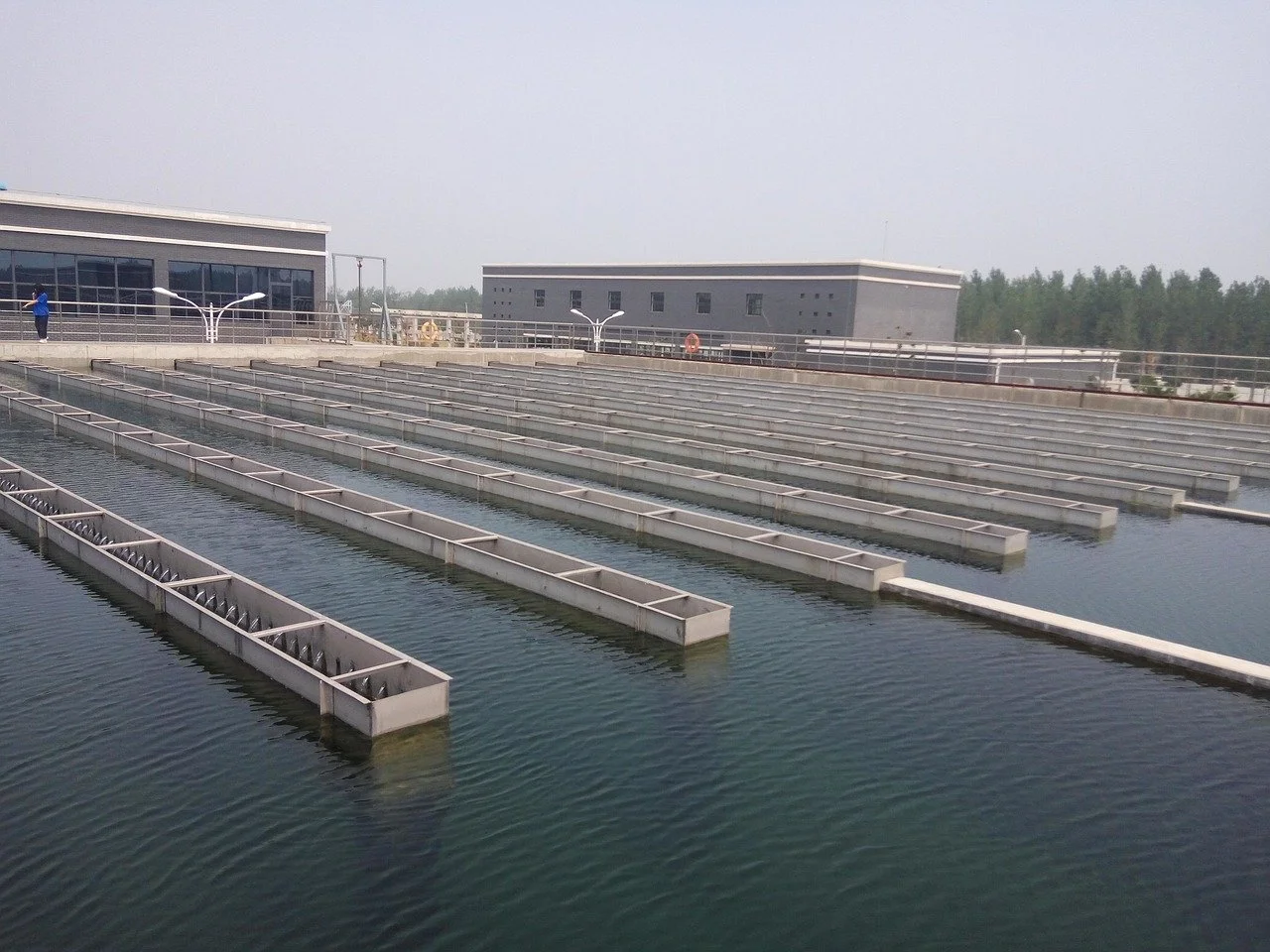

Application Field

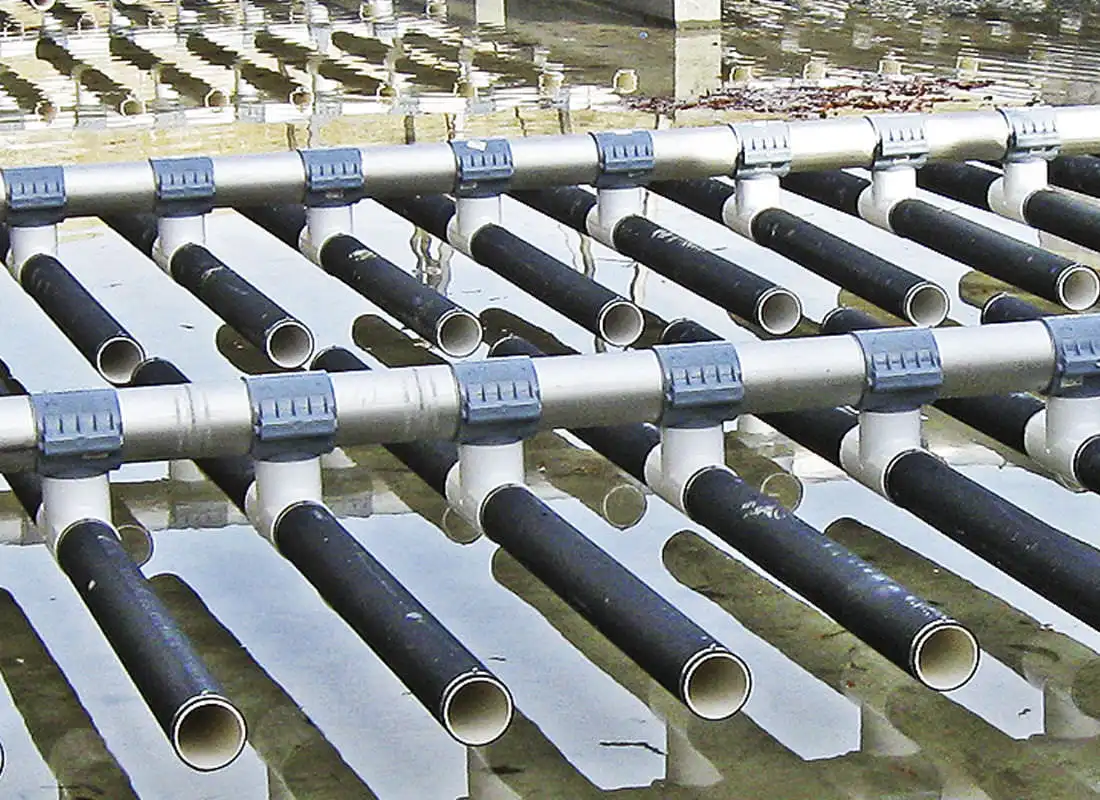

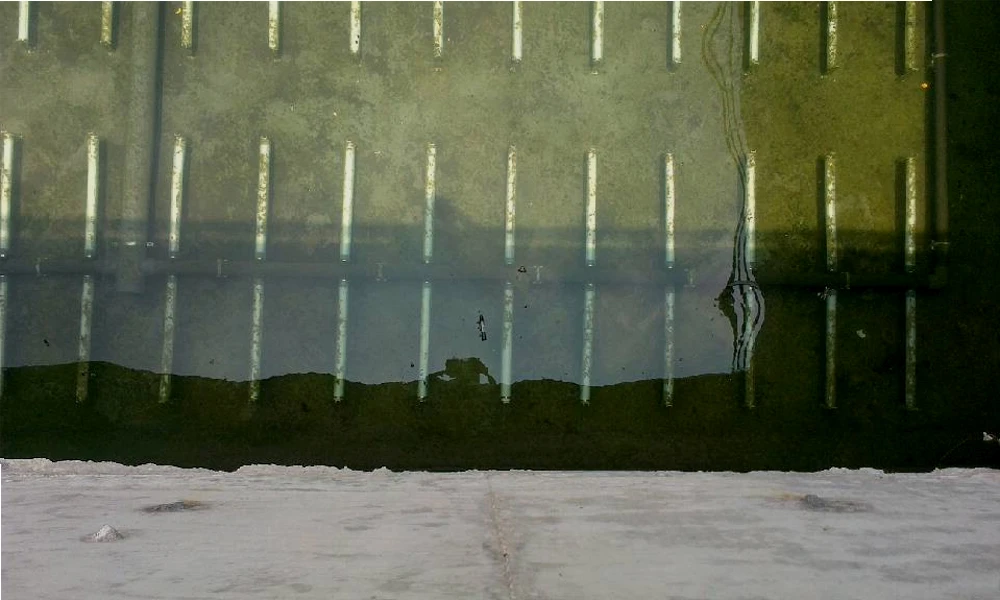

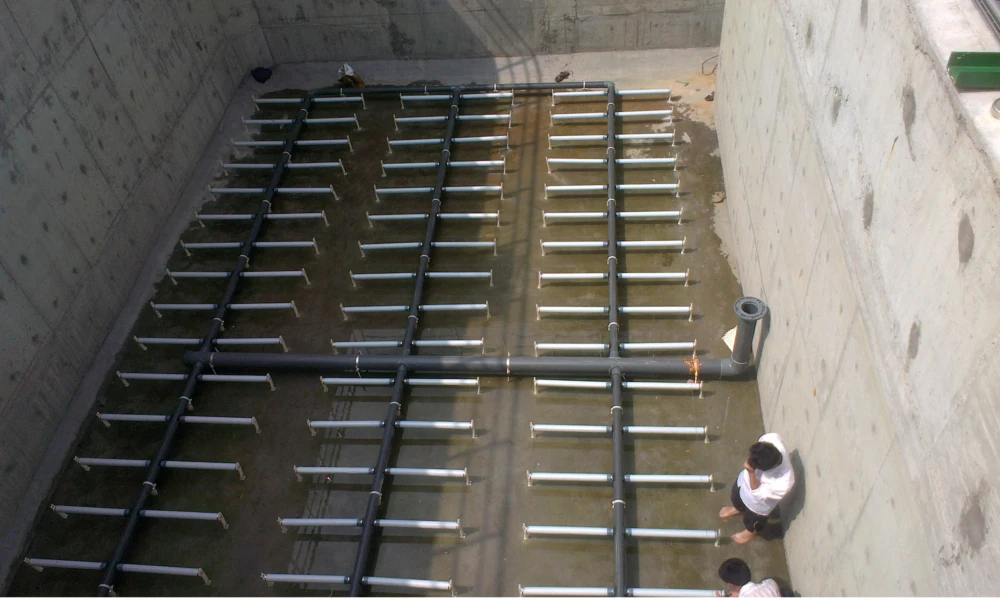

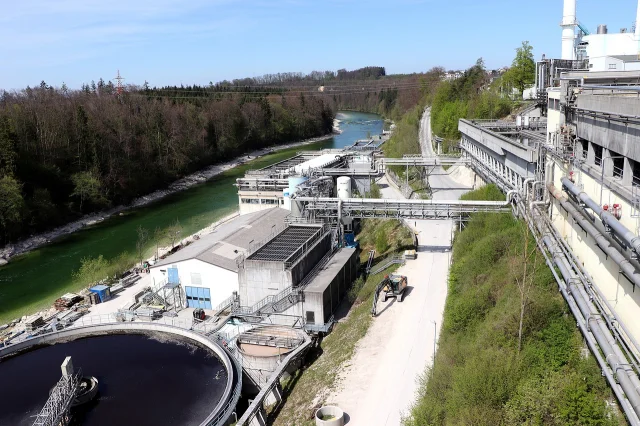

Juntai Smart Tube Diffusers were developed for application in municipal and industrial wastewater treatment plants. Their primary use is for supplying the required amount of oxygen to wastewater in the aeration tank while providing efficient mixing.
1、Municipal wastewater treatment.
2、Industrial wastewater treatment.
3、Clean water treatment.
4、Sludge stabilization.
5、Wastewater ozone diffusion.
6、Aeration of fish ponds.
7、Aeration of streams and lakes.
2、Industrial wastewater treatment.
3、Clean water treatment.
4、Sludge stabilization.
5、Wastewater ozone diffusion.
6、Aeration of fish ponds.
7、Aeration of streams and lakes.

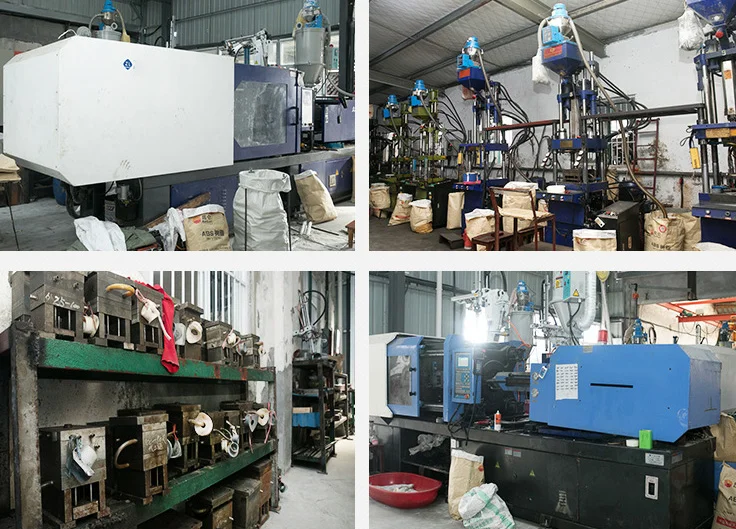

Juntai Smart Tube diffuser Equipment Exhibition

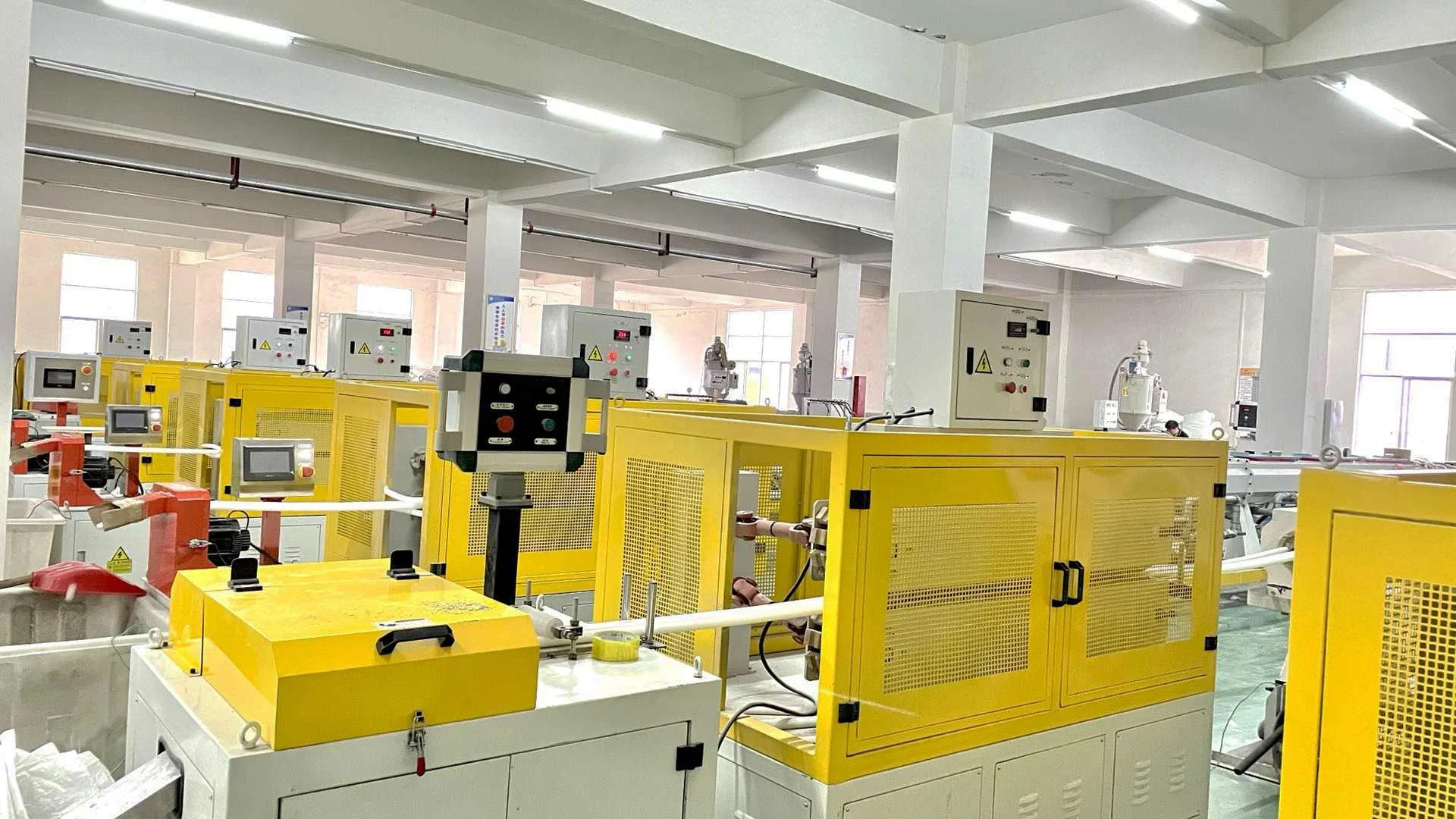

EPDM Membrane Production

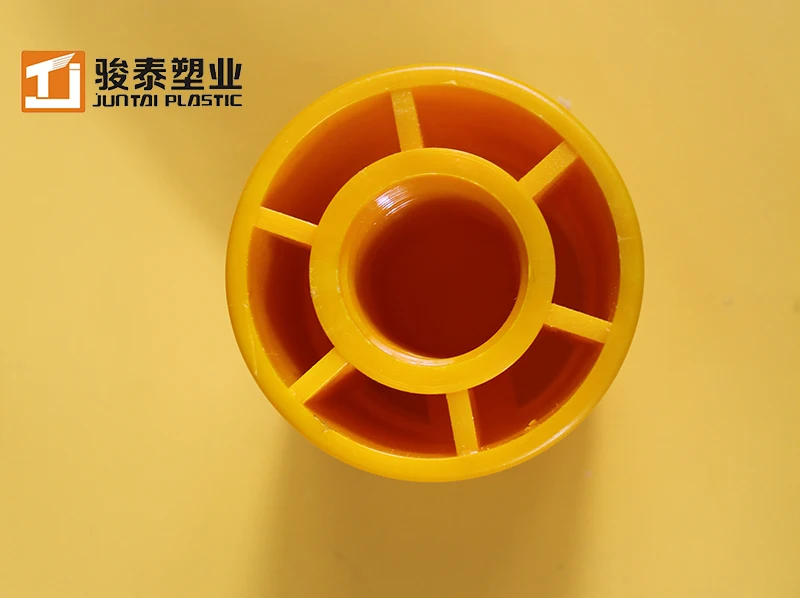

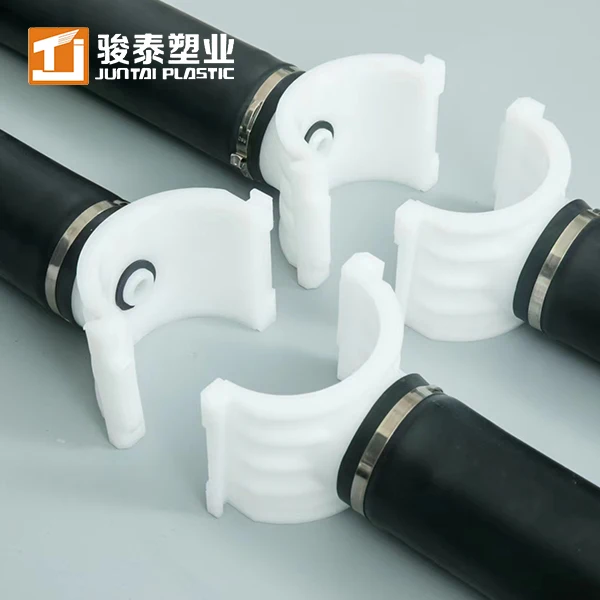

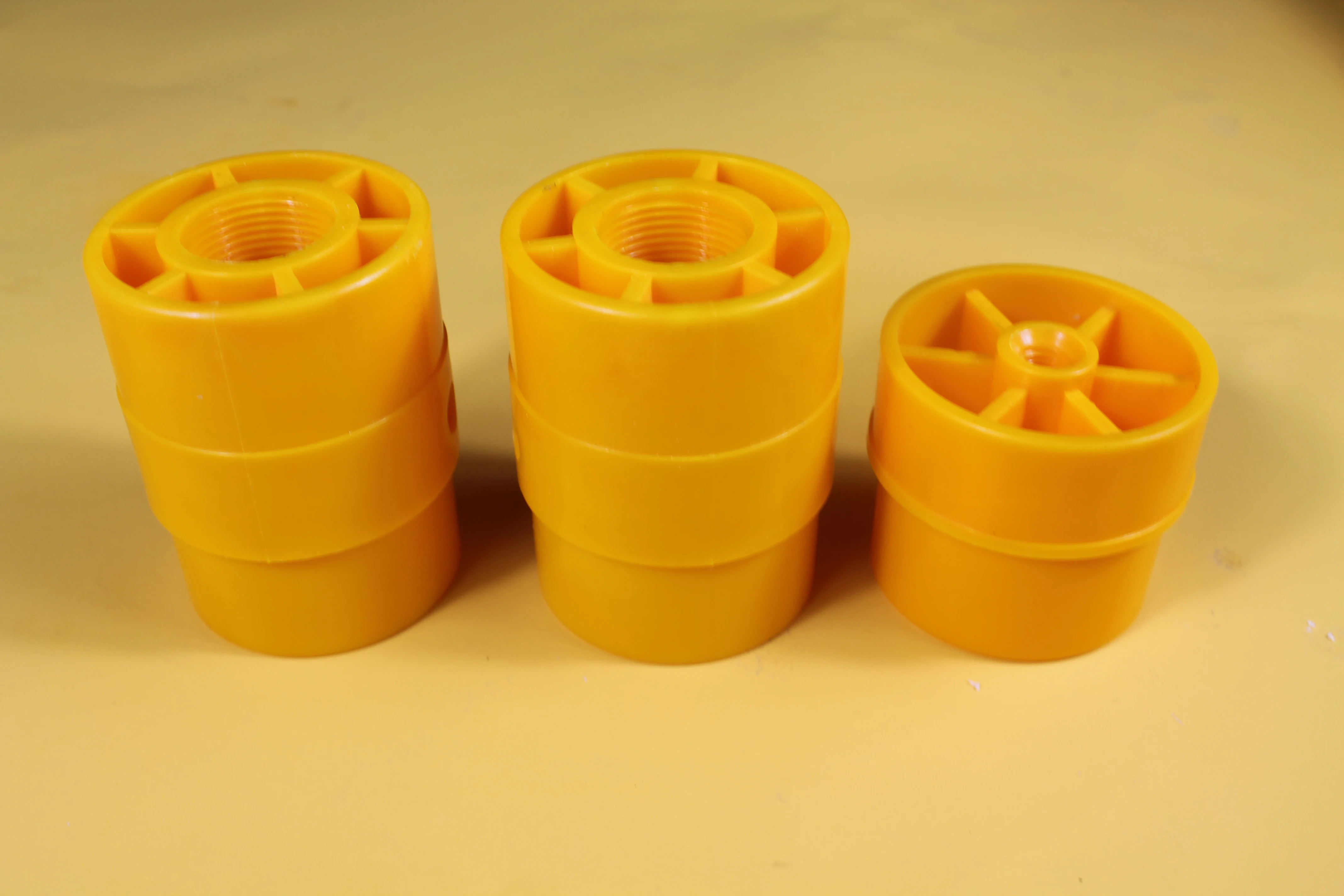

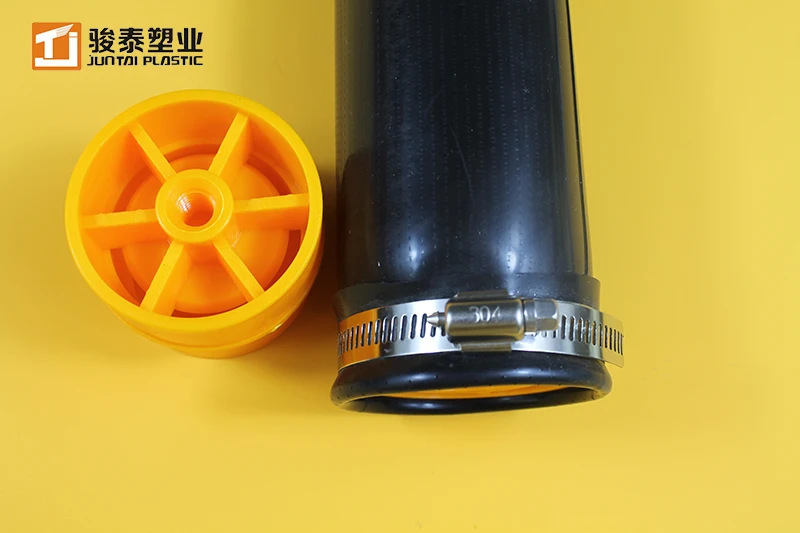

Strengthen ABS Joint
EPDM membrane Cooling System
Cleaning and Drying
Package
Shipment
Company Profile ：
Hangzhou Juntai Plastic Products Co. Ltd. , was founded in 2013 and we are aim to offer the high quality plastic parts for water treatment .We established Anhui Juntai Technology Co., Ltd in Anhui in 2016. As a supplier and manufacturer for Disc diffuser,Tube diffuser and others plastic products for the water treatment, we won the National high-tech enterprise in 2019 and has 35 patents.
We have a 21000 square meter factory in Yuexi Anhui; 105 fully automatic MBBR production lines,7 lines of Tube settlers, and 15 lines of injection for Disc and Tube diffusers . The annual export of MBBR and tube settlers is 100 000 cubic meters; the annual export of diffuser and PVC profiles is 5000tons. We have passed some certifications, as ISO9001-2015, SGS, ROHS standard Goods. Most of the production is vented to Canada, Mexico, Guatemala, Argentina, France, The Netherlands, Sweden, Italy, Taiwan China, etc. The annual sale is $15 million.
We have a 21000 square meter factory in Yuexi Anhui; 105 fully automatic MBBR production lines,7 lines of Tube settlers, and 15 lines of injection for Disc and Tube diffusers . The annual export of MBBR and tube settlers is 100 000 cubic meters; the annual export of diffuser and PVC profiles is 5000tons. We have passed some certifications, as ISO9001-2015, SGS, ROHS standard Goods. Most of the production is vented to Canada, Mexico, Guatemala, Argentina, France, The Netherlands, Sweden, Italy, Taiwan China, etc. The annual sale is $15 million.
2. High Tech Enterprise Certification
3. Municipal Certification Enterprises
4. Corporate Credit Rating 3A
5. Certificate of Registration of Trade Mark
6. Certificate of Knowledge Product Management

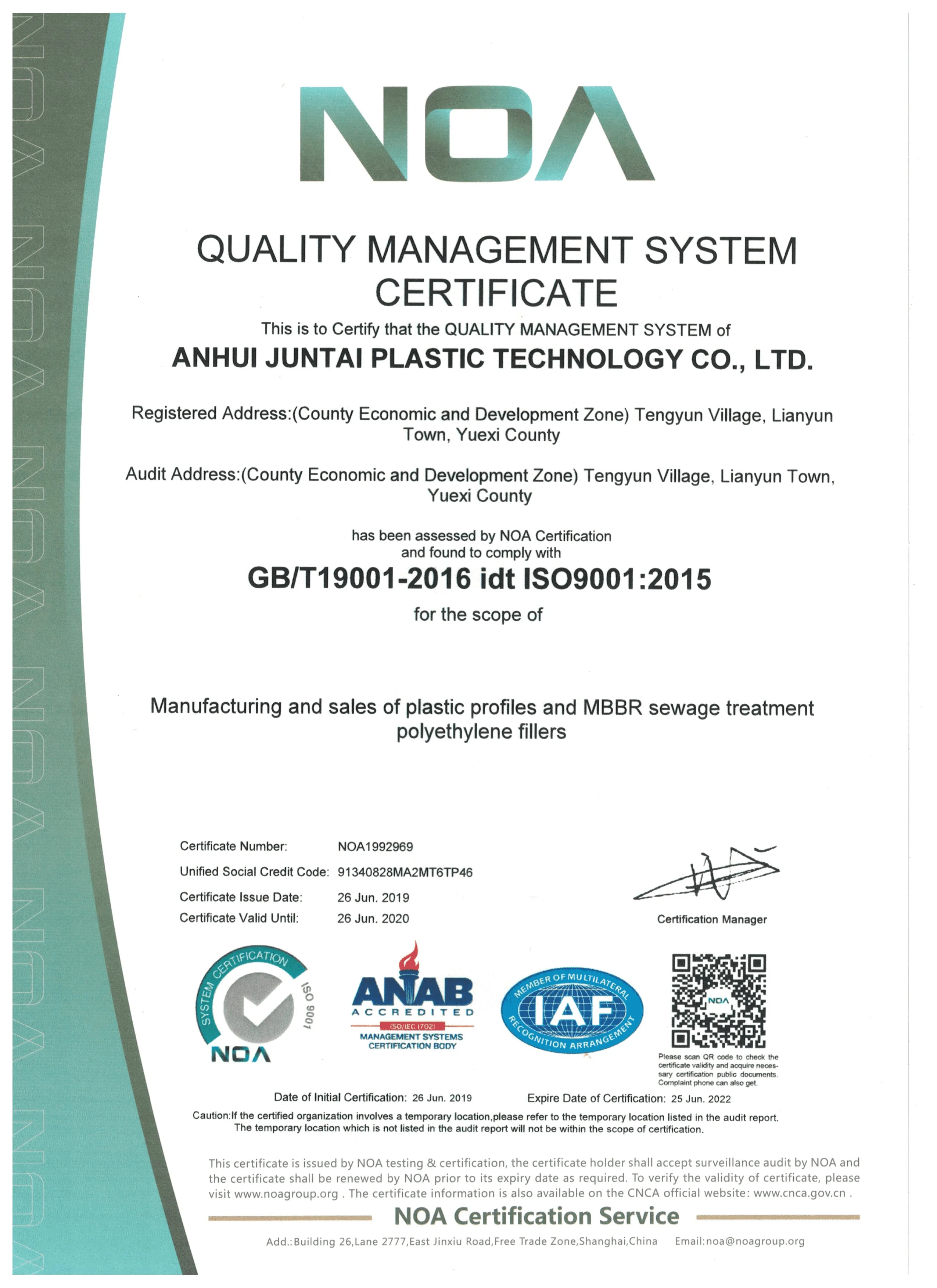

7. ISO 9001 Certification
8. Patents Certifications
FAQ
1.Can we get samples?
We can offer free sample for test, and customer needs to pay the freight charge.
2.What's Your Delivery Time?
Normally 15-20days after order confirm.
3.Are You Factory Or trading Company?
We’re a direct factory in Anqing Anhui China.
4. What is the acceptable MOQ?
One cartons for minimum order quantity.
We can offer free sample for test, and customer needs to pay the freight charge.
2.What's Your Delivery Time?
Normally 15-20days after order confirm.
3.Are You Factory Or trading Company?
We’re a direct factory in Anqing Anhui China.
4. What is the acceptable MOQ?
One cartons for minimum order quantity.
