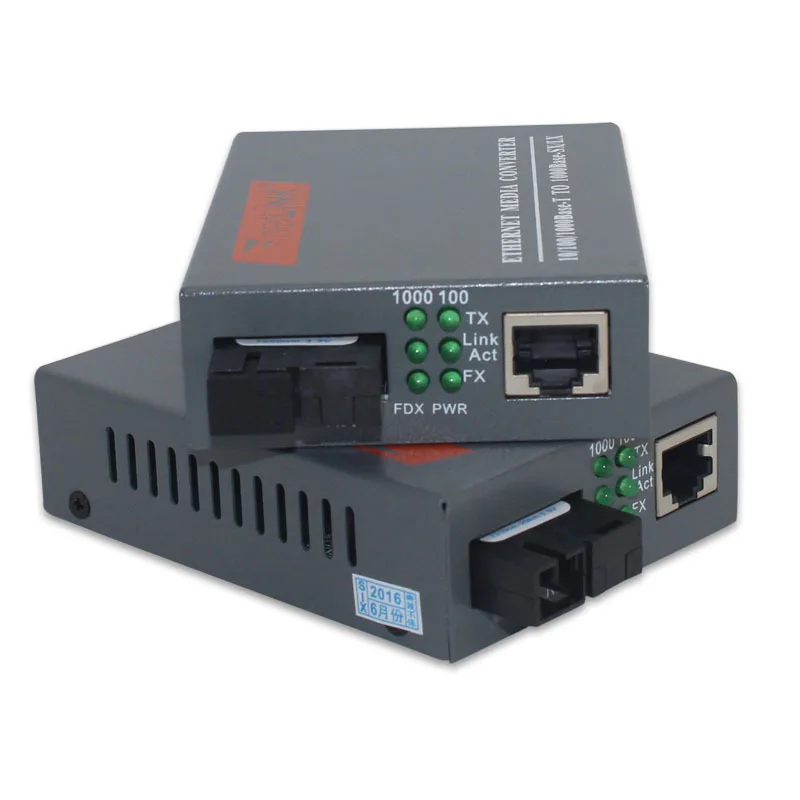

HTB GS 03AB Ethernet Media Converter 10/100/1000 Base T To 1000 Base SX/LX Fiber Transceiver
HTB-GS-03AB Ethernet Media Converter 10/100/1000 Base-T To 1000 Base-SX/LX Fiber Transceiver
HTB-GS-03AB Ethernet Media Converter 10/100/1000 Base-T To 1000 Base-SX/LX Fiber Transceiver

HTB GS 03AB Ethernet Media Converter 10/100/1000 Base T To 1000 Base SX/LX Fiber Transceiver

Share on (1600746176117):


Price:

Quantity:


Product Overview

Description








Specifications































































Standard


IEEE802.3 10BASE-T Ethernet
IEEE802.3u 100BASE-TX/FX Fast-Ethernet IEEE802.3z/ab 1000BASE-FX/TX 100M-Ethernet IEEE802.3x


RJ-45 Port


Auto-MDI/MDIX


Fiber Port


Fiber Type


Wavelength


Send-Power


SC


1310/1550nm


20dBm(min.) 0dBm(max.)


Frequency Offset


±125,000bps (or ± 100ppm)


MTU


More than 9036 bytes


Dimensions(WxDxH)


94x71x27mm (External power)


Input Voltage


DC5V2A( External power input : AC100V-AC240V/50-60HZ )


OperationTemperature


0°C~70°C


Store Temperature


-40°C~85°C


Humidity


5%~95% non-condensing


Weight


0.3kg/Piece (External Power)
