Laboratory Sample Grinders Ball Mill Nano Particle Lab Pigment Grinding Machine
- Category: Grinding Equipment >>>
- Supplier: Jiangxi,Victor,International,Mining,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Product Overview
Laboratory Planetary Ball Mill
Laboratory small planetary ball mill is a necessary device of high-tech materials mixing, fine grinding, sample making, new product development and small batch production.
Planetary ball mill can grind coarse particles into micro powders. It can mill the materials from 3~10mm maximum into 0.1~1um minimum powder. Planetary Ball Mill Machine can deal 0.1L to 100L material per time depends on the model choose. Widely applied in industries of chemical, medical, construction, mineral, etc.
Planetary ball mill can grind coarse particles into micro powders. It can mill the materials from 3~10mm maximum into 0.1~1um minimum powder. Planetary Ball Mill Machine can deal 0.1L to 100L material per time depends on the model choose. Widely applied in industries of chemical, medical, construction, mineral, etc.
FEATURES AT A GLANCE
Application
Geology and Mineralogy: rock, gravel, sand, minerals Ceramics: porcelain, ceramics, clay, fire clay
Chemistry: pesticides, fertilizers, salts, inorganic and organic materials
Biology: plants, leaves, freeze-dried samples
Pharmaceuticals: ophthalmologist agents, gels, creams, extracts, drugs, pastes, tablets
Metallurgy: ores
Material technology: pigments, precious materials, new materials, alloys, mechanical alloying and activating
Analysis preparation: spectroscopy, X-ray fluorescence, X-ray structure analysis, chromatography
Chemistry: pesticides, fertilizers, salts, inorganic and organic materials
Biology: plants, leaves, freeze-dried samples
Pharmaceuticals: ophthalmologist agents, gels, creams, extracts, drugs, pastes, tablets
Metallurgy: ores
Material technology: pigments, precious materials, new materials, alloys, mechanical alloying and activating
Analysis preparation: spectroscopy, X-ray fluorescence, X-ray structure analysis, chromatography

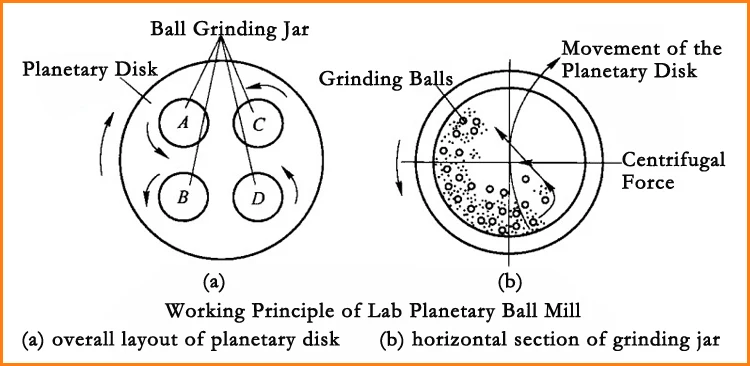

Work Operational Principle
Lab Ball Mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary
movements, the balls and samples inside the tanks are impacted strongly in high speed movement, and samples are eventually ground
into powder. Various kinds of different materials can be ground by the mill with dry or wet method. Minimum granularity of ground
powder can be as small as 0.1μm.
movements, the balls and samples inside the tanks are impacted strongly in high speed movement, and samples are eventually ground
into powder. Various kinds of different materials can be ground by the mill with dry or wet method. Minimum granularity of ground
powder can be as small as 0.1μm.
PRODUCT SPECIFICATIONS
Model | Specification | Ball Milling Tank | Remarks | ||
Spec(ml) | Quantity (Items/Set) (Mated with a number of milling balls) | ||||
504L-0.4 | 0.4L | 50~100 | 4 | Can be equipped with 50ml vacuum ball milling tanks | |
504L-2 | 2L | 50~500 | 4 | Can be equipped with 50~250ml vacuum ball milling tanks | |
504L-4 | 4L | 50~1000 | 4 | Can be equipped with 50~500ml vacuum ball milling tanks | |
504L-12 | 12L | 500~3000 | 4 | Can be equipped with 500~2000ml vacuum ball milling tanks | |
504L-20 | 20L | 1000~5000 | 4 | Can be equipped with 3500ml vacuum ball milling tanks | |

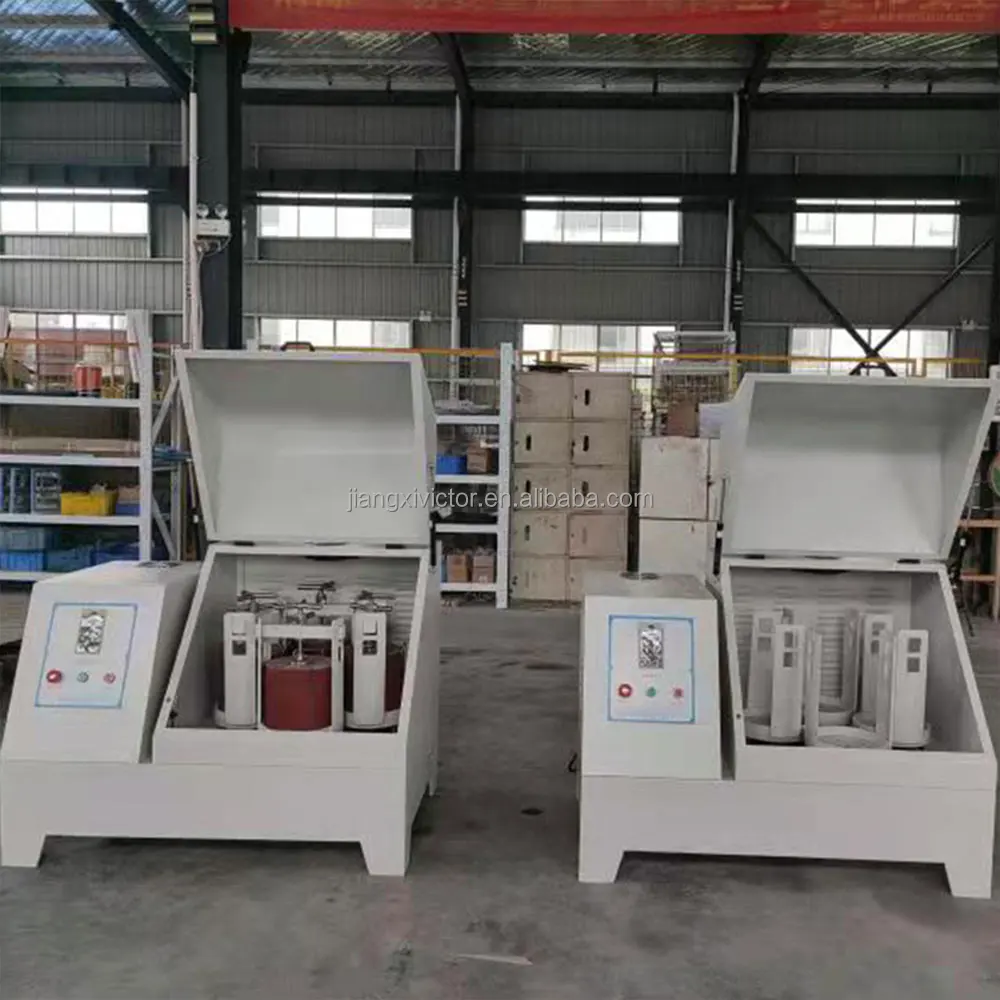

Details Images
SIMILAR PRODUCTS
Company Profile

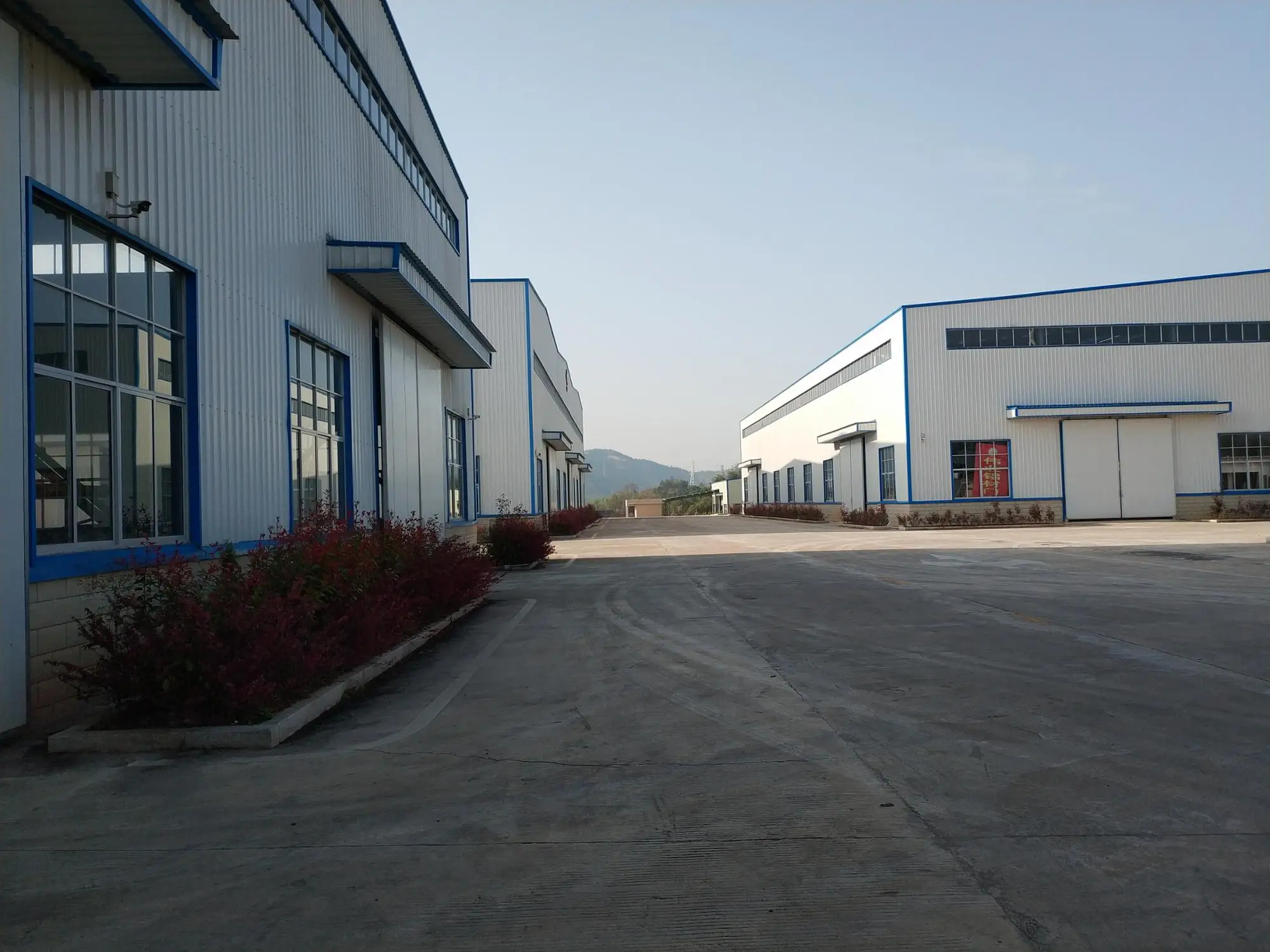

Victor is a large mineral processing manufacturer for 15 years history, with covering an area of 48,000 square meters and 20,000 square meters for workshop, with various large modernized machinery facilities, professional R&D team and installation team.
With 32% market share in China and the rest to overseas, already successfully exported to over 50 countries, such as USA, England, Australia, Brazil, Turkey, Italy, Russia, South Africa, Zimbabwe, Sudan, Ghana, Congo, Morocco, India,Indonesia, Malaysia, Philippines, North Korea, Mongolia, Vietnam, Thailand etc.
Our goal is to provide one-stop service for you and assist you to solve all problems from investment to his return in the field of mining, including the preliminary mineral analysis, mineral processing test, engineering design, equipment debugging and technical training etc..

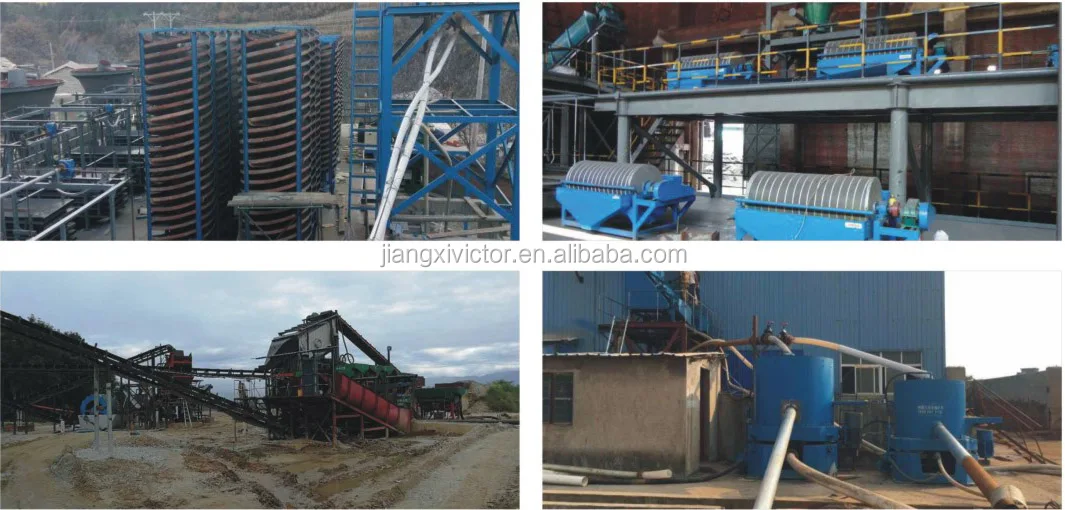

We are expert especially at mining separating and lab mining plant, main products as below:
We are expert especially at mining separating and lab mining plant, main products as below:
