Metal Random Tower Packing Stripping Media SS304 25mm Pall Ring for Cokable System

Metal Random Tower Packing Stripping Media SS304 25mm Pall Ring for Cokable System

Category: Other Metals & Metal Products >>>
Supplier: Pingxiang,Super,Packing,Mall,Co.,Ltd.

Price:$550.00 - $900.00

Price in USD:Details

Quantity:

Product Overview

Description

Product Description

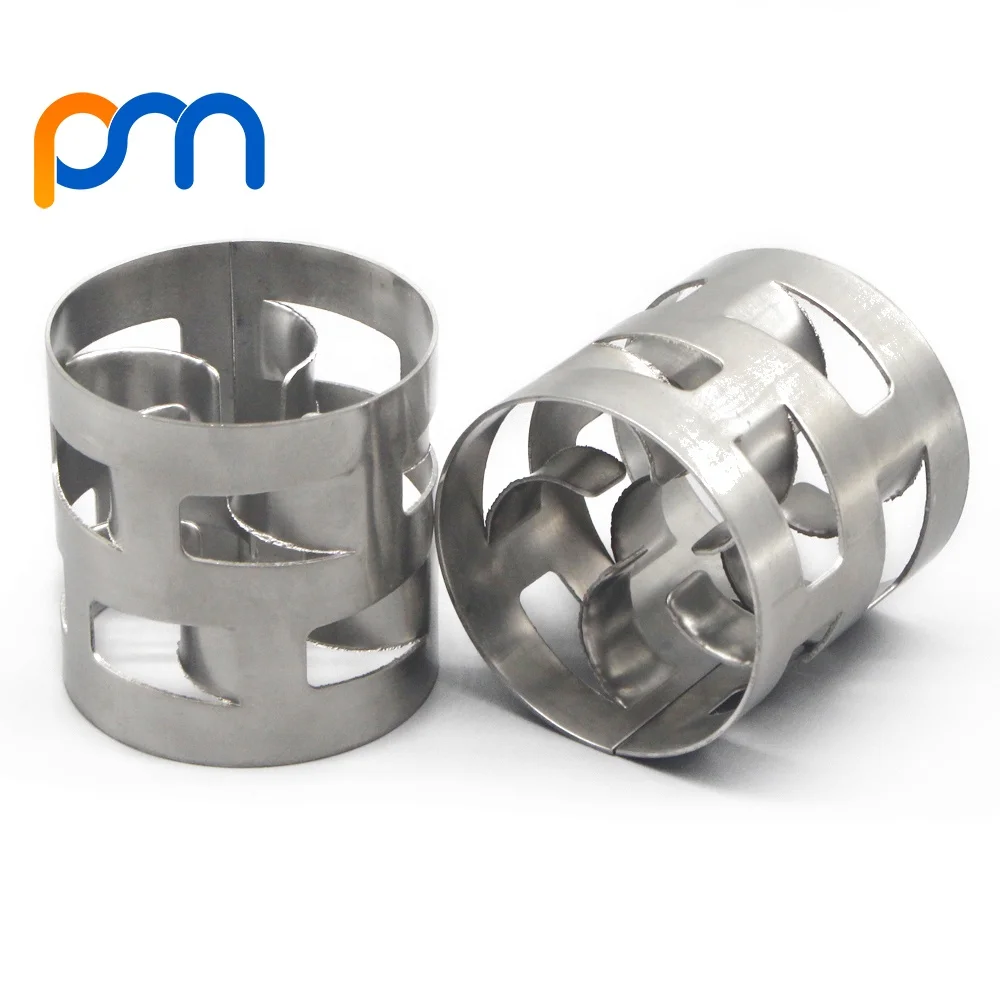

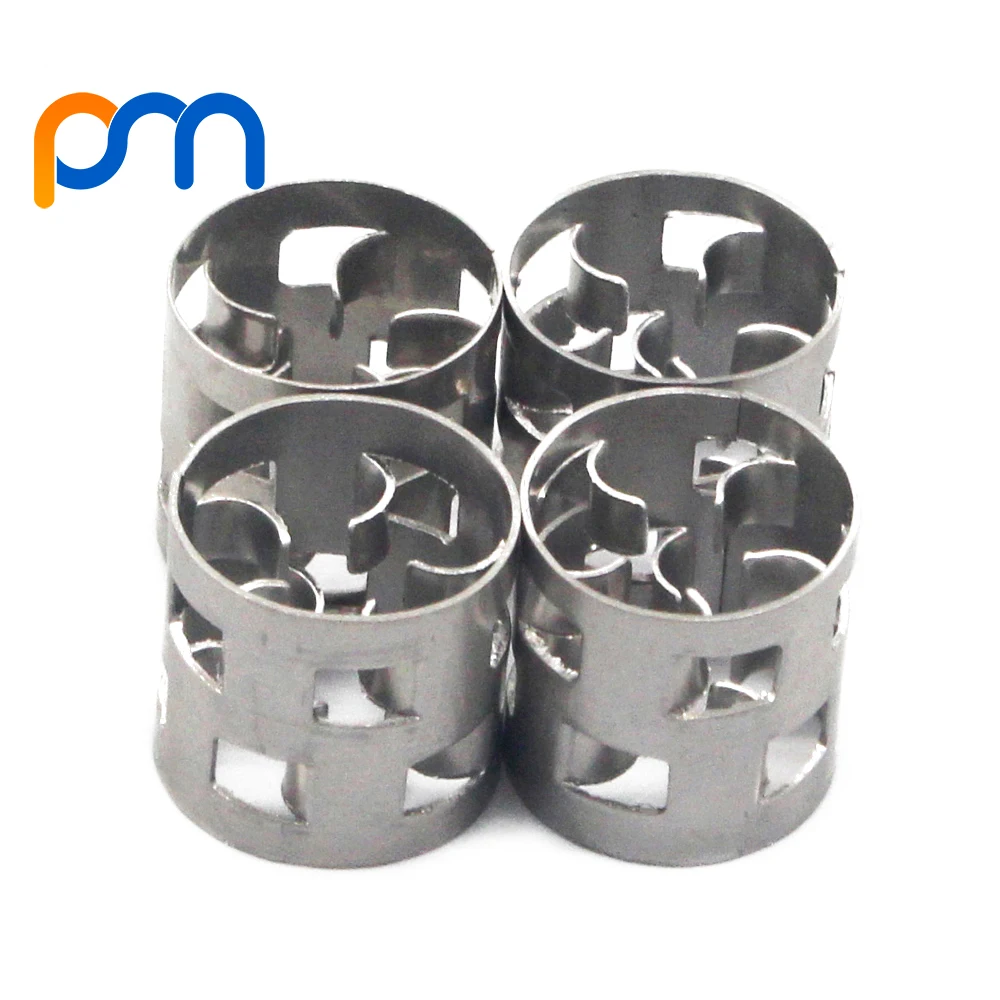

"Super Packing Mall" Metal Pall Ring exploit the ring feature for mass transfer and the saddle shape for lower pressure drop, has high loading and low pressure drop, Good gas-liquid distribution and high mass transfer efficiency. It is mechanically robust, lesser probability of breakage, suitable for deeper beds.

Metal Pall Ring has features such as thin wall, heat resistant, high free volume, high capacity, low resistance, high separation efficiency and so on.

It's available for rectification towers, cokable systems, crude distillation unit, desulphurization system

Material: Carbon Steel. SS304, 304L, 410, 316, 316L, etc.

Sizes: Available in 16-89mm.

Specification

Product	Stainless Steel Metal Pall Ring
Diameter (mm)	16	25	38	50	76	89
Thickness (mm)	0.3	0.3	0.4	0.5	0.6	0.7
Bulk density (kg/m3)	345	214	193	182	142	145
Number (PCS/m3)	201,000	51,000	15,000	6,500	1,830	1,160
Surface area (m2/m3)	346	212	145	106	69	62
Free Volume (%)	95.5	96.2	96.7	97.5	97.4	97.1

Application

Pall Ring Application:

It is widely used in packing towers in petrochemical industry, chemical fertilizer industry and environmental protection, etc.(such as: Device of isolation, absorption, distillation, desorption, common decompression.)

Product Package

Company Profile

Pingxiang Super Packing Mall Co.,Ltd
"Packing mall" is a one-stop chemical packing mall Co.,ltd.All kinds of chemical fillers,molecular sieves, active alumina, catalysts and other products can be purchased online in packing mall. the products have been widely used in the national electric power, petroleum,chemical, metallurgy, environmental protection,pharmaceutical, aerospace, aviation and other industries, and sold overseas. We promote the“Packing-mall”App, and already establishing a warehouse center of 50,000 m2 to serve the mall.
