Fully Automatic Suppository Production Line & Suppository Filling Machine
- Category: >>>
- Supplier: ZHEJIANG LEADTOP PHARMACEUTICAL MACHINERY CO. LTD
Share on (1600746197191):
Product Overview
Description
Simple Description
The automatic suppository filling production line has a stable and efficient manufacturing process, filling, freezing, sealing and other production processes to complete the whole process, and the production capacity is 10,000 grain/hour.
Production process:

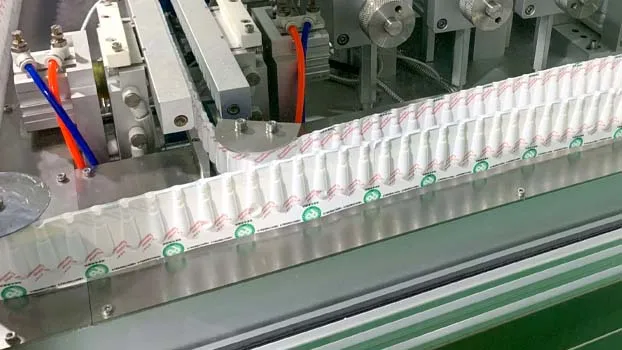

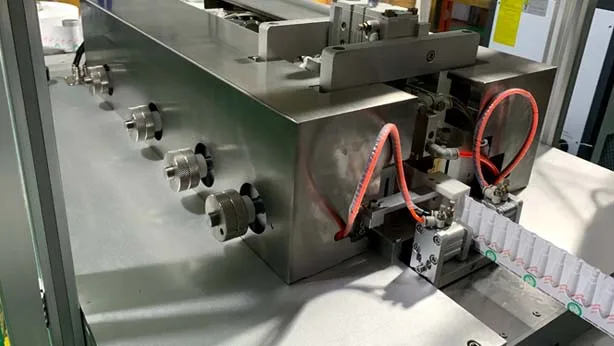

From automatic suppository shell forming, to the filling station of liquid medicine, Recirculating cooling set (liquid to solid), Continuous sealing with batch number, Transfer finished cutting (the number of cutting grains can be set arbitrarily on the touch screen, 1-10 grains can be cut at will)
Application
-- Adapt material: synthetic
fatty acid glycerol, glycerin gelatin, polyethylene glycol etc.
fatty acid glycerol, glycerin gelatin, polyethylene glycol etc.
Main Technical Data
Model | SupLab-1 | SupLab-3 | SupLab-7 | SupLab-10 |
Output | 1000-1500 pcs/h | 4500-5000 pcs/h | 10000 pcs/h | 15000 pcs/h |
Single dosage | 0.5—5g | 0.5—5g | 0.5—5g | 0.5—5g |
Dosage allowed | ＜±2% | ＜±2% | ＜±2% | ＜±2% |
Packaging Film | PVC\\PE | PVC\\PE | PVC\\PE | PVC\\PE |
Stirring tank capacity | 20L | 30L | 70L | 70L |
Air pressure | ≥0.6Mpa | ≥0.7Mpa | ≥0.7Mpa | ≥0.7Mpa |
Air consumption | 1.2m³ | 1.5m³ | 1.5m³ | 1.5m³ |
Water consumption | 50kg(recycling) | 50kg(recycling) | 50kg (recycling) | 50kg (recycling) |
Working voltage | 3 phase 380V | 3 phase 380V | 3 phase 380V | 3 phase 380V |
Total power | 4KW | 5KW | 7.5KW | 9.5KW |
Machine Weight | 500KG | 1000KG | 2000KG | 2500KG |
Overall dimensions | 2300*1200*1800mm | 3587*1388*1828mm | 5302*2120*1809mm | 5965*2120*2,150mm |
Features

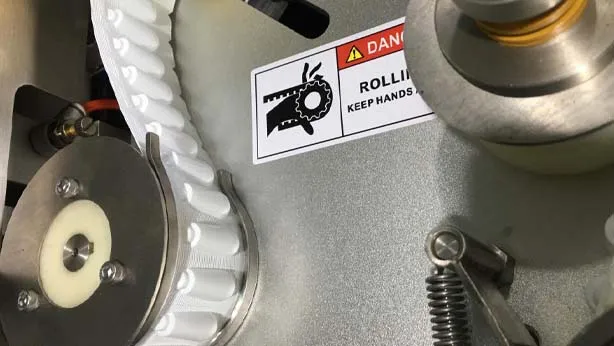

01. The insertion type linear perfusion mechanism
-- The insertion type linear perfusion mechanism can be used to locate accurate, not dropping, and not hanging wall; The
single-grain measurement is 0.5-5g and the filling error is plus or minus 2%.
single-grain measurement is 0.5-5g and the filling error is plus or minus 2%.
02. Production capacity
-- The production capacity is 4500-5000 grain/hour.
-- The temperature sensor and microcomputer control system are used to realize high precision thermostatic control.
-- The temperature sensor and microcomputer control system are used to realize high precision thermostatic control.

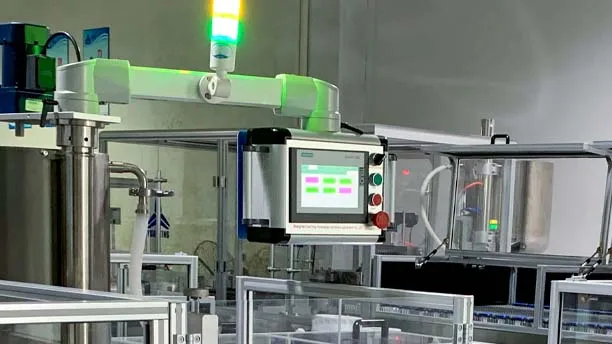

03. Siemens PLC control system
-- The equipment adopts PLC programmable control and man-machine interface operation, easy operation, convenient adjustment, accurate temperature control and smooth operation.

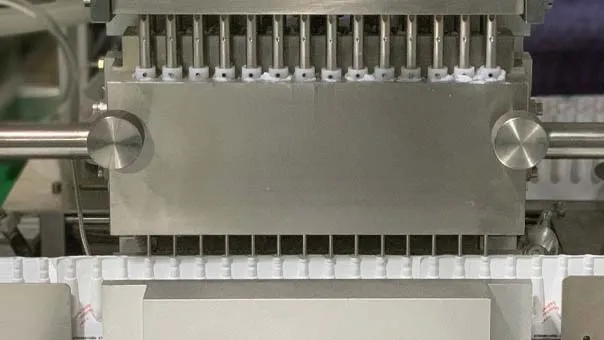

04. Servo high precision filling system
-- Filling, freezing, sealing and other production processes are fully automatic.
-- Filling piston by servo motor with stroke rule, easy to observe, stable action, no jitter and splash phenomenon, load online adjustable, high precision and easy to adjust!
-- Filling piston by servo motor with stroke rule, easy to observe, stable action, no jitter and splash phenomenon, load online adjustable, high precision and easy to adjust!

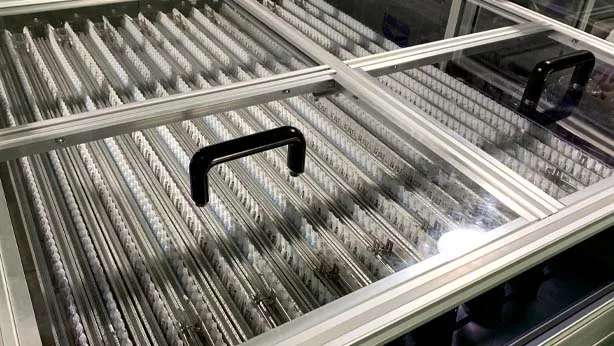

05. exclusive circulation of water cooling system
-- latest circulating water cooling technology, which can solve the phenomenon of slag falling off and easy fracture when the medicine is torn apart.
-- exclusive circulation of water cooling system advantages of thick tail edge, tear off residue.
-- The temperature is adjustable.
-- exclusive circulation of water cooling system advantages of thick tail edge, tear off residue.
-- The temperature is adjustable.

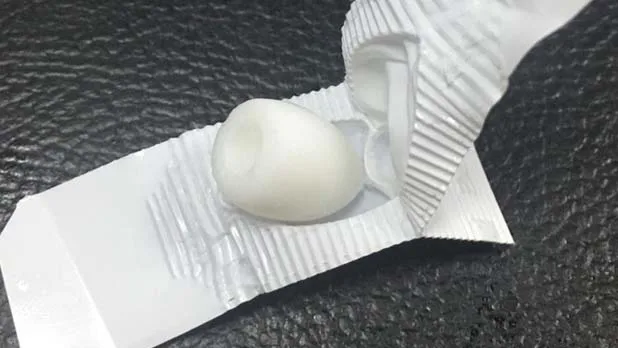

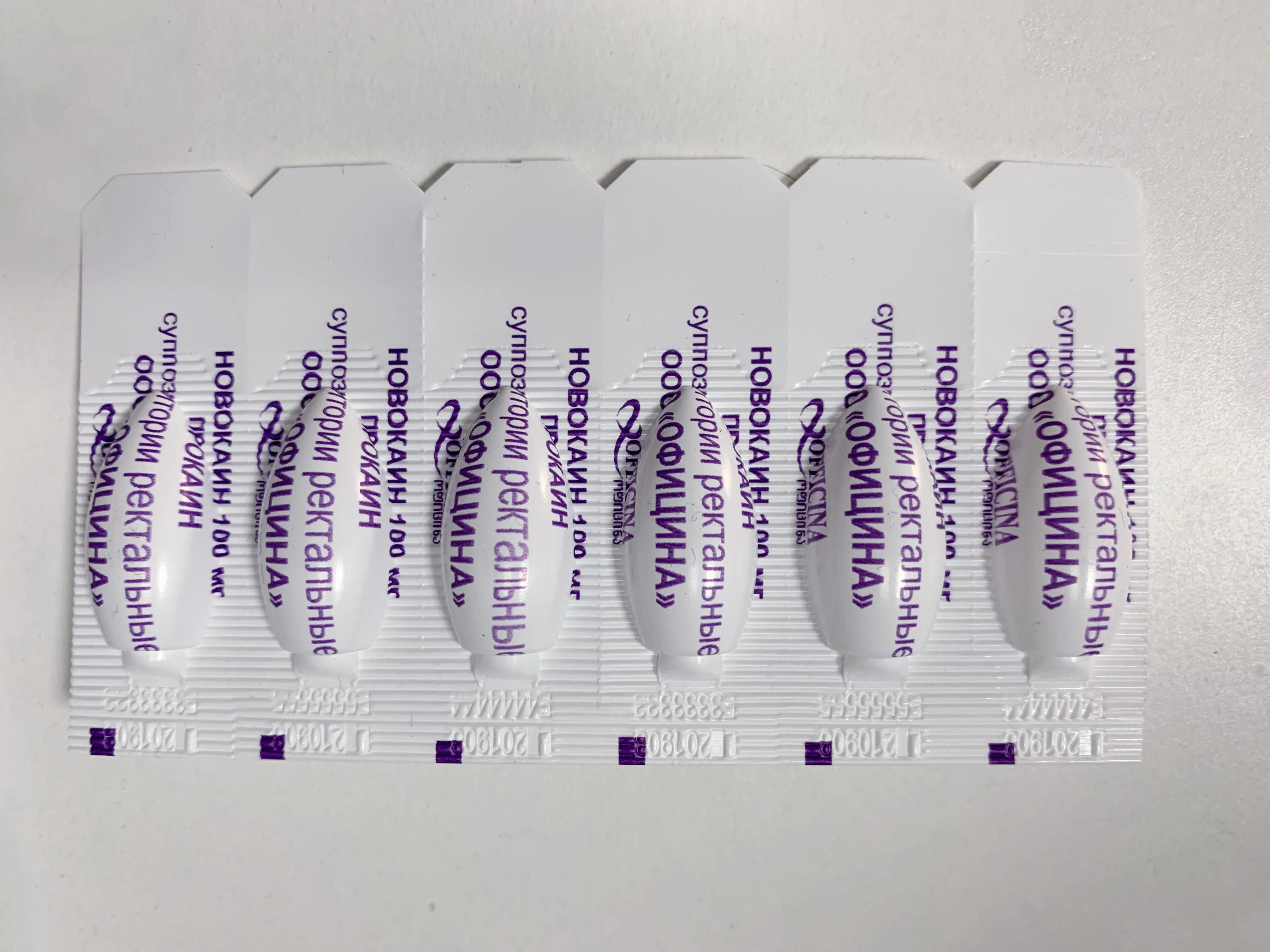

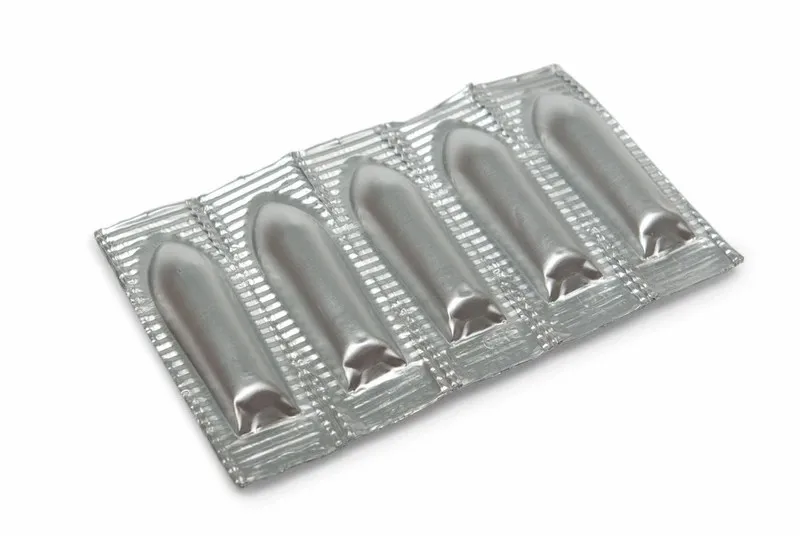

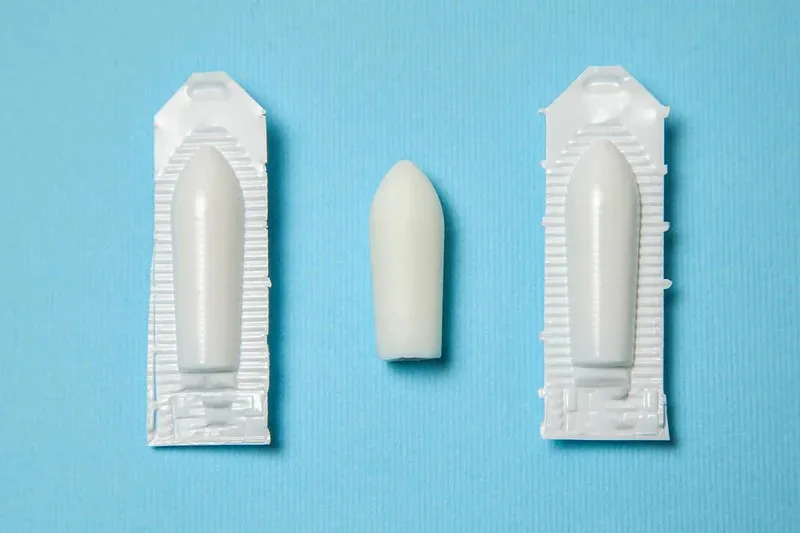

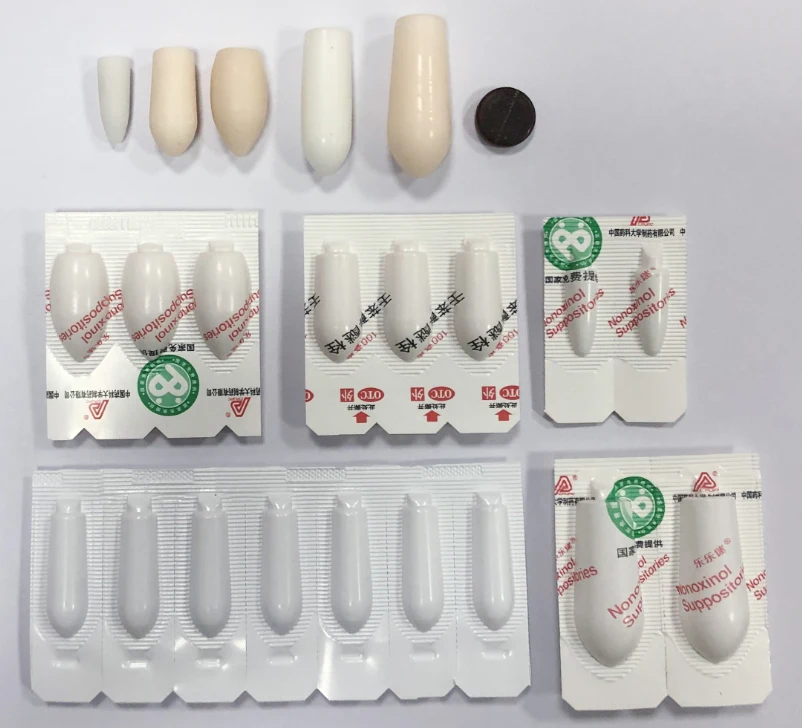

06. Finished product
The sealing seal should be well sealed, with neat appearance and good value of not less than 99.%.
Company Profile
Our Company
Zhejiang LeadTop Pharmaceutical Machinery Co.,ltd well known as LTPM China. Since year 1996, we are start manufacturing Oral Solid Dosage Pharmaceutical Machinery includes Mixing Machine, Drying Equipment, granulation line, IBC Bin and Bin Washing Machine. As year passed, LTPM China absorb advanced domestic and abroad technology, we export machinery to more than 30 countries all over the world. LTPM China is considered one of the major Pharmaceutical Machinery Supplier and exporter in China mainland. Professional,Enthusiasm, Service and Team Work has been always our value to create for our Staff and customers. As year 2012 we position our value as “A Pharma Machinery Division, For A Better Life”, creating a Win-Win Platform for our clients and staff for a better life is our vision.
Our Certificates
ISO, CE, SGS, BV Certified Company.
Our Machinery Manufacturing Workshop
Imported CNC Machining Centre makes all parts process accurate. Own R&D team with more than 20 years engineering expereince, can customize the equipment and packaging line to your satisfaction.
Professional Business Team
Warm, professional business team, careful response to your inquiry, timely response rate of more than 93%, higher than the average level of the industry.
Packing & Shipping
All machine delivery with anti rust spray, film wrapping and Sea shipping affordable wooden box.
