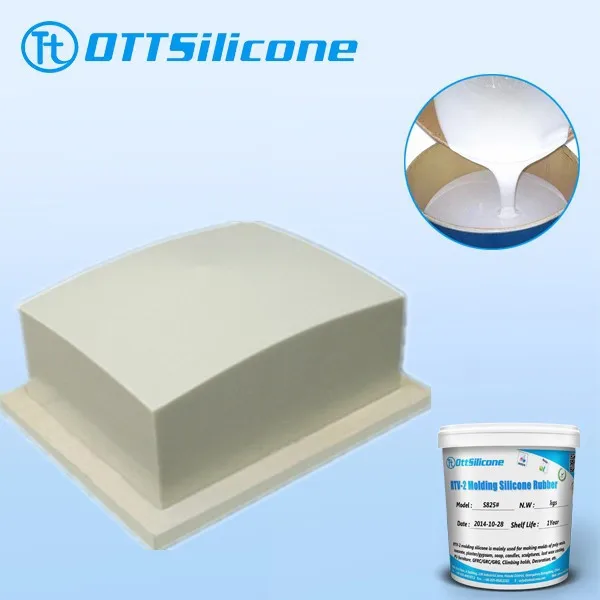

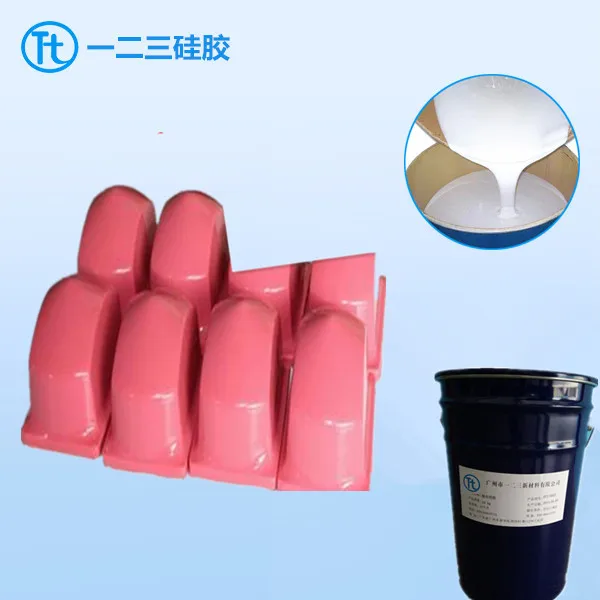

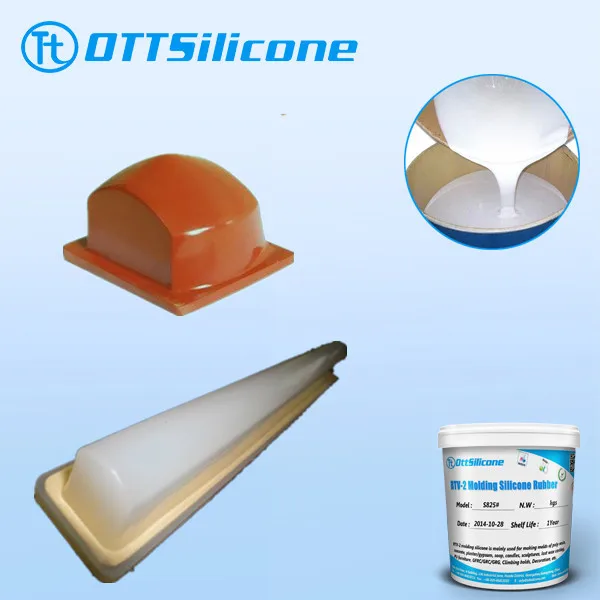

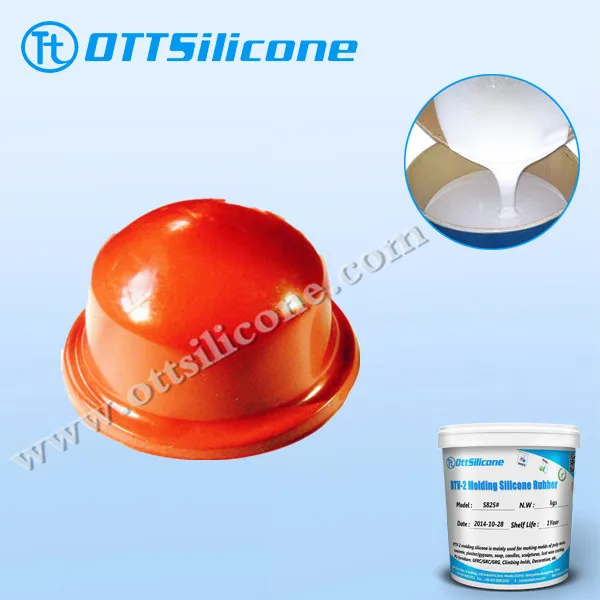

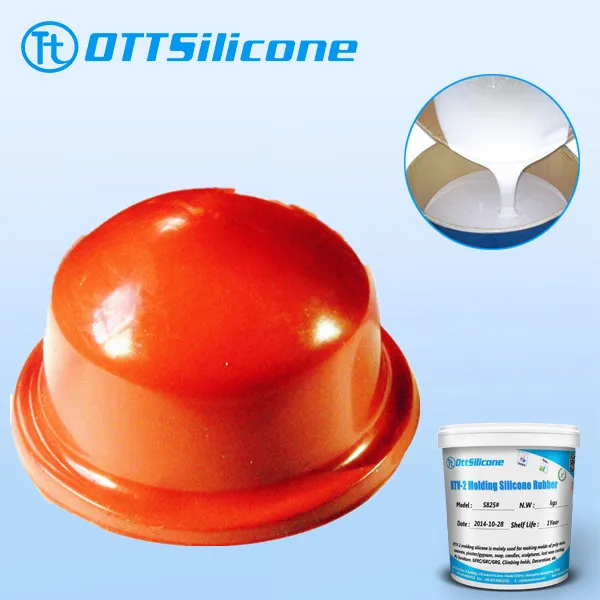

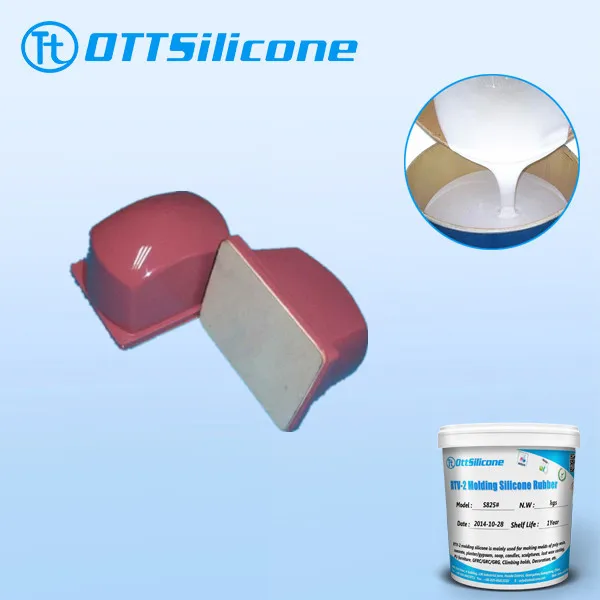

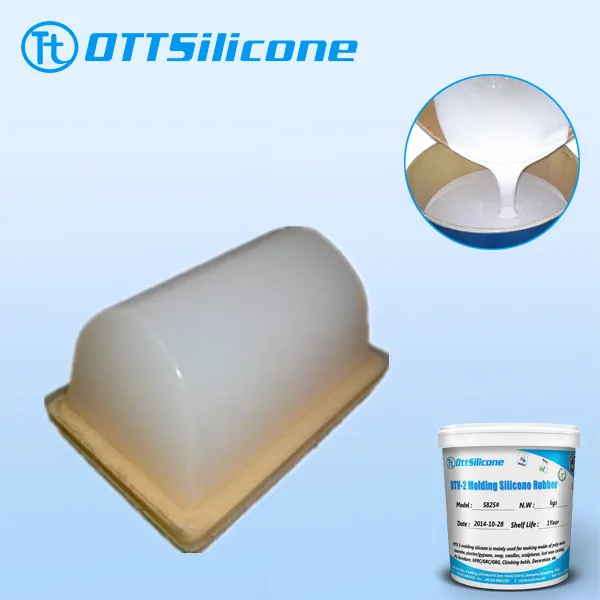

Cheap price RTV-2 silicone rubber liquid for silicone pad printing
Application & Characteristic of RTV-2 Silicone Rubber for Pad Printing Transfer Pad Making, liquid silicon rubber
1. RTV-2 Silicone Rubber for Pad Printing Transfer Pad Making, liquid silicon rubber is a two-component silicone rubber, and can be vulcanized in room temperature. Solidify time depends on the mount of curing agent, the more the curing agent, the faster the curing.
2. RTV-2 Silicone Rubber for Pad Printing Transfer Pad Making, liquid silicon rubber is used for surface printing of plastic and hardware products. It has good resistance to wearing, no distortion, no leakage and good ink transfer property.
Datasheet of RTV-2 Silicone Rubber for Pad Printing Transfer Pad Making, liquid silicon rubber
| Item | Mixing Ratio | Color | Hardness (Shore A) | Viscosity (mPa·s) | Working Time (30℃) | Curing Time (30℃) | Tear-Strength (kN/m) | Tensile-Strength (MPa) | Elogation (%) | Shrinkage (%) |
| OTT-Y230 | 9:1 | green | 30±2 | 6000±2000 | 20-30mins | 3h | ≥25 | ≥5 | ≥400 | ≤0.1 |
Instruction of RTV-2 Silicone Rubber for Pad Printing Transfer Pad Making, liquid silicon rubber:
1. Preparing
According the letters you want to printing to prepare the mold, choose the right hardness silicone and the catalyst, then clean the mold with detergent, dry it with air gun, and then brush a layer of release agent, dry it again.
2. Mixing
Please weigh Part A silicone base and part B Curing Agent with ratio of 9: 1 into a clean container. Stir Part A base silicone thoroughly before use, then Mix Part A and Part B evenly until the curing agent completely dispersed in the silicone base. Manual or mechanical mixture can be used, but do not last much time or allow the temperature to exceed 35C (95F). It's suitable to mix small quantities to ensure thorough mixture of silicone base and curing agent.
Note: It is strongly recommended that entrapped air be removed in a vacuum chamber, allowing the mixture to completely expand and then collapse. After a further 1 to 2 minutes under vacuum, the mixture should be inspected and can be used if free of air bubbles. A volume increase of 3-5 times will occur on vacuum de-airing the mixture. So a suitably large container should be chosen.
3. Pouring the mixture and curing
Pour the mixed Part A base silicone and curing agent as soon as possible onto the original object, avoiding air entrapment. The catalyzed material will cure to a flexible rubber within 6 hours (or faster by different mixing ratio or room temperature), we advice you de-mold after 24 hours, it is will improve the replicate times of silicone mold.
Storage, Transportation and Notes of RTV-2 Silicone Rubber for Pad Printing Transfer Pad Making, liquid silicon rubber
1.The products should be deposited in a clean, ventilating and shade place.
2. The products are non-dangerous goods.
3. Avoid skin and eyes contacting with the curing agent in processing.
4. Once exposed, immediately wash with certain detergent and water. If splash into eyes, should wash with flowing water at least 15 minutes and consult a doctor.

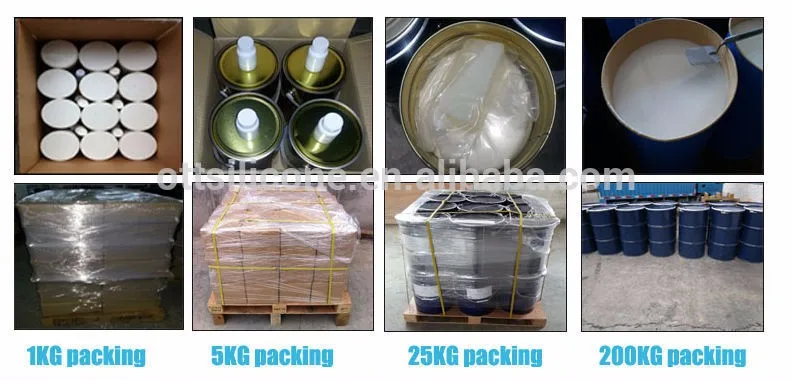

Packing: 20kg/25kg/200kg per drum
Shipping: by air & by sea
Delivery time: within 3-5 days after your payment confirmed in our bank
