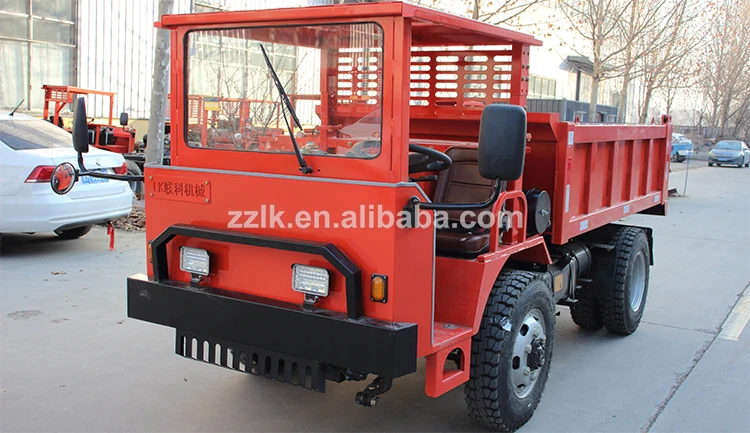

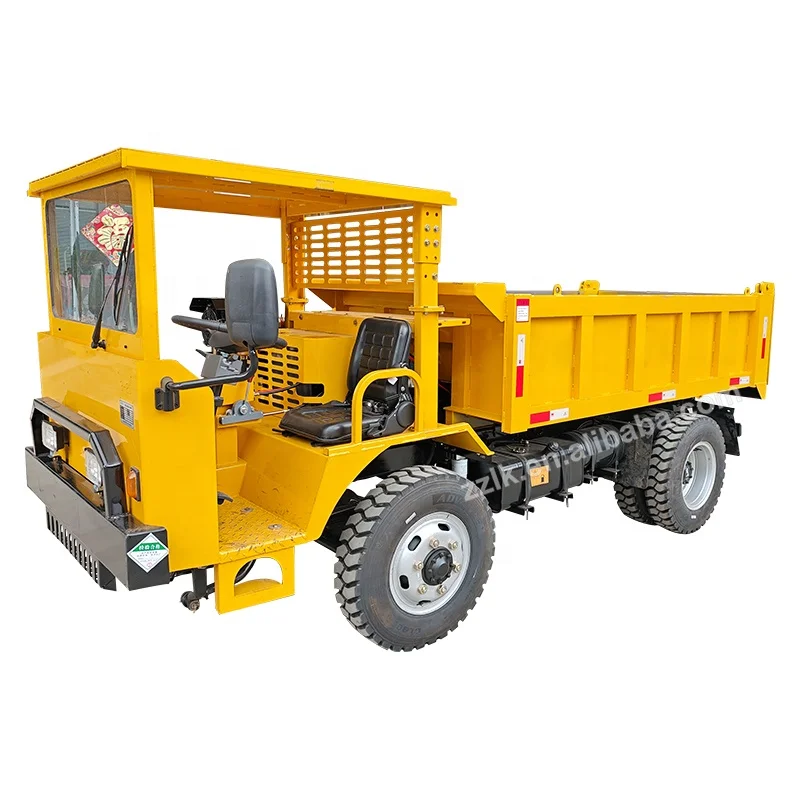

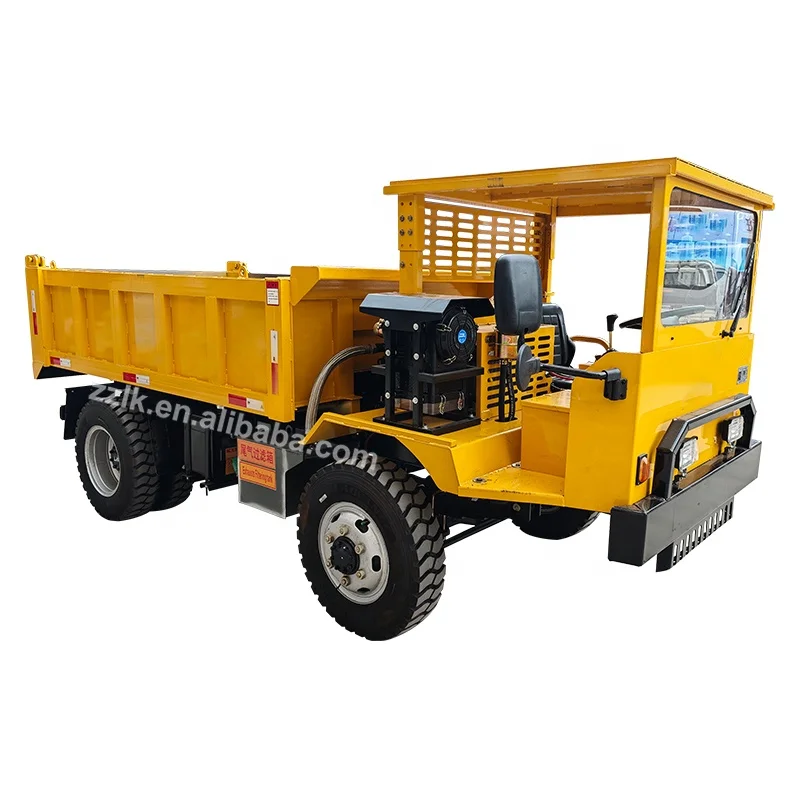

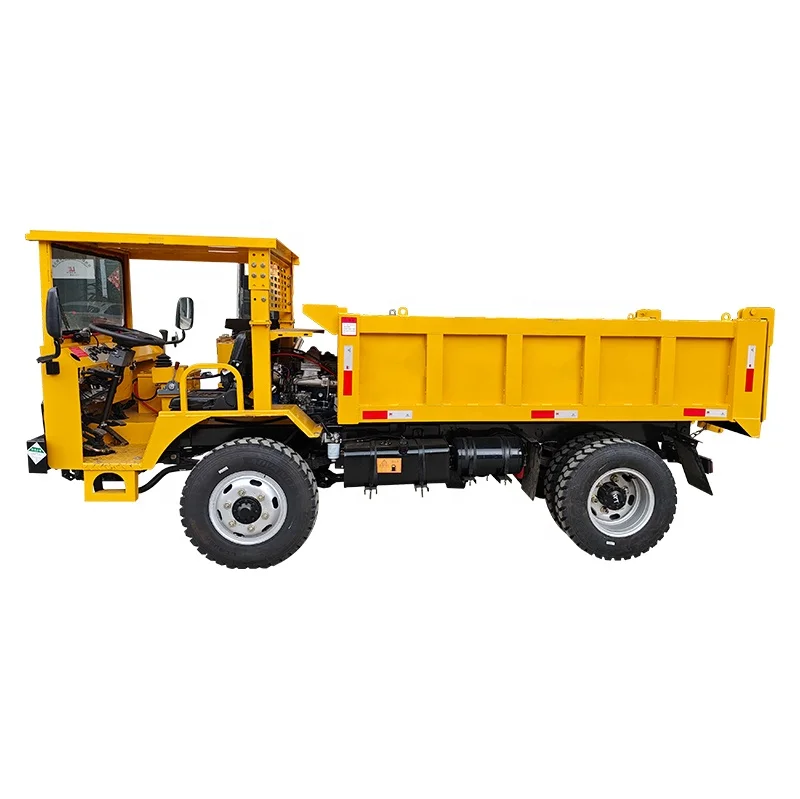

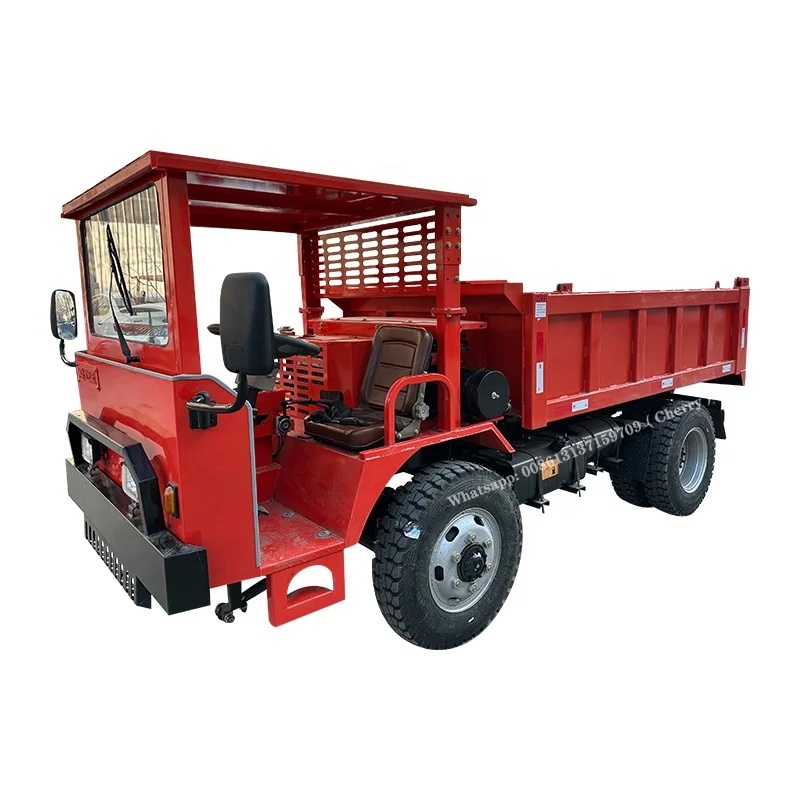

cargo tipper truck/mining dumpers mining dump truck/LIANKE mini truck mining truck vehicle
- Category: >>>
- Supplier: Zhengzhou Lianke Machinery Manufacture Co. Ltd.
Share on (1600746242702):
Product Overview
Description
Product Description
The mining dump truck has luxurious appearance, beautiful appearance, strong durability, large bearing capacity, and comfortable handling. It is an ideal tool for transporting ore residues and road transportation in the mining area.
NANGJING, WANGLIYANG and other gearboxes can be selected according to different models, which are reliable, fuel saving, transmission efficiency and fast shift response.
The power of the mining dump truck is increased, and the bearing capacity is strong. The engine can be selected to the YUNNEI brand.
NANGJING, WANGLIYANG and other gearboxes can be selected according to different models, which are reliable, fuel saving, transmission efficiency and fast shift response.
The power of the mining dump truck is increased, and the bearing capacity is strong. The engine can be selected to the YUNNEI brand.
Main technical specifications and parameters | ||
Product model | 6-ton rear drive mining truck | |
Fuel category | Diesel | |
Engine model/power | YUNNEI 42kw/57hp | |
Transmission model | Wanliyang 530 rear auxiliary transmission (12-speed high and low speeds) | |
Drive mode | Rear wheel drive | |
Braking mode | Air brake | |
Overall sivze | 4600*1630*1500mm | |
Cargo box size | 2850*1600*500mm | |
Deadweight | 6000kg | |
Tail gas treatment | Water treatment purifier | |
Steering gear | Full hydraulic power | |
Rear wheel track | 1630mm | |
Front wheel track | 1630mm | |
Wheel base | 2350mm | |
Frame size (height, width and thickness) | 140*60*10mm | |
Front tire model | 700-16 | |
Rear tire model | 700-16(rear double wheel) | |
The thickness of cargo plate | 8mm at the bottom and 5mm at the side | |
Cargo box volume (m³) | 2.28 | |
Detailed Images
Strong driving force

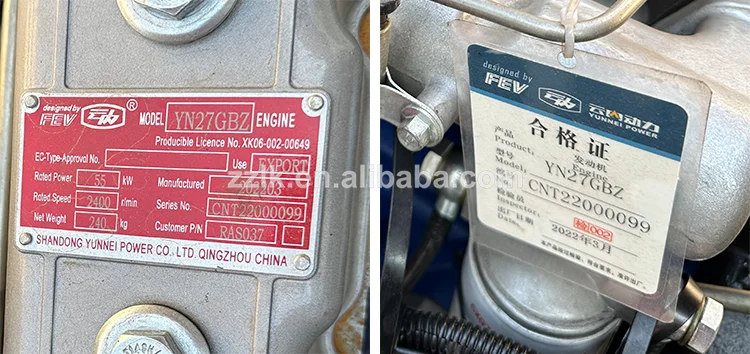

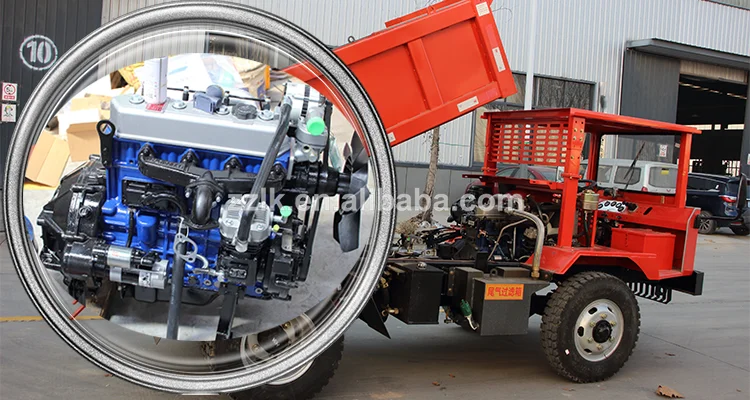

Cooperate with Yunnei brand engine, with strong power, stability and efficiency.
High transport efficiency

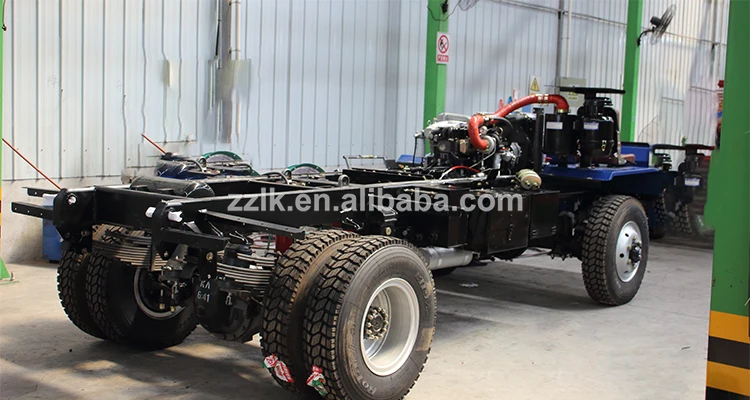

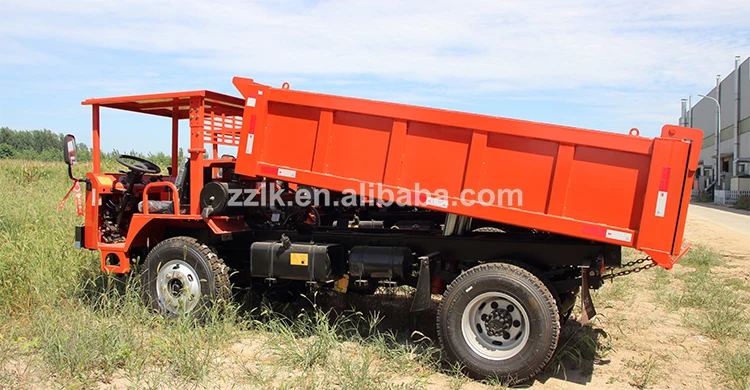

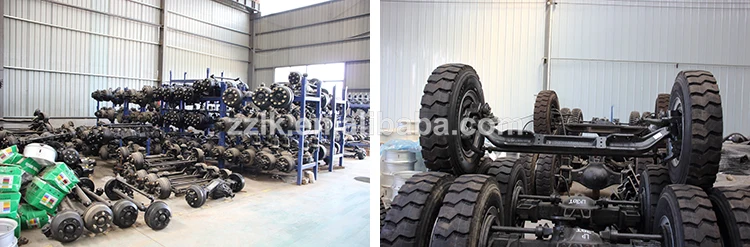

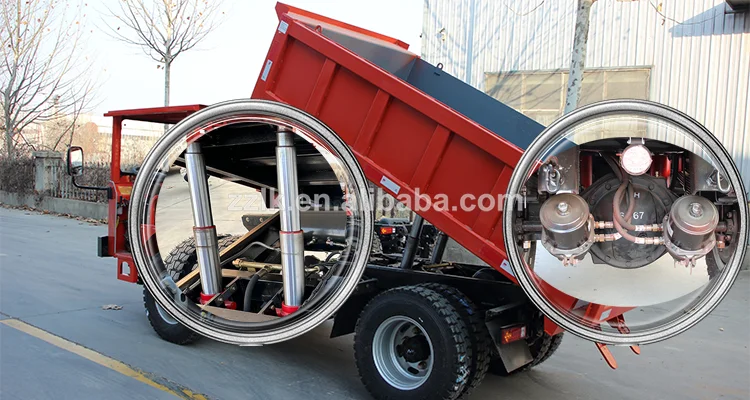

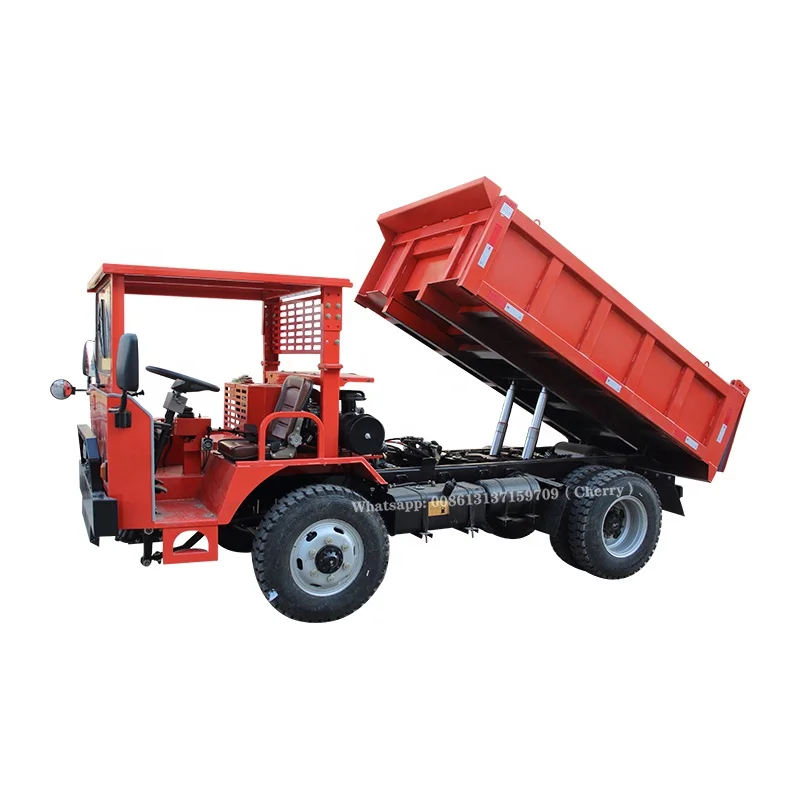

The rear axle adopts low-speed ratio, with large torque, strong load capacity and stable quality. Hydraulic dump, high strength and heavy. Low cost, stable operation and high transportation efficiency.
Long service life

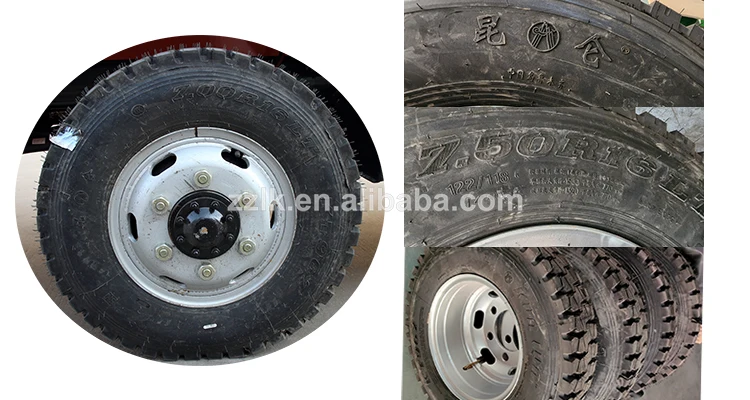

Kunlun mine tire is wear-resistant, high-temperature and puncture resistant.
Meet the needs of various occasions

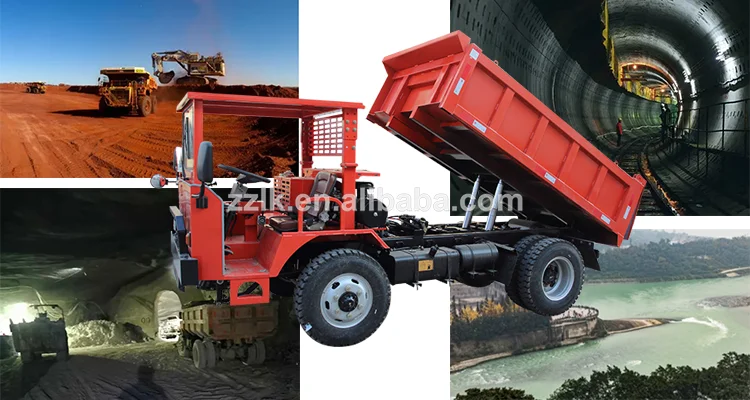

In mining area, roadway, subway tunnel, water conservancy project and other complex environment, can be easily coped with.
Parameters of 4-ton rear drive mine truck | ||
Engine model | 42kw/57hp | |
Transmission | Nanjing 130 transmission with high and low speed | |
Cargo box size | 2400*1500*450mm | |
Overall size | 4000*1500*1300mm | |
Tire | 700-16 mine tire (rear single wheel) | |
Braking mode | Air brake | |
Axle | Front axle Isuzu, rear axle Isuzu | |
Parameters of 8-ton rear drive mine truck | ||
Engine model/power | Yunnei 4102/70KW | |
Transmission model | Wanliyang 530 rear auxiliary transmission (12-speed high and low speeds) | |
Cargo box size | 3000*1800*600mm | |
Overall size | 4700*1800*1650mm | |
Tire | 750-16 (rear double wheels) | |
Braking mode | Air brake | |
Axle | Front axle LN1098, rear axle LN1098 | |
Support customization, thickened steel plate, 4-8 tons load.

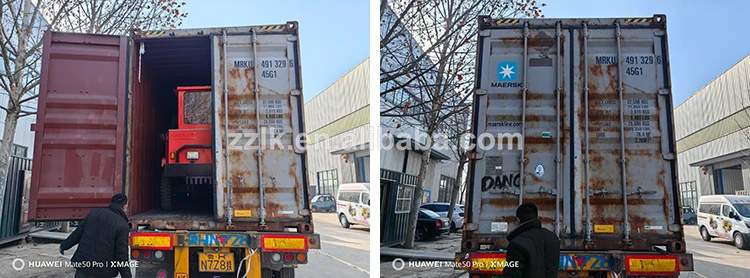

Packing & Delivery

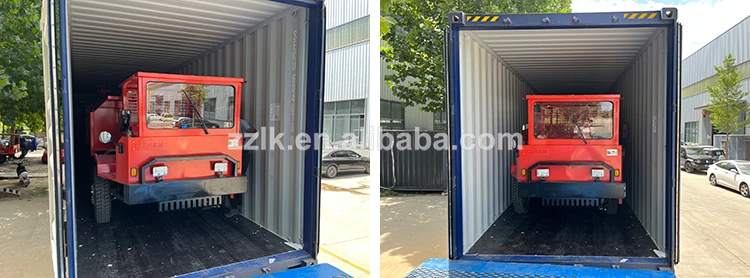

FCL Delivery for the order quantities 1-3 sets, normally we advise to adopt full container load, full container shipment without any demolition, it‘s more convenient transportation and cost savings.One 20GP container can be held 1 sets. One 40HC container can be held 3 sets.

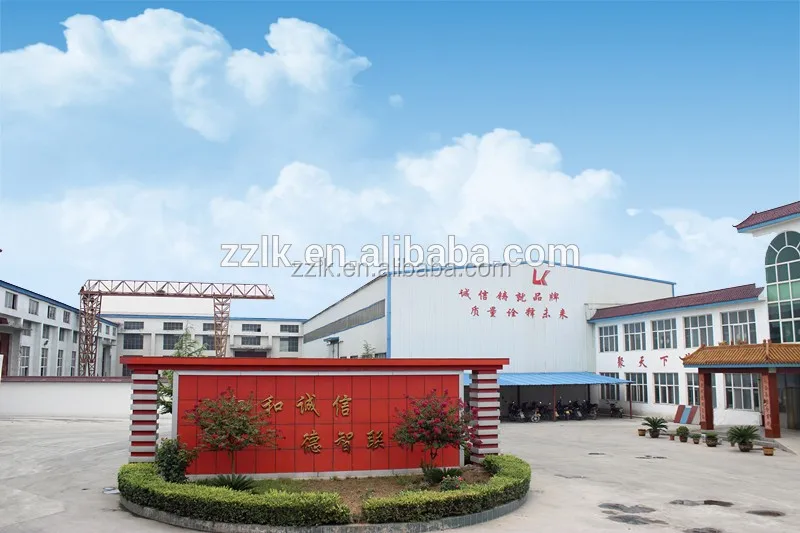

Company Profile

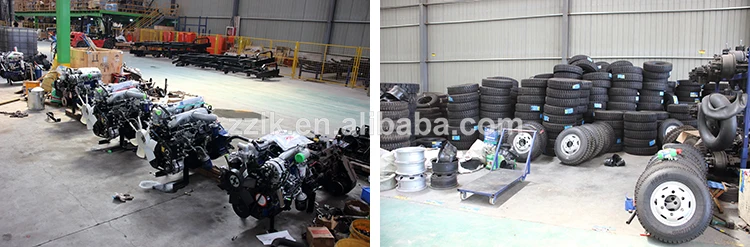

Zhengzhou Lianke Machinery Manufacture Co.,Ltd. is a specialized in mining dump truck. We are holding this line for more than 30 years, with well-equipped testing facilities and strong technical force. Our products are exported to many countries all over the world. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in construction, woodworking and other industries. Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
Warranty
(1)The mini dumper all parts quality assurance period for 15 months. In normal use circumstances, there is any quality problem during warranty period, we will use DHL, UPS, or other express delivery to send the accessories freely for customers after determine the damaged parts.
(2)We will try our best effort to solve, whenever customers have a problem.
Warranty
(1)The mini dumper all parts quality assurance period for 15 months. In normal use circumstances, there is any quality problem during warranty period, we will use DHL, UPS, or other express delivery to send the accessories freely for customers after determine the damaged parts.
(2)We will try our best effort to solve, whenever customers have a problem.
Related Product

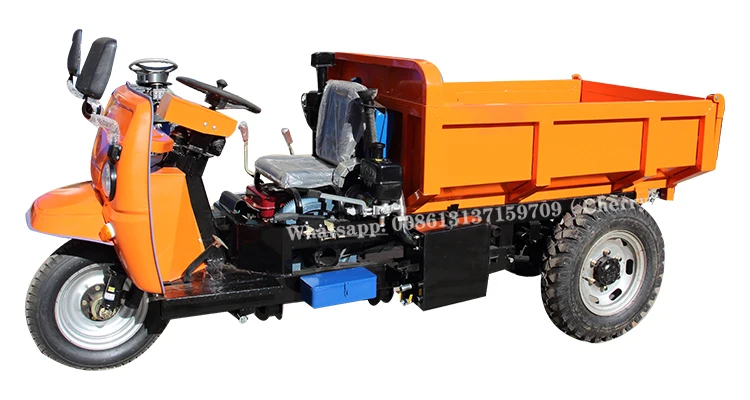

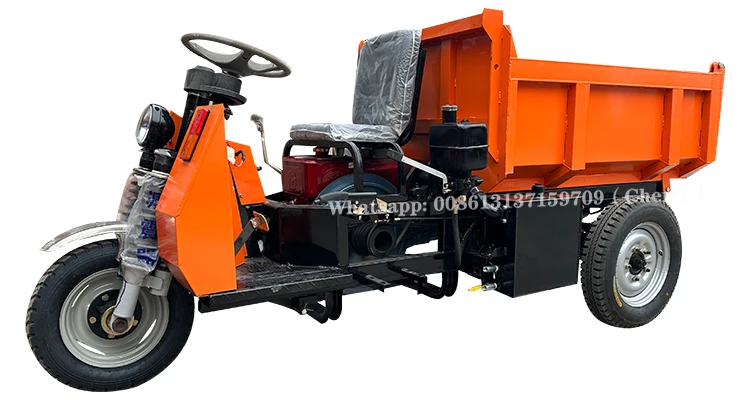

LK135D three wheel diesel mini truck
