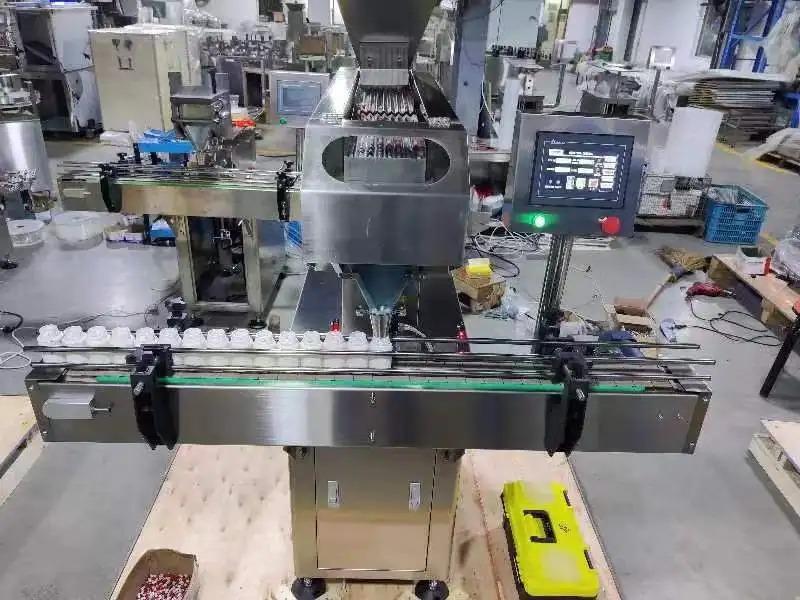

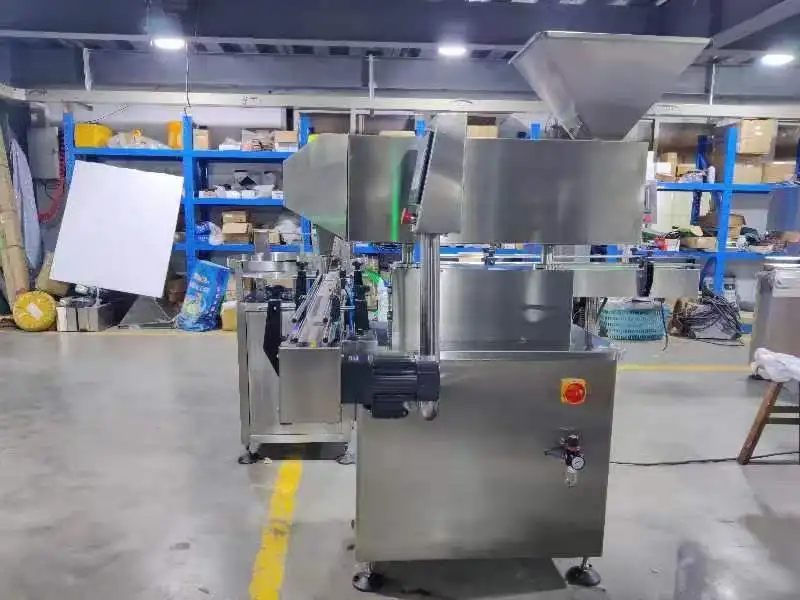

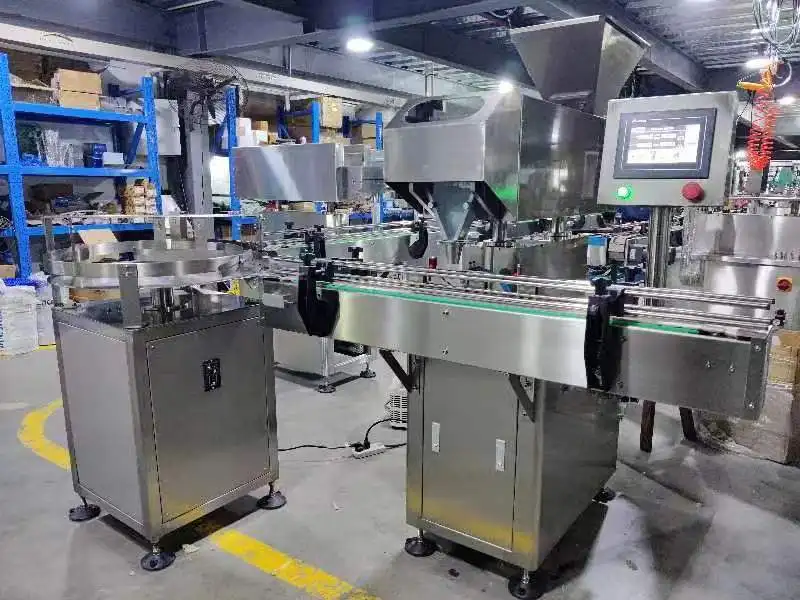

8 Channel capsule automatic bottle filling counting and packing machine
- Category: >>>
- Supplier: Jiangyin Yongchang Medicine Machinery Co. Ltd.
Share on (1600746299996):
Product Overview
Description
Product Overview
PRODUCT CONFIGURATION
Model | YL-8 |
Capacity | 10-40bottel/min |
Filling material | 00～5# capsule、,soft capsule，ф5.5～16Plain tablet, special-shaped tablet, sugar-coated tablet，ф5～16 pills |
Filling range | 2～9999 pcs |
Motor voltage | 220V/50HZ 0.6KW |
Bottle height | 40-270MM |
Applicable bottle | 10-500ml Round bottle, square bottle |
Presicion | ＞99.5% |
Machine size | 1360X1250X1550MM |
Weight | 300KG |
Remarks | Production speed is related to drug variety, size, bottle specification and bottle quantity |
Machine overview
1. The chassis is mainly used to support vibrating magnetic block, vibration trough, hopper, conveying track, etc. At the same time, an electrical distribution system is installed in the box.

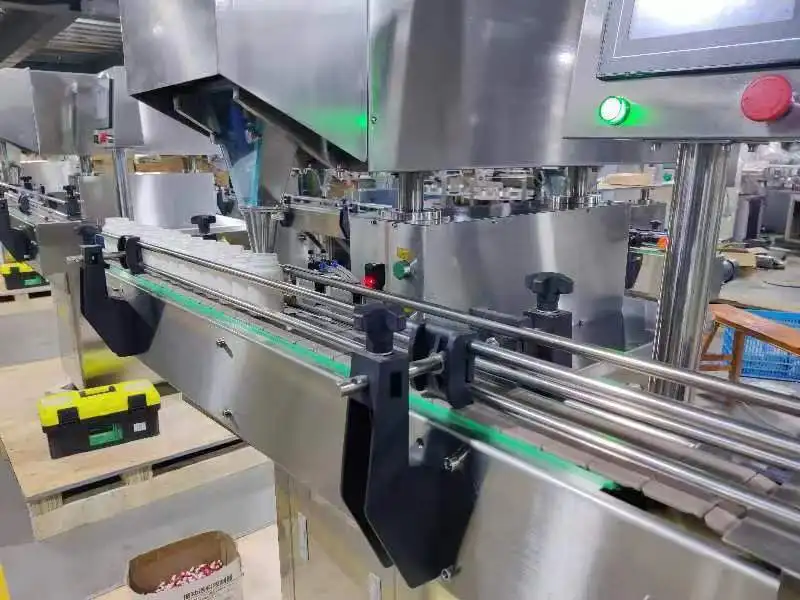

2. The conveying track is mainly used to transport a steady stream of bottles, which makes the unit work continuously. The adjustable speed switch is installed on the right inner side, which can be adjusted and start and stop the operation of the track according to different requirements. There is an emergency stop knob switch on the outside of the track. During the operation of the equipment, if an accident occurs, the emergency stop knob can be pressed to make the equipment stop in time. Conveying track can adjust the height to meet the needs of different bottle heights, mainly adjust the fixed screw position of the two triangular supports below the track.
3. The main function of the electromagnetic vibrator is to pave the particles down the hopper, and to realize the preparation work of counting. There are two groups.
4. The operation panel can be touched on the panel to set the parameters of the equipment.
2. The conveying track is mainly used to transport a steady stream of bottles, which makes the unit work continuously. The adjustable speed switch is installed on the right inner side, which can be adjusted and start and stop the operation of the track according to different requirements. There is an emergency stop knob switch on the outside of the track. During the operation of the equipment, if an accident occurs, the emergency stop knob can be pressed to make the equipment stop in time. Conveying track can adjust the height to meet the needs of different bottle heights, mainly adjust the fixed screw position of the two triangular supports below the track.
3. The main function of the electromagnetic vibrator is to pave the particles down the hopper, and to realize the preparation work of counting. There are two groups.
4. The operation panel can be touched on the panel to set the parameters of the equipment.
Working principle

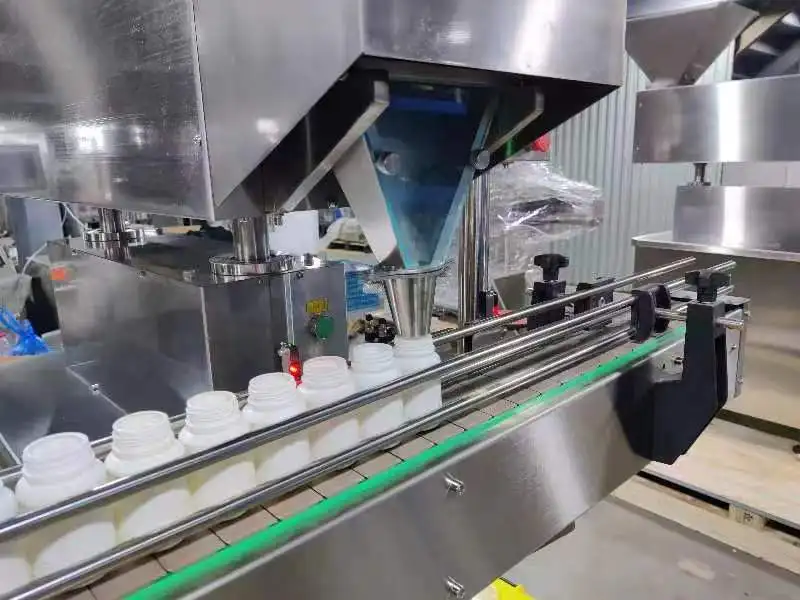

The product uses the principle of photoelectric induction to count, bottle, transport the medicine particles induced, and all the running data can be monitored and set in real time. The machine has a total of 8 vibration "V" groove, the use of vibration effect automatically transferred into the lower hopper particles count one by one. A bottle stopper electromagnet is installed on the side of the track to ensure that the bottle stops when filling. When the set amount of filling is completed, the electromagnet opens automatically and the bottle is transported out of the track. Bottle photoelectric eye is installed on the left side of the track to detect whether empty bottles are waiting for the next bottling work. If no bottles are detected, if so, repeat the above operation. If there is no vibration device will stop working.
Main features
Good compatibility
Tablets (including special-shaped tablets), capsules, soft capsules (transparent, opaque), pills and other solid preparations or solid particles can be counted and bottled.
To prevent plugging medicine
Special structure of leakage mouth, can prevent blocking, small bottle mouth can also be fast bottling. (optional)
Material without damage
The feeding and discharging materials are uniform and smooth, and the unique bottle switching structure does not damage the materials and ensures accurate bottling.
High resistance to dust
Using the company's anti-high dust photoelectric sensing technology, in the case of high dust can work stably.
Tablets (including special-shaped tablets), capsules, soft capsules (transparent, opaque), pills and other solid preparations or solid particles can be counted and bottled.
To prevent plugging medicine
Special structure of leakage mouth, can prevent blocking, small bottle mouth can also be fast bottling. (optional)
Material without damage
The feeding and discharging materials are uniform and smooth, and the unique bottle switching structure does not damage the materials and ensures accurate bottling.
High resistance to dust
Using the company's anti-high dust photoelectric sensing technology, in the case of high dust can work stably.
Company Profile
Company Profile
Jiangyin Yongchang Medicine Machinery Co., Ltd was established in 2003, combining R&D, production, foreign trade and professional service of pharmaceutical machinery as an original manufacturer.
Following sincerity, striving to be remarkable is our management concept.We have acquired great reputation in the machinery producing and marketing field, well favoured by customers. Our company has strong production capacity and sells durable and high-quality machine. And leading in peer products while we tracking the new development and technology. Our products seriously comply with the international quality system, ISO and CE. Throughout year's development, we can assure 100% good quality and has been valued one of the ten most potentical enterpreneur among pharmaceitical field. Products include five series machine for pharmaceutical , foodstuff, and industrial fields, such as grinder, mixer, pulverizer, sieve screener, granulator, conveyer, vacuum dryer etc.
Welcome friends from all over the world to consult, negotiate and order all series machinery, it's our pleasure to provide complete and considerate service for you.
Following sincerity, striving to be remarkable is our management concept.We have acquired great reputation in the machinery producing and marketing field, well favoured by customers. Our company has strong production capacity and sells durable and high-quality machine. And leading in peer products while we tracking the new development and technology. Our products seriously comply with the international quality system, ISO and CE. Throughout year's development, we can assure 100% good quality and has been valued one of the ten most potentical enterpreneur among pharmaceitical field. Products include five series machine for pharmaceutical , foodstuff, and industrial fields, such as grinder, mixer, pulverizer, sieve screener, granulator, conveyer, vacuum dryer etc.
Welcome friends from all over the world to consult, negotiate and order all series machinery, it's our pleasure to provide complete and considerate service for you.

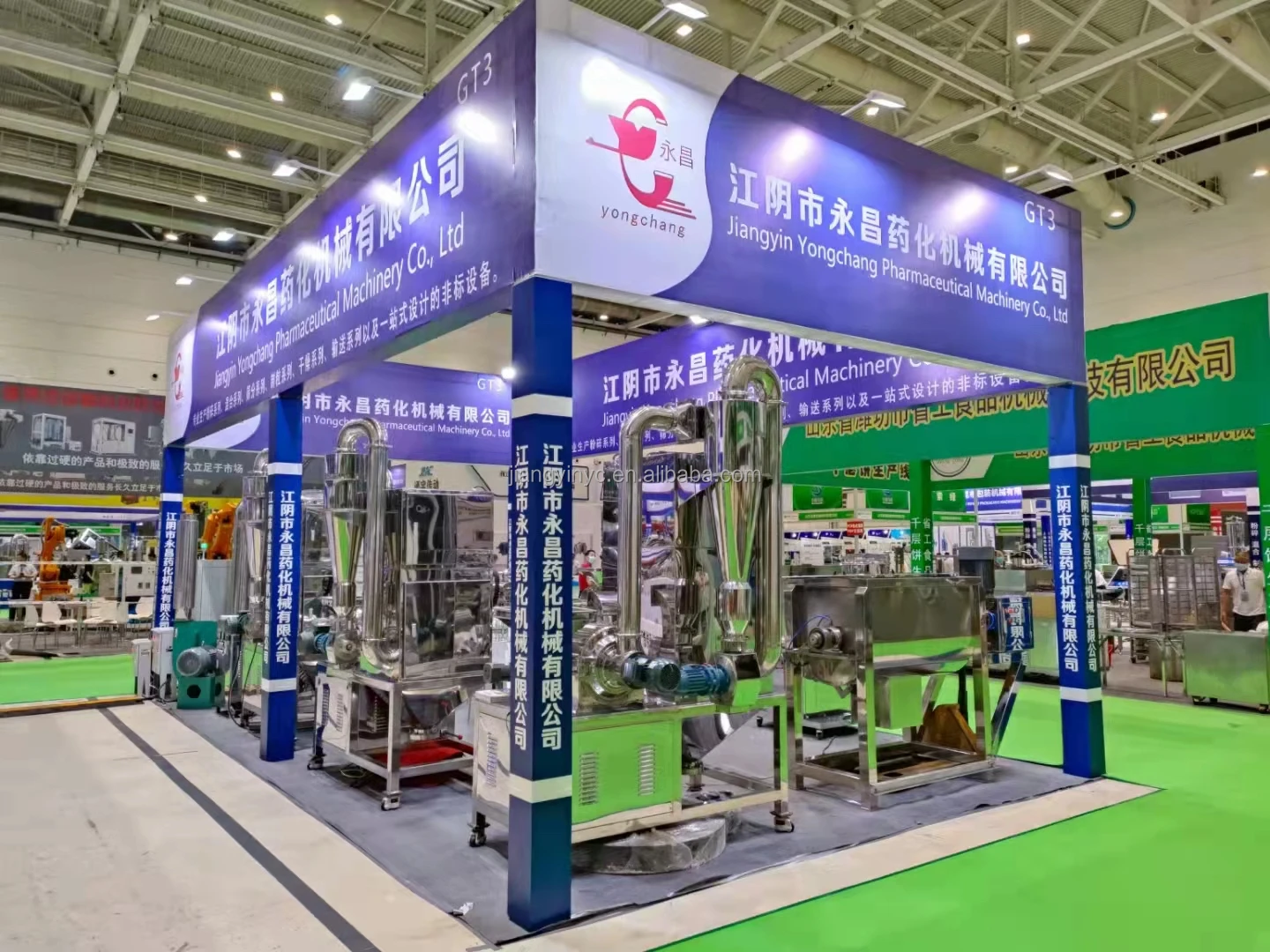

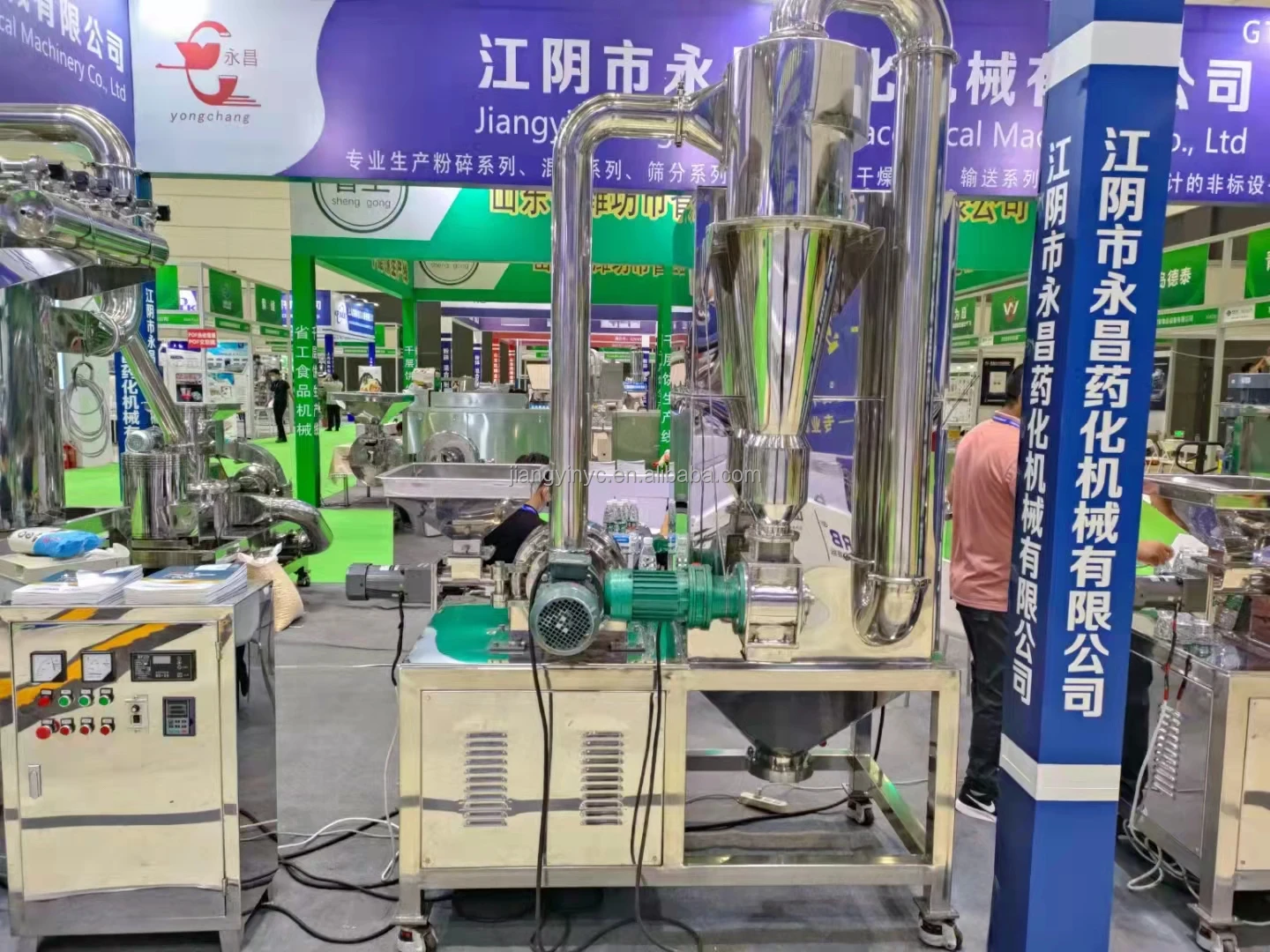

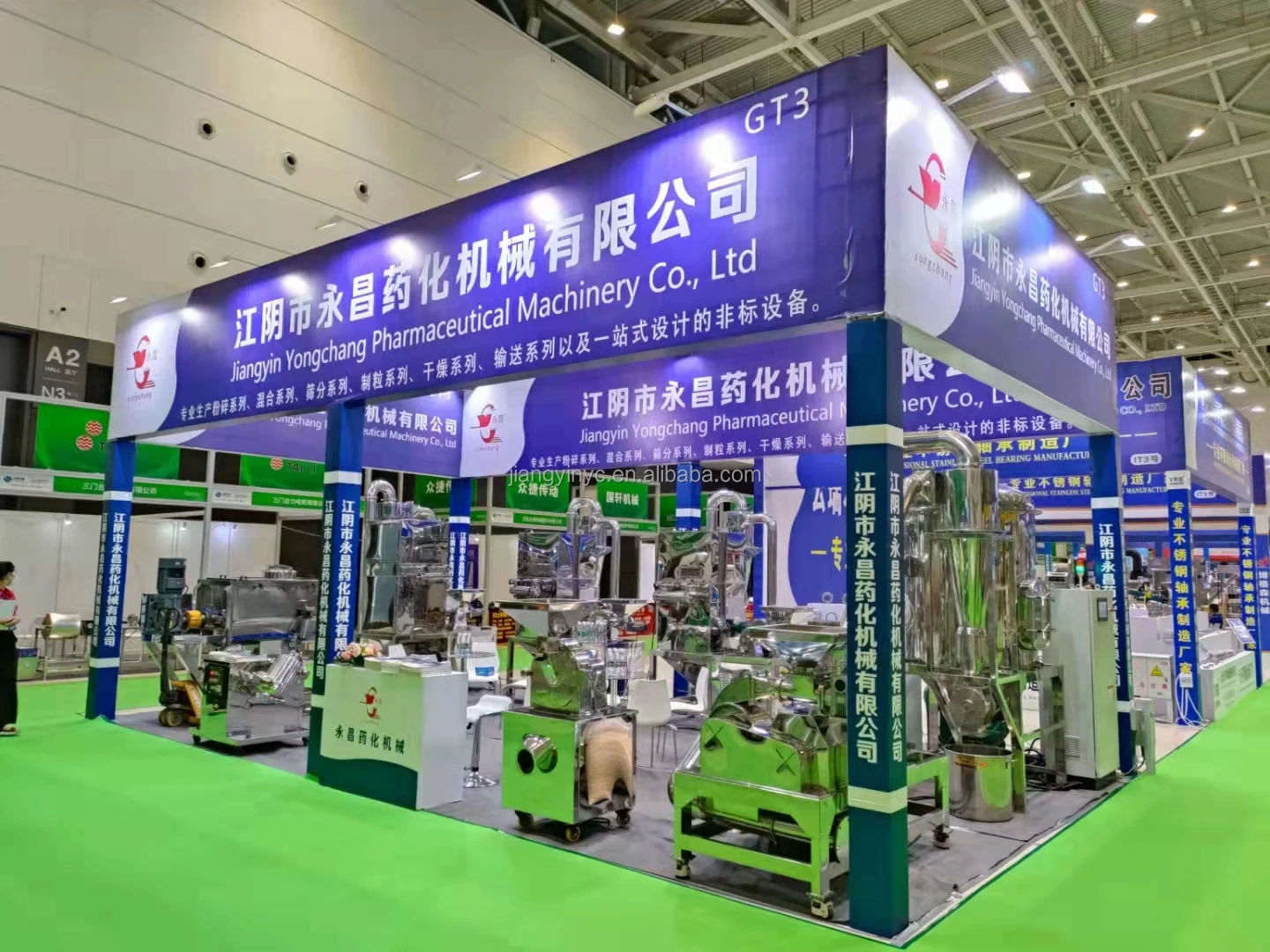

Exhibition
