Price:$25,800.00

Quantity:


Product Overview

Description



Product Description

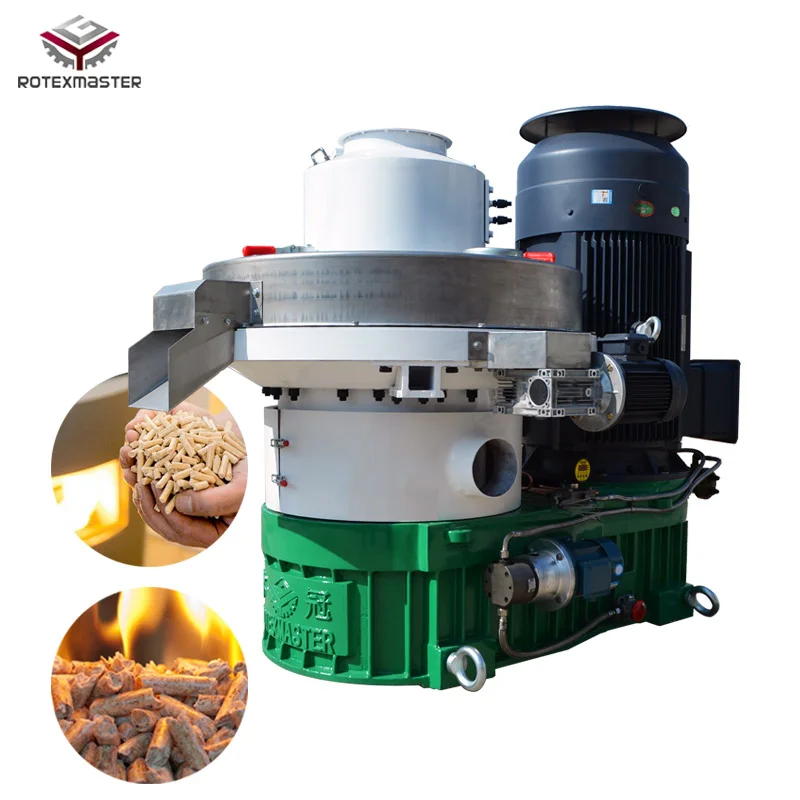

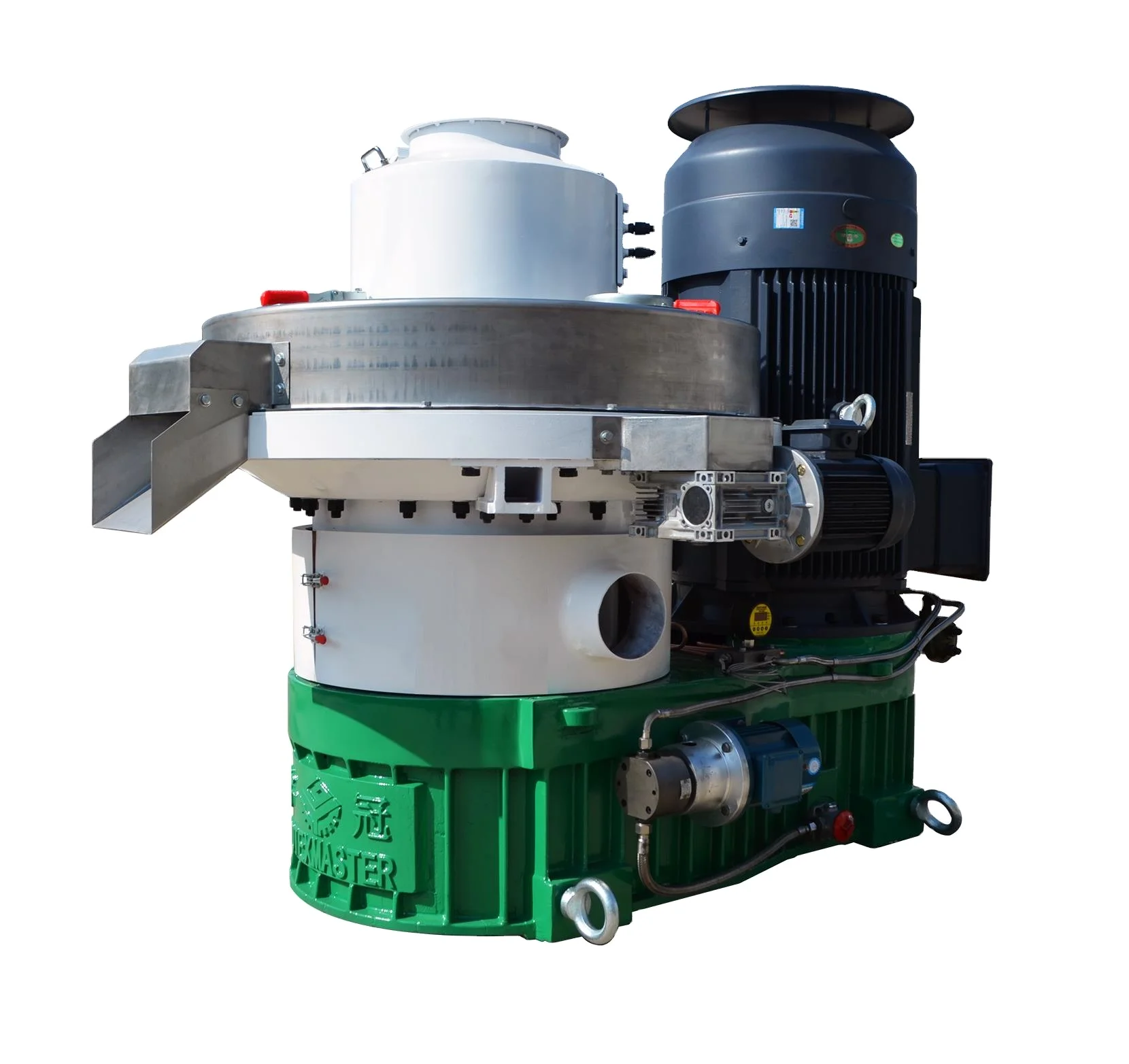

Vertical Ring Die Biomass Wood Pellet Machine

1.Overall Introduction
The new vertical centrifugal ring die pellet machine is the latest wood pellet machine in China.
This kind pellet mill machine is mainly designed for press soft and hard wood sawdust into biomass wood pellets without adding any additives.
The pellet machine adopts a large modulus hard toothed helical gearbox, strengthened spindle. Strong automation, stable operation, no need special care. It's the preferred machine in the biomass industry.




Model
Output (t/h)
Motor Power (kw)
Dimension (mm)
Pellet Size (mm)
YGKJ560
1-2
90/100/132
2200*1280*1640
6-12
YGKJ700
2-3
160/200
2450*1400*1950
6-12
YGKJ880
3-4
220/250
2800*1720*2130
6-12


2. Internal introduction

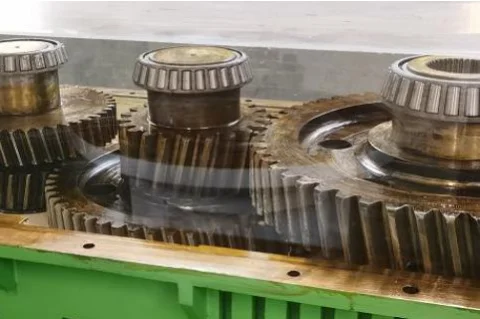

Heavy-duty gearbox transmission, gear strength is enhanced 5-10 times, low failure rate, strong stability.

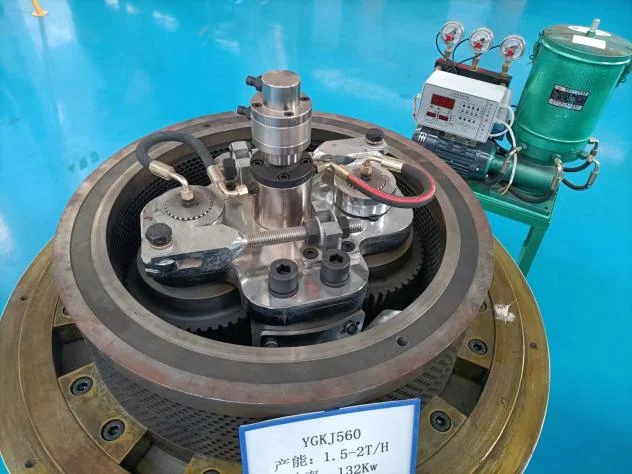

Roller without lock, less grease consumption, extended bearing life.




3. How to choose the pellet machine?
As the core equipment of the biomass wood pellet plant, the stable operation, service life and high cost performance are the most important concerning factors for buyers.




How to Achieve


1. Seiko Manufacturing Advantages

Stable operation depends on precision manufacturing




Ring Die and Roller Processing Center Introduction


Gear box processing center
The gearbox is not welded but one-time cast iron molding, no oil leakage due to thermal deformation. Weight 2.5 tons to guarantee the stability of running, no shaking.
Large gantry machining center
One time casting molding rate is very low, are you sure you bought qualified or defective products? We have acquired a large foundry to give priority to the supply of qualified gearbox to ROTEXMASTER pellet machine.


Roller press plate processing center
Main shaft processing center


2. Design Advantages

Service life depends on the designs & materials


Increase discharging area, increase production capacity
The die adopts 6-7 arrows of discharge holes to increase the discharge area and improves the production capacity. Made of stainless steel 4Cr13, heat treatment hardness HRC55-60, with service life of 1000-1200 hours.
Automatic lubrication system
The grease can be filled to roller and shaft chamber automatically. Less grease consumption, extended bearing life.

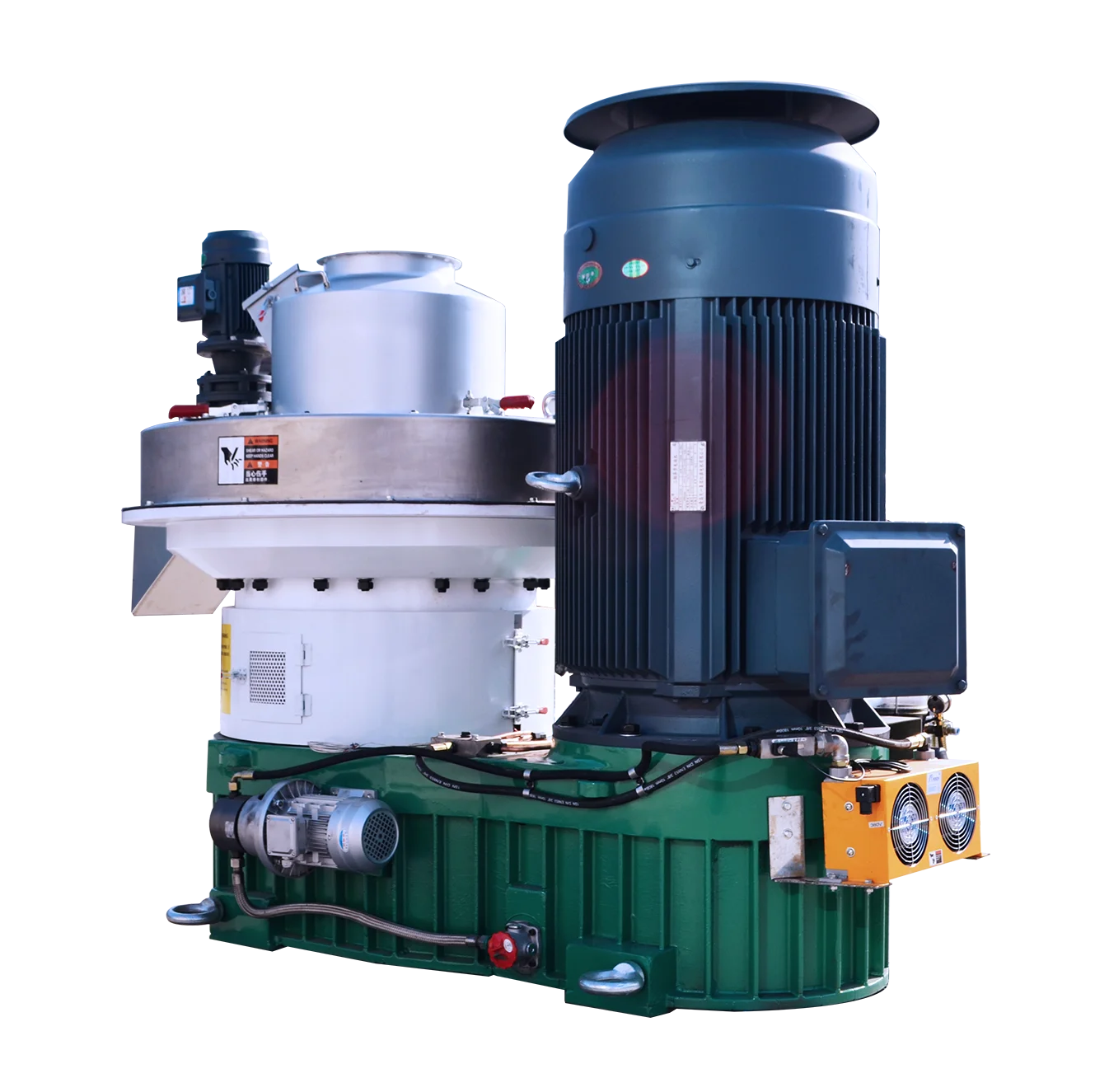

Circulation gear oil lubrication
The oil flow device is set to detect the oil volume in the reduction gearbox and whether it is blocked; The air cooling system to cool down the oil temperature and protect the gear; The oil separator is to detect the oil temperature, give an alarm in the electric cabinet and protect the bearings.

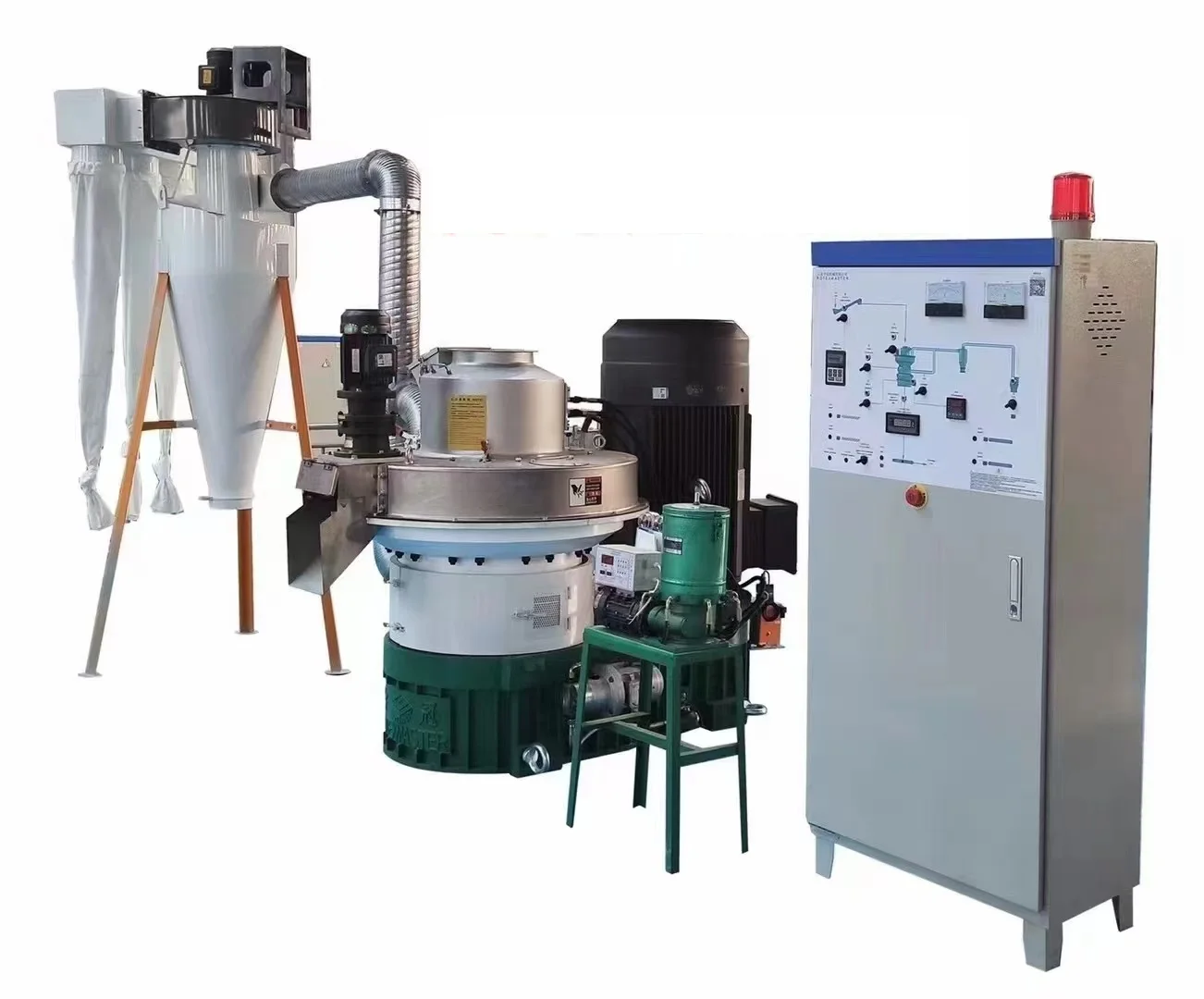

Cyclone & bag dust collector
Using cyclone can separate the water vapor and dust well to avoid cloth bags blockage.


3. Management Advantages

High cost performance comes from mass and standardized production to reduce production costs, and good corporate culture and mature management system to reduce management costs.

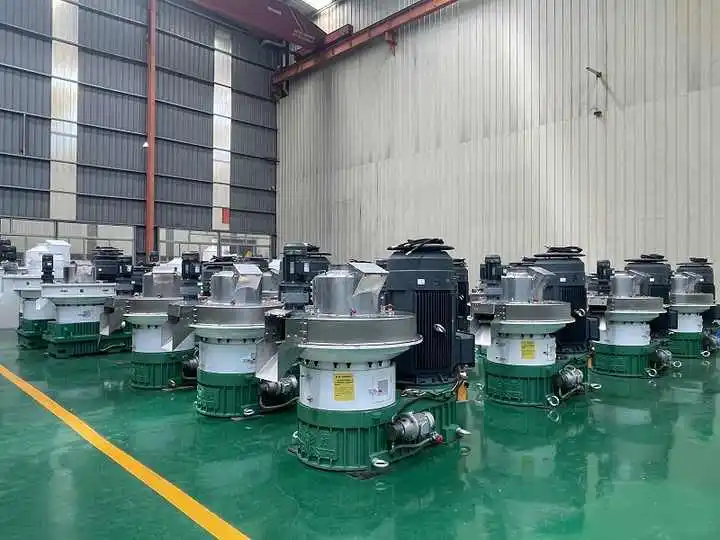

Mass and Standardized Production
Mass and standardized production can reduce the production cost, also guarantee the stable quality
Wood chipper in stock


Company Profile


Shandong Bolida Machinery Co., Ltd. is a manufacturing enterprise focusing on the production of machinery and equipment, integrating scientific research and innovation, sales and service, and international trade. It mainly produces biomass energy equipment, shredding equipment, forage processing equipment and other products. The company's equipment has passed CE, SGS, ISO9000 and other related technical appraisals and approvals.

Shandong Bolida Machinery Co., Ltd. was established in March 2017 and is located in Jinan City, Shandong Province, China, covering an area of more than 60 acres.Since its establishment, the equipment produced by the company has been exported to more than 60 countries and regions in the world. The Crushing series and pellet production line have become the world's best-selling products and have been recognized by the world.

Take "create quality products, win customer trust; Promote the development of employees, enjoy a happy life "for the enterprise development concept,The company focuses on cultivating employees' professional skills and enhancing innovation capabilities; it is committed to improving product quality and providing customers with high-quality and practical mechanical equipment.The company has a professional service team, product development and technical personnel, and a complete service system, so that every customer has no worries about choosing products.




BOLIDA & ROTEXMASTER Team
1) More than 30 Core technical teams
2) More than 65 national patents
3) More than 260 employees
4) Cove an area :80000 square meters
5) CE Certification:
ISO9001 Quality Management System
ISO1400 Environmental Management System
ISO 45001 Occupational Health System CE Certification




Related products




Contact us


Any problem or questions, please feel free to contact Annie Zheng by whatsapp +86 18615687601
for:
- Professional knowledge of machine and industry
- Well understanding of your needs
- Valuable proposal and commitment
- Timely response before and after sale!

Every cooperation is based on mutual trust and common views, welcome to contact for your biomass pellet project!
