Product Overview
Description
Product Description
Specification
额定载荷 Capacity(T） | 0.25 | 0.5 | 0.75 | 1.5 | 3 | 6 | 9 | ||
标准提升高度 Standard Lift(M) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | ||
实验载荷 Running test load(KN) | 3.1 | 6.3 | 11 | 22.5 | 45 | 90 | 135 | ||
两钩间最小距离 Min distance between 2 hooks(mm) | 237 | 283 | 320 | 380 | 480 | 600 | 740 | ||
额定手扳力 Effort requiredto lift rated load(ND) | 160 | 200 | 180 | 380 | 450 | 500 | 550 | ||
起重链行数 Strands of load chain | 1 | 1 | 1 | 1 | 1 | 2 | 3 | ||
起重链直径 Dia. of load chain | 4x12 | 5x15 | 6x18 | 8x24 | 10x30 | 10x30 | 10x30 | ||

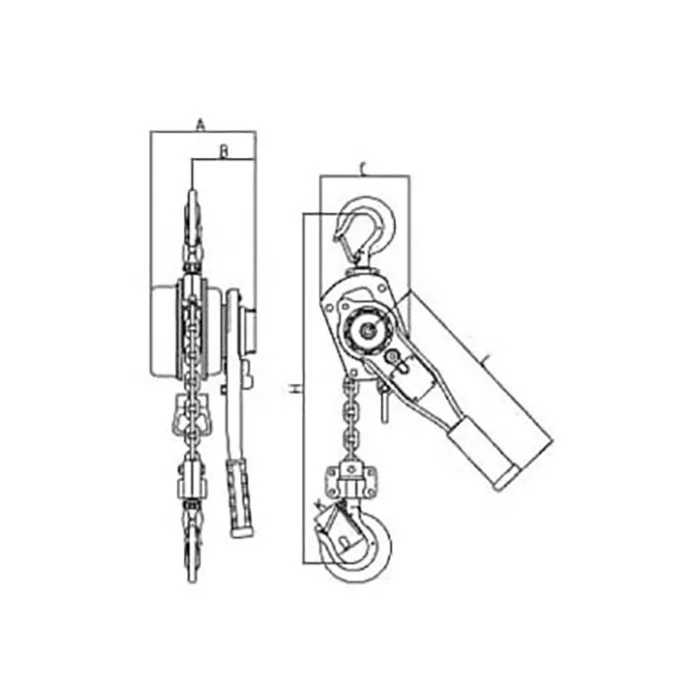

主要尺寸 Dimensions(mm) | A | 119 | 130 | 148 | 172 | 200 | 200 | 200 | |
B | 79 | 83 | 90 | 98 | 115 | 115 | 115 | ||
C | 90.5 | 112 | 136 | 160 | 180 | 235 | 335 | ||
D | 31 | 36 | 40 | 52 | 60 | 68 | 85 | ||
K | 24 | 25.5 | 28 | 38 | 42 | 50 | 57 | ||
L | 168 | 178 | 250 | 300 | 375 | 375 | 375 | ||
净重Net Weight(Kg) | 2.7 | 3.8 | 7.4 | 11.6 | 20 | 29.4 | 45 | ||
提升高度每增加1M增加重量（Kg) Extra per meter of extra lift | 0.41 | 0.52 | 0.8 | 1.1 | 2.2 | 4.4 | 6.6 | ||
包装尺寸 Packages sizes | 21*13*10 | 23*14*14 | 37*16*15 | 48*17*15.5 | 52*20*18 | 54*20*20 | 60*38*28 | ||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
