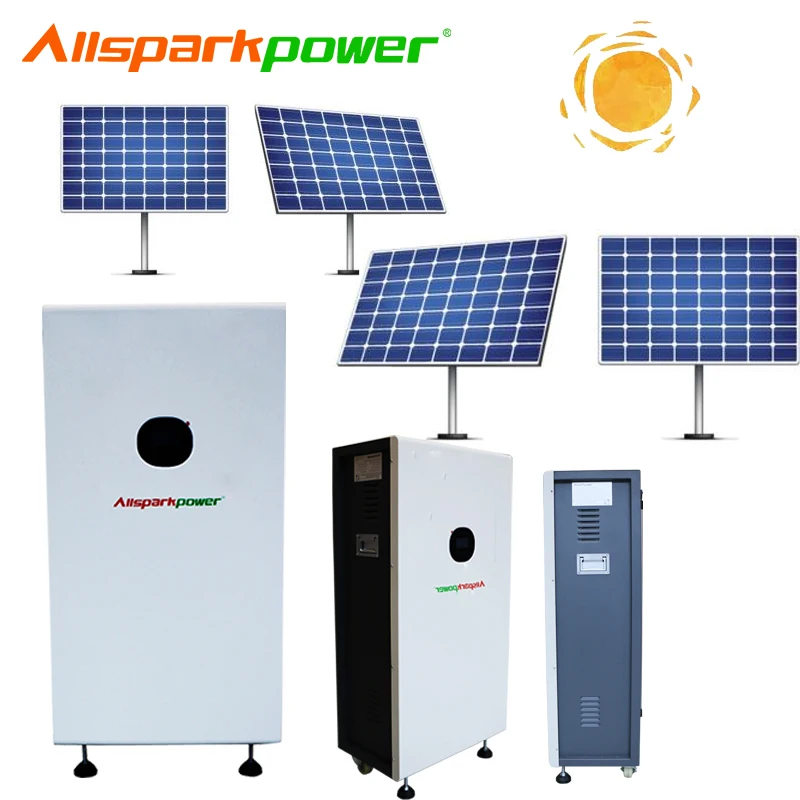

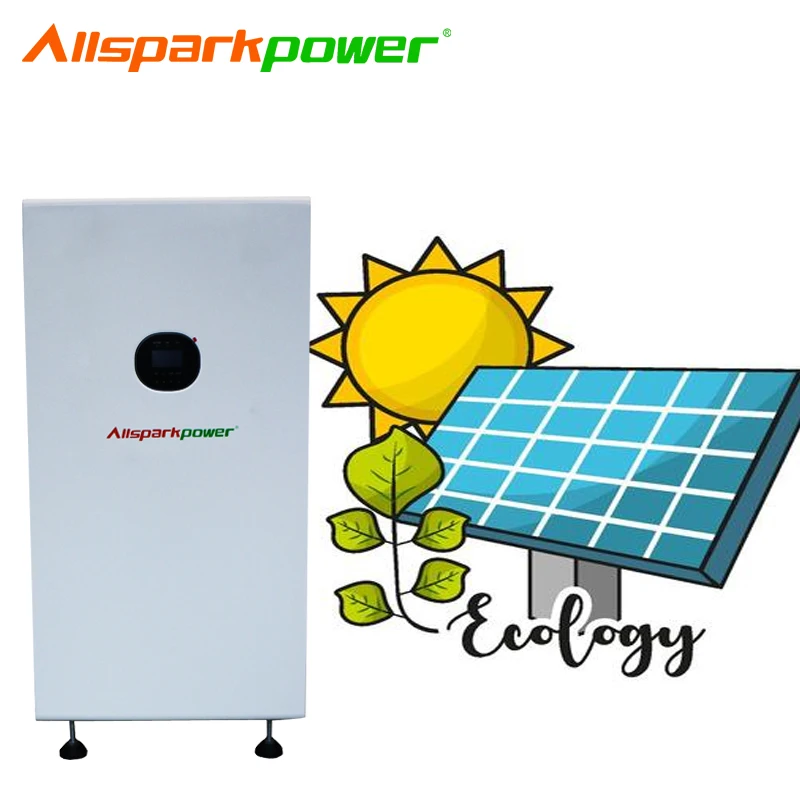

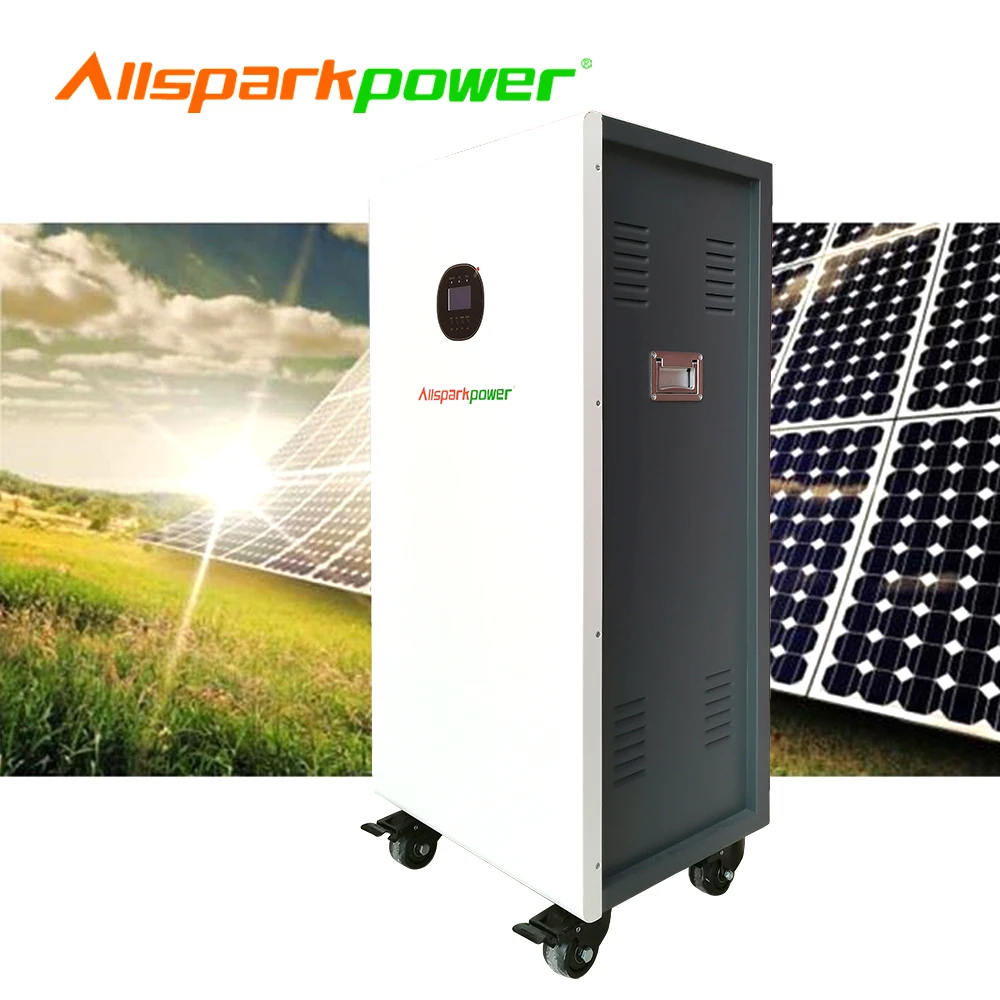

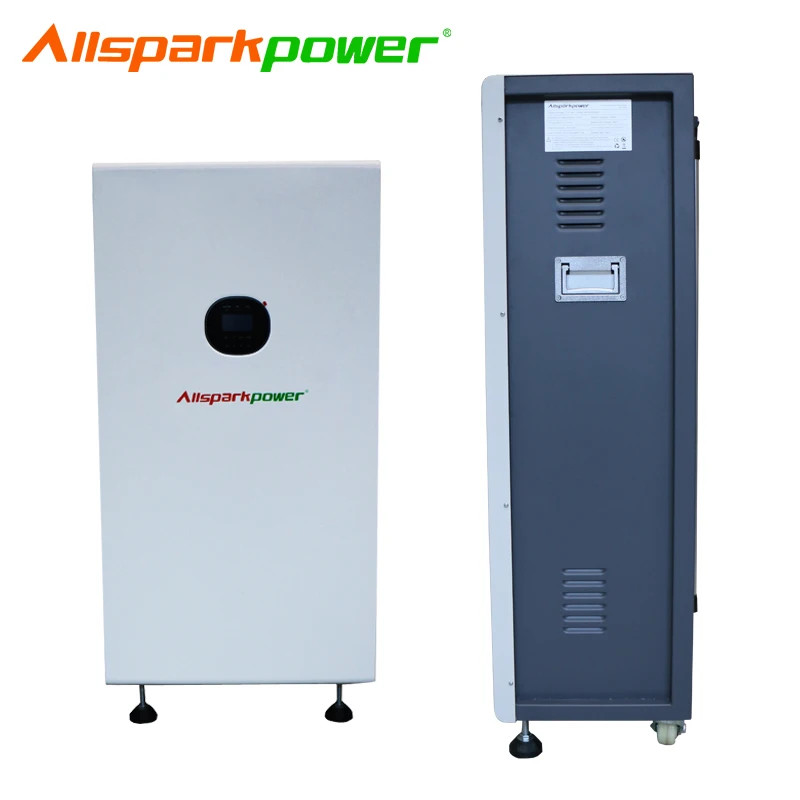

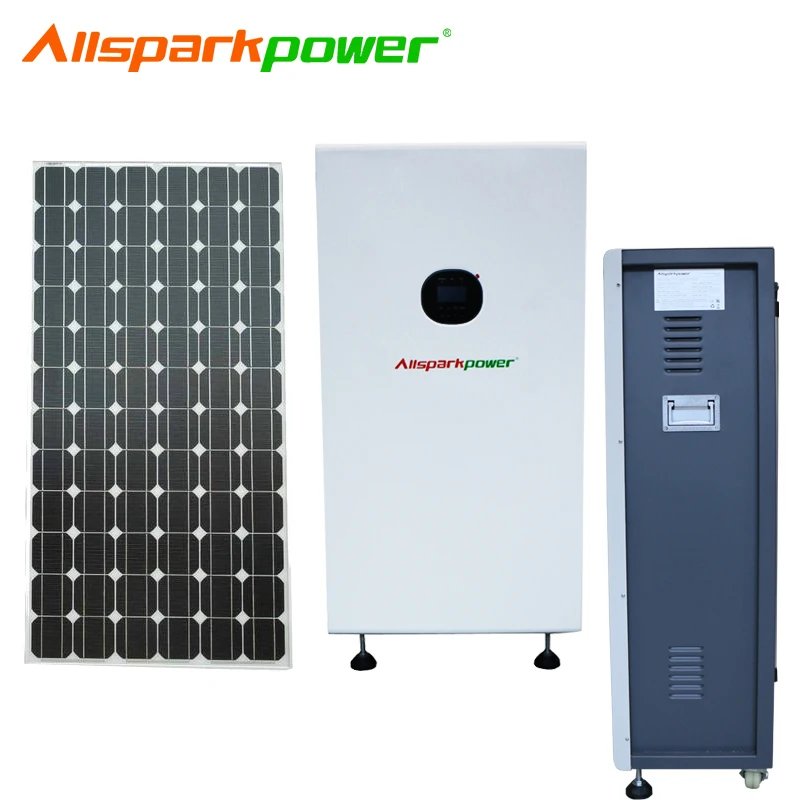

Multifunction All in one 5Kw 9.6Kwh Batteries Energy Storage System Help you Self Energy
- Category: >>>
- Supplier: Hunan Allsparkpower Storage Technology Co. Ltd.
Share on (1600746378909):
Product Overview
Description
Concern Details
View In Advance
AC Voltage (Nominal): 208V, 220V, 230V, 200V, 240V
Feed-in Type: Single Phase
Output Voltage: 230 vac (charge and discharge)
Storage Ability: 9.6kwh
Max Solar input : 4.5kwp
PV Side Max. Input Voltage: 145 VDC
MPPT Voltage: 60-110 VDC
PV Charging Max Current (A): 60A
Charging Max Current (A): 25A
Charging time: 1-3 Hours
Continuous Output Power : 5 kw
Peak power: 7 kw (discharge only)
Power Factor output Range: +/- 1.0 adjustable
Feed-in Type: Single Phase
Output Voltage: 230 vac (charge and discharge)
Storage Ability: 9.6kwh
Max Solar input : 4.5kwp
PV Side Max. Input Voltage: 145 VDC
MPPT Voltage: 60-110 VDC
PV Charging Max Current (A): 60A
Charging Max Current (A): 25A
Charging time: 1-3 Hours
Continuous Output Power : 5 kw
Peak power: 7 kw (discharge only)
Power Factor output Range: +/- 1.0 adjustable
Imbalance for Single-Phase Loads: 100%
Operating Humidity(RH): Up to 100%, condensing
Operating Temperature: -10℃-50℃ / 14°F~122°F
Size（L*W*H): 550*340*1130mm
Weight: 138kgBattery DC voltage: 48V
Depth of Discharge: 90%
Storage Temperature: -20℃-60℃ / 4°F~140°F
Maximum Altitude: 2000m
Noise Level @1m: <35dBA at 30℃
Certificates: CE, MSDS, UN38.3, ISO:9001
Mounting Options: Floor
Warranty: 10 years
Product Descriptions

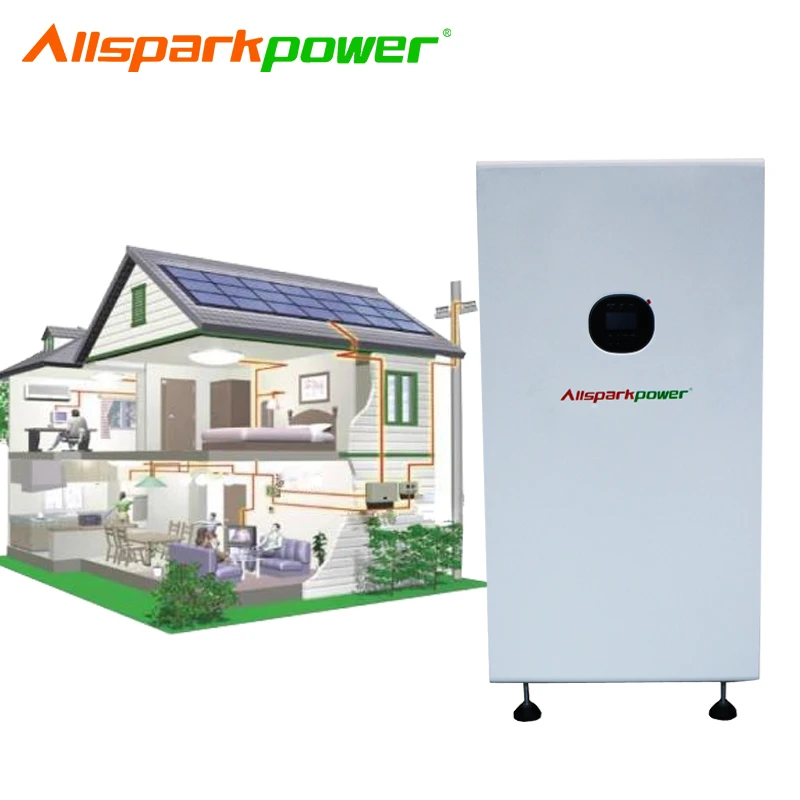

In the aera where electricity price high, they collect electricity fee with price fluctuations rule. With photo voltaic power generation and our power storage system, people can store electricity in low price, use electricity in high price, then we can reduce the cost of electricity using effectively. Cooperate with photovoltaic power generation, it can meet family daily 9.6 kWh electricity using demand, reduce familiy electricity costs as high as 50%.
Applications

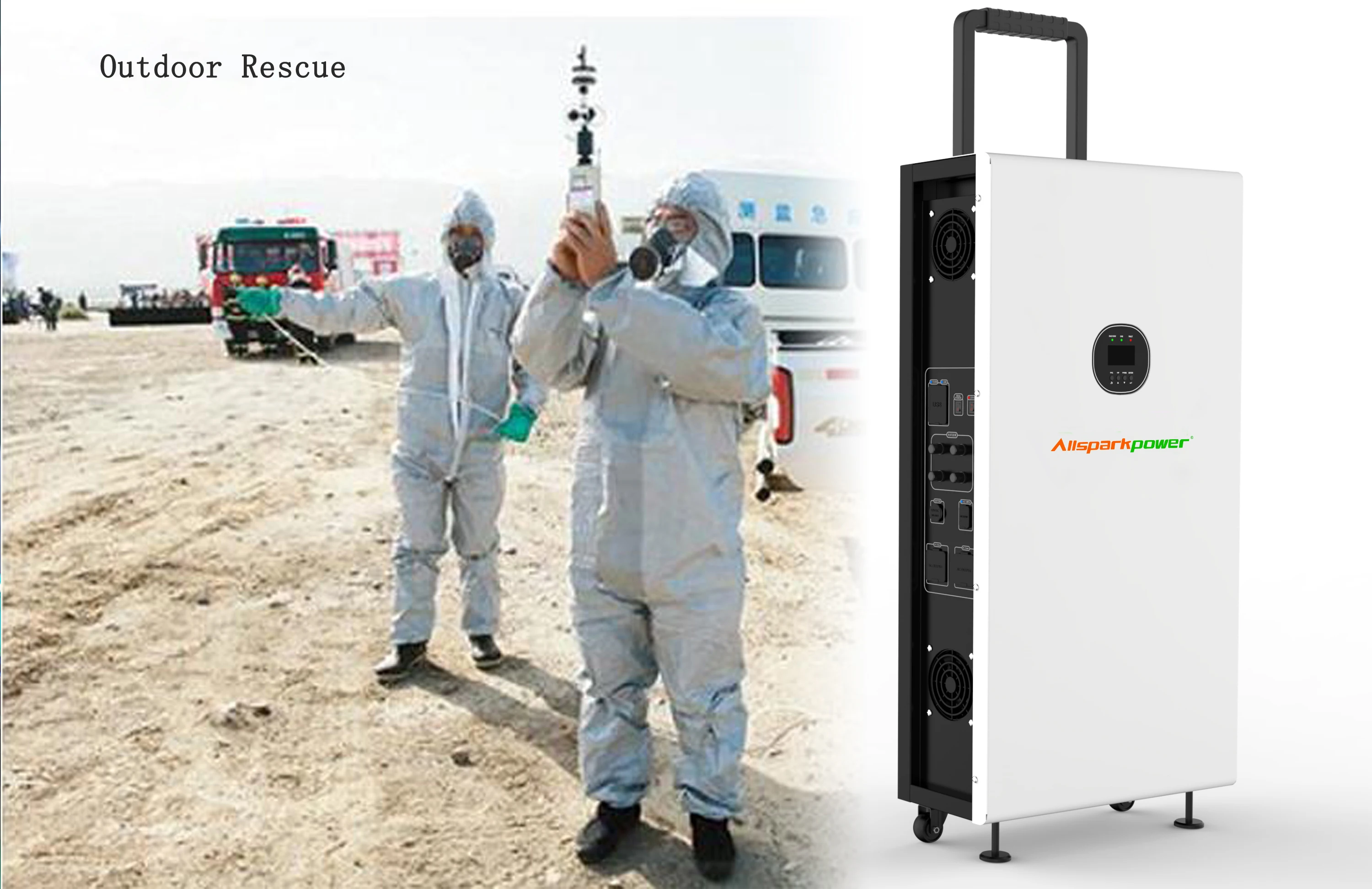

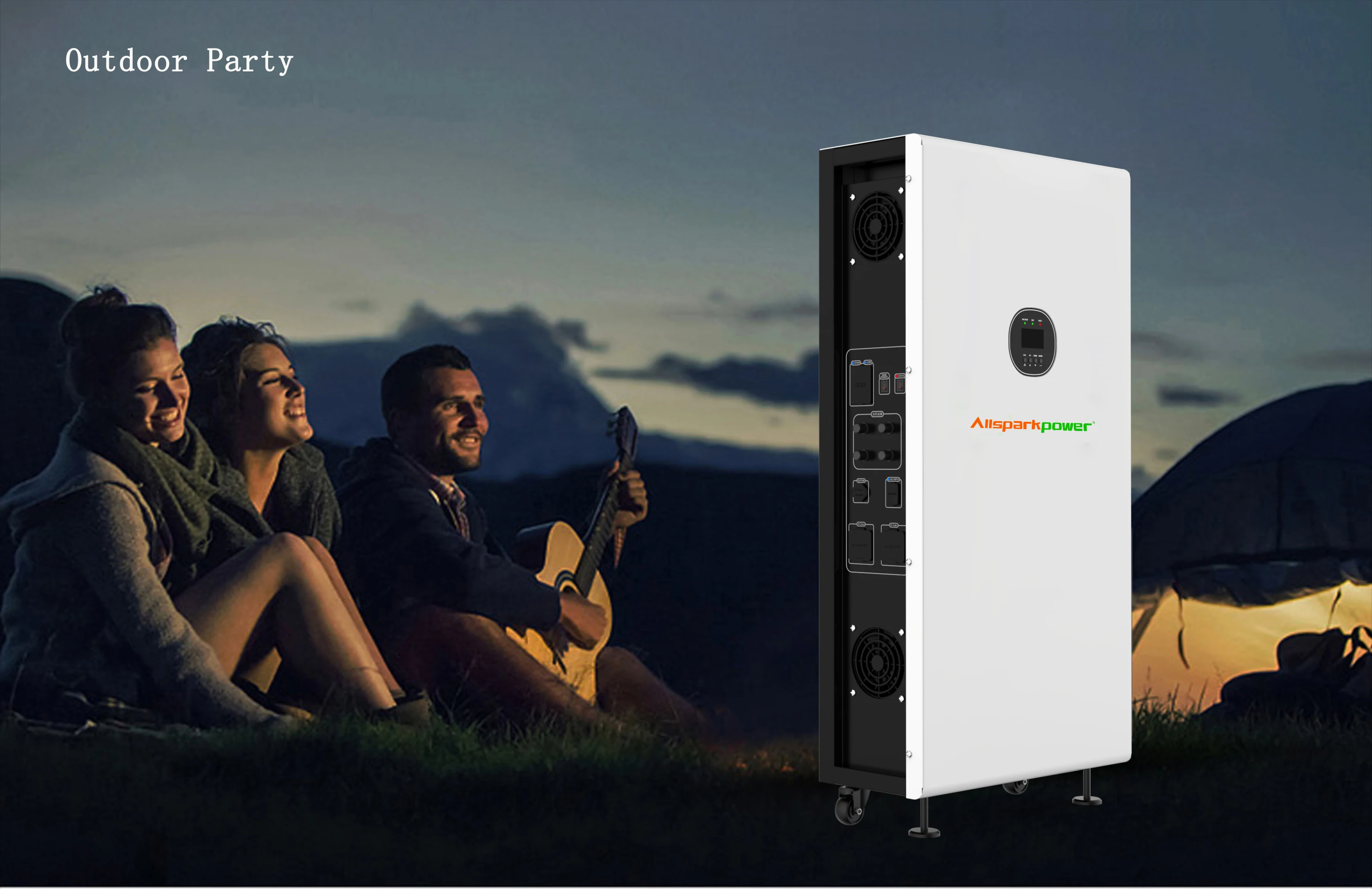

Outdoor Party Outdoor Rescue

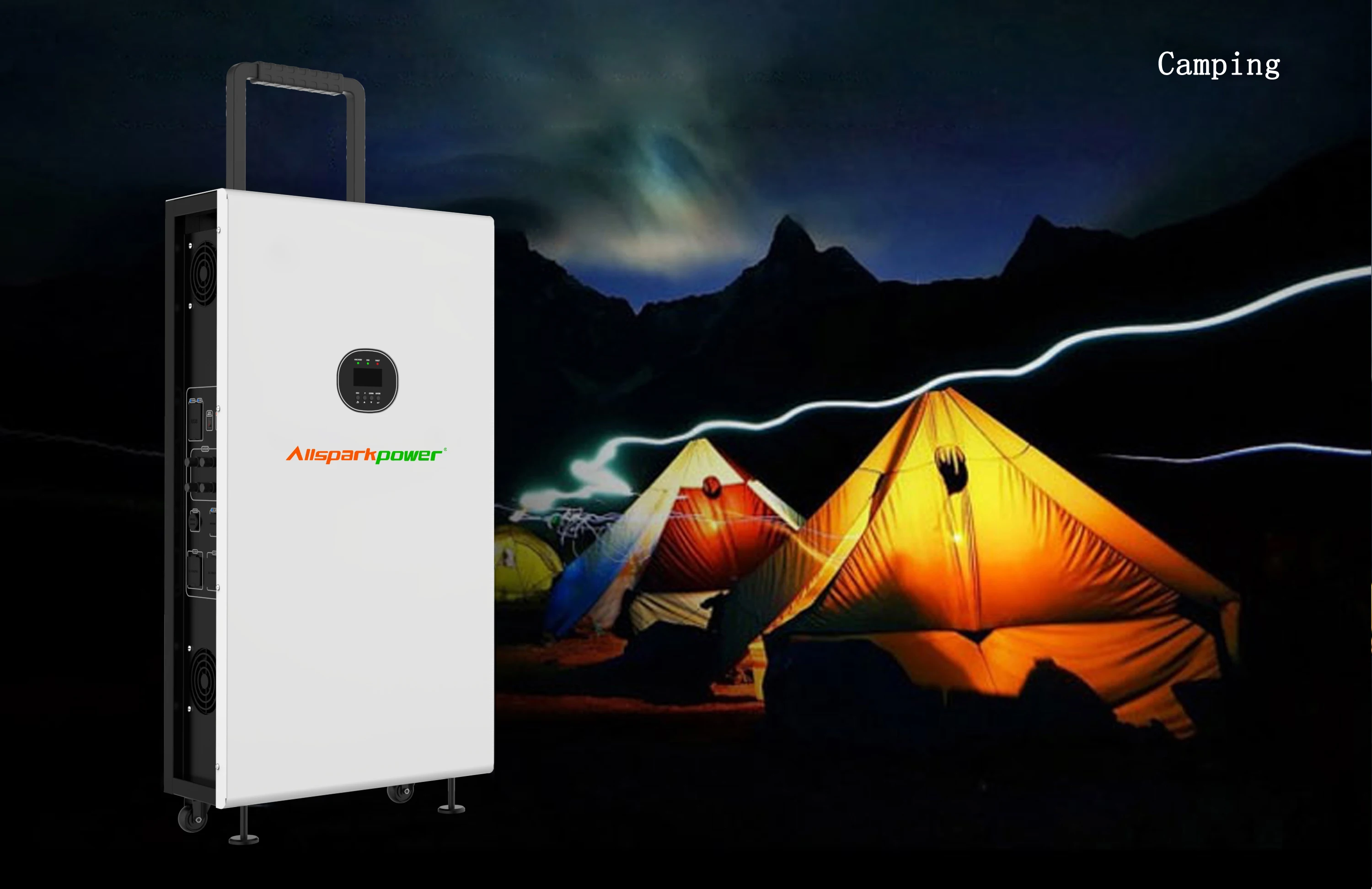

Camping Charging

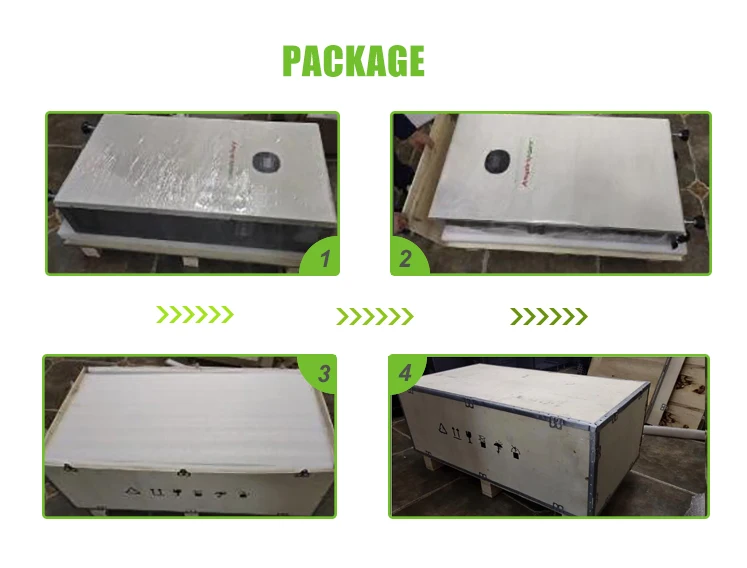

Package & Shipping
Company Profile
Hunan Boltpower Storage Technologies Co., Ltd. is professional energy storage lithium battery manufacturer as well as energy storage solution provider which locates in Changsha national high technology industry park, focus on solar energy storage systems, from batteries cell, battery packs, to integrated portable power station, All in One
residential ESS, industrial outdoor battery cabinets, commercial MWh energy storage container project.
Our R&D and marketing center is located in Shenzhen. We have 2 manufacturing base in Hunan and Guangdong, total operating area over 215, 000 square meters, have over 3500 employees. With professional rich experienced team and excellent performance product, we must can be your great partner in lithium battery filed. Our mission is helping the whole world with electricity and reducing carbon and environmental protection.
residential ESS, industrial outdoor battery cabinets, commercial MWh energy storage container project.
Our R&D and marketing center is located in Shenzhen. We have 2 manufacturing base in Hunan and Guangdong, total operating area over 215, 000 square meters, have over 3500 employees. With professional rich experienced team and excellent performance product, we must can be your great partner in lithium battery filed. Our mission is helping the whole world with electricity and reducing carbon and environmental protection.
Let us Take Green Energy to All Families.
