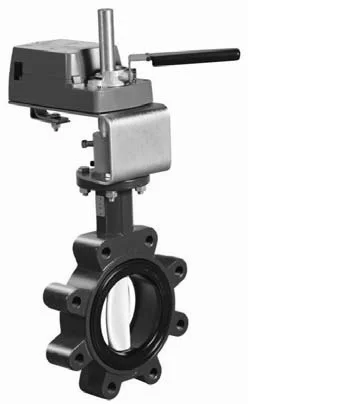

JOHNSON controls M9000 Electrically Actuated, Standard Pressure, Standard Temperature,Two Way Butterfly Valves

Product Overview

Description

M9000 Electrically Butterfly Valves Description

VF Series M9000 Electrically Actuated, Standard-Pressure,Standard-Temperature, Two-Way

Butterfly Valves are specifically designed for a wide range of HVAC applications, including

two-position and modulating control of hot, chilled, or condenser water, and 50/50 glycol

solutions. These valves are also bidirectional, allowing positive shutoff with the flow in either

direction.

Two-way configurations are available in sizes 2 through 6 in.non-spring return, and 2 through

5 in. spring return. M9000 electrically actuated, non-weather shield models feature an integral

handle for manual positioning of the valve, independent of a power supply.

Refer to the VF Series Standard-Pressure,Standard-Temperature Butterfly Valves Product Bulletin (LIT-977205P) for important product application information.

Features

• low seating/unseating torques

• bubble-tight shutoff

• broad range of pre-assembled actuators

• compatible with all types of American National Standards Institute (ANSI) 125/150 slip-on

and weld-neck flanges

• high-integrity components

• M9000 electric actuators available with or without a rugged, factory-installed weather shield

• M9000 electric actuators available with or without end switches

Repair Information

If the VF Series Butterfly Valve fails to operate within its specifications, refer to the VF Series Standard-Pressure, Standard-Temperature Butterfly Valves Product Bulletin (LIT-977205P) for a list of repair parts available.
